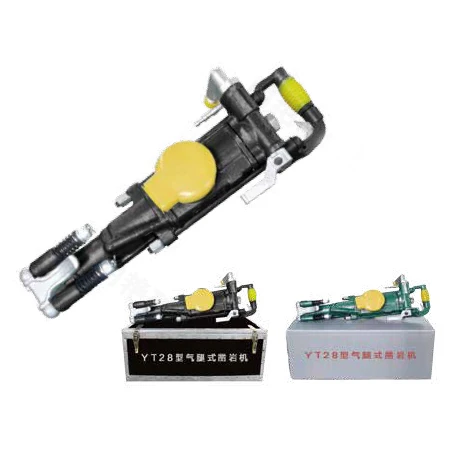

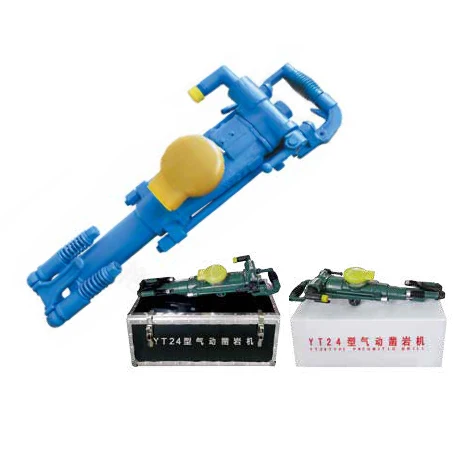

YT24 YT27 YT28 YT29 mining Pneumatic air leg rock drill
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (1600869090189):
Product Overview
Description

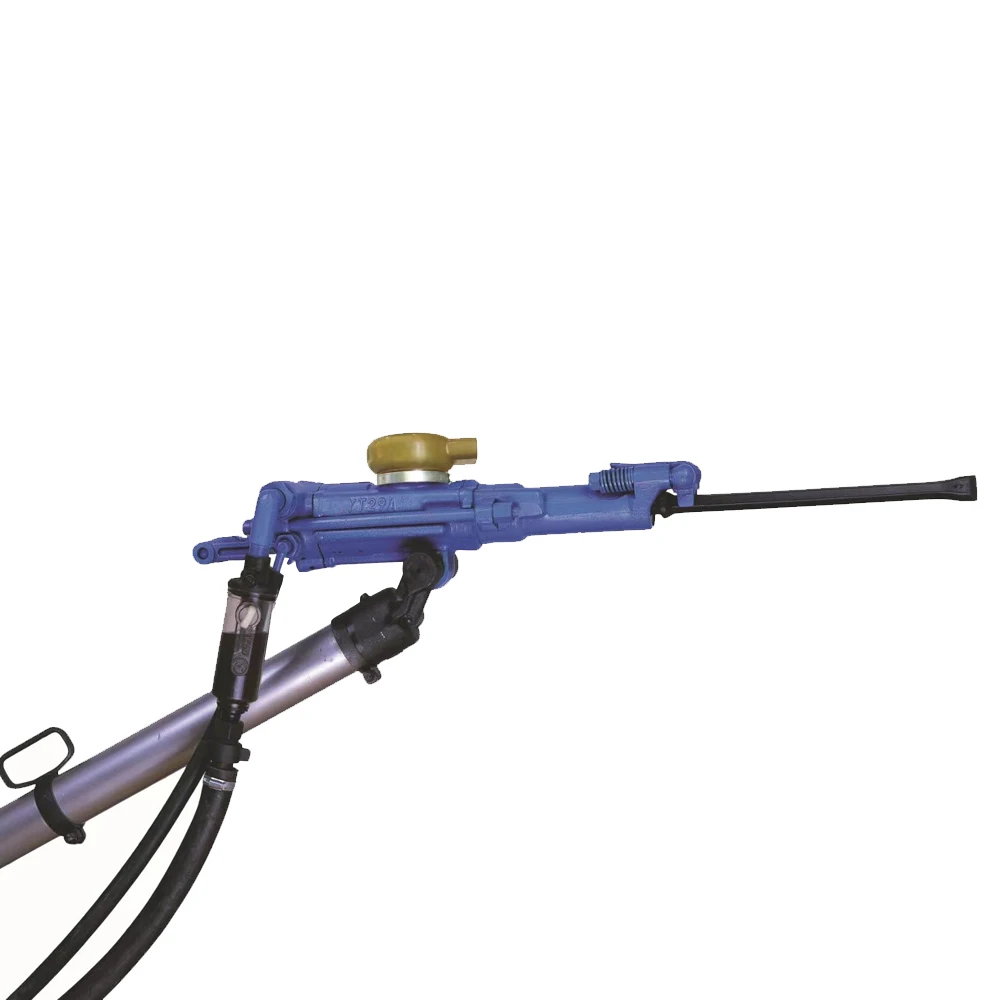

Pneumatic leg rock drill YT29A
YT29A type pneumatic leg rock drill has the characteristics of high rock drilling speed, high efficiency, energy saving and
consumption reduction. It is especially suitable for use in railway, highway, hydropower and other building construction. It is also the roadway excavation of metallurgy, coal and other mines and various rock drilling operations. New machine tools.
consumption reduction. It is especially suitable for use in railway, highway, hydropower and other building construction. It is also the roadway excavation of metallurgy, coal and other mines and various rock drilling operations. New machine tools.
PRODUCT SPECIFICATIONS
Model | TY29A |
Weight | 27kgs |
Dimensions | 659x248x205mm |
Cylinder Diameter | 82mm |
Piston structure stroke | 60mm |
Working air pressure | 0.40-0.63Mpa |
Impact energy | >78 J (063MPa) =69 J (0.5MPa) ≥50 J (0.4MPa) |
Air Consumption | ≤88 L/s (0.63MPa) ≤65 L/s (0.5MPa) ≤52 L/s (0.4MPa) |
Impact frequency | ≥39 Hz (0.63MPa) ≥37 Hz (0.5MPa) ≥36 Hz (0.4MPa) |
Torque | ≥20 N·m (0.63MPa) ≥17 N·m (0.5MPa) ≥15 N·m (0.4MPa) |
Water pressure | 0.3Mpa |
Inner diameter of Hose | 25mm |
Inner diameter of water pipe | 13mm |
Drilling diameter | 34-45mm |
Max Drilling Depth | 5m |
Operation temperature | -30~45 °C |
Drill Pipe adapter Specification | 22 or 25 mm |
Oil Injector | FY250 |
Weight | 1.2Kgs |
Capacity | 0.25L |
Air Leg | FT160A |
Length | 1668mm |
Propulsion stroke | 1338mm |
Product packaging
Rock drill YT29A Packing
Pneumatic leg Packing
Rock drill YT29A Packing
