Manufacturers Deye Hybrid Solar Air Conditioner 12000 18000 24000 Btu Jntech
- Category: >>>
- Supplier: Guangdong Japower Energy Technology Co. Ltd.
Share on (1600869161879):
Product Overview
Description
Manufacturers Deye Hybrid Solar Air Conditioner 12000 18000 24000 Btu Jntech
Product Specifications
T3 Hybrid ACDC Solar Air Conditioner (Middle East Market) | ||||||||||
Model | Unit | 12000BTU | 18000BTU | 24000BTU | ||||||
DGWA1-ACDCBLW-12K | DGWA1-ACDCBLW-18K | DGWA1-ACDCBLW-24K | ||||||||
Climate Type | Tropical | T3 | T3 | T3 | ||||||
Application area | m2 | 12-20 | 20-30 | 30-42 | ||||||
Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | |||||||
DC Power (PV in Series) | V | 80-380V | ||||||||
DC Power Current | A | 10A | ||||||||
Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | ||||||
Rated Cooling | Capacity(T1) | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) | |||||
BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000） | |||||||
Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | ||||||
Capacity(T3) | W | 2910 | 4290 | 5130 | ||||||
BTU | 9900 | 14700 | 17500 | |||||||
Power input(T3) | W | 1050 | 1630 | 1940 | ||||||
Rated Heating | Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) | |||||
BTU | 14000(3000-15300） | 20800(4100-23000) | 26600(6100-31000) | |||||||
Power input | W | 1170(190-1700) | 1770(220-2500) | 2290(300-3500) | ||||||
T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | ||||||
T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | 2.65/9.00 | ||||||
COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.40/11.60 | ||||||
Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | ||||||
Compressor | Model | / | WHP04200 | WHP05600 | 5RD198 | |||||
Type | / | 2x ROTARY | 2x ROTARY | 2x ROTARY | ||||||
Brand | / | Highly | Highly | Panasonic | ||||||
Indoor fan motor | Model | BLDC-15W | BLDC-45W | BLDC-45W | ||||||
Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | ||||||
Indoor air flow(Turbo/Hi/Mi/Lo) | m3 /h | 540/485/435/350 | 980/880/740/620 | 1290/1180/1070/900 | ||||||
Indoor noise level (Turbo) | dB(A) | 42.5 | 46 | 50 | ||||||
Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | 1080×330×237 | |||||
Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | 1140×300×382 | ||||||
Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | ||||||
Outdoor fan motor | Model | / | BLDC-40W | BLDC-55W | BLDC-75W | |||||
Speed | r/min | 880 | 880 | 850 | ||||||
Outdoor air flow | m3 /h | 2100 | 2200 | 3300 | ||||||
Outdoor noise level | dB(A) | 52 | 55 | 58 | ||||||
Outdoor unit | Dimension(W×H×D) | mm | 802×564×323 | 802×564×323 | 900×700×337 | |||||
Packing (W×H×D | mm | 910×622×405 | 910×622×405 | 1006×755×418 | ||||||
Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | ||||||
Refrigerant type | / | R410A | ||||||||
Max Design pressure | MPa | 4.3/1.5 | ||||||||
Refrigerant copper pipe | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 | |||||
Max. refrigerant pipe length | m | 15 | 20 | 25 | ||||||
Max. difference in level | m | 8 | 10 | 10 | ||||||
Drain pipe size | mm | 16 | 16 | 16 | ||||||
Refrigerant connction copper pipe length | m | 3 | 4 | 4 | ||||||
Connection wire length | m | 4 | 5 | 5 | ||||||
Electronic Expansion Valve | / | Yes | Yes | Yes | ||||||
Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | ||||||
Products Details
Product Details Images

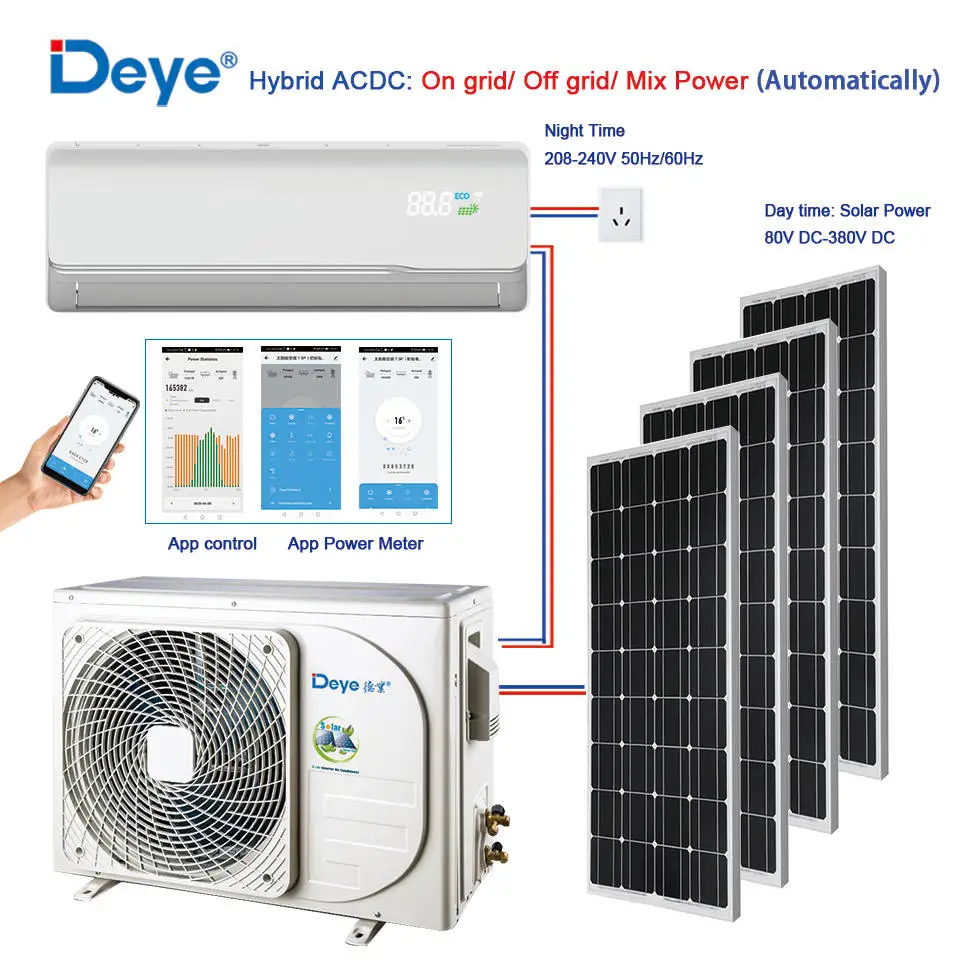

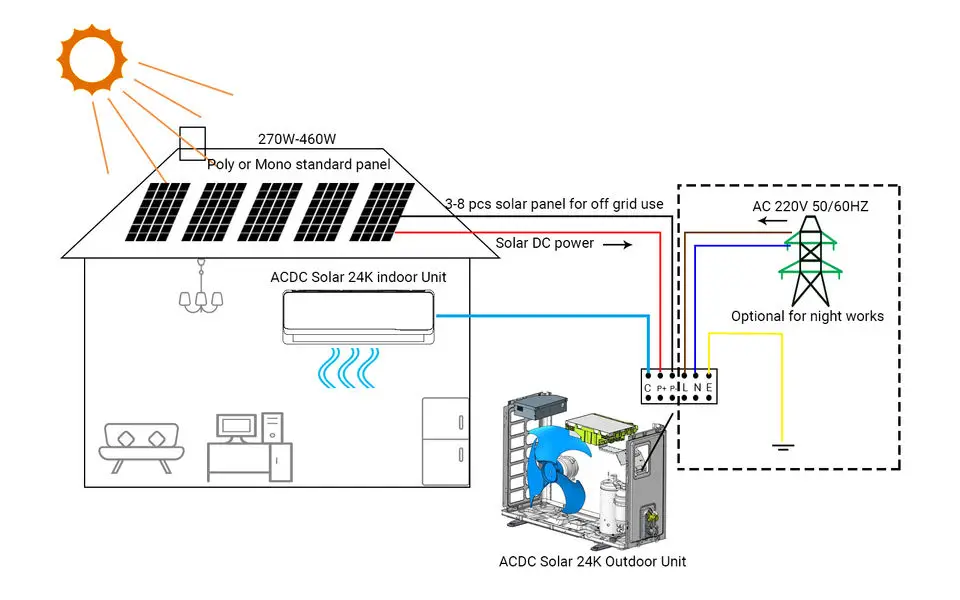

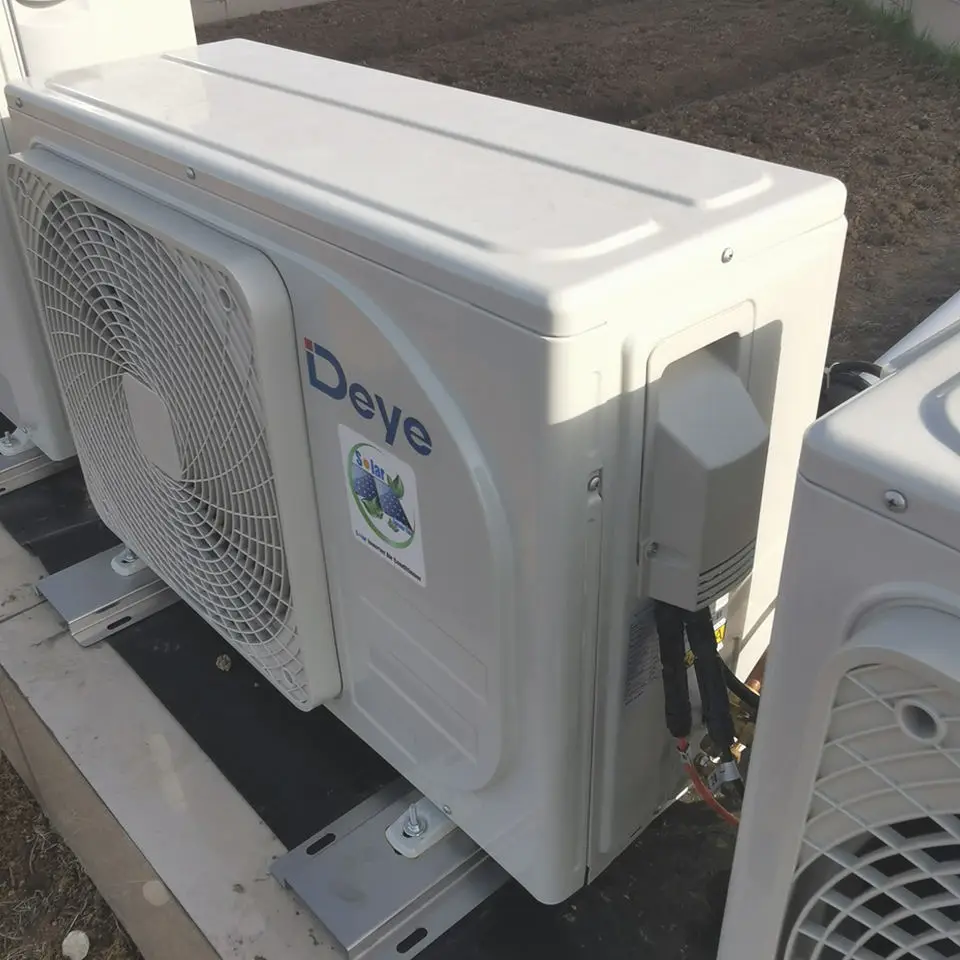

1. MC4 connect to solar panel2. Power cable connect to Grid
3. Indoor and outdoor unit connection.
3. Indoor and outdoor unit connection.

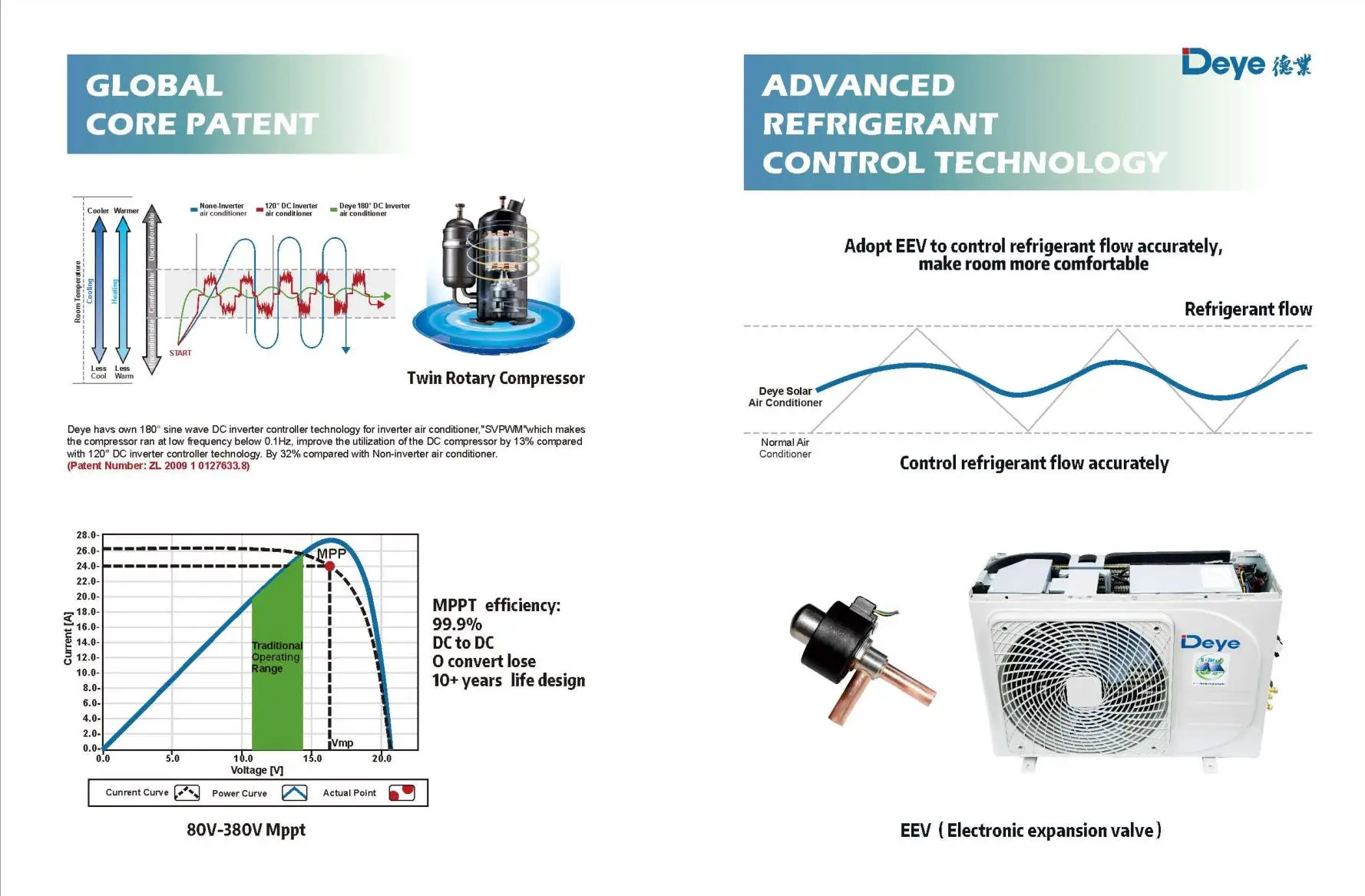

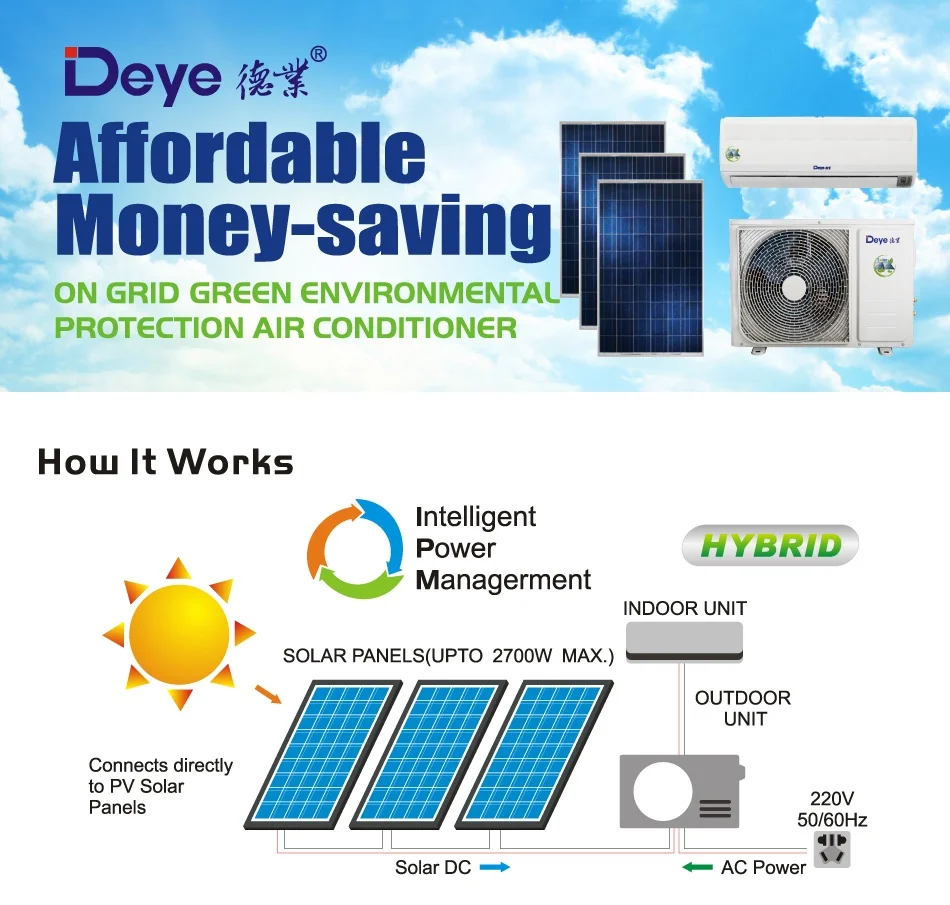

1.PCB controller integratedNo need solar inverter
2.No need battery
2.No need battery

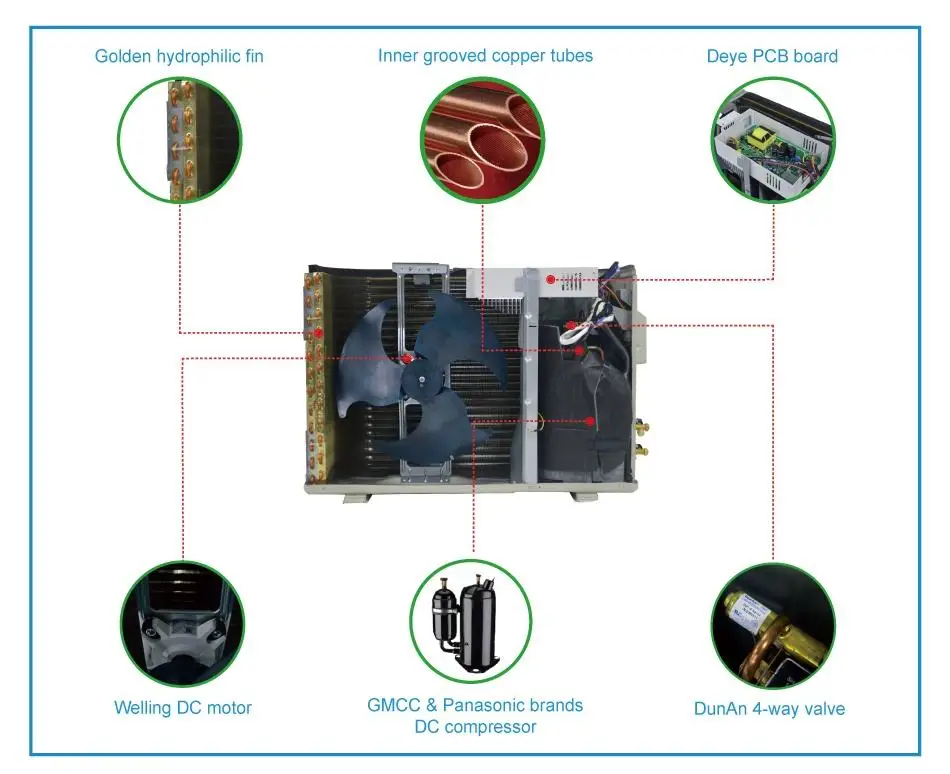

1.PCB and controller designed and produced by Deye.
2.Hardware and soft ware both can be upgrade based on different market standard.
Company Information
Ningbo Deye Inverter Technology Co., Ltd
Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types,for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.
Certifications

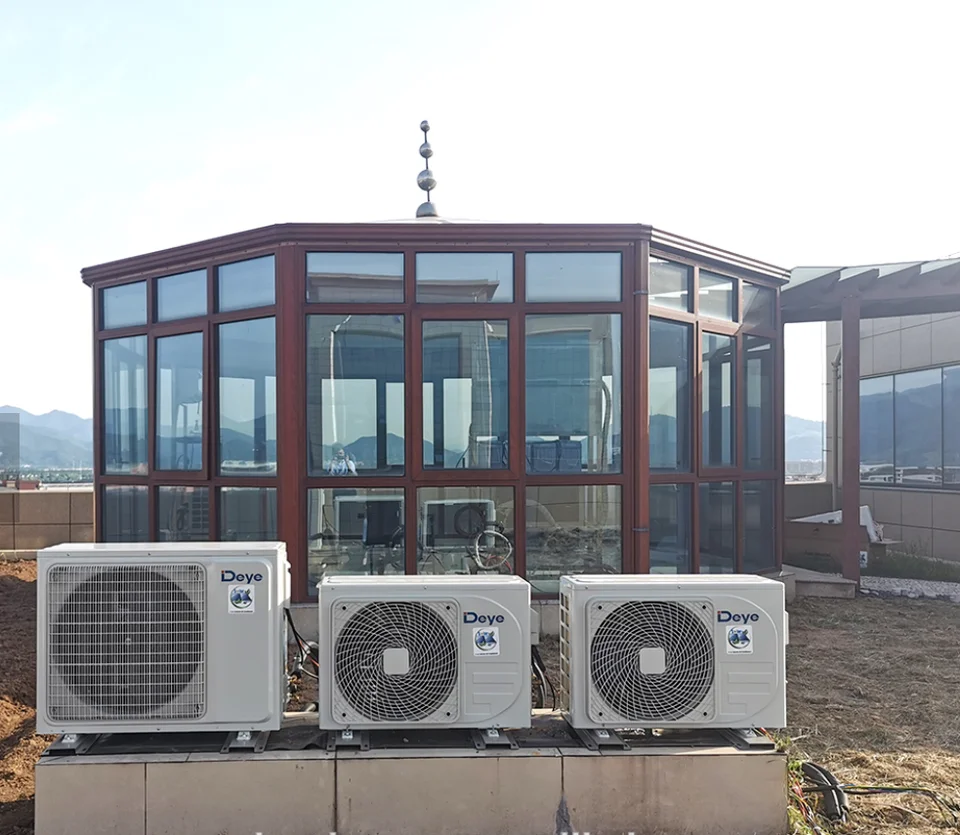

Products Application
