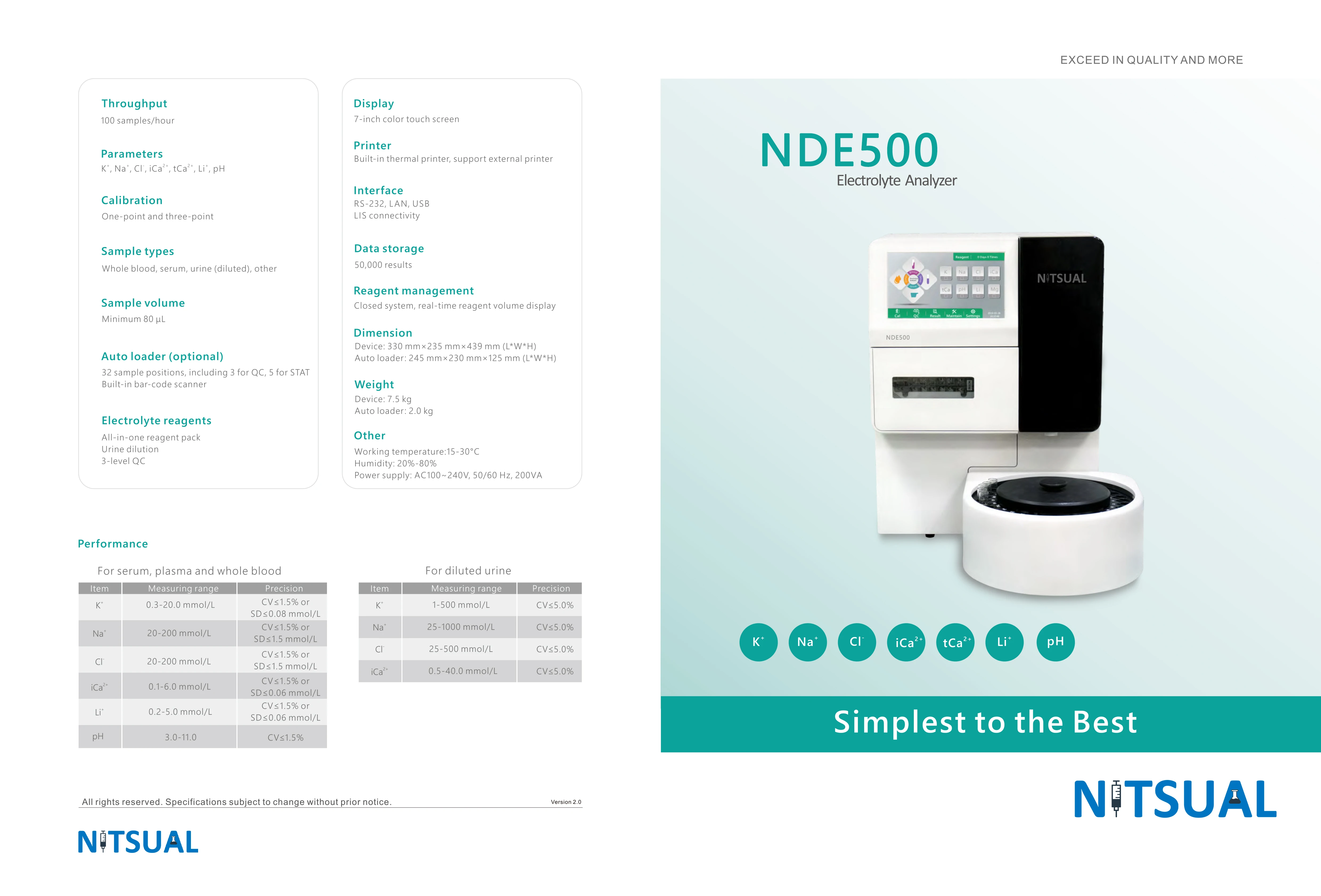

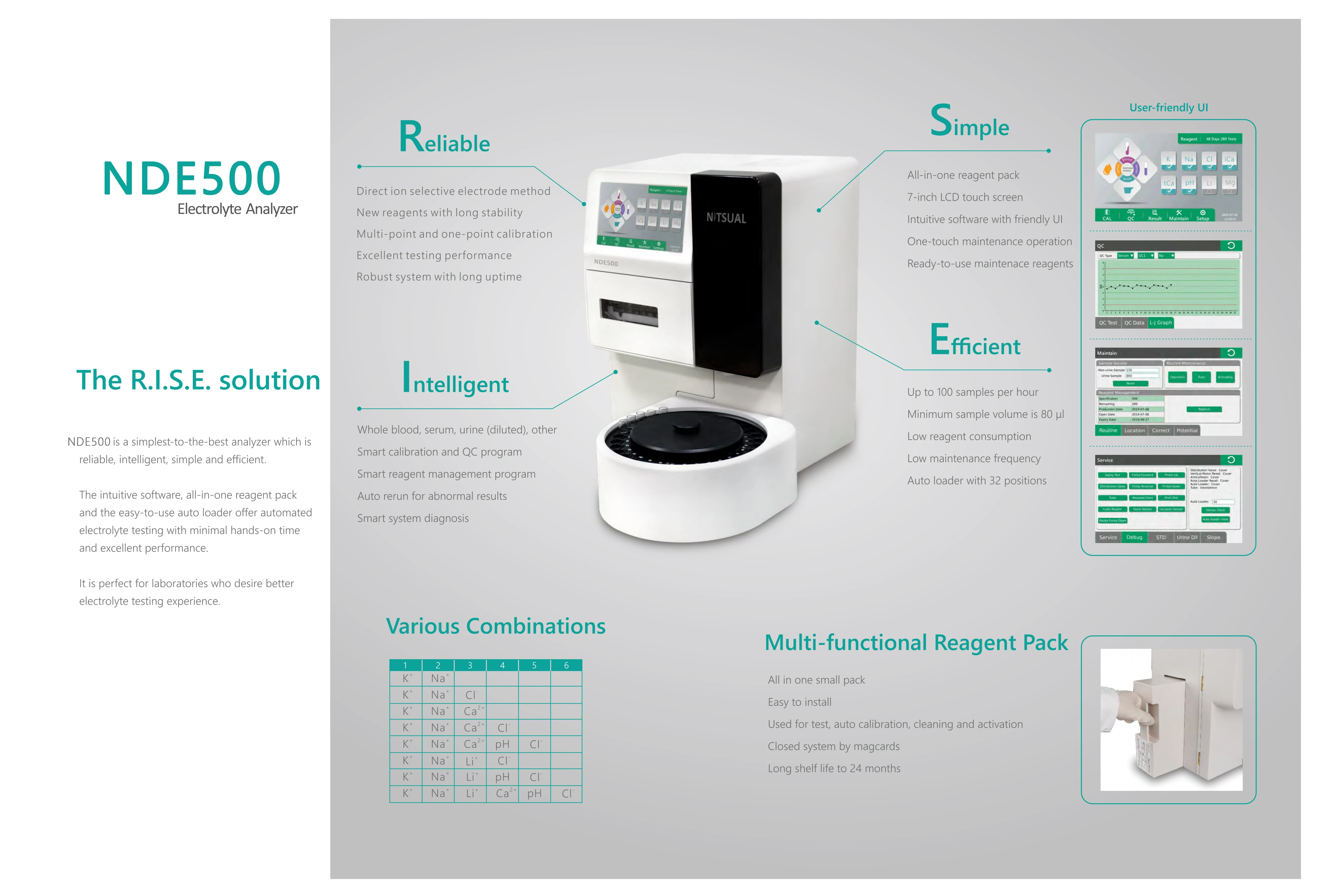

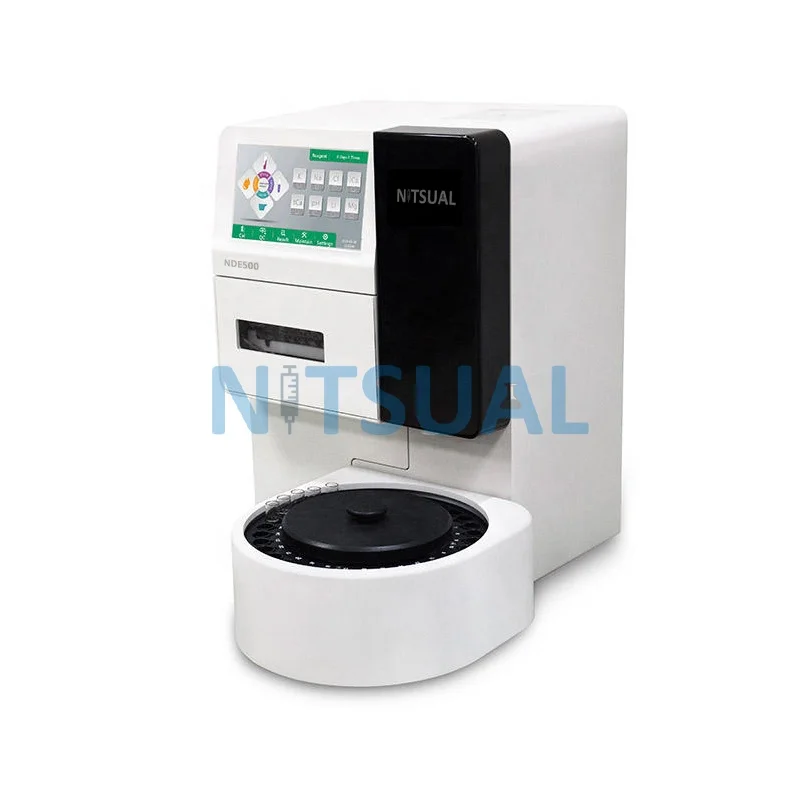

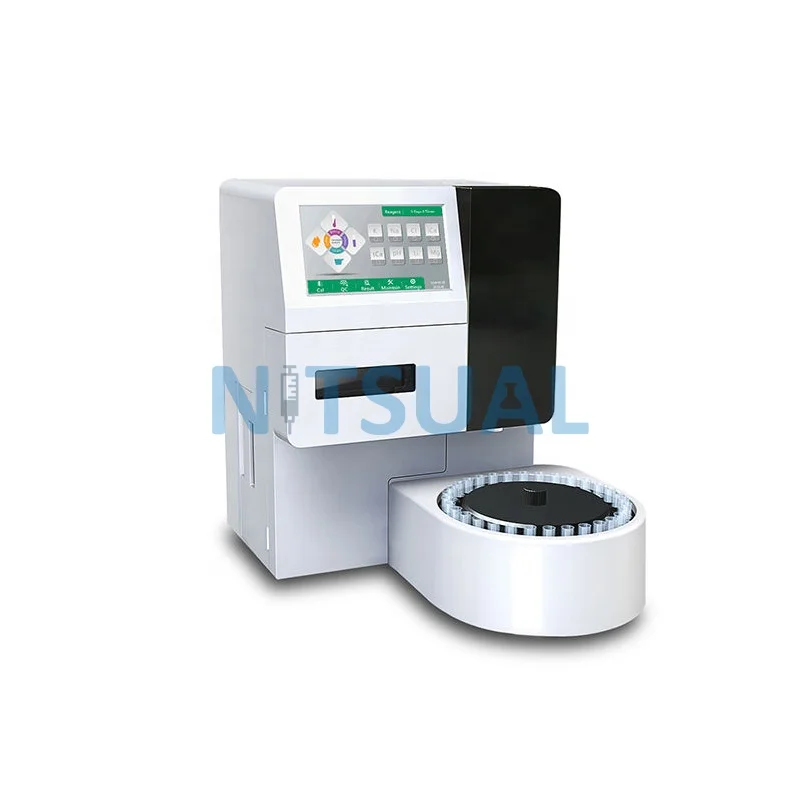

NDE500 Specification
|
Item
|
Descriptions
|
General
|
Method
|
Ion selective electrode
|
Parameters
|
K+, Na+, Cl-, Ca++, Li+, pH
|
Combinations
|
K+, Na+
K+, Na+, Cl-
K+, Na+, Ca++
K+, Na+, Cl-, Ca++
K+, Na+, Cl-, Ca++, pH
K+, Na+, Cl-, Li+
K+, Na+, Cl-, Li+, pH
K+, Na+, Cl-, Li+, Ca++, pH
|
Throughput
|
100 samples/hour
|
Sample types
|
Whole blood, serum, urine (diluted) and others
|
Sample volume
|
80-200 ul (800ul for diluted urine)
|
Sampling method
|
Manual and auto loader
|
Reagents and Consumables
|

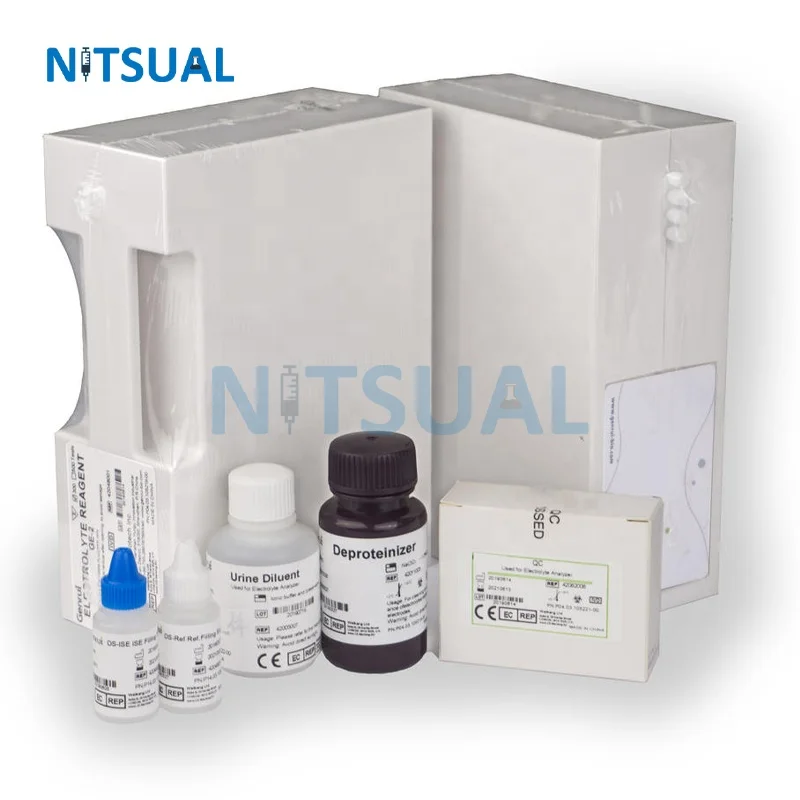

Reagent packs
|
500 tests per kit, 300 tests per kit
|
Reagent management
|
Closed system. Real-time monitering of reagent volume and status
|
Expiration
|
2 years (unopened), 50 days (opened)
|
Others
|

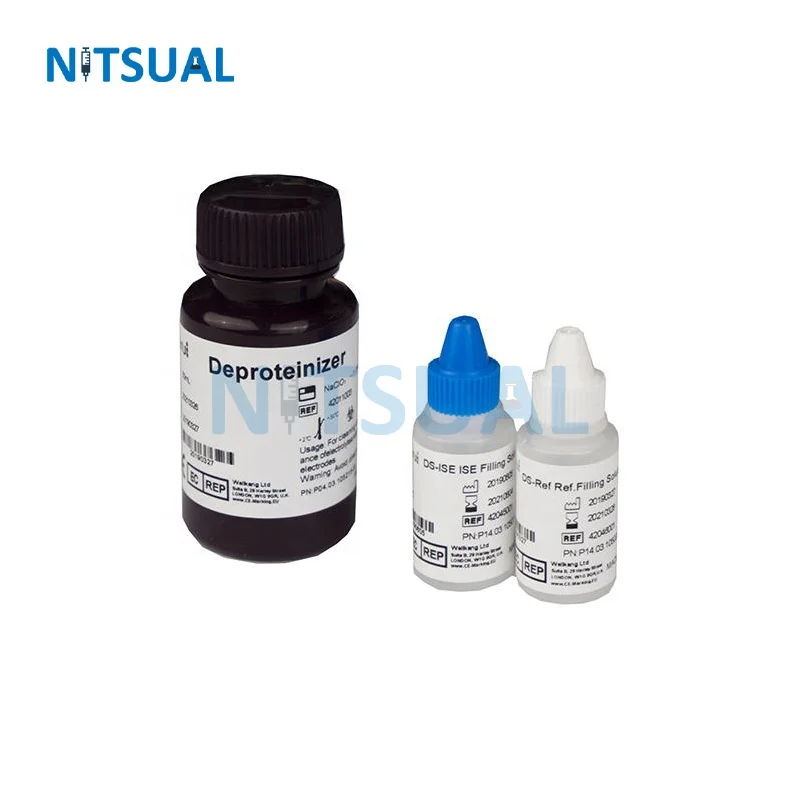

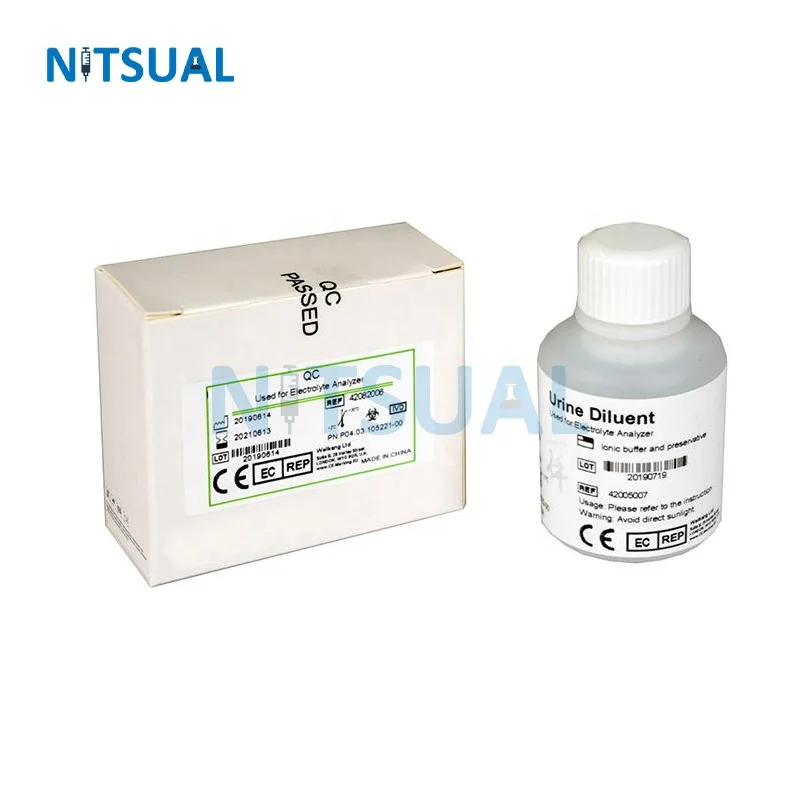

3-level QC (3*10ml), urine diluent (50ml), deproteinizer (50ml), DS-Ref Ref. Filling Solution (10ml), DS-ISE Filling Solution
(10ml)
|
Specifications
|
Calibration
|
Automatic and manual calibration. One-point or multi-point.
|
Probe cleaning
|
Automatic interior and exterior wash
|
Liquid level detection
|
Automatic sample liquid level detection
|
Liquid path detection
|
Automatic reagent detection to avoid bubble
|
Collision detection
|
Yes
|
Auto loader (optional)
|
32 sample positions (1 for deprotein, 3 for QC, 5 for STAT)
|
Built-in barcode scanner
|
Input
|
7-inch color touch screen, external barcode scanner
|
Output
|
Built-in printer and external printer, LIS connection
|
Print
|
Automatic and manual print
|
Measuring unit
|
mmol/L, mg/dl
|
Language
|
English, Spanish, etc.
|
Storage
|
50,000 samples
|
Interface
|
RS232, USB, LAN
|
Power supply
|
AC 100-240 V, 50/60 Hz, <200VA
|
Working temperature
|
15-30℃
|
Humidity
|
20%-80%
|
Dimension
|
Device: 330mm*235mm*439mm (L*W*H);
Auto loader: 245mm*230mm*125mm (L*W*H)
|
Weight
|
Device: 7.5Kg,
Auto loader: 2.0Kg
|
