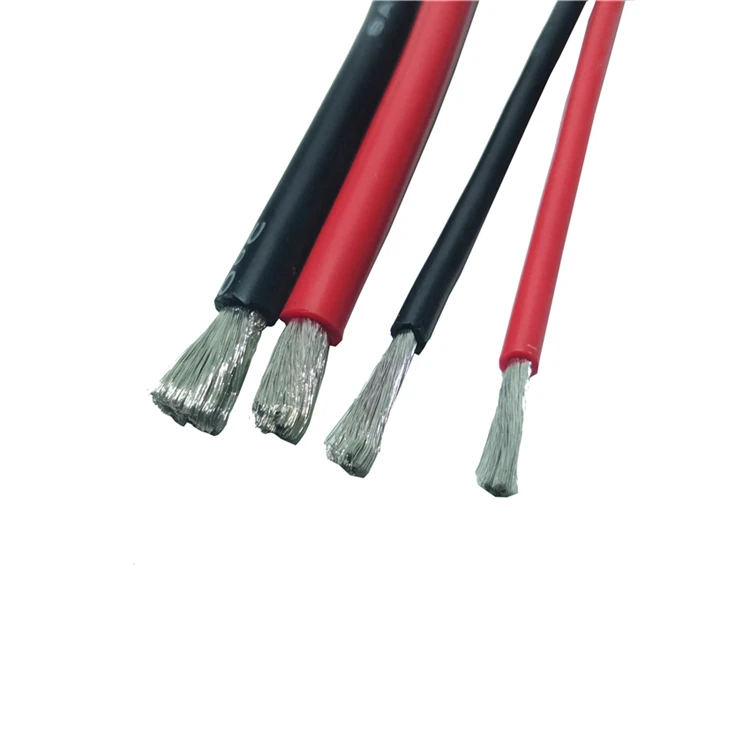

Super Soft High Flexible Silicone Cable Wire Gauge 6 8 10 12 14 16 18 20 22 24 Awg Ultra Flexible Heat Resistant Silicone Cable

The Characteristics of High Temperature Silicone Cable
Application:
High Temperature Silicone Cables are used where high flexibility is required and high temperatuer conditions. It is therefore a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines.

Standard:
UL758, UL62, UL1581

Mechanical properties:
Tensile strength: ≥3.45N/mm²
Elongation at break of insulation: ≥100%
Min.Bending radius: 6×OD

Advantage:
High Temperature Silicone cables have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC. The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength. The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechnical protection by maintaining good flexibility. The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oil and most types of cleaning agents. In the event of fire, no corrosive and toxic gases will be given off. Hence, damage caused by fire can be kept to minimum.

Customer Service on Silicone Cable:
Being one of the Cable Suppliers, we always put quality in the first place. In order to guarantee the performance of Silicone Rubber Cable , hanstar produce the cable in strict accordance with international standards. Our silicone insulated cable is very popular in the world. We promise to provide the qualified products for our customers.

GET FREE SAMPLE
You can order up to pieces FREE samples. We will contact you within 24 hours afer you fulfill the form.

1.What is silicone wire used for?
Silcone Insulated wire is mainly used for household appliances, motors, electric heating appliances.
It has excellent aging resistance, softness and long service life. It is als called heat proof silicone cable.

2.What is condctor of silicone cable?
The conductor for silicone cable is tinned copoer.

3.What is different between PVC and Silicone?
Silicone is belong to rubber materal, pvc is belong to plastic material. The working temperature for PVC cable is -15ºC up to 70ºC, while the working temperature of Silicone Wire is -55ºC up to 180ºC.
