RP2040 One Raspberry Pi Microcontroller Board Python 4MP Flash Type A Processor for Raspberry Pi SMD Applications
- Category: >>>
- Supplier: Shenzhen SHCHV Technology Co. Ltd.
Share on (1600869324722):
Product Overview
Description
Description

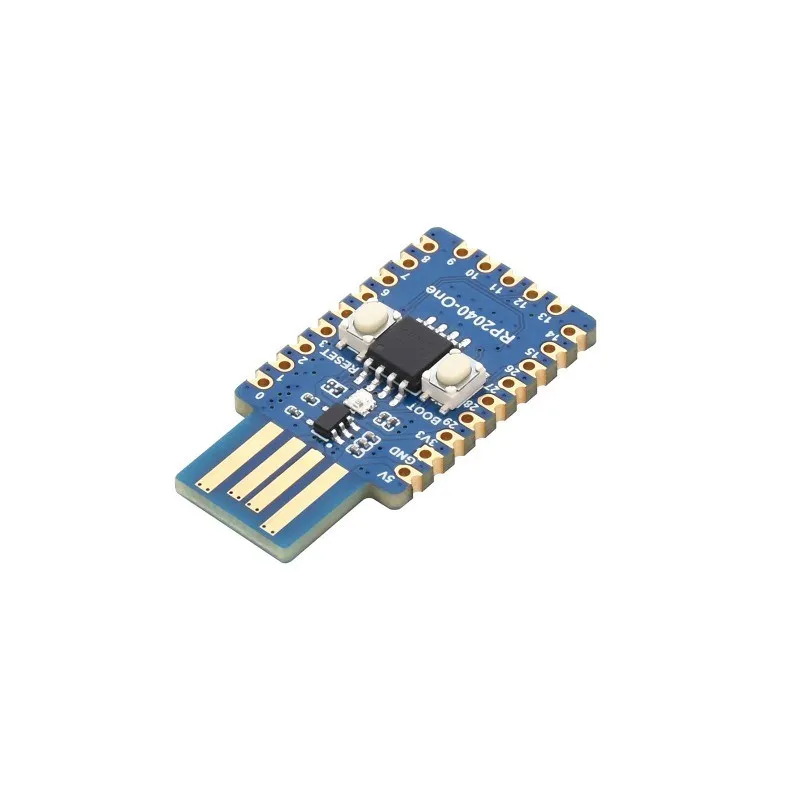

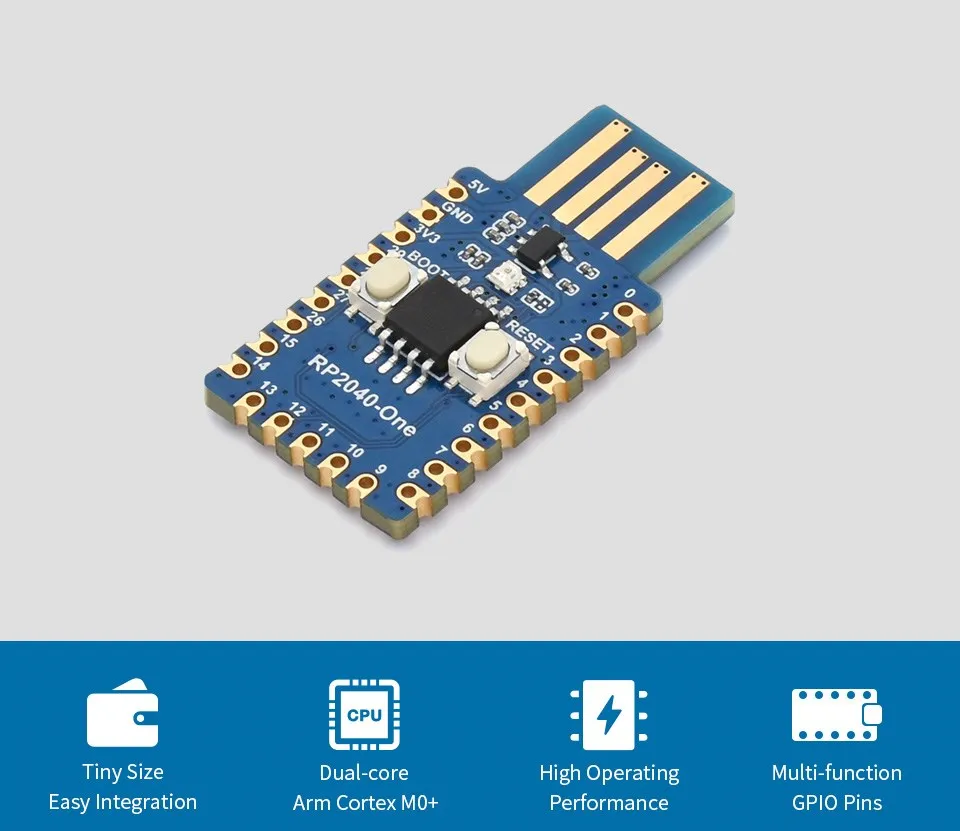

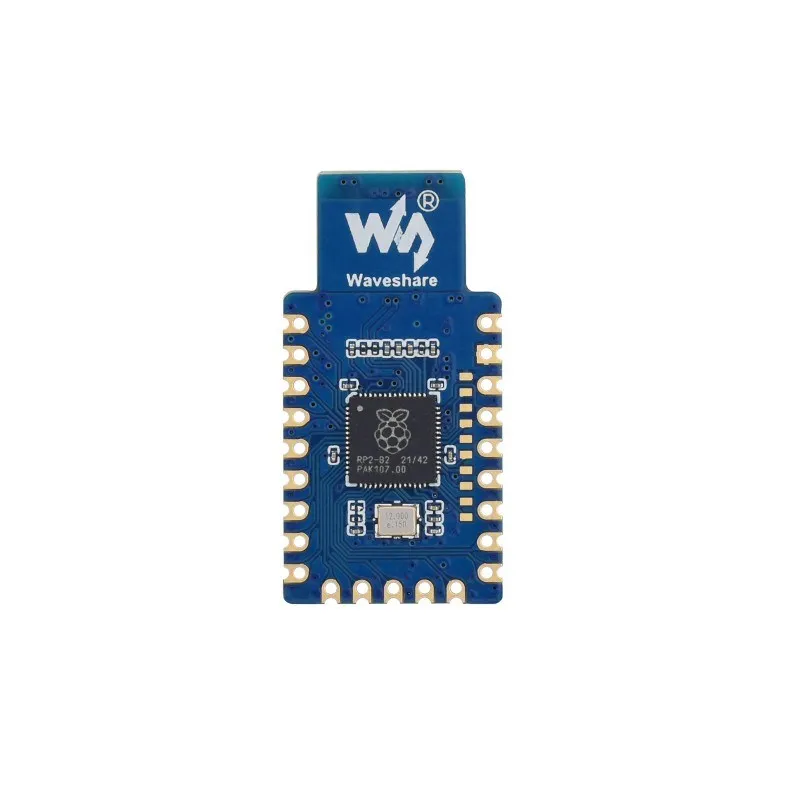

RP2040-One
a Pico-like MCU board based on Raspberry Pi RP2040
Castellated Module, Suitable For SMD Applications
Board Specifications
* RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom* Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
* 264KB of SRAM, and 4MB of on-board Flash memory
* Castellated module allows soldering direct to carrier boards
* USB 1.1 with device and host support
* Low-power sleep and dormant modes
* Drag-and-drop programming using mass storage over USB
* 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
* 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
* Accurate clock and timer on-chip
* Temperature sensor
* Accelerated floating-point libraries on-chip
* 8 × Programmable I/O (PIO) state machines for custom peripheral support

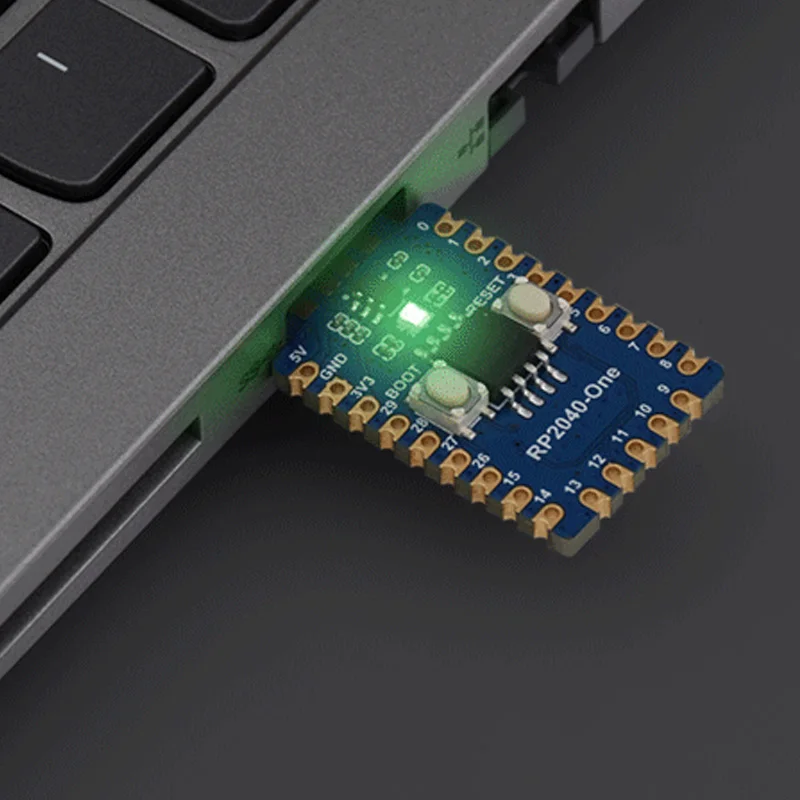

Onboard USB-A Plug
Plug And Play, No Additional Cables Required

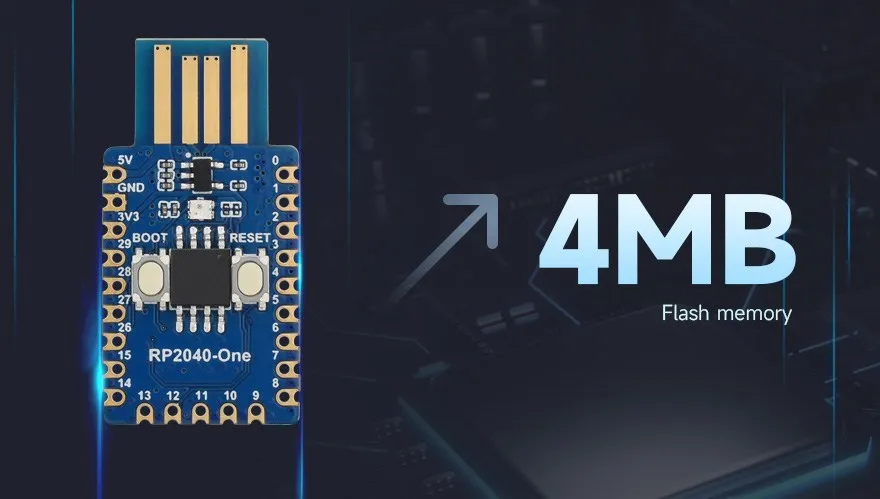

Larger Flash Memory
4MB Flash Available For More Possibilities
C/C++, MicroPython Support
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

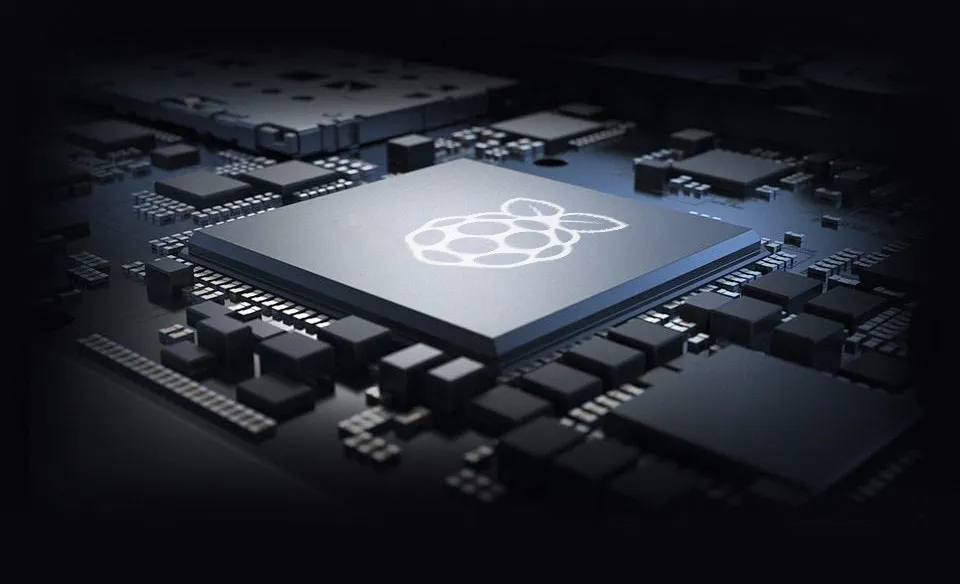

Dual-Core Arm Processor
Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

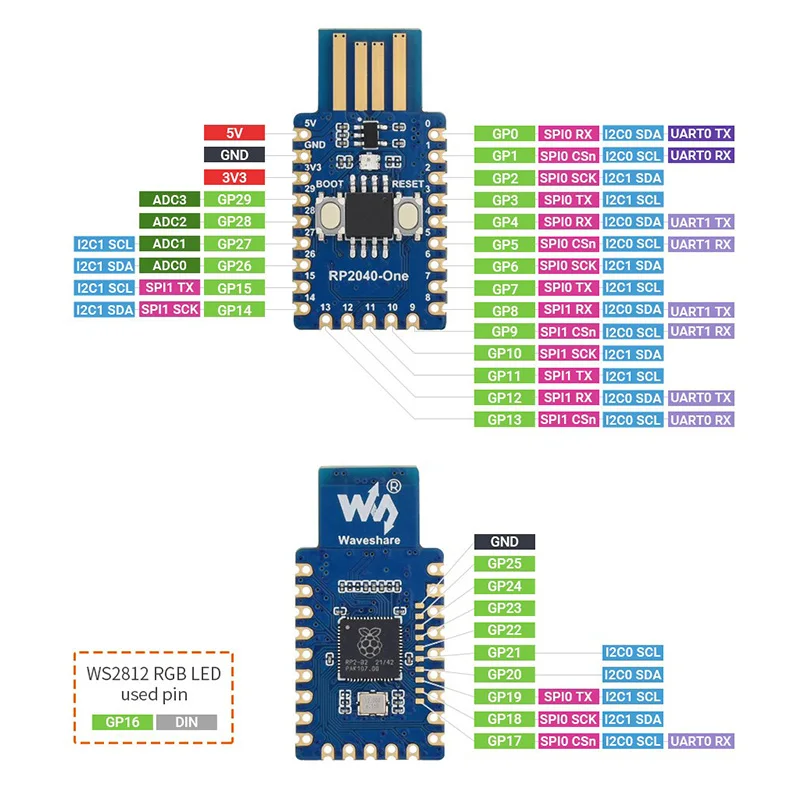

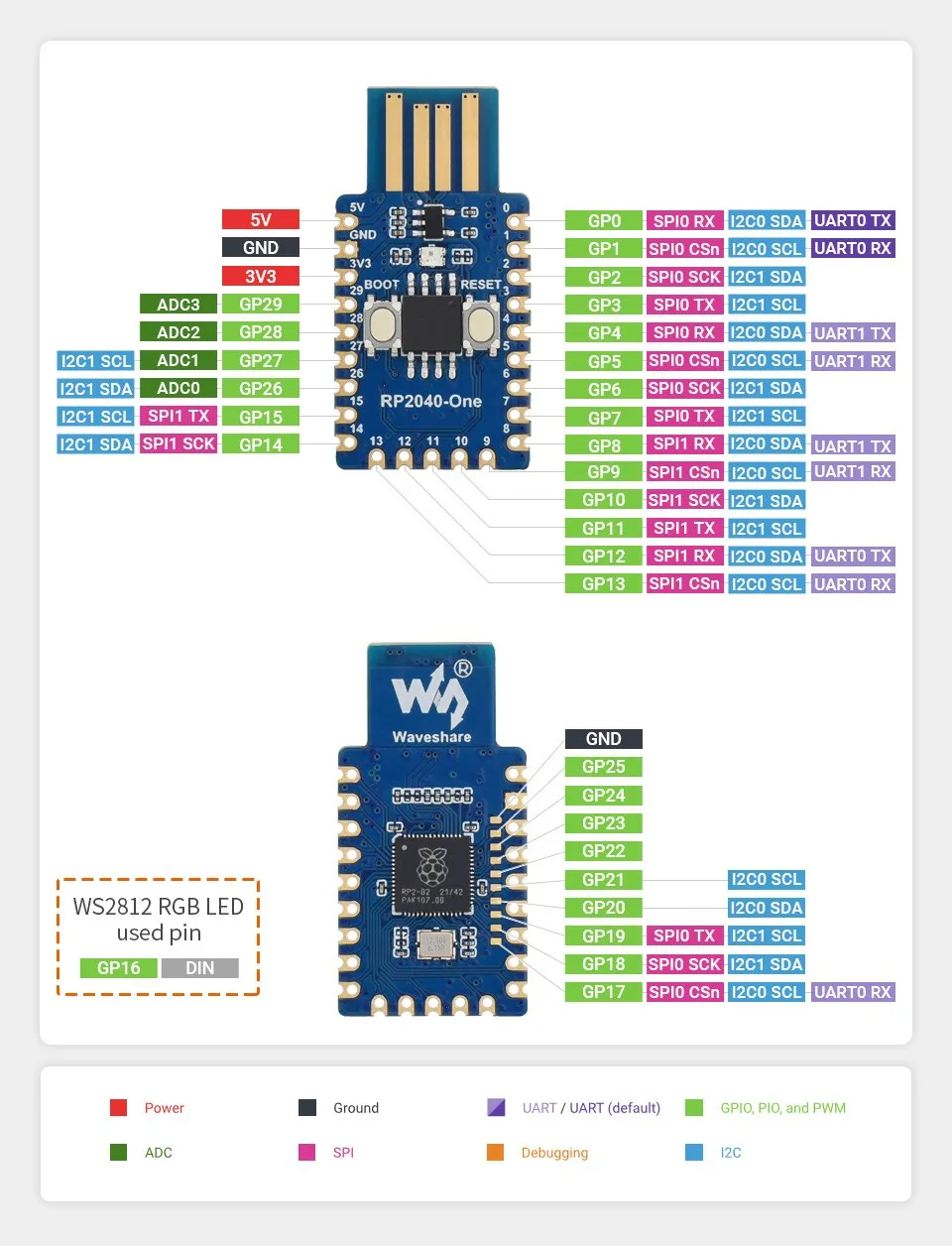

29 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

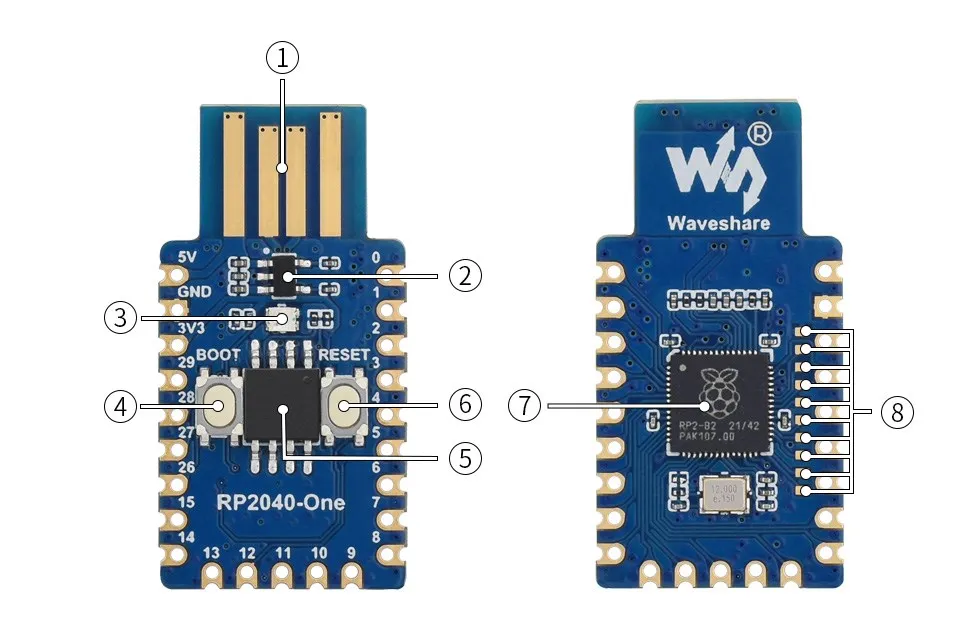

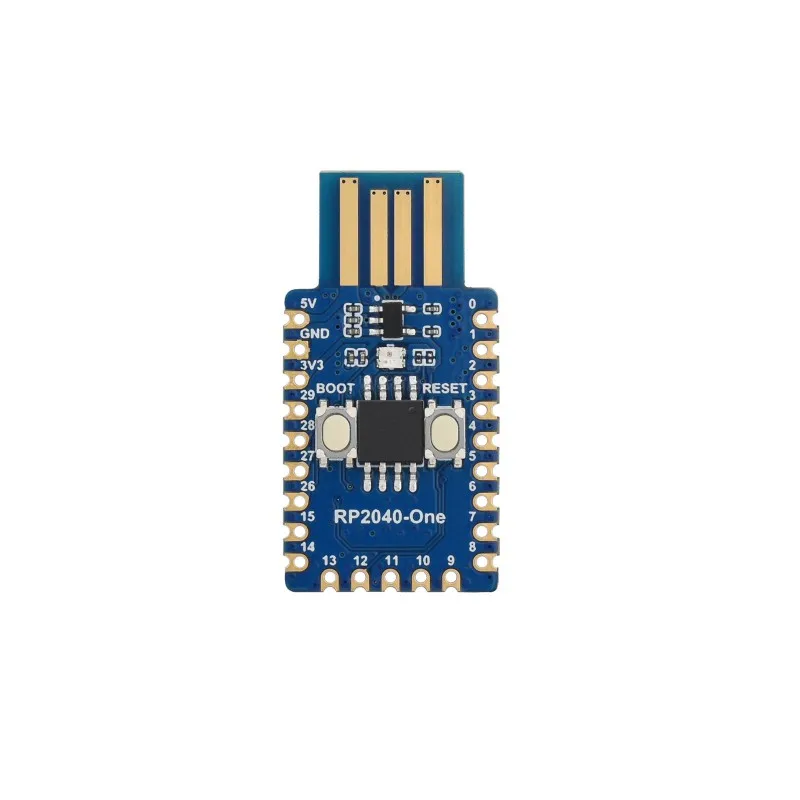

What's On Board
1. PCB USB-A port
2. RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO
3. WS2812
RGB LED
4. BOOT button
press it when resetting to enter download mode
2. RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO
3. WS2812
RGB LED
4. BOOT button
press it when resetting to enter download mode
5. W25Q32JVSSIQ
4MB NOR-Flash
6. RESET button
7. RP2040
dual-core processor, up to 133MHz operating frequency
8. RP2040 pins
10x solder points, including 9x GPIO pins
4MB NOR-Flash
6. RESET button
7. RP2040
dual-core processor, up to 133MHz operating frequency
8. RP2040 pins
10x solder points, including 9x GPIO pins

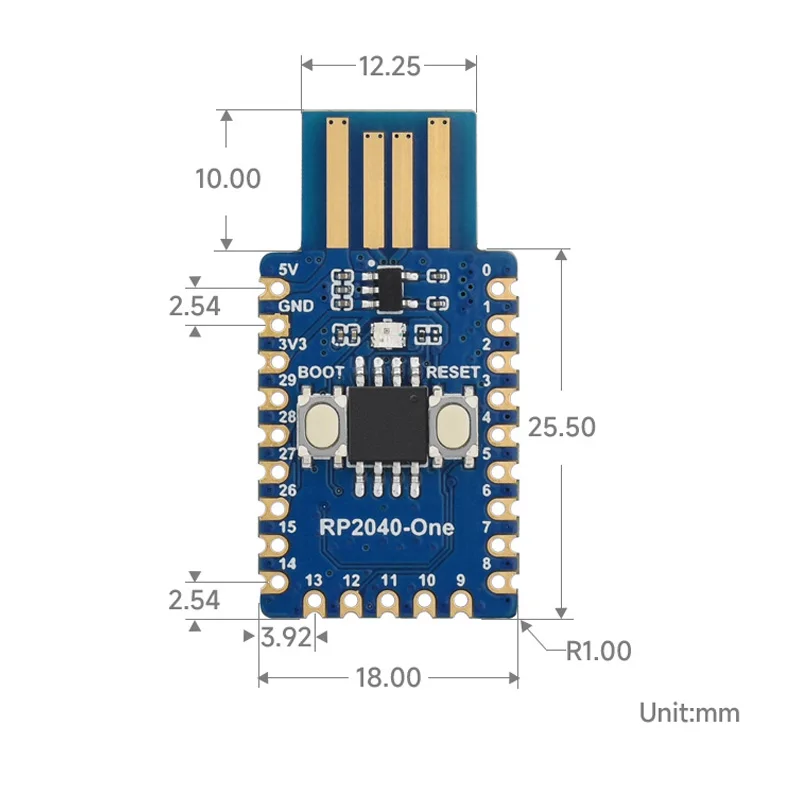

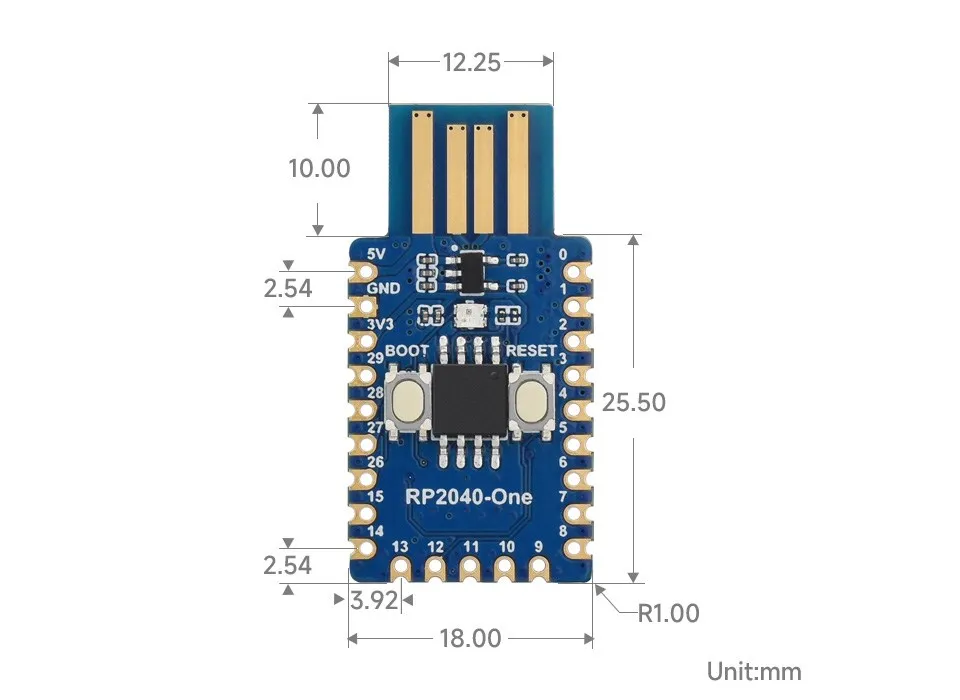

Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/RP2040-One
Packig List
1 x RP2040-ONE MCU
