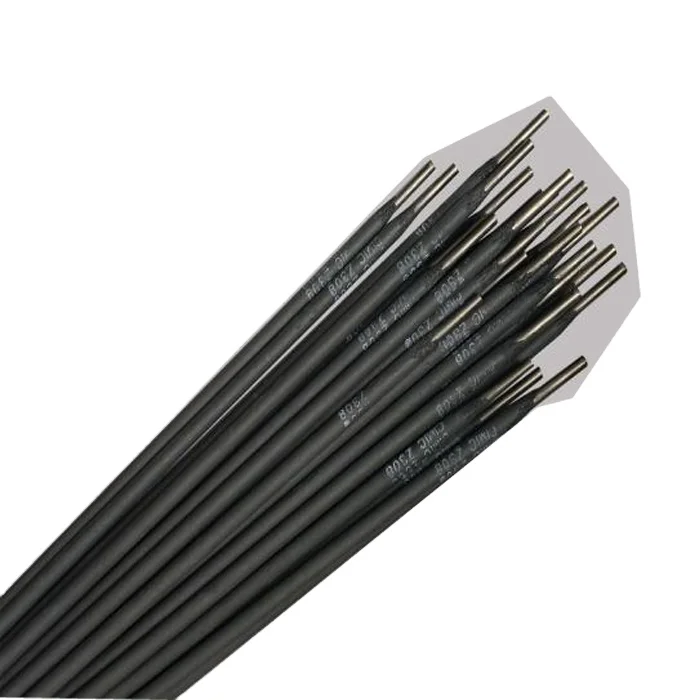

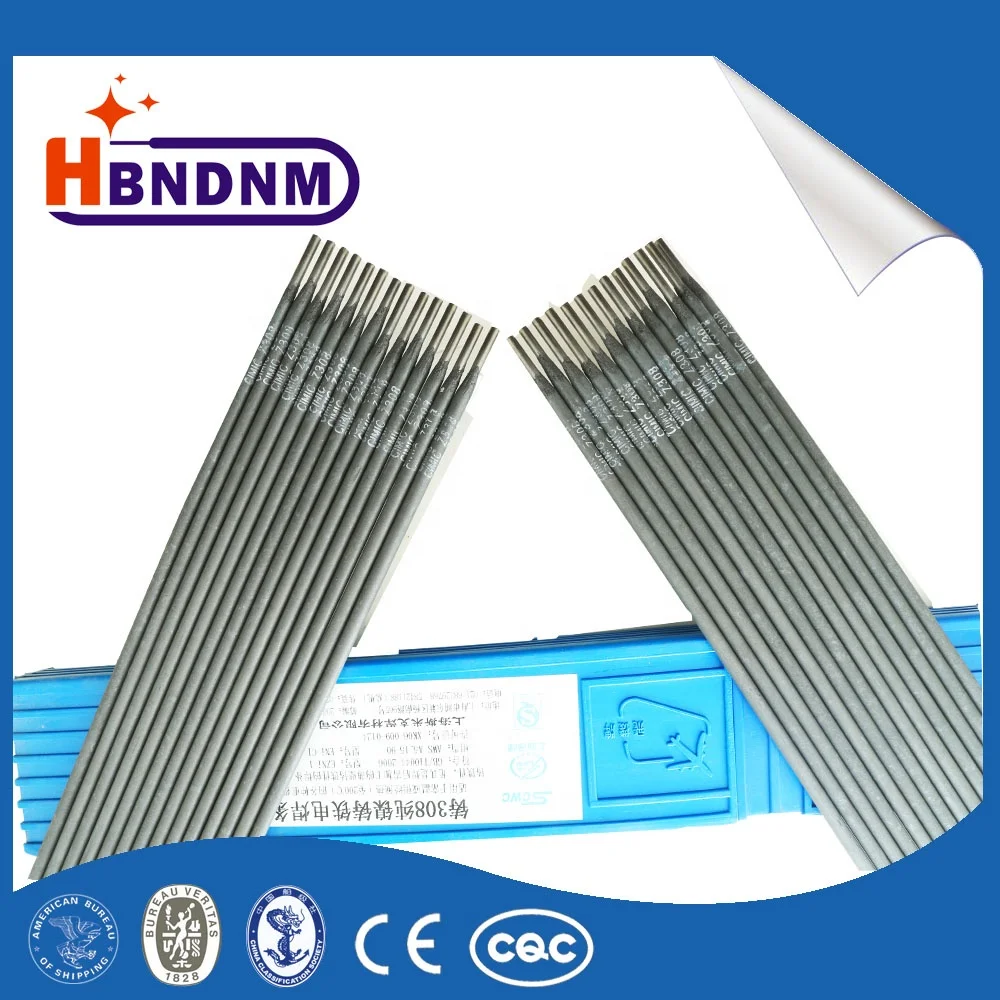

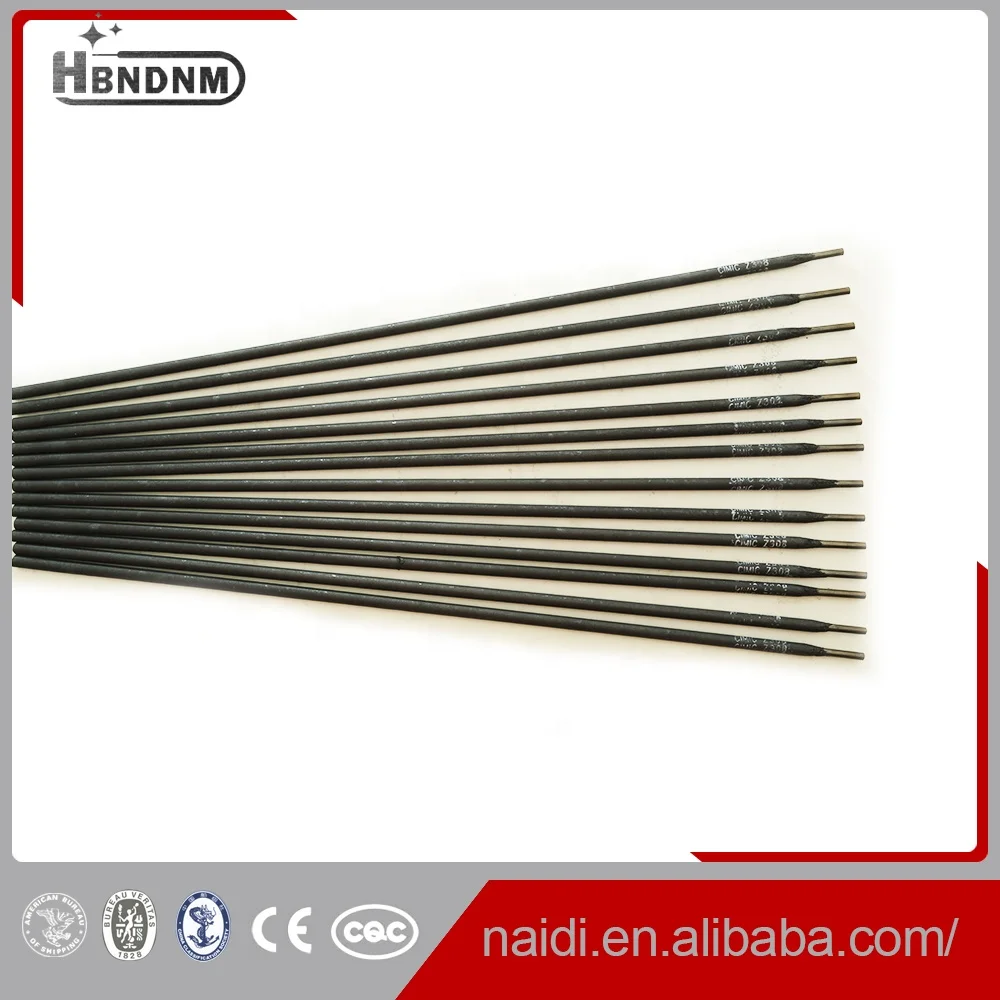

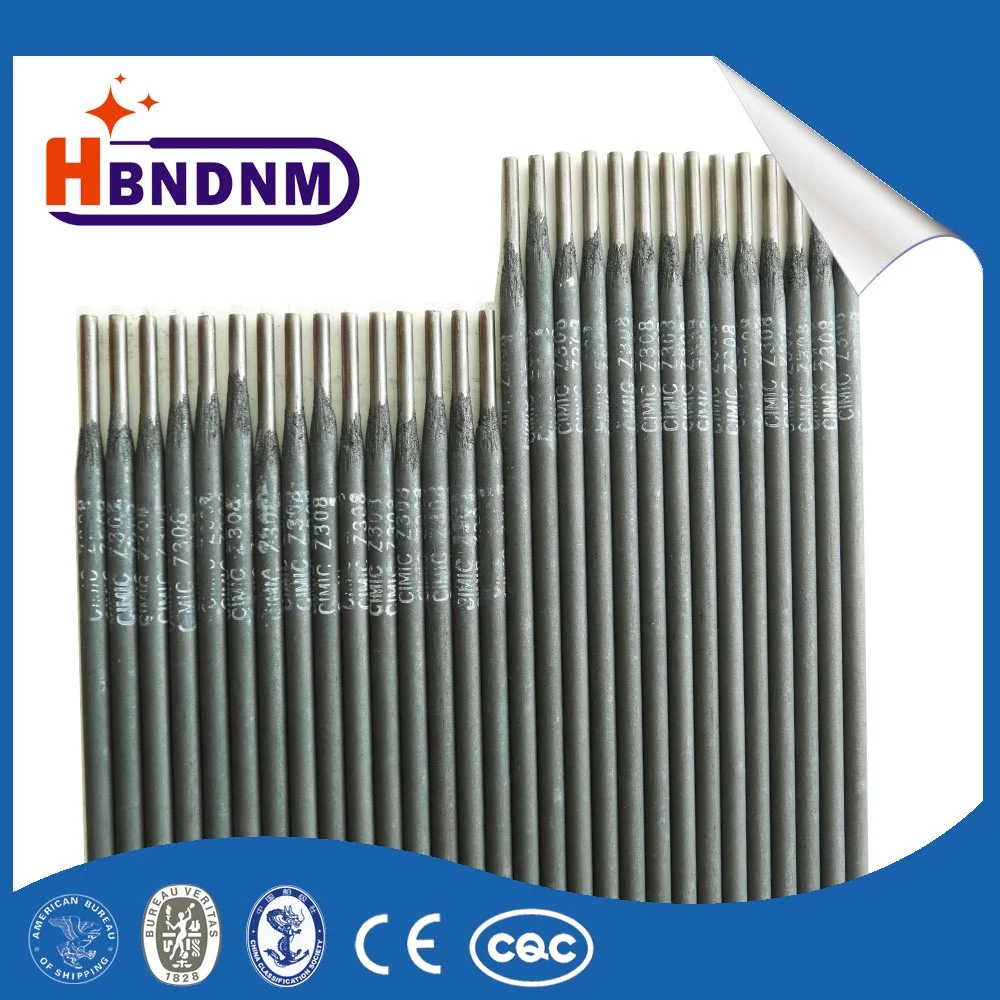

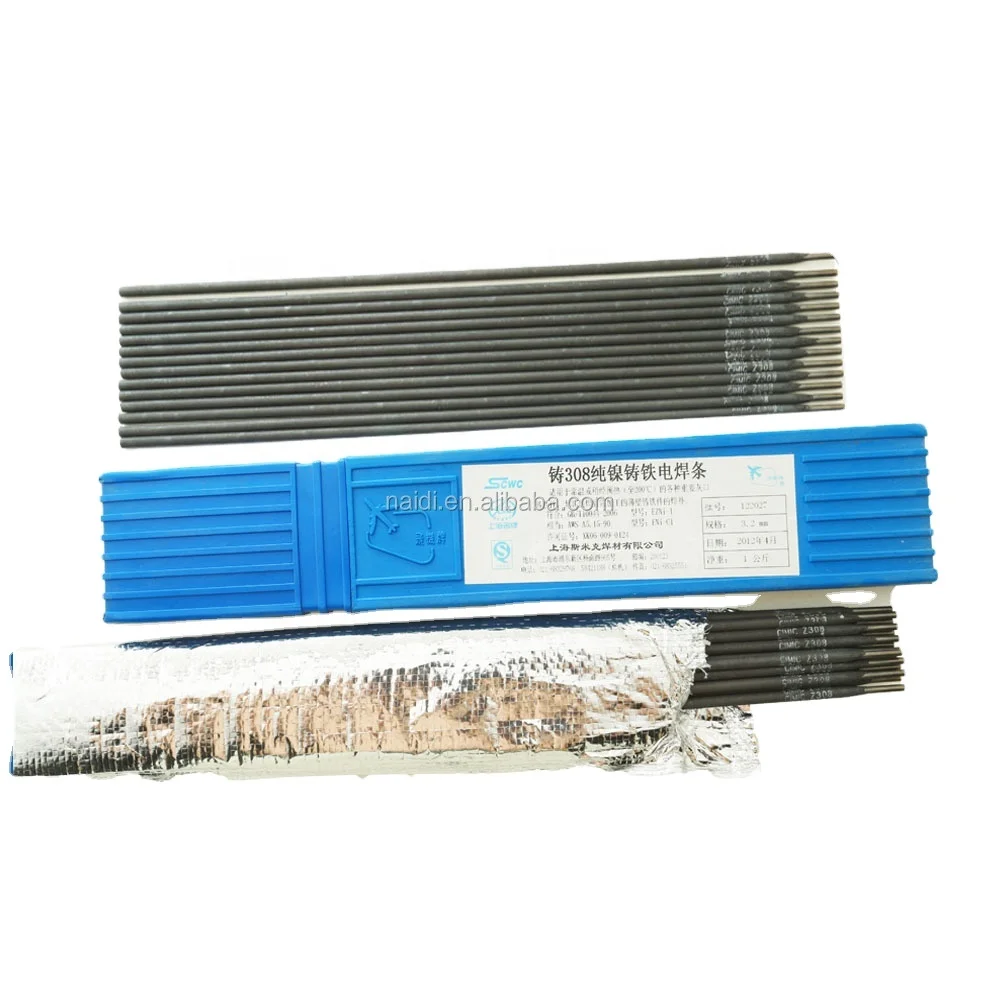

Cobalt Base Alloy Rods Co 12 NaiDi Weld Electrodes

Product Overview

Description

Stellite 12	Meet GB	EDCoCr-B-03
Cobalt base 12 surfacing electrode	Very AWS	ECoCr-B

Description: D812 is titanium-calcium type coating, continuous casting Stellite 12 alloy welding wire as the core overlaying electrode. Can Be AC and DC dual-use, suitable for the use of DC reverse, electrode welding positive. Stable arc, good slag covering, beautiful molding. Stellite 12 alloy has good corrosion and wear resistance in a wide temperature range below 800 ° C, although it has moderate hardness in co-based alloys. The surfacing layer can be machined.

Usage: it is used for surfacing welding of high temperature and high pressure valve, sawtooth of wood, various cutting edge of chemical industry and hot finishing roll.

Chemical composition of deposited metal (%)

C	Cr	Ni	Fe	W	Co
1.2-2.0	25-32	≤3.0	≤5.0	7-10	Allowance

Mechanical properties of deposited metal (reference values)

Room temperature hardness HRC	High temperature hardness — series HV
	500℃	600℃	700℃	800℃
44-50	380	320	305	285

Notes: 1. The electrode shall be baked at 150 ° C for 1 hour before welding. 2. Small current and short arc surfacing are suitable to avoid increasing the penetration of base metal and reducing the properties of surfacing alloy.

3.According to the type of base metal and the size of workpiece, the preheating temperature of 350-500 ° C and the interlayer temperature of 350 ° C can be selected for surfacing welding.

4.According to the working condition, generally choose the workpiece after welding 600-750 ° C, heat preservation 1-2 hours later slowly cooling with the furnace, or will be placed in the dry and preheated sand or ash slowly cooling



About Us:

1. What are our main products?

The main products are welding rod, wire, solder, flux, alloy powder and

other five categories, more than 100 kinds of products. Among them,

welding electrodes include nickel-based cast iron electrode, copper

and copper alloy electrode, cobalt-based surfacing electrode, nickel

and nickel alloy electrode; brazing fillers include copper-zinc, copperphosphorus and silver-based filler metals; fluxes include gas welding and

brazing, silver, copper, aluminum and other flux; alloy powder includes

spray welding and spraying, including nickel-based, cobalt-based,

iron-based and other varieties. The products are manufactured in full

accordance with American Standards (AWS).

2.Why did you choose our company?

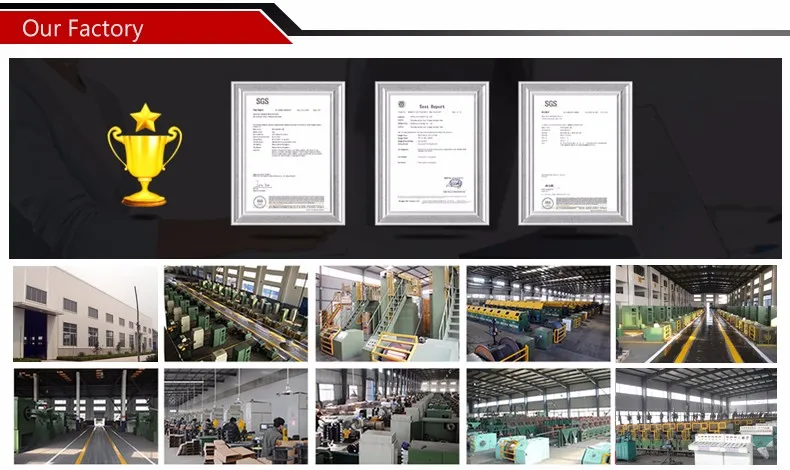

our company can organize R&D, trial production and supply in time according to the special needs of users. Our products are advanced in production technology, with the first-class inert gas protected continuous casting production line in China, vertical, horizontal hot extrusion, continuous tie, continuous pull, polishing production equipment, ultrasonic cleaning and other production lines and complete testing equipment.
