Product Overview
Description
Products Description

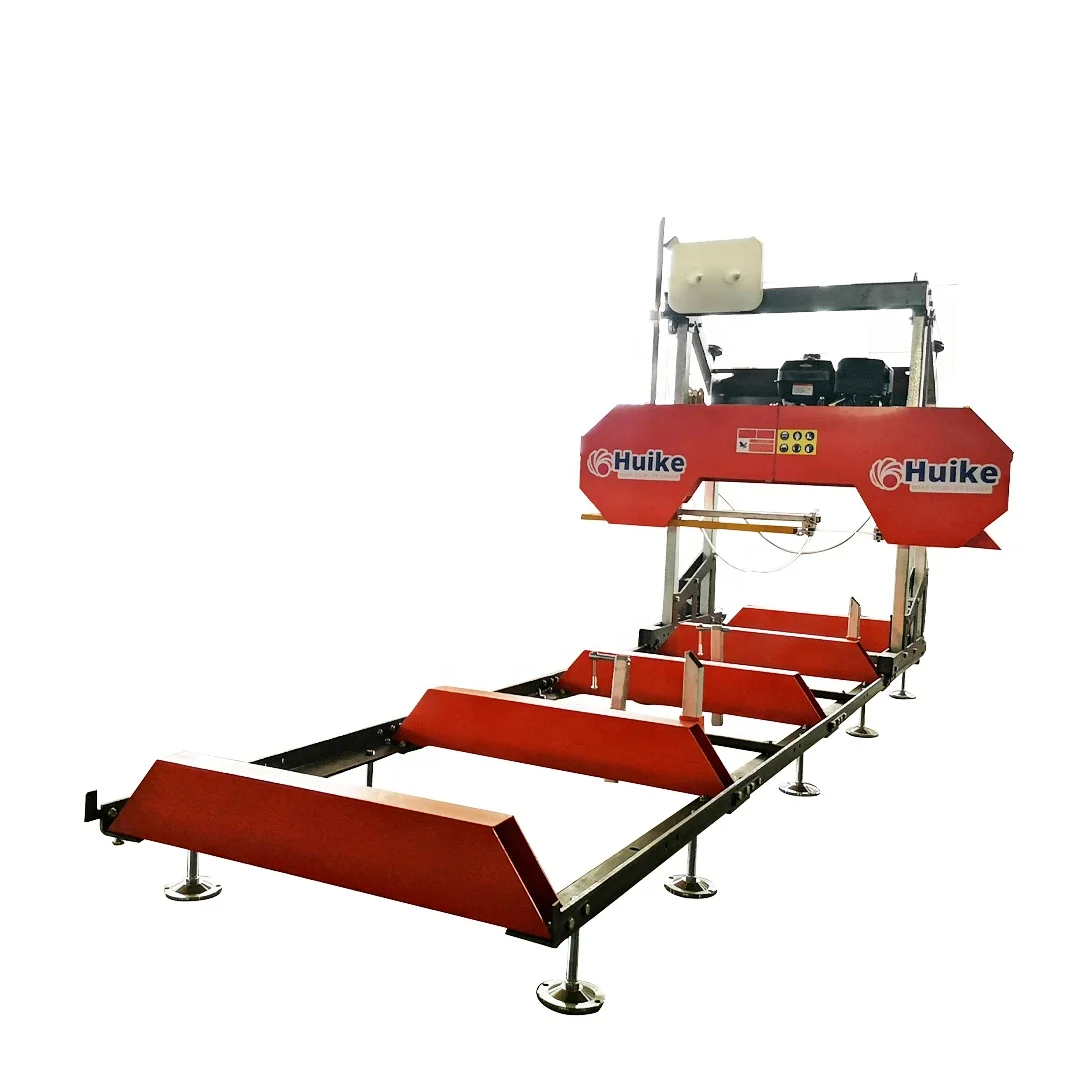

Huike Portable Sawmill
The reliable band saw mill offers sawyers an economical and durable solution to meet their milling needs. From the powder-coated structure to the reliable Kohler gasoline engine, this mill will exceed your expectations. The head moves up and down along galvanized steel channel via a very easy to turn hand crank system. The blade is kept lubricated by utilizing a water drip system. This prevents sap from gumming up your blade.
Advantage:
1. The machine has the features of high cutting speed, high cutting rate, high quality of the final product, greatly reduce the loss of sawdust.
2. It is simple to install, easy to operate, labur saving, and high productivity.
3. Simple, safe and pro-environment;
4. Automatic control the timber thickness, high-precision.
5. High cutting efficiency, smooth; the high flatness of the cutting plate;
6. The thickness of processing wood can be adjusted according to your need
7. There's no need the professional lawyers, the ordinary workers can operate the machine expertly.
Advantage:
1. The machine has the features of high cutting speed, high cutting rate, high quality of the final product, greatly reduce the loss of sawdust.
2. It is simple to install, easy to operate, labur saving, and high productivity.
3. Simple, safe and pro-environment;
4. Automatic control the timber thickness, high-precision.
5. High cutting efficiency, smooth; the high flatness of the cutting plate;
6. The thickness of processing wood can be adjusted according to your need
7. There's no need the professional lawyers, the ordinary workers can operate the machine expertly.
Huike HKS Series Portable Band Sawmill | ||||||||
Model | HKS26G | HKS31G | HKS26E | HKS31E | ||||
Power | Gasoline 9HP (LIFAN, Manual start) | Gasoline 15HP (LIFAN, Manual start) | Electric Motor 5.5KW | Electric Motor 7.5KW | ||||
Displacement | 301cc | 420cc | 400V 50HZ 3phase | 400V 50HZ 3phase | ||||
Max cutting diameter | 660 mm (26'') | 790 mm (31'') | 660 mm (26'') | 790 mm (31'') | ||||
Max cutting thickness | 178 mm (7'') | 178 mm (7'') | 178 mm (7'') | 178 mm (7'') | ||||
Standard cutting length | 2794mm (110”) or customized | 2794mm (110”) or customized | 2794mm (110”) or customized | 2794mm (110”) or customized | ||||
Standard machine length | 4 m or customized | 4 m or customized | 4 m or customized | 4 m or customized | ||||
Frame | 4pcs | 4pcs | 4pcs | 4pcs | ||||
Blade size | 3690*34*0.9mm (145”*1-1/4”*0.035”) | 3960*34*0.9mm (156”*1-1/4”*0.035”) | 3690*34*0.9 mm (145”*1.25”*0.035”) | 3960*34*0.9mm (156”*1-1/4”*0.035”) | ||||
Safe cutting Speed | 13-15s/m | 13-15s/m | 13-15s/m | 13-15s/m | ||||
Blade speed | 17m/min | 17m/min | 17m/min | 17m/min | ||||
Blade Wheel Dia. | 480 mm (18.8”) | 480 mm (18.8”) | 480 mm (18.8”) | 480 mm (18.8”) | ||||
Dimension | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) | ||||
Track size | 4000x900mm (157”x35.4”) | 4000x1030mm (157”x40.5”) | 4000x900mm (157”x35.4”) | 4000x1030mm (157”x40.5”) | ||||
Packing | 2080x570x830mm | 2150 x570x830mm | 2080x610x810mm | 2150 x610x810mm | ||||
Weight | 315/355kg | 315/355kg | 352/380kg | 352/380kg | ||||
20”/40”HC | 20pcs / 63pcs | 20pcs / 63pcs | 20pcs / 63pcs | 20pcs / 63pcs | ||||
Optional Accessories
1. Upgrade 14 HP Kohler(13.5 B&S ) Gasoline Engine Manual start
2. Upgrade14 HP Kohler(13.5 B&S ) Gasoline Engine Electric start
3. Blade Tension Adjuster 4. Blade Guide Cover
5. Blade 6. Alloy Saw Blade / Carbide Blade
7. Extension 2 m Rail 8. Trailer: 4 m
9. Trailer: 6 m 10. Trailer: 8 m
11. Manual Winch 12. 48'' Log Tong
13. Upgrade Lifan gasoline engine E-start 14: Blade sharpener machine
15. Auto lube system
3. Blade Tension Adjuster 4. Blade Guide Cover
5. Blade 6. Alloy Saw Blade / Carbide Blade
7. Extension 2 m Rail 8. Trailer: 4 m
9. Trailer: 6 m 10. Trailer: 8 m
11. Manual Winch 12. 48'' Log Tong
13. Upgrade Lifan gasoline engine E-start 14: Blade sharpener machine
15. Auto lube system

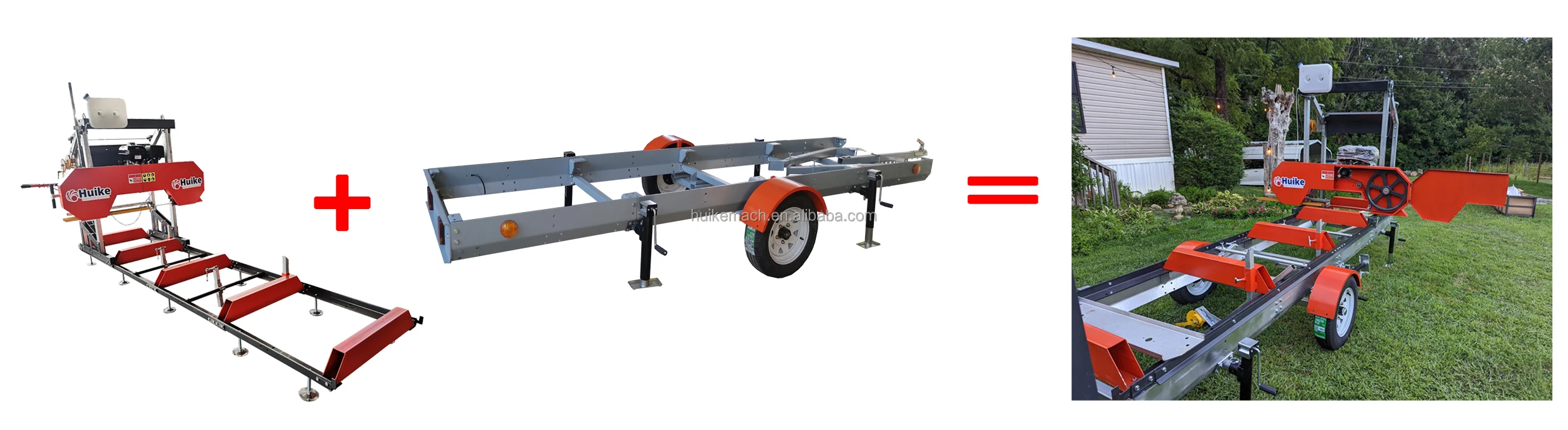

Option A: HKS26/HKS31 Sawmill only
Option B: HKS26/HKS31 Sawmill + extension
2 m track
Option C: HKS26/HKS31 Sawmill + 4 m trailer
Option D: HKS26/HKS31 Sawmill + extension
2 m track + 6 m trailer
You can choose the options according to your requirements

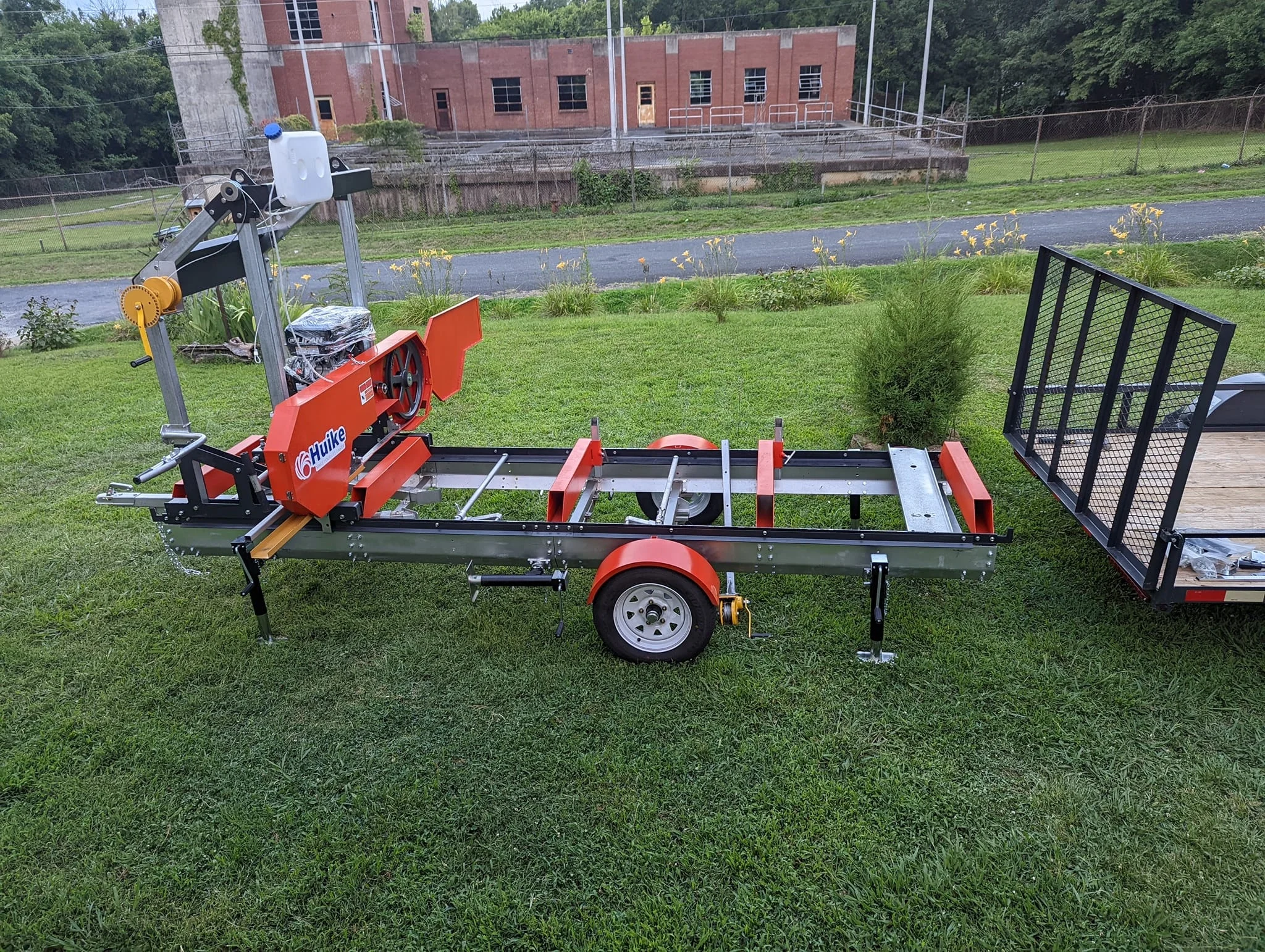

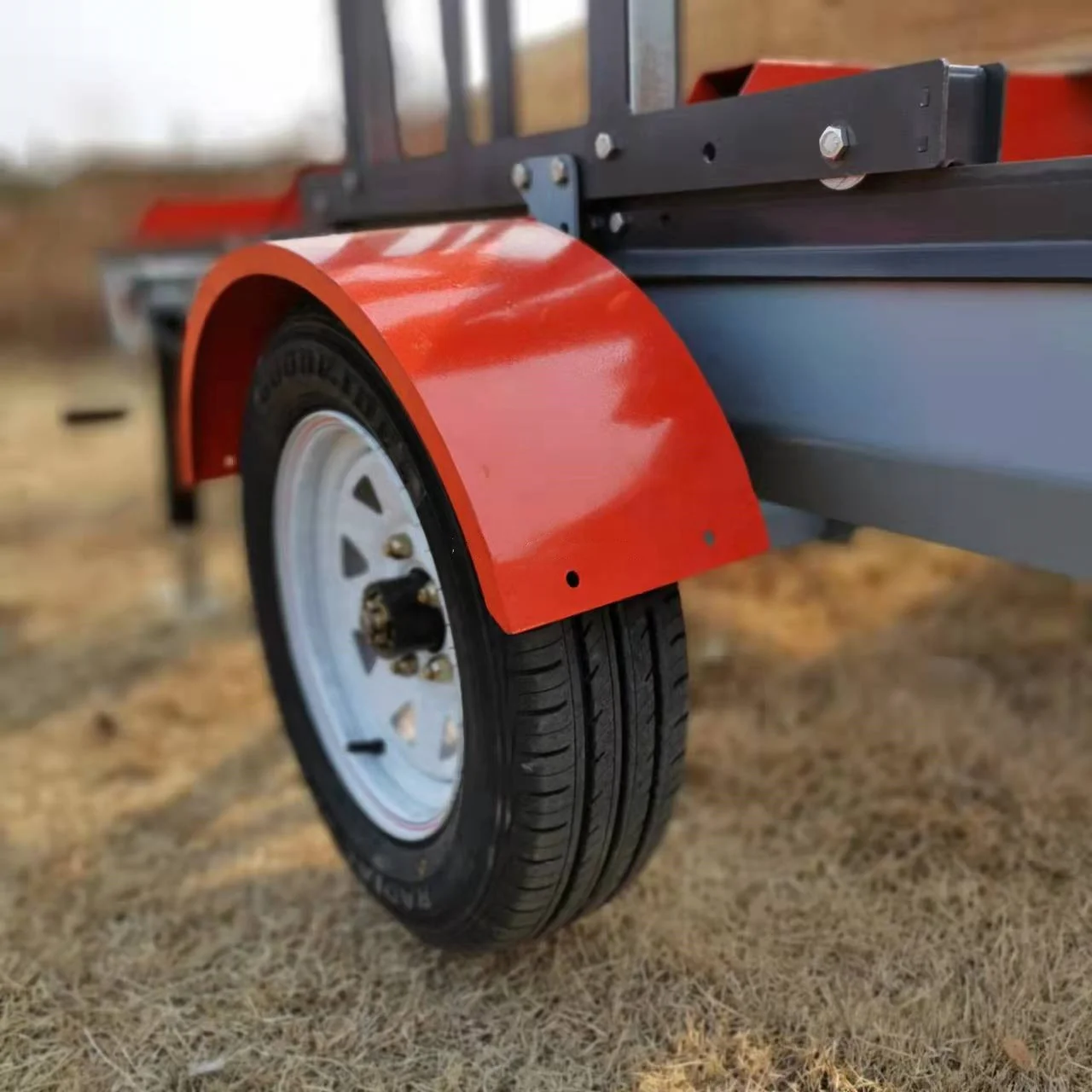

HKS Series Sawmill Trailer
Including log loading ramp * 2 pieces, log loading winch * 1 piece
Details Images
Exhibition
Certificates

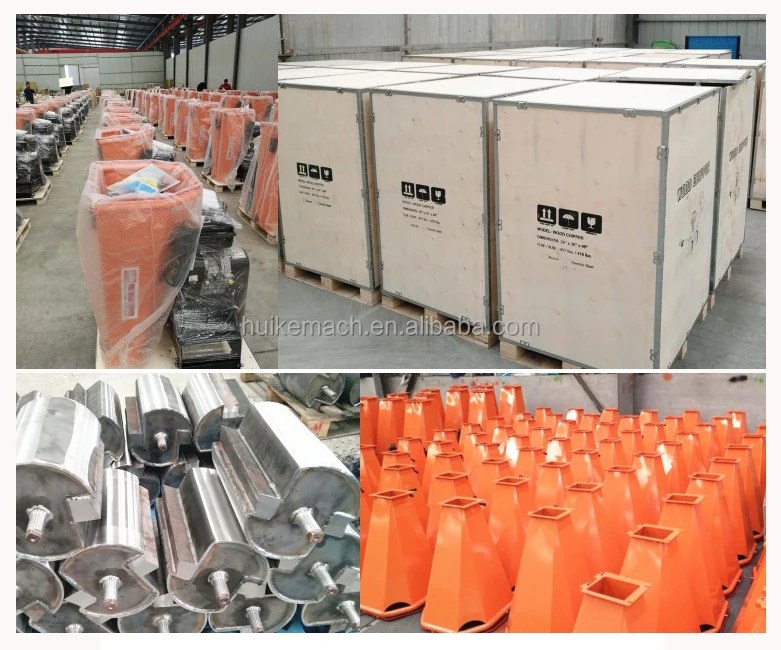

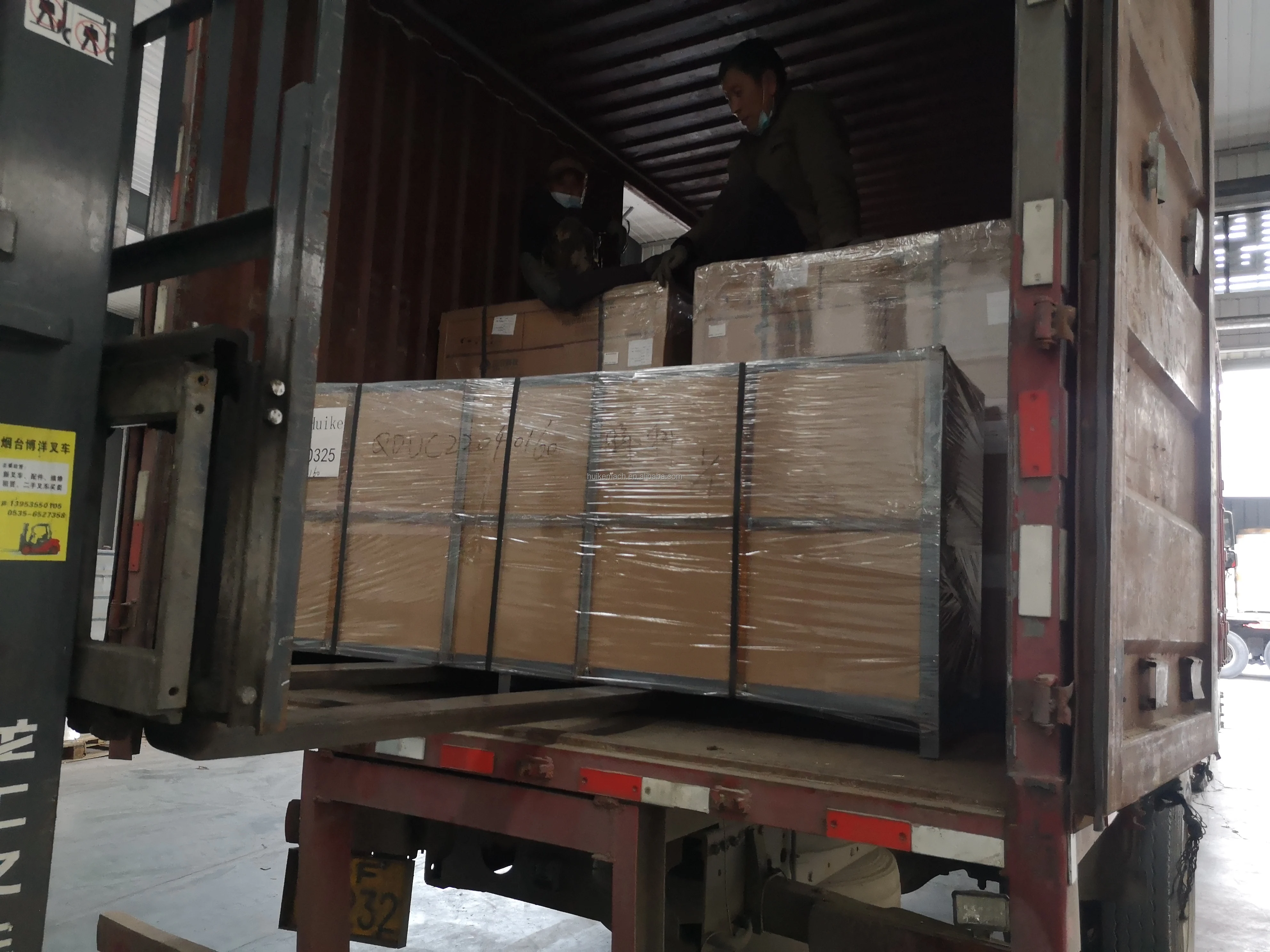

Packaging and shipping
Customer Feedback
Working Effect
Recommend Products
Company Profile
FAQ
Q: Are you a factory or trade company?
A: We are a group company with 3 factories. Huike is our brand. And we can supply one-stop service as a trade company if diverse goods are needed.
Q: Can we visit your factory before order?
A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station if needed.
Q: What's the warranty of your products?
A: The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made) with international express in 7 days.
To meet the demand of customer is our goal. We are standing by for any question of customer. We will make our service fast, efficient and satisfied.
A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station if needed.
Q: What's the warranty of your products?
A: The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made) with international express in 7 days.
To meet the demand of customer is our goal. We are standing by for any question of customer. We will make our service fast, efficient and satisfied.
Q: Is OEM acceptable to your factory?
A: Yes, We have professional engineers and designers. We can provide OEM products, and OEM production is one of our advantages.
A: Yes, We have professional engineers and designers. We can provide OEM products, and OEM production is one of our advantages.
Q: Can you provide custom machine, Yes or No?
A:Yes. We can provide custom machine for clients.
A:Yes. We can provide custom machine for clients.
Q: What's the MOQ?
A: The MOQ is different from 1 set to 50 sets according to machines size and its value. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 sets.
A: The MOQ is different from 1 set to 50 sets according to machines size and its value. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 sets.
Q: What's your lead time / delivery time / date for delivery?
A: After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CFR/CIF/DDU/DDP if needed.
A: After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CFR/CIF/DDU/DDP if needed.
Q: Do you have a stock?
A: Sorry, most of our machines don't have stock, we always produce according to order.
Q: Can we buy one sample?
A: Yes, one sample order is welcome.
Q: What's your payment term?
A: Regular 30% initial payment and the balance payment when goods are ready and after inspection before shipment.
A: Sorry, most of our machines don't have stock, we always produce according to order.
Q: Can we buy one sample?
A: Yes, one sample order is welcome.
Q: What's your payment term?
A: Regular 30% initial payment and the balance payment when goods are ready and after inspection before shipment.
However, if total amount is small, we prefer to 100% prepayment to help save bank charges for both of us.
Q: How about your after-sale service?
A: Most questions during operation can be solved with our help with pictures, videos and Instructions. Our engineers are available to service overseas to provide professional online support if needed.
Of course, we can provide overseas service to let our engineer go there, but there will be some costs you should bear.So long as the products purchased from Huike, we will provide parts service no matter in or out of the warranty.
Q: How about your after-sale service?
A: Most questions during operation can be solved with our help with pictures, videos and Instructions. Our engineers are available to service overseas to provide professional online support if needed.
Of course, we can provide overseas service to let our engineer go there, but there will be some costs you should bear.So long as the products purchased from Huike, we will provide parts service no matter in or out of the warranty.
