Product Overview

Description

PWM Solar charge controller LED display Solarix PRS 10A 15A 20A 30A 12V 24V exchange automatically for PV power system

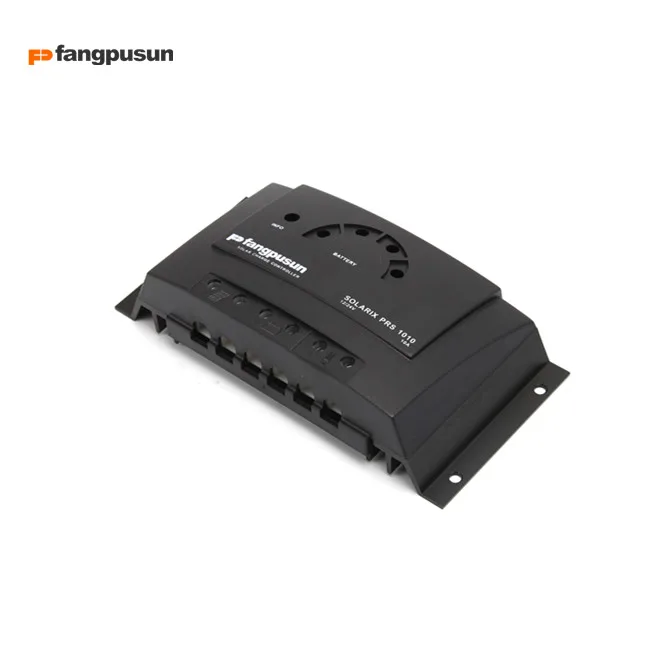

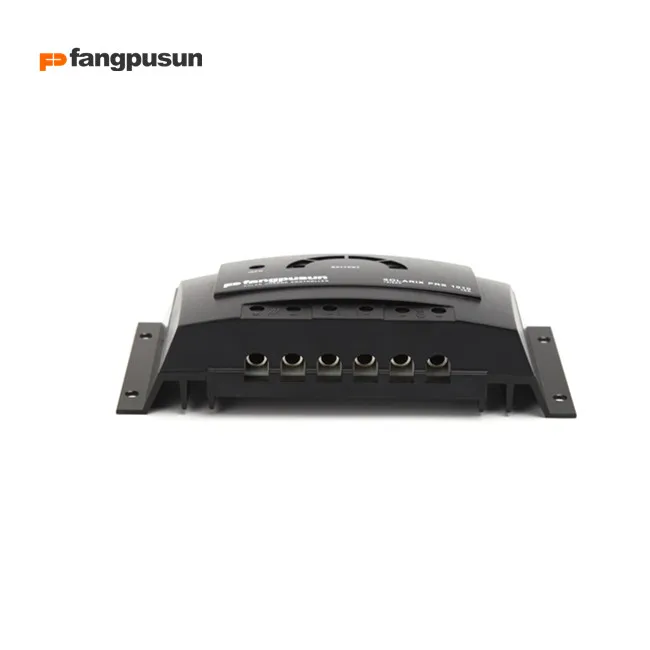

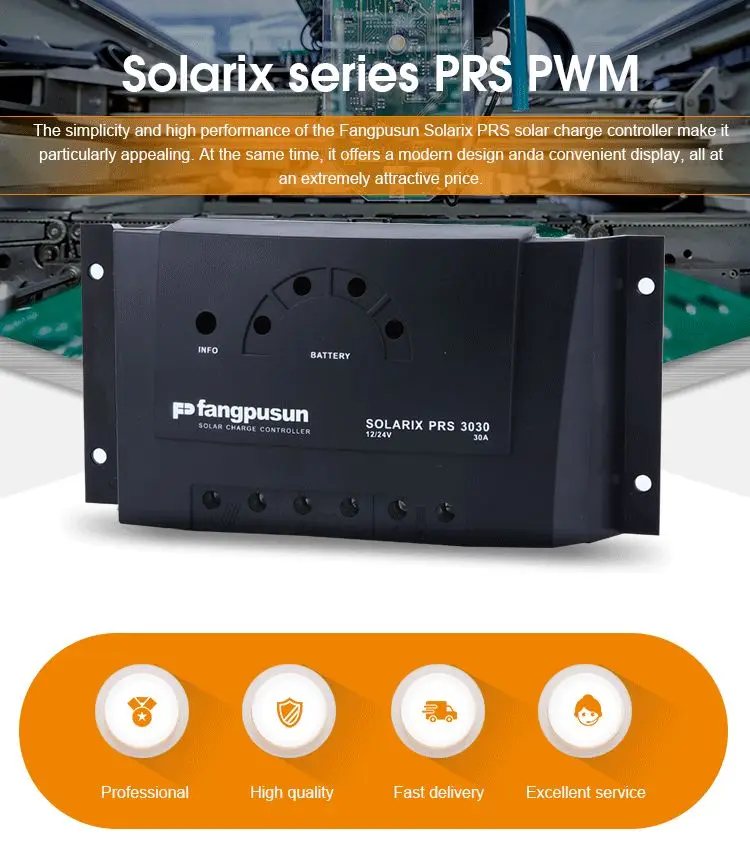

The simplicity and high performance of the Fangpusun Solarix PRS solar charge controller make it particularly appealing. At the same time, it offers a modern design anda convenient display, all at an extremely attractive price.

Several LEDs in various colours emulate a tank display, which gives information on the battery's state of charge. Here, Fangpusun's latest algorithms are employed, resulting inoptimal battery maintenance.The Solarix PRS charge controllers are equipped with an electronic fuse,thus making optimal protection possible. They operate on the serial principle,and separate the solar module from thebattery in order to protect it against overcharging.

For larger projects, the charge controllers can also be equipped with special functions:e.g.with night light function and selectable charging plateau anddeep-discharge protection voltages.



Product features

→ Series controller

→ Voltage regulation

→ Automatic detection of voltage

→ PWMcontrol

→ Multistage charging technology

→ Current compensated load disconnection

→ Automatic load reconnection

→ Temperature compensation

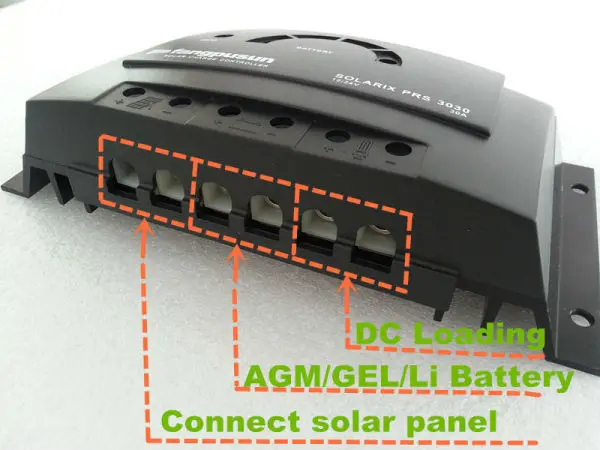

→ Common positive grounding or negative grounding on one terminal

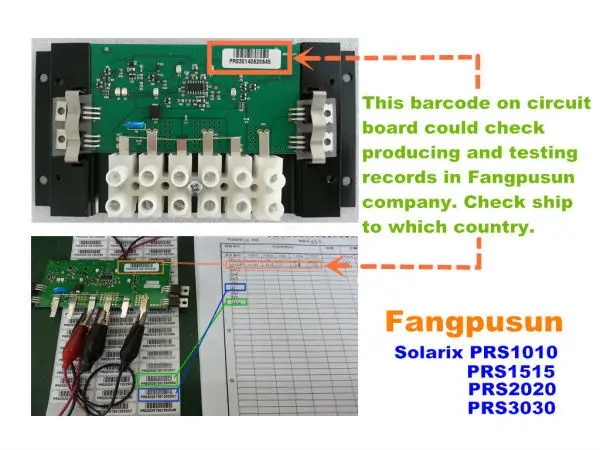

→ Integrated self test

→ Monthly maintenance charge

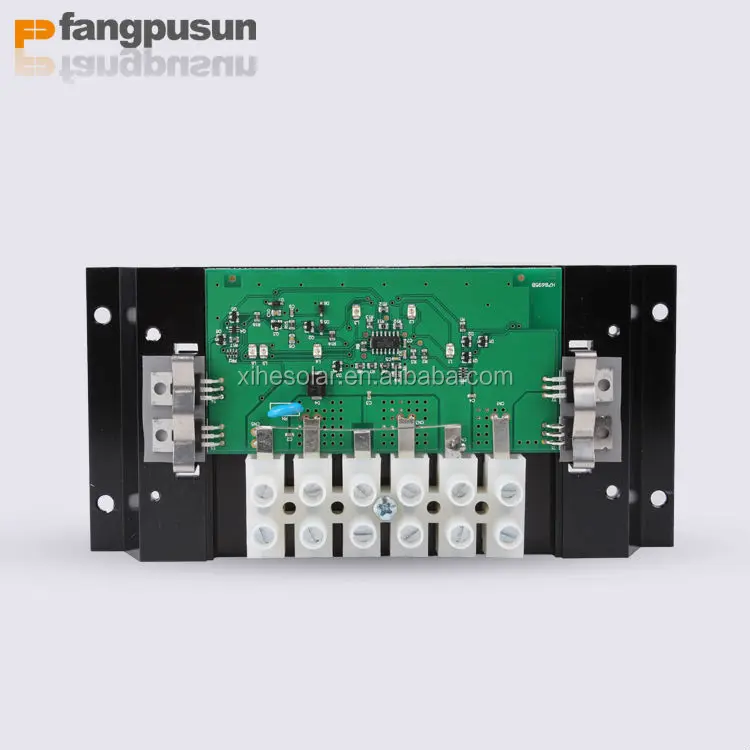

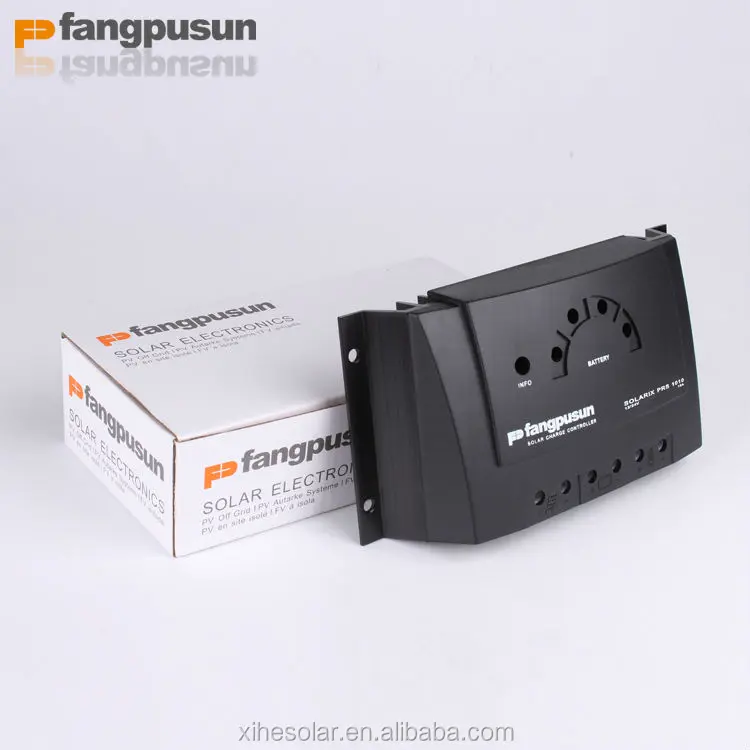

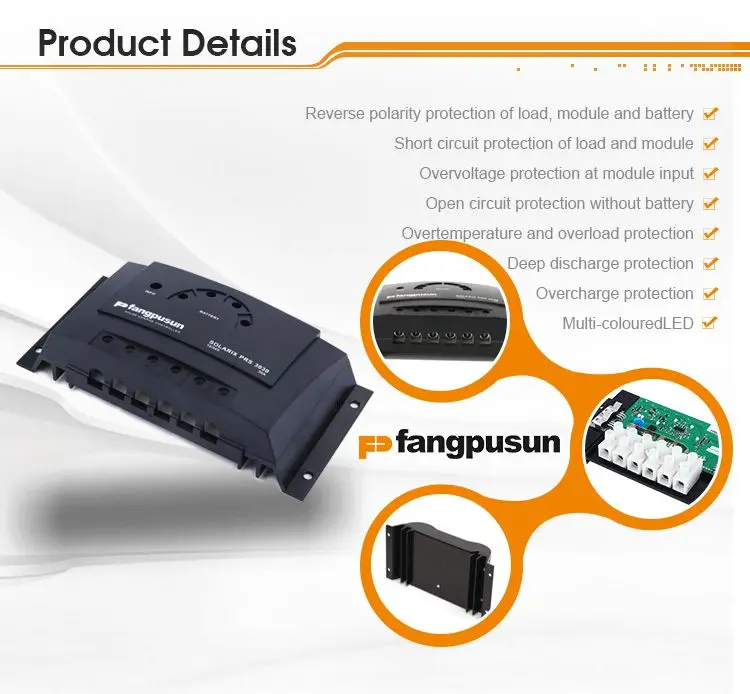

Eectronic protection functions

→ Overcharge protection

→ Deep discharge protection

→ Reverse polarity protection of load,module and battery

→ Automatic electronic fuse

→ Short circuit protection of load and module

→ Overvoltage protection at module input

→ Open circuit protection without battery

→ Reverse current protection at night

→ Overtemperature and overload protection

→ Battery overvoltage shutdown



Displays

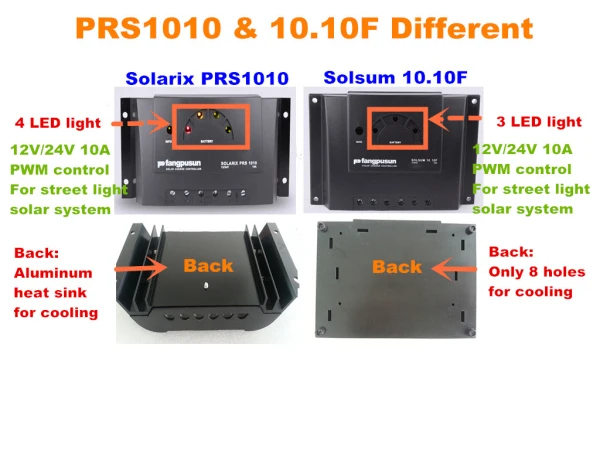

→ Multifunction LED display

→ Multi-coloured LED

→ 5 LEDs show operating states for operation, state of charge, fault messages



Options

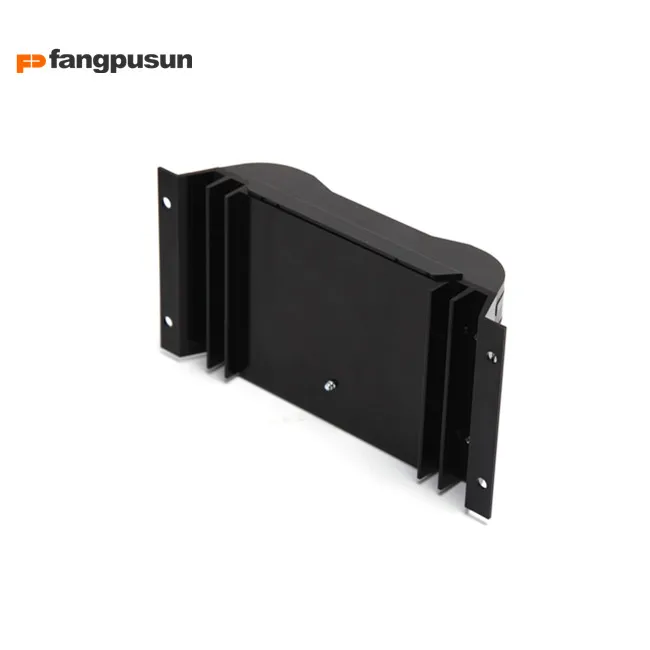

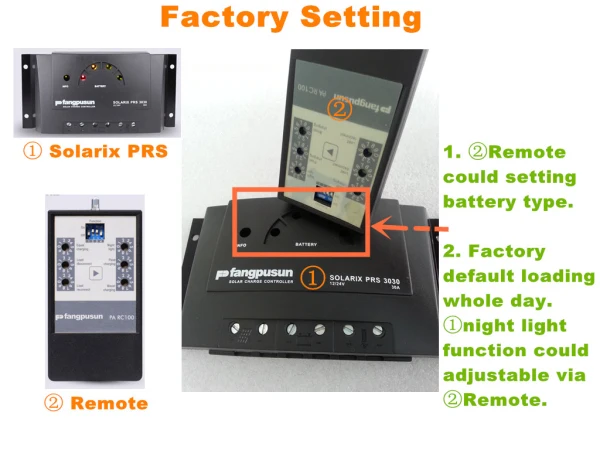

→ Night light function pre-set in the factory or adjustable via Fangpusun PA RC 100

→ Parameterisation of function values via Fangpusun PA RC 100



	PRS 1010	PRS 1515	PRS 2020	PRS 3030
Characterisation of the operating performance
System voltage	12V(24V)
Own consumption	< 4 mA
DC input side
Open circuit voltage solar module	<47V
Module current	10 A	15 A	20 A	30 A
DC output side
Battery voltage	9V.17V(17.1V...34V)
Load current	10 A	15 A	20 A	30 A
End of charge voltage	13.9V(27.8V)
Boost charge voltage	14.4V(28.8 V)
Equalisation charge	14.7V(29.4V)
Reconnection voltage(SOC/LVR)	>50%/12.4V...12.7V(24.8V...25.4V)
Deep discharge protection (SOC/LVD)	<30%/11.2V...11.6V(22.4V...23.2V)
Operating conditions
Ambient temperature	-25℃...+50℃
Fitting and construction
Terminal (fine/single wire)	16mm²/25mm²-AWG6/4
Degree of protection	IP 32
Dimensions(X×Y×Z)	187×96×45 mm
Weight	345 g
Technical data at 25C/77°F
