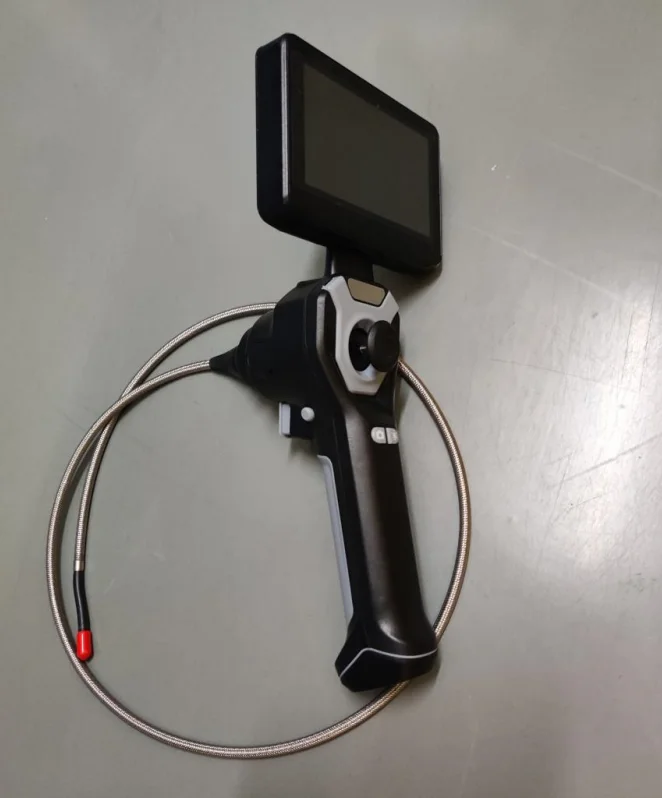

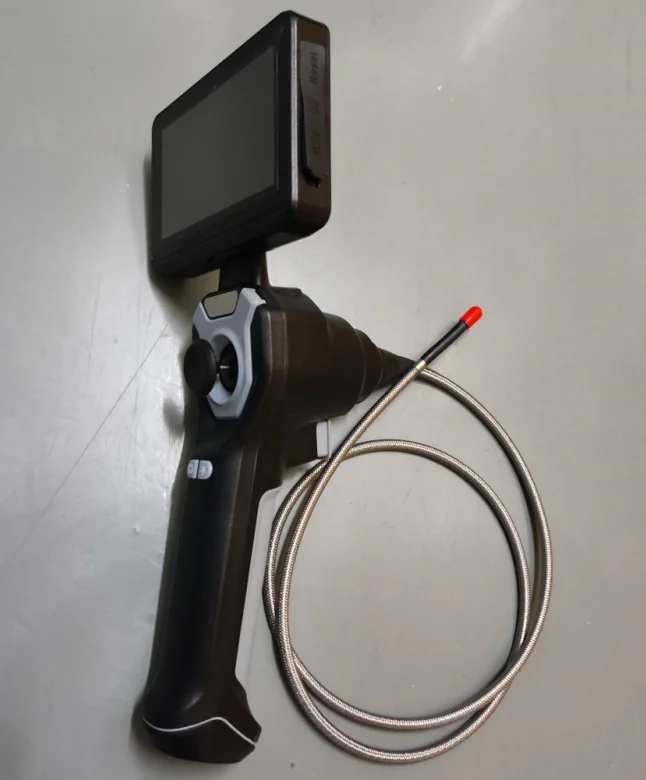

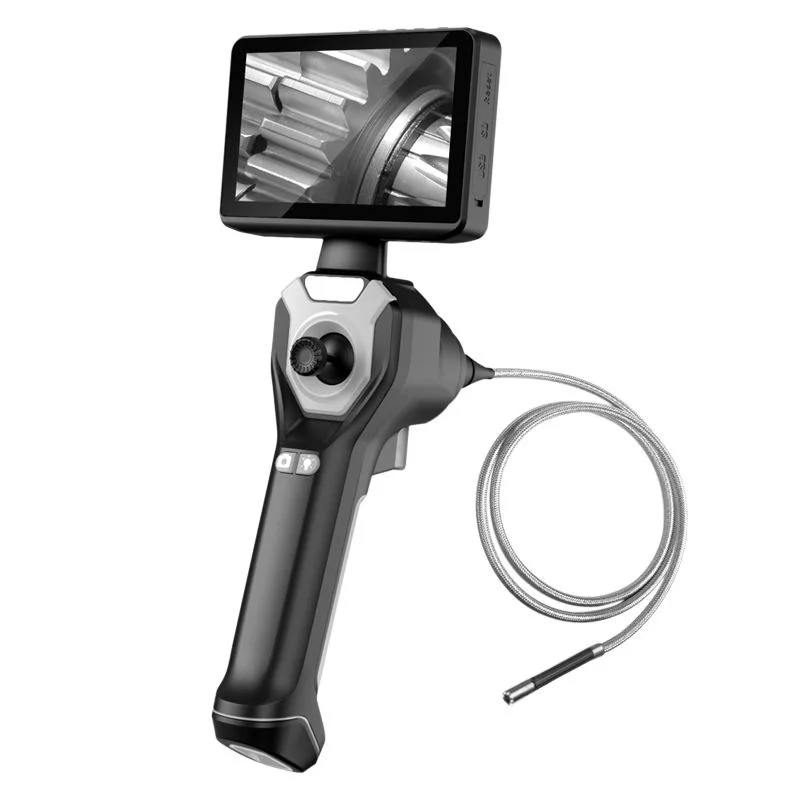

6mm industrial articulating endoscope snake camera with 4.5 inch monitor, 1m probe lens, 32GB SD card

model

CA601J

external diameter

Φ 6.0mm

Pixel point

1 MP

Probe length

13mm

Image sensor

1/6inch

depth of field

From 10-100 mm

angle of field

120 Degrees

Observe the direction

foresight

Lighting type

8 LED lights

Bend Angle (top / bottom)

180°

The joystick controls with

Directional direction

Two directions (top / bottom)

Camera shell

alloy steel

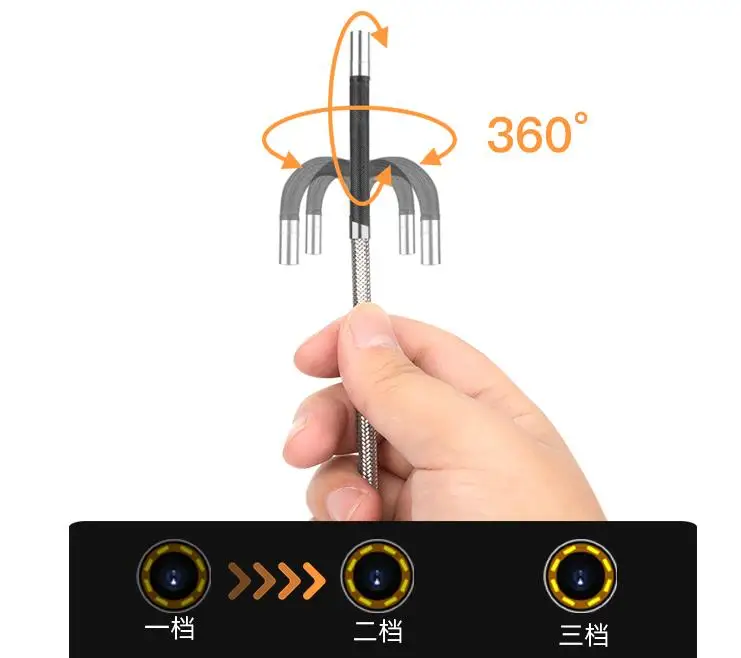

Angle lock

Full range of 360 degrees

Insert tube length

The standard length is 1 meter

Insert tube material

Stainless steel wire woven tube

System weight

Complete equipment, including chassis: 2 kg bare machine: <1 kg

Host size

12.3cm X 8.5 cm X 4.4 cm

source

source Lithium battery: 3.7V, 3350 maH charging current: Type-C charging port port port 5V / 2V

construction material

Plastic PC case

LCD

A 4.5-inch active matrix color display

aiming

Manual adjustment of 3 gear

The Data I / O port

no

internal storage

32G High-speed SD Card

Key function

Menu manipulation, video, photo taking, freeze, zoom in

white balance

automatic white balance

Image function

Image Mirror, Preview

linguistic support

Support 4 countries

image resolution ratio

1280*720JPG

Video resolution

1280*720avi

Host system operating temperature

0°C  to 50°C

ambient humidity

15-90%RH

Video probe operating temperature

0°C to 60°C, below 0°C should reduce boot operations

waterproof

Probe and objective lens can withstand IP 58 waterproof

storage temperature

0°C to 60°C

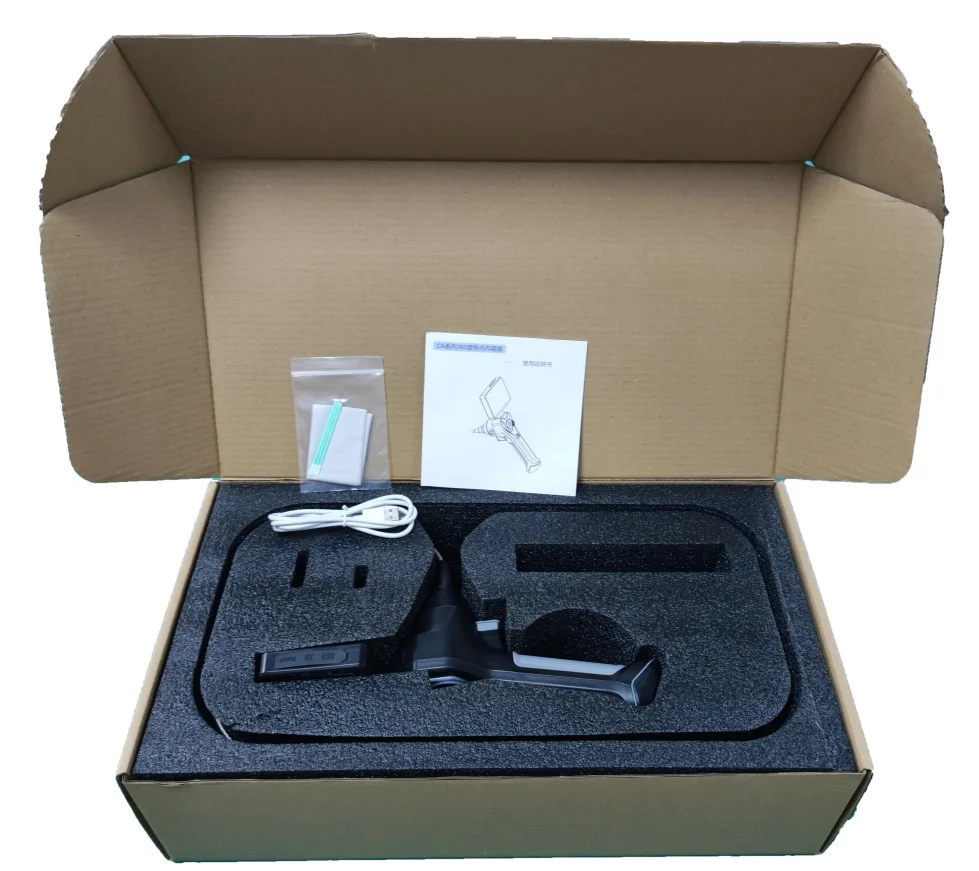

Packaging accessories

Instrument.container.instructions.charger.Card reader et al
