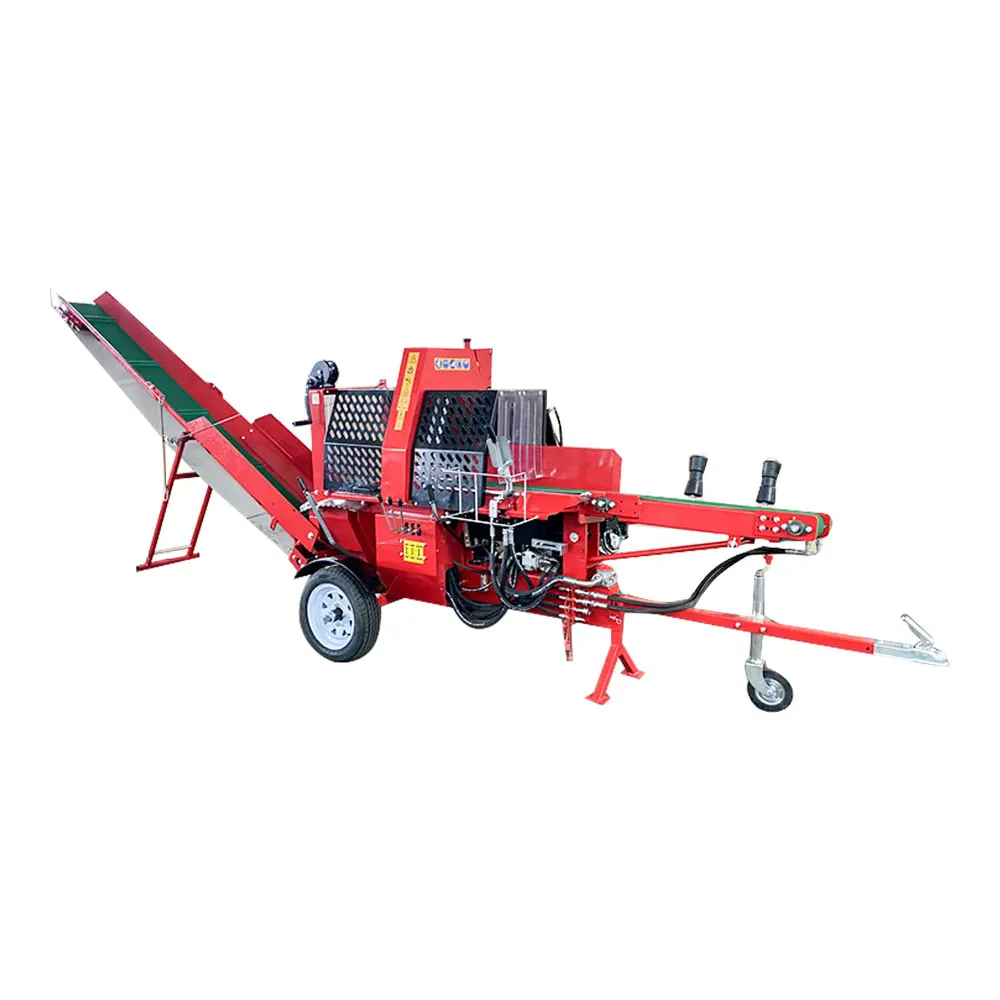

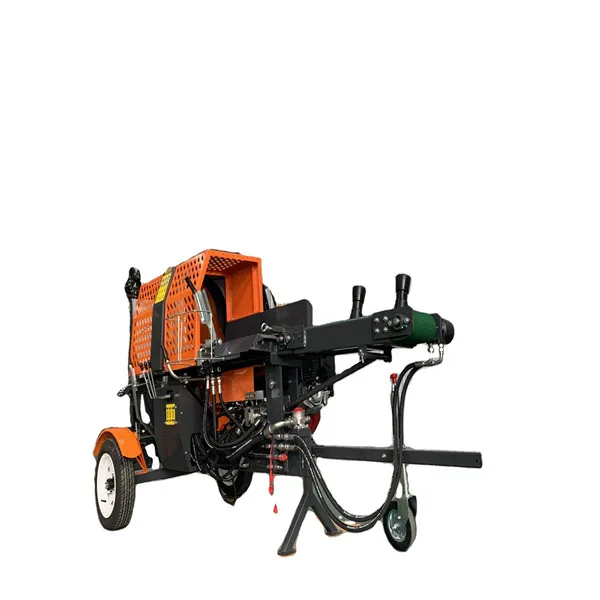

20ton Skid Steer / Gasoline /Electric / tractor forestry Wood Cutting Machine Log Splitter wood processor OEM supported
- Category: >>>
- Supplier: Yantai Wemax Machinery Co. Ltd.
Share on (1600869415249):
Product Overview
Description
Product Description

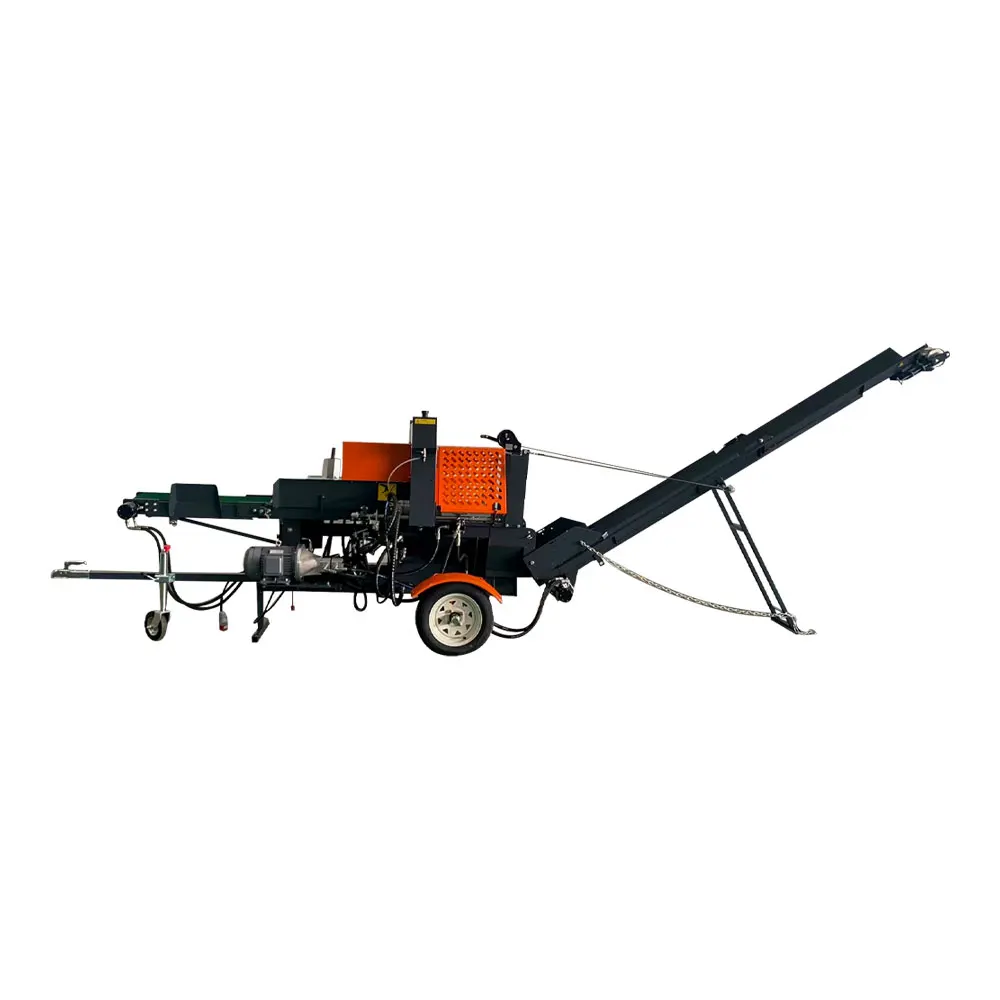

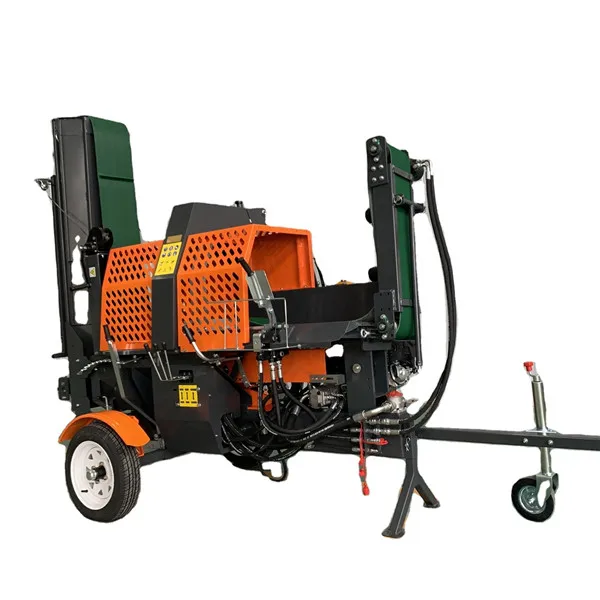

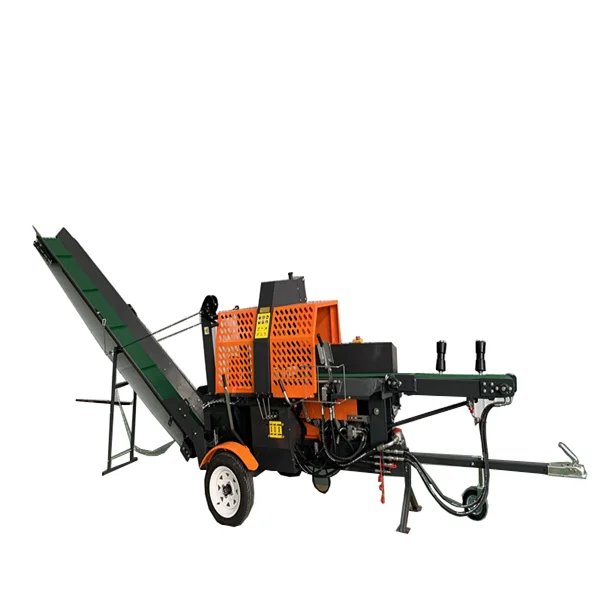

RIMA RM7-20-480 wood processor is the bestseller model in Europe , with 21 years experiences in forestry machine filed , Main Features are as following :
1: hydraulic saw cutting , no need manual press , labor saved .
2: max cutting diameter 480mm
3: 180cm length hydraulic feeding table
4: 15hp Lifan engine with electric start / 14hp Kohler engine with electric start
5: 4-ways knife / 6-ways wedge
6: 320cm length conveyor with 25cm width belt
7: swing conveyor left / right side 15 degree
8: CE TUV Certificated
9: Easy ATV towed
Specification
Model | RM7-20TA480(EU) |
Power | 15HP LIFAN Gasoline engine E-start |
Auto saw | YES |
Max. log diameter | 48cm |
Max.log length | 61cm |
Hydraulic infeed | 1.8m |
Saw motor with bearing | 36L/min, 4800rpm |
Conveyor with winch | 3.2m Length, 250mm width |
Conveyor swing angle | Manual ±15° |
Chain saw | 22inch (Made in China) |
Log holder | CE safety |
Hydraulic output | YES |
Cylinder Bore | 4inch |
Cycle time | 6 second |
Wheel | 12inch high speed trailer wheel |
Knife | 4/6-ways |
Packing | 1pc/ iron pallet |
Weight | 550kg |
40"HC Container | 24pcs |

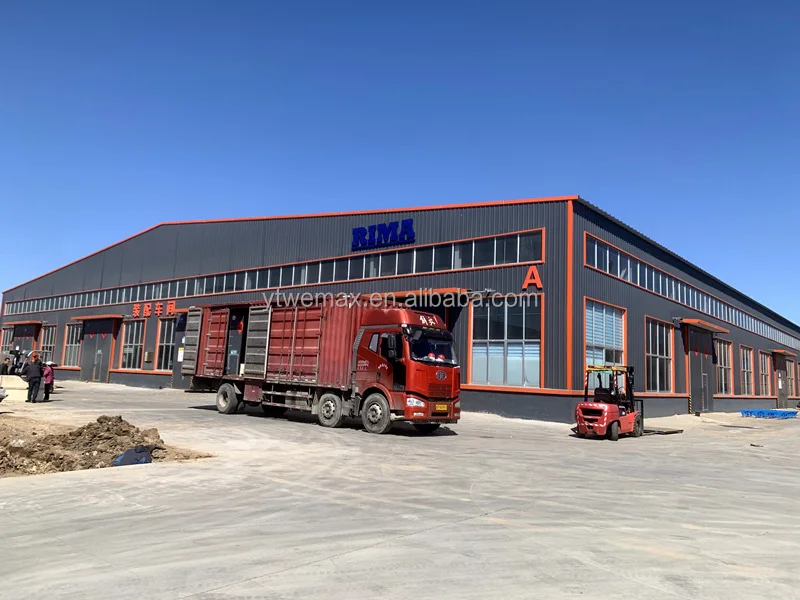

Company Profile

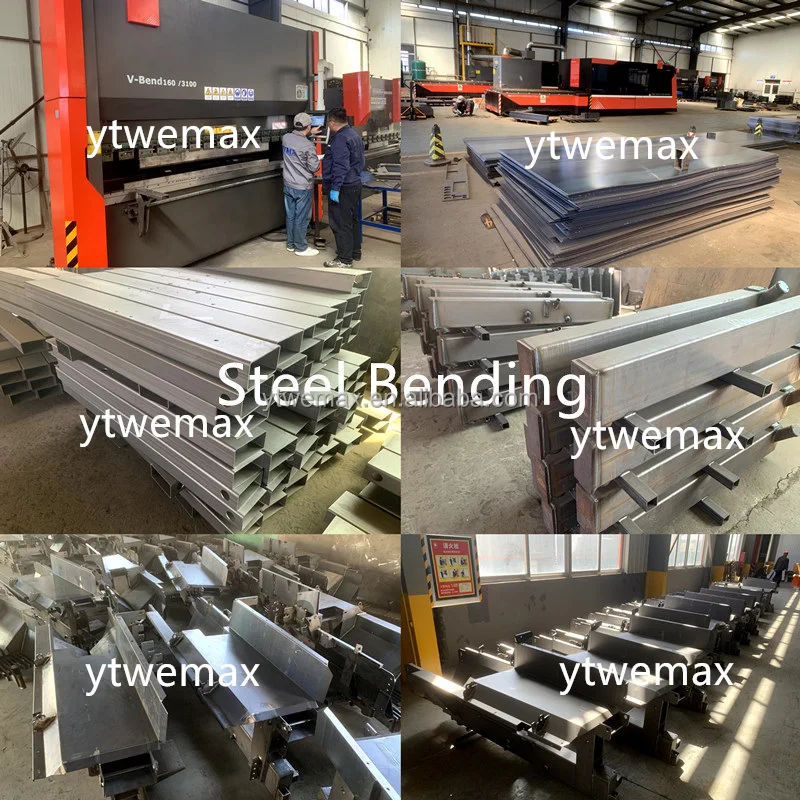

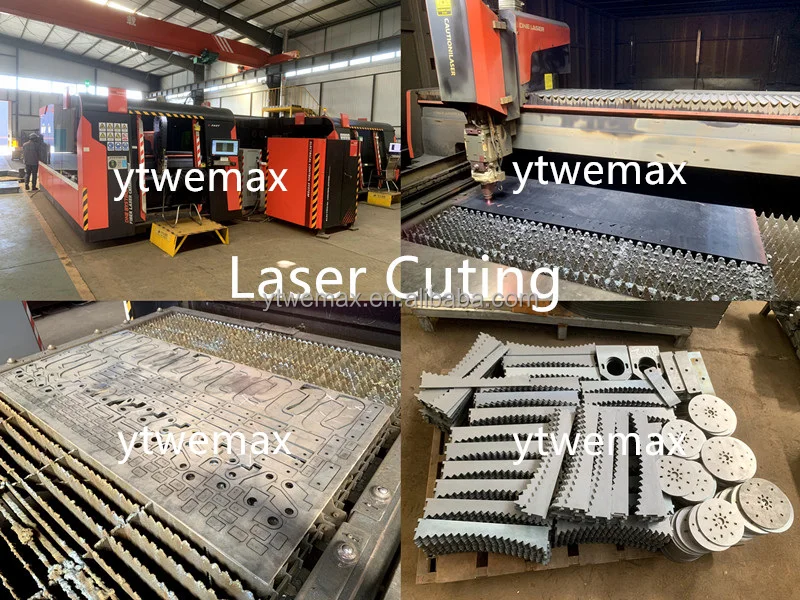

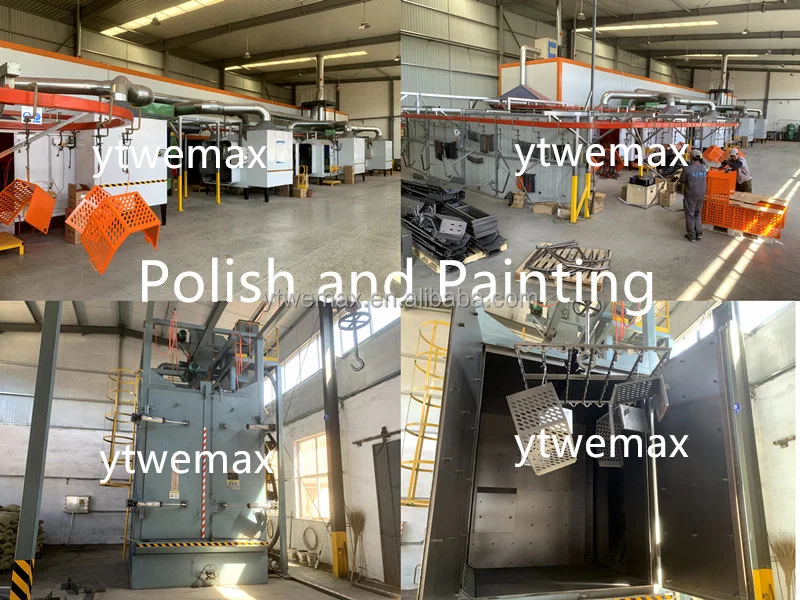

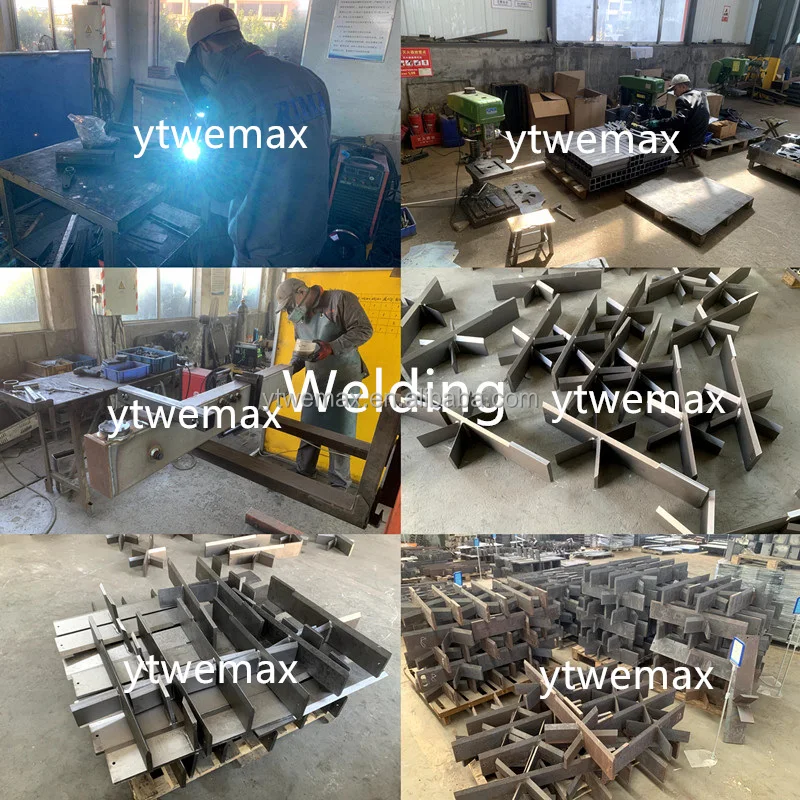

We own professional facility lines including our laser cutting , bending , welding and painting ( podwer coated ) . Our bending machine is imported from Switzland , all these machine ensures the quality standard and tracked for each process .

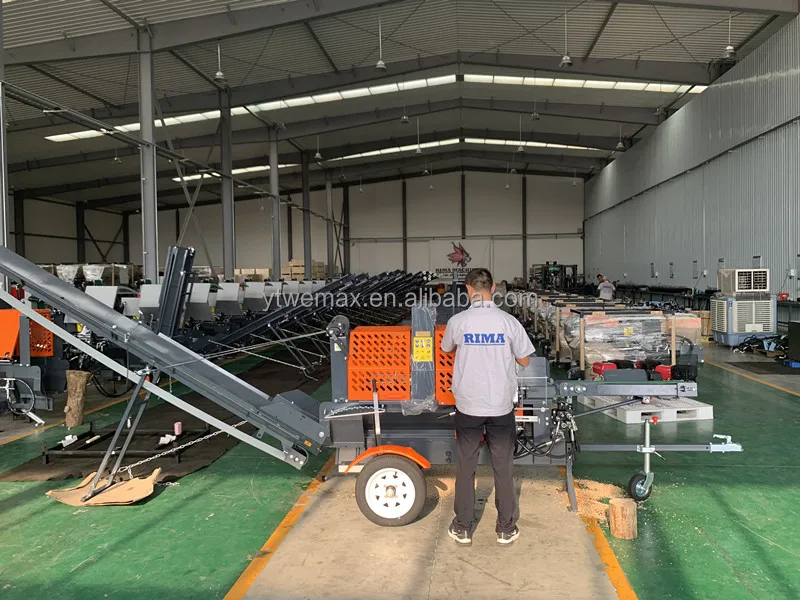

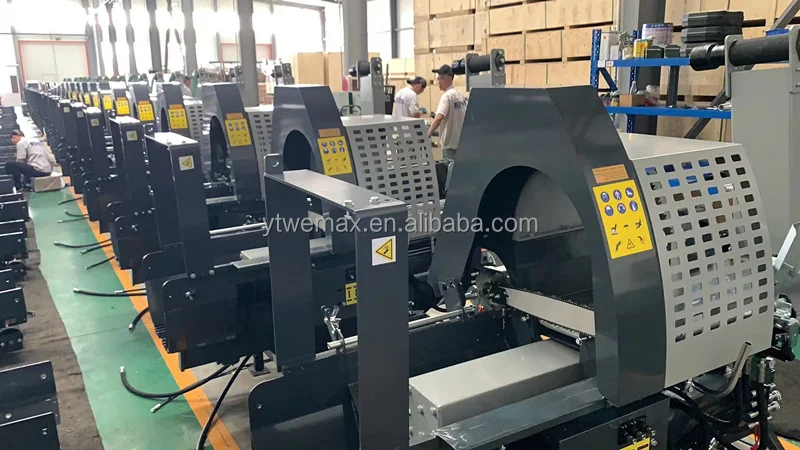

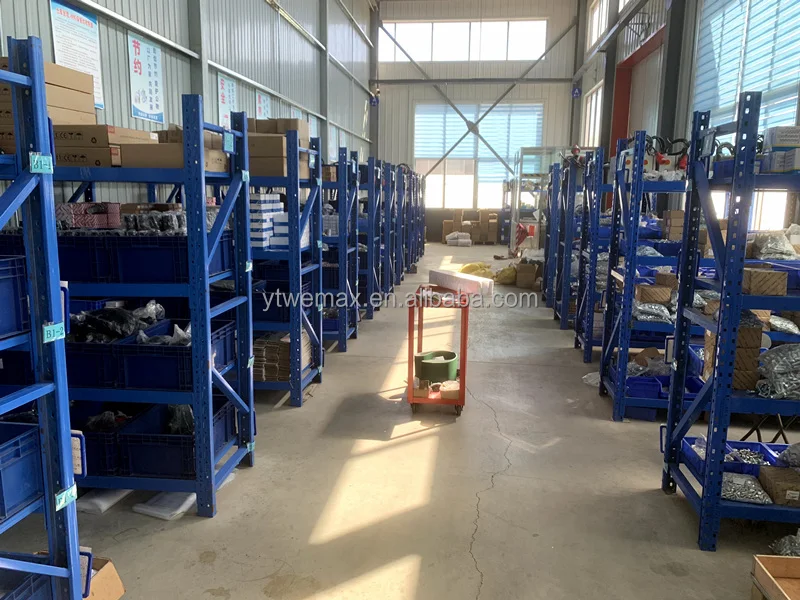

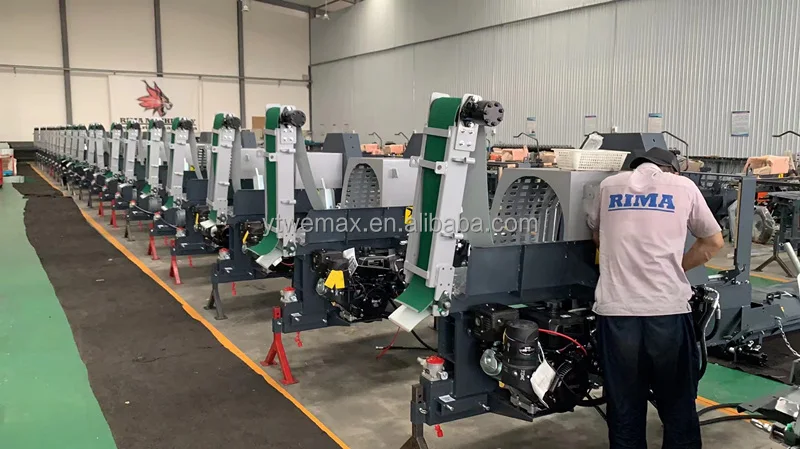

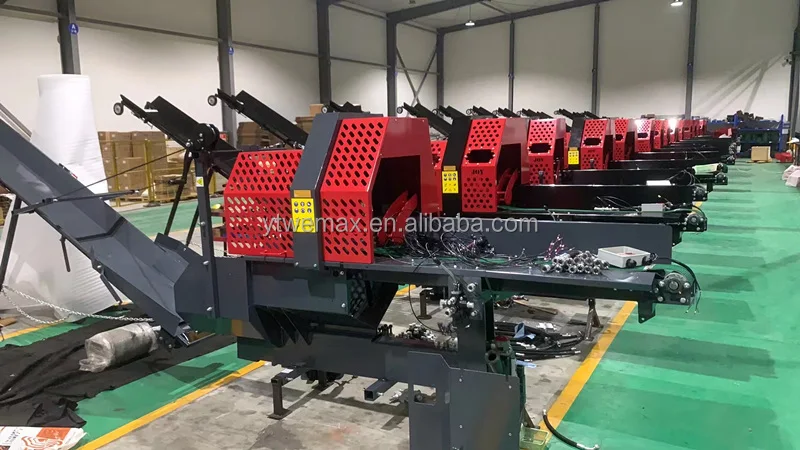

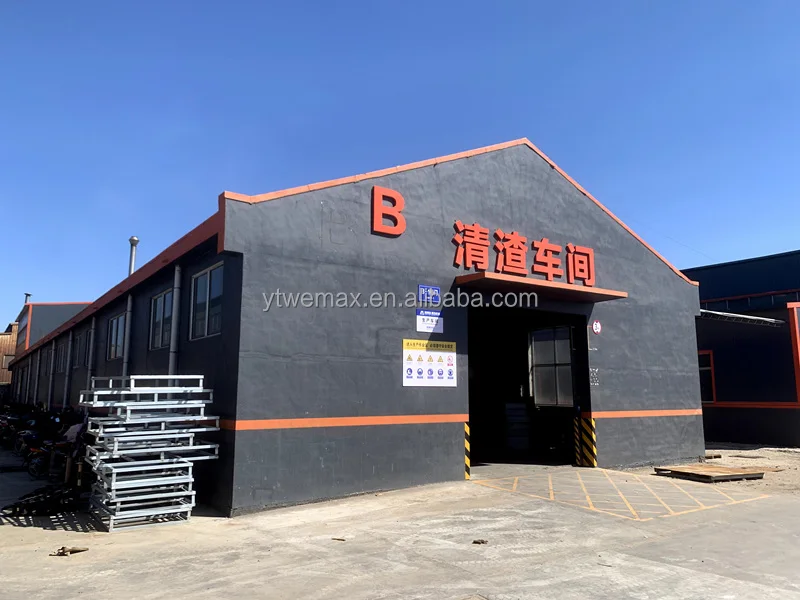

Workshop view
We built our 5S workshop to ensure the bulk order well produced and tracked for each process to serve our dealers and customers in our best .
OEM

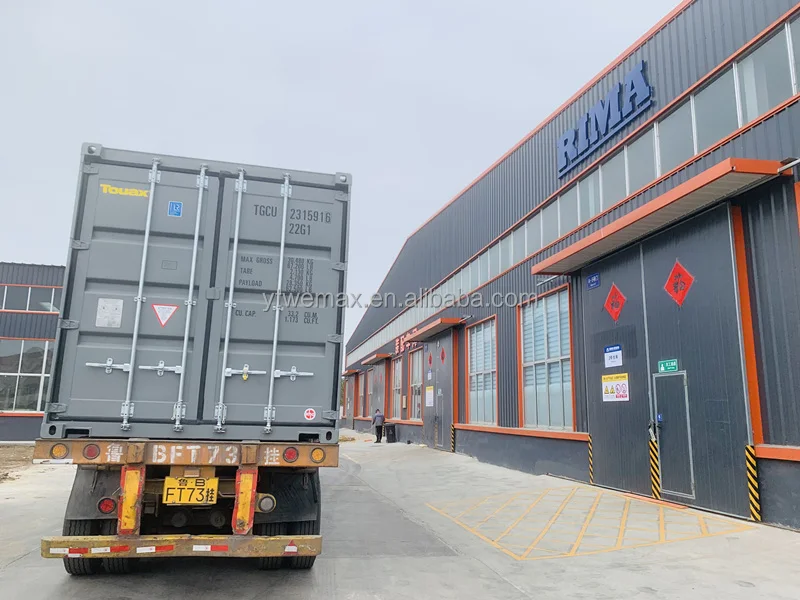

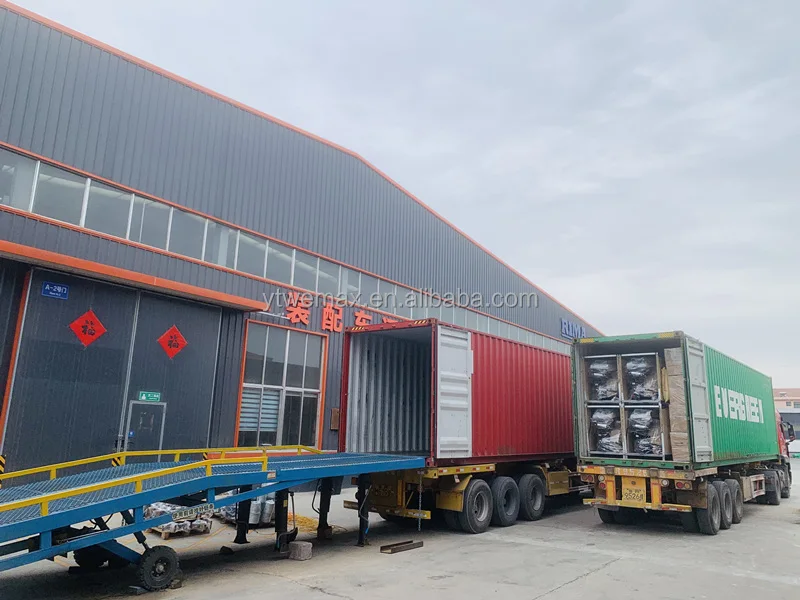

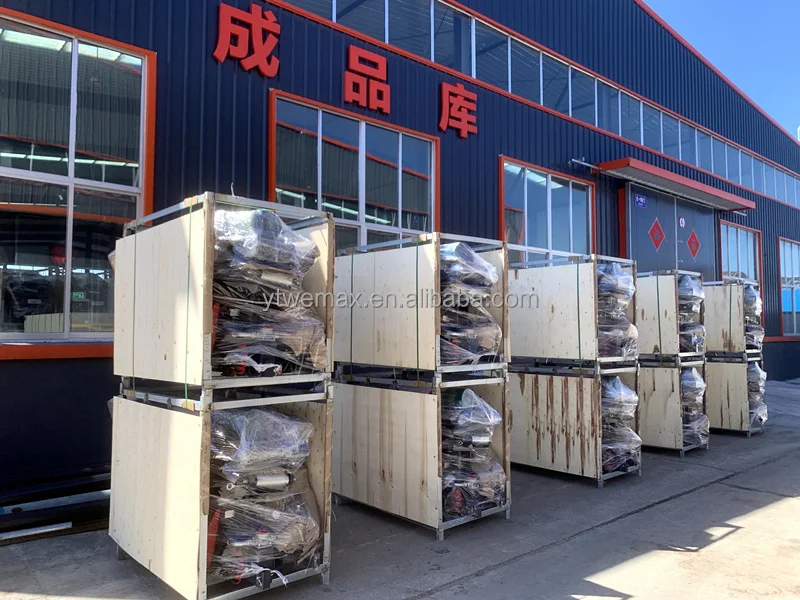

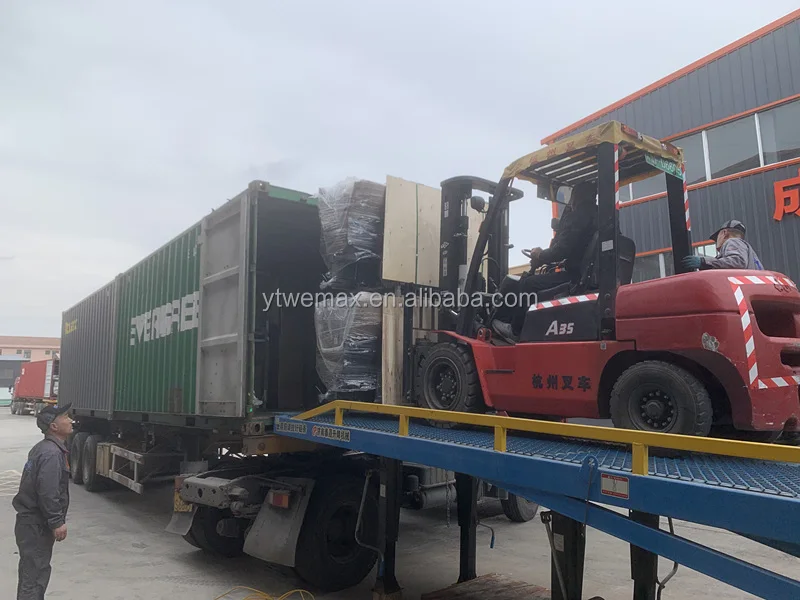

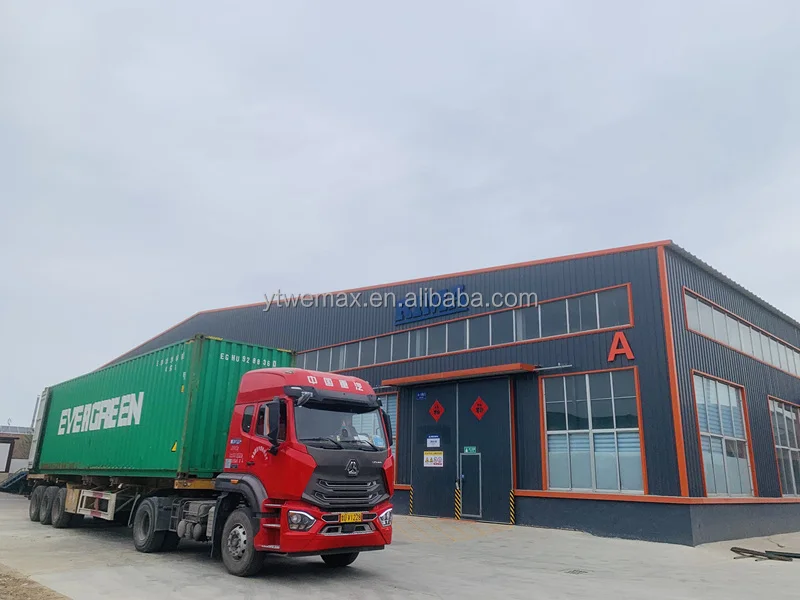

Loading and Delivery
