Single phase fully isolated AC voltage regulating module 220V40A solid state relay for shoe making injection molding machine
- Category: >>>
- Supplier: BEIJING STRONG ELECTRIC CO. LTD.
Share on (1600869419666):
Product Overview
Description

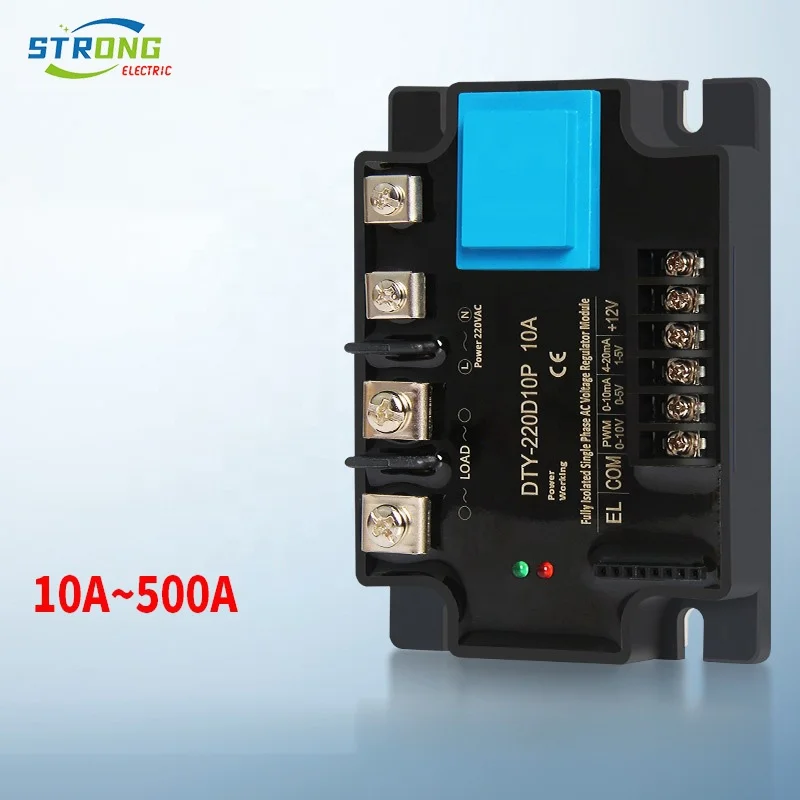

Single-phase fully isolated AC voltage regulating module 220V40A solid state relay for shoe making injection molding machine
DTY series intelligent single-phase AC voltage regulation & power regulation module is designed using a single-chip microcomputer and developed by our factory as a new generation high-precision product. It aims to address the common issues found in various regulators currently available in the market, such as inaccuracies in input signals, instability in power regulation, and significant errors.
Functions:
phase shift voltage regulation, cycle wave power regulation and PWM regulation.
Application:
The module is extensively utilized in lighting equipment, temperature control systems, AC motor soft starters, AC string wave speed controllers, and other power automatic adjustment applications.
Instruction for cycle-wave power regulation is as follows:
Functions:
phase shift voltage regulation, cycle wave power regulation and PWM regulation.
Application:
The module is extensively utilized in lighting equipment, temperature control systems, AC motor soft starters, AC string wave speed controllers, and other power automatic adjustment applications.
Instruction for cycle-wave power regulation is as follows:
Firstly, short-circuit the EL terminal and COM terminals.
Secondly, connect the instrument to the corresponding analog signal port in order to achieve power regulation function. This function is primarily utilized for heating systems.
Classification:
Voltage rating: 220V, 380V.
Current rating:10A,25A,40A,60A,80A,100A,120A,160A,200A,240A,300A,350A,400A.
The intelligent single-phase AC phase-shifting trigger module is recommended for higher current applications.

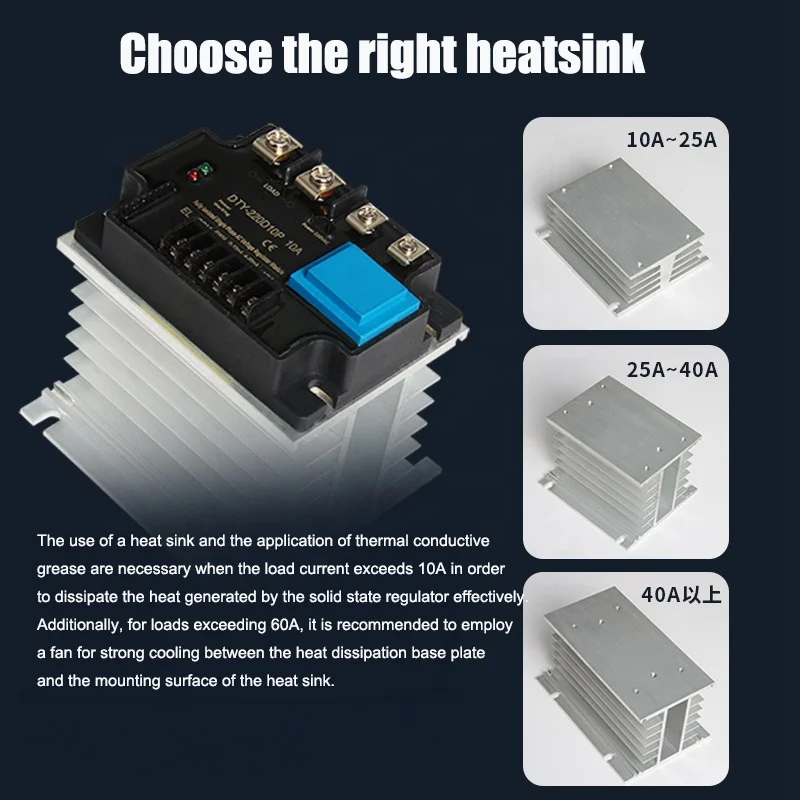

Please note that it is necessary to mount this module on a heatsink in order to effectively dissipate heat. To facilitate the
transfer of heat, we recommend applying thermal grease or a Silicone Thermal Pad between the module and the heatsink. For further information, please refer to our range of available heat sinks or consult with our sales team.
Classification:
Voltage rating: 220V, 380V.
Current rating:10A,25A,40A,60A,80A,100A,120A,160A,200A,240A,300A,350A,400A.
The intelligent single-phase AC phase-shifting trigger module is recommended for higher current applications.
Please note that it is necessary to mount this module on a heatsink in order to effectively dissipate heat. To facilitate the
transfer of heat, we recommend applying thermal grease or a Silicone Thermal Pad between the module and the heatsink. For further information, please refer to our range of available heat sinks or consult with our sales team.
Product Description

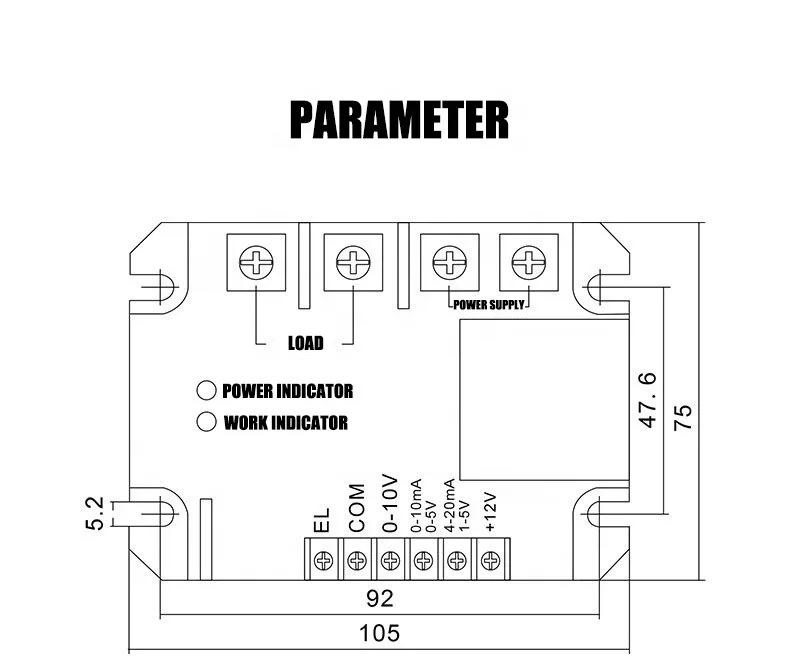

Specification
Model Number | DTY-220D40P |
Theory | Solid State Relay |
Usage | PROTECTIVE |
Size | 47.6*75*105mm |
Protect Feature | Epoxy |
Contact Load | 40A |
Input signal | 0-5V,0-10V,4-20mA or potentiometer |
Load voltage | 220Vac |
Power supply | 220Vac |
Weight | 0.5kgs |
