Flexure hinge microscope stage nano position with high precision flexible guiding system piezo linear stage
- Category: >>>
- Supplier: Suzhou Unite Precision Machinery Technology Co. Ltd.
Share on (1600869425485):
Product Overview
Description
linear stage:
Product Description
The main application of a voice coil motor: |
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
4.Vibration System:Shaking table, vibration platform. |
5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
6.Aviation Technology:Flight control system, pilot feedback system. |
7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
The VCAR series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 0.7N to 3000N.Typically ,their stroke length is less than 50mm The VCAR Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.
Product Modle | Peak Force (N) | Continious Force 25℃(N) | Total Stroke (mm) | Peak current (A) | Peak Voltage (V) | Thrust constant (N/A) | Encoder resolution (um) | Repeat precision (um) |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 1.7 | 15.7 | 3.57 | 0.1/0.5/1 | 1/5/10 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 2.3 | 26.6 | 5.72 | 0.1/0.5/1 | 1/5/10 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 3.8 | 24.7 | 5.8 | 0.1/0.5/1 | 1/5/10 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 4.5 | 24.3 | 5.87 | 0.1/0.5/1 | 1/5/10 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 4.95 | 44.9 | 8.88 | 0.1/0.5/1 | 1/5/10 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 4 | 26.9 | 17.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 6.85 | 34.5 | 12.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 6.4 | 35.1 | 41 | 0.1/0.5/1 | 1/5/10 |

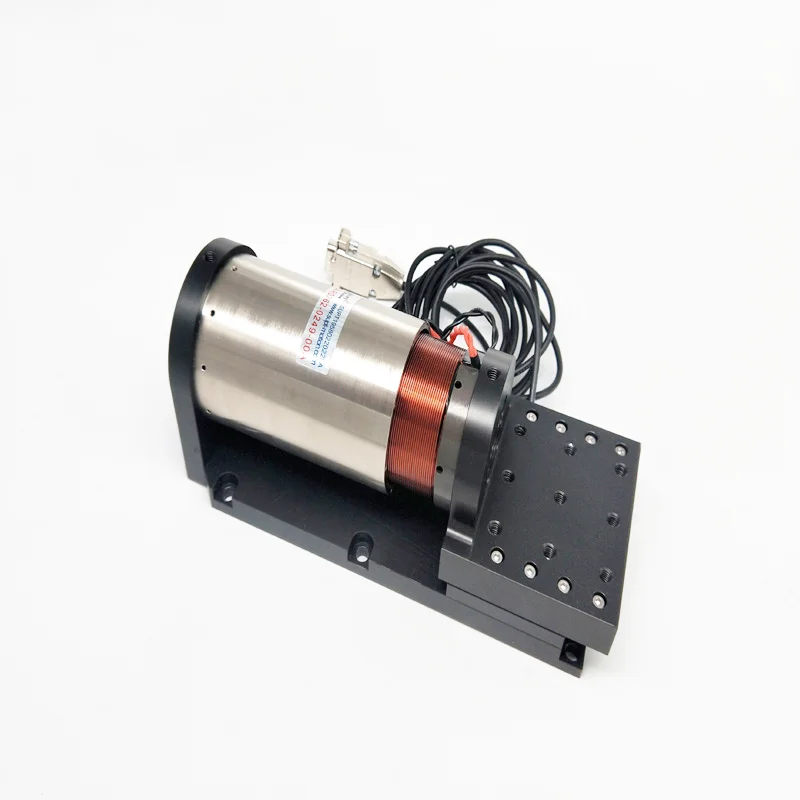

| VCAR0262-0249-00A | 262 | 112 | 24.9 | 10.1 | 28.2 | 26 | 0.1/0.5/1 | 1/5/10 |

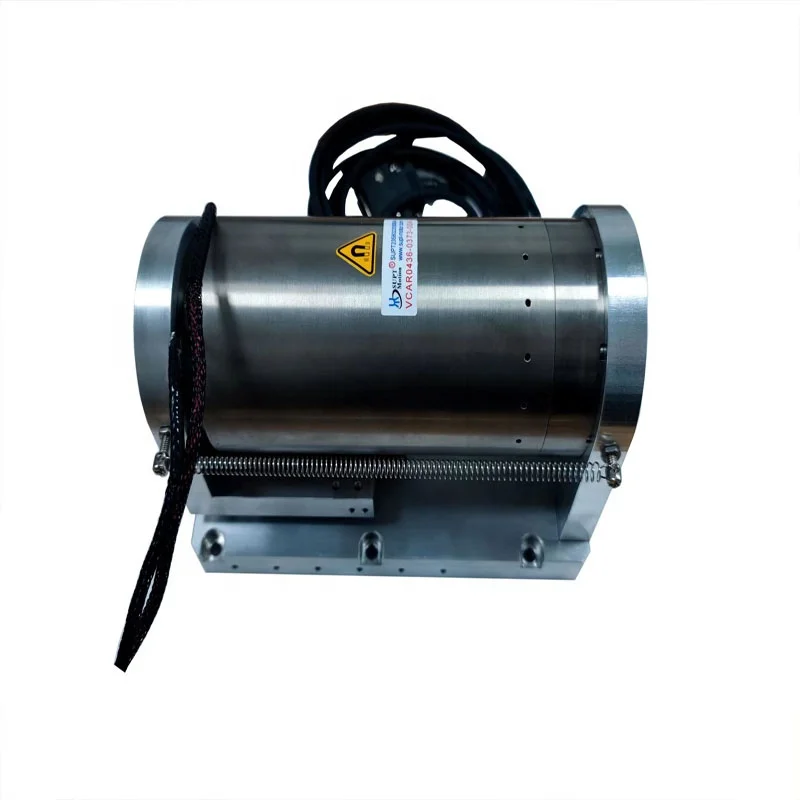

| VCAR0436-0250-00A | 436 | 167 | 25 | 11.7 | 31.6 | 37.2 | 0.1/0.5/1 | 1/5/10 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 19.9 | 73.5 | 68 | 0.1/0.5/1 | 1/5/10 |
Our Services
Technical indicators & specifications can be customized
