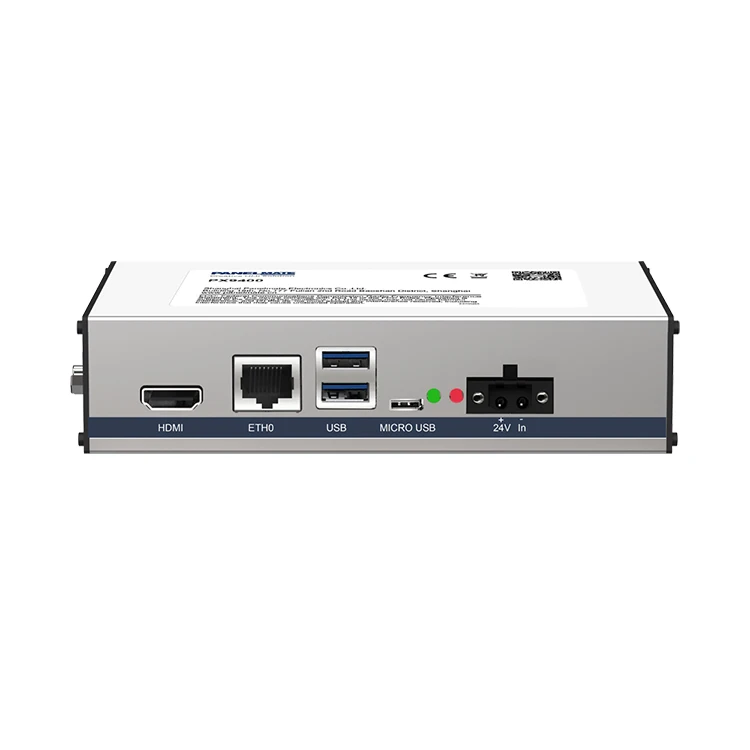

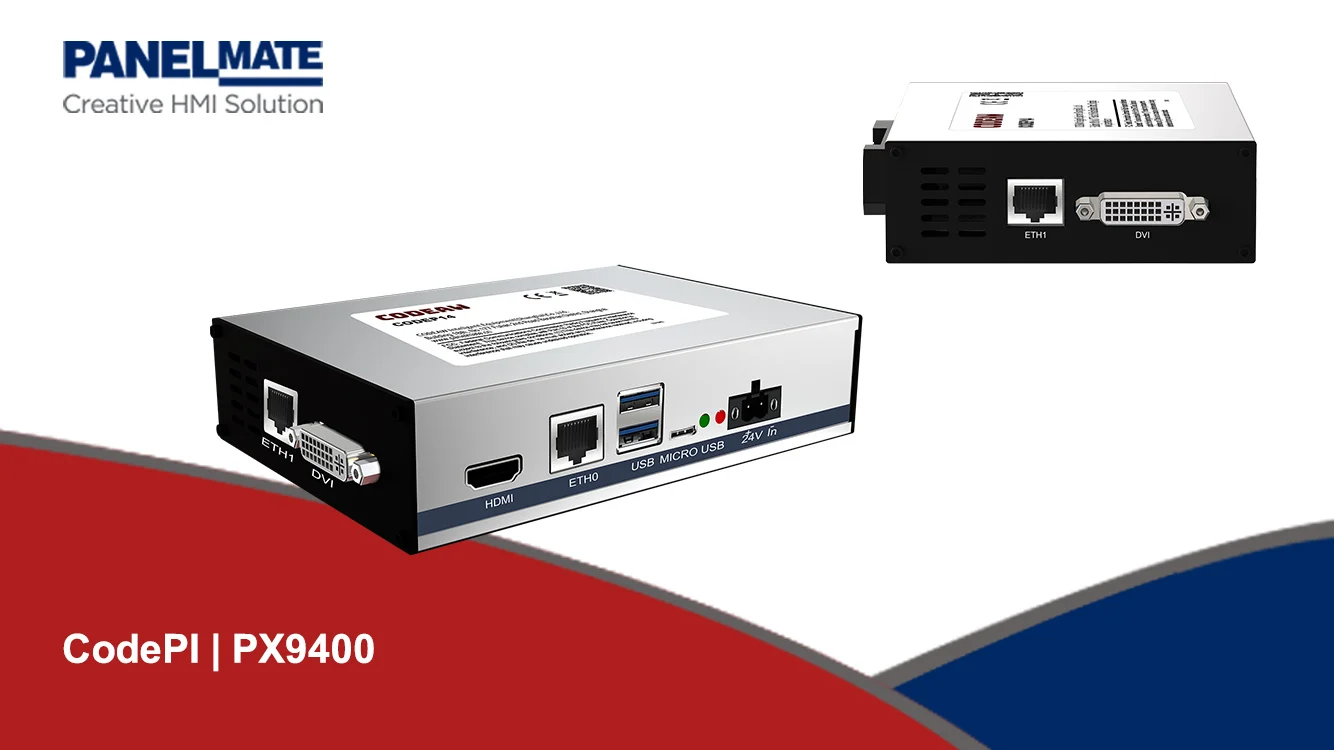

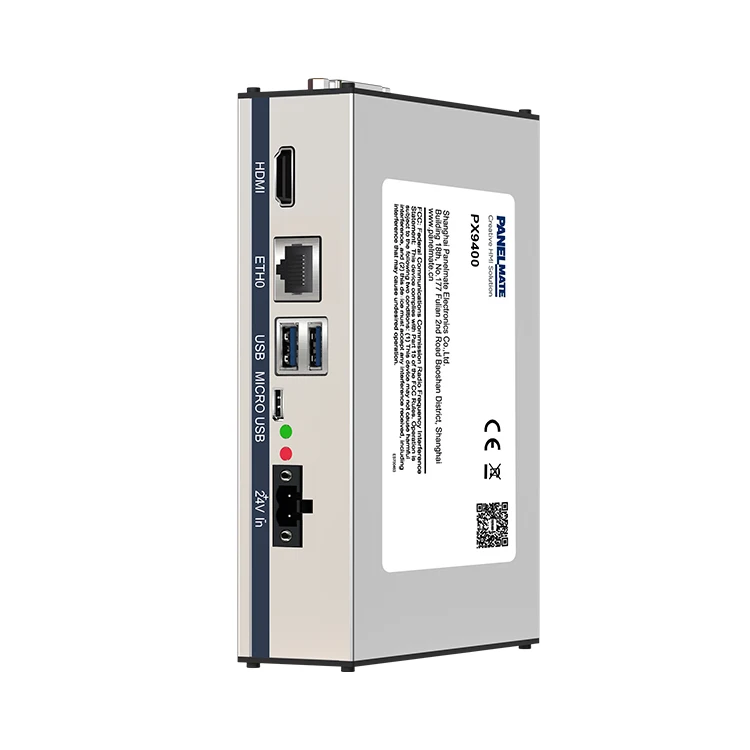

All Aluminum Housing Single sided Interfaces Codesys PLC System Computer Raspberry Pi Industrial Edge Controller
- Category: >>>
- Supplier: Shanghai Panelmate Electronics Co. Ltd.
Share on (1600869440127):
Product Overview
Description
Hardware Configuration
The hardware is depend on Raspberry Pi Compute Module 4 with external board, The External board have features below:
1. Charge manager with BMS(UPS)

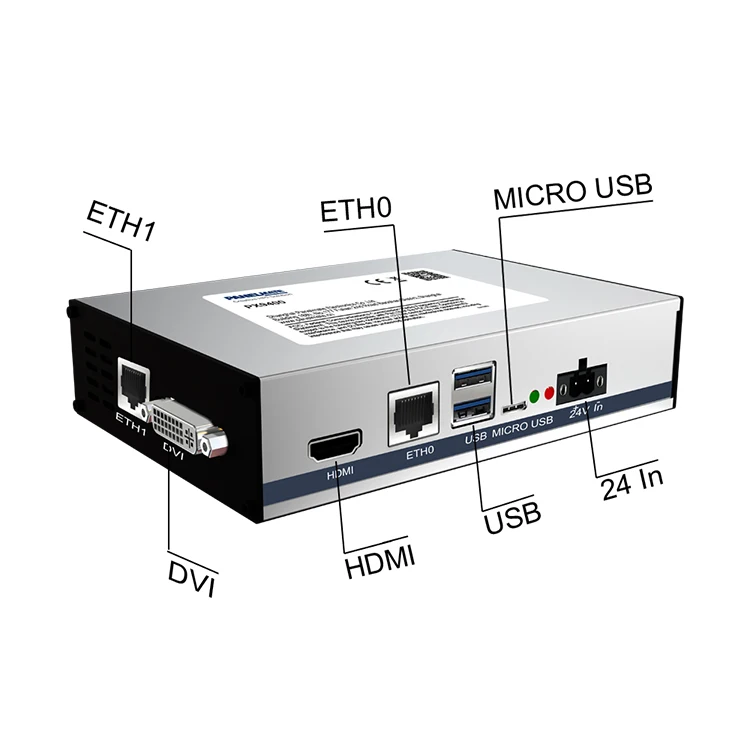

2. 2xUSB and 2 x RJ45
3. DVI or HDMI display output.
4. Inelligent BOOT sel, Flash via micro usb
5. Double LED for power and disk use
Software Configuration
The Raspberry pi os is based on Debian Linux. We already installed real-time kernel, overlay,codesys rte and configuration fine.
1. Raspberry pi os(32 bit)
2. Preempt RT Real-time patch
3. CoDeSys control for raspberry pi mc sl
4. dtoverlay, make plc is Easy-To-Use
5. Compatible Python, C, Node-Red, etc
Model Number | PX9400 | |
Brand Name | Panelmate | |
Base Material | Aluminum housing | |
Copper Thickness | 1oz | |

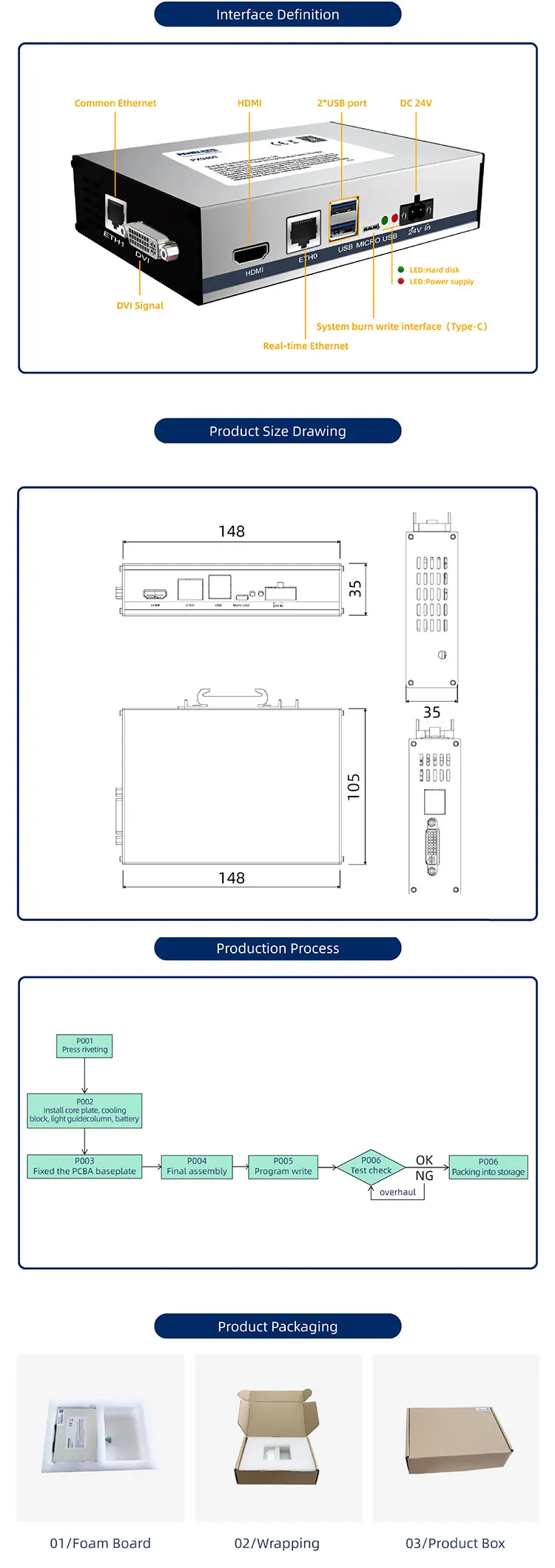

Size | 150x90x30mm | |
Installation type | Din Rail | |
Interface-1 | 2xUSB2.0 Type A | |
RAM | 2G | |
CPU | BCM2711 | |
UPS | 2xRJ45 10/100Mbit /s | |

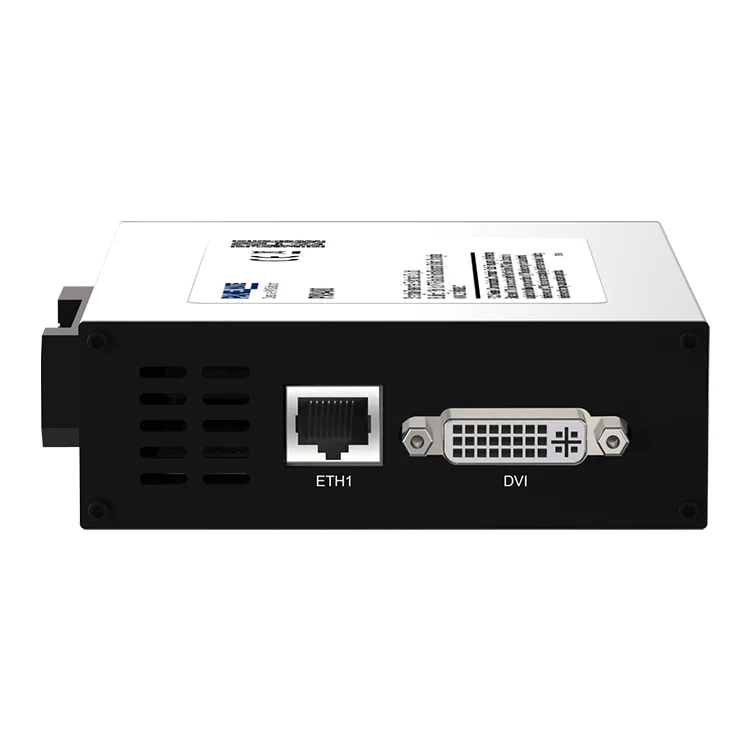

Interface-2 | 1 x HDM i + 1 x DVI + 1 x Micro USB | |
Power consuption | 15W | |
Flash | 8G eMMC | |
Protection grade | IP32 | |

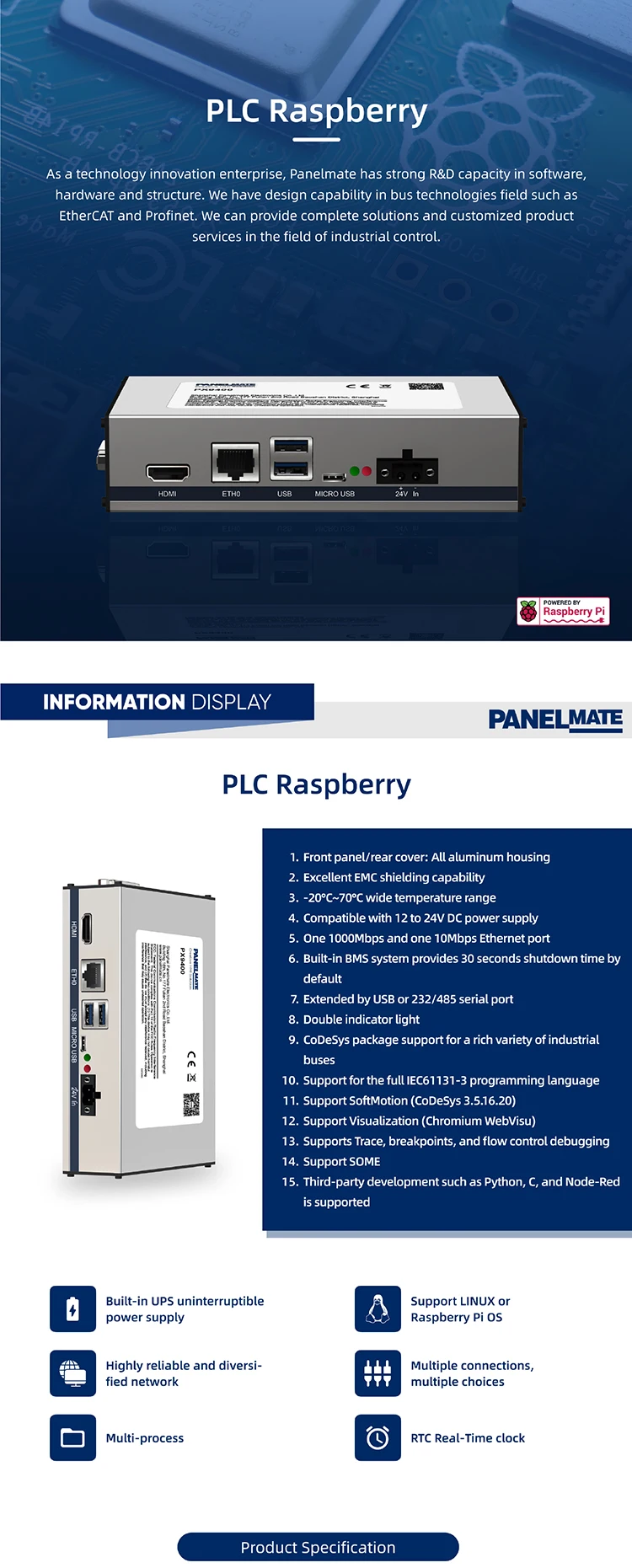

Product Features | ||
· All aluminum housing，excellent EMC shielding capability · Unilateral interface with DIN rail wall-mounted · DC 24V · Work temperature：-20℃~60℃ · Built-in BMS system provides 30s shutdown time by defaut · Support SoftMotion（CoDeSys 3.5.14.40） · Support Visualization（Chromium WebVisu） · Support for Trace、breakpoints、flflow control Debug | ||
