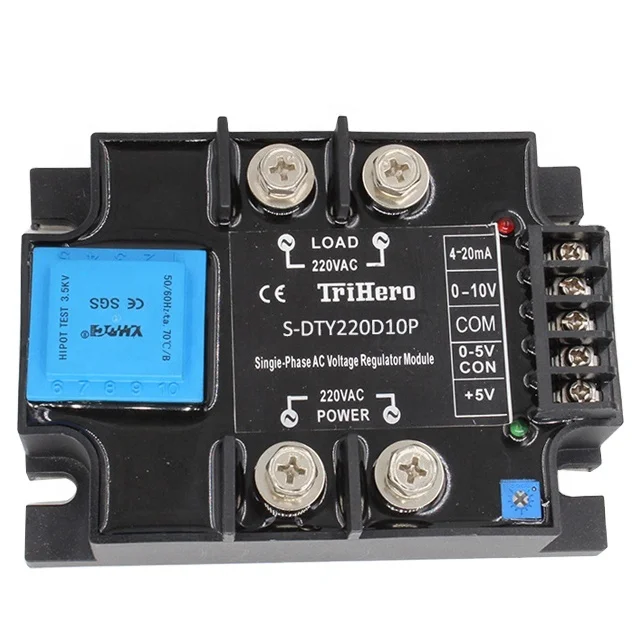

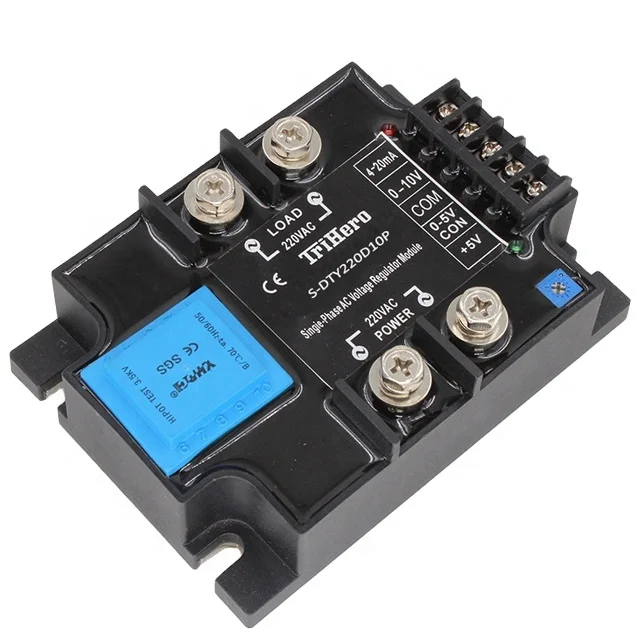

10A single phase SCR thyristor Power controller regulator SSR PLC 4 20mA 0 10V S DTY single phase ac voltage regulator module

10A single phase SCR thyristor Power controller regulator, SSR PLC 4-20mA,0-10V,S-DTY single phase ac voltage regulator module

S-DTY series intelligent single-phase ac power voltage regulator module designed by single-chip microcomputer, is a high precision products independent developed by our factory, it solved the uneven products on the present market, such as signal input inaccuracy, unstable power adjusting, large error, etc.

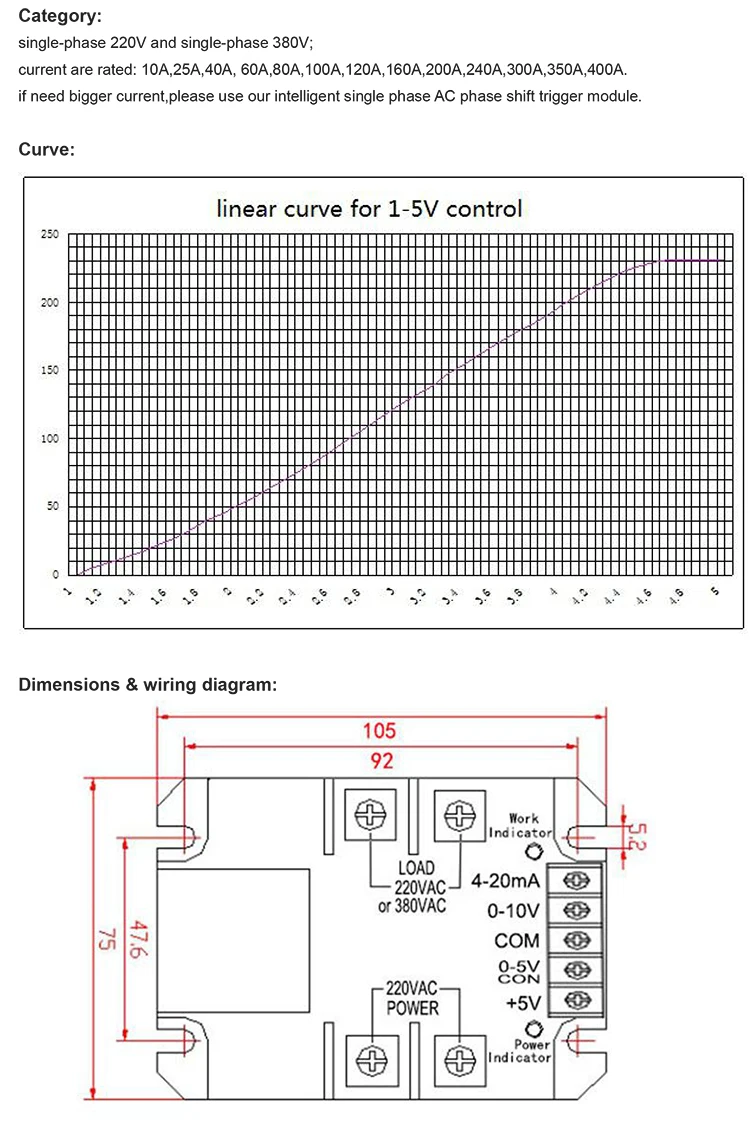

Single-phase 220V and single-phase 380V;
current are rated: 10A,25A,40A, 60A,80A,100A,120A,160A,200A,240A,300A,350A,400A.
If you need bigger current, please use our intelligent single phase AC phase shift trigger module.

Note: This SSVR should to be mounted on a heat sink to dissipate heat. Thermal grease or Silicone Thermal Pad should be applied between the SSVR and heat sink to help transfer heat. For more information, please check our heatsinks or ask the sales.
