Customized outdoor security robot guard tour patrol robot with camera for commercial UGV 8
- Category: >>>
- Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.Zhengzhou Ltd.
Share on (1600869554642):
Product Overview
Description

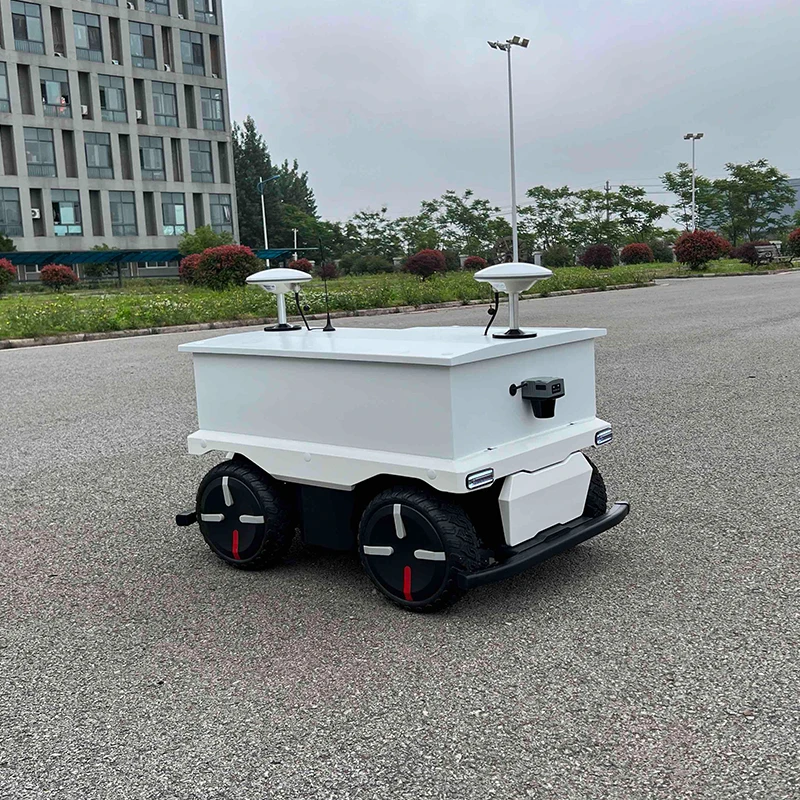

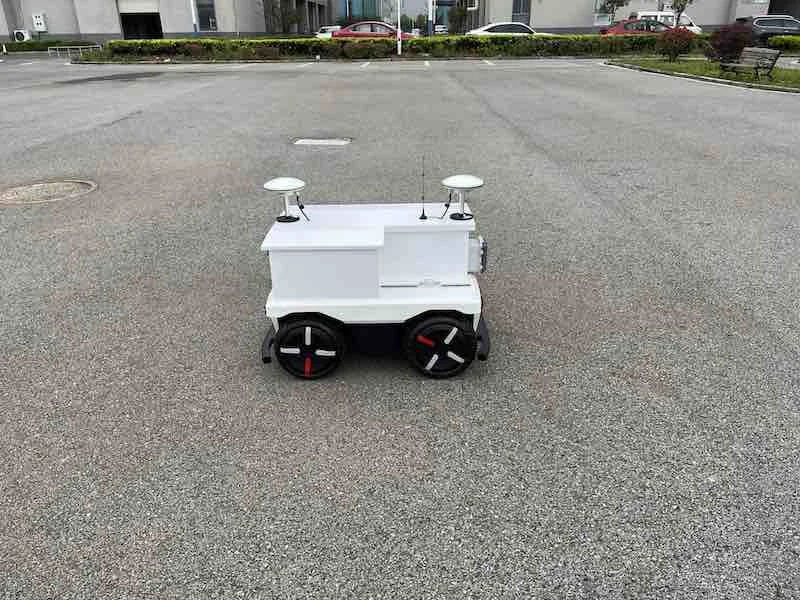

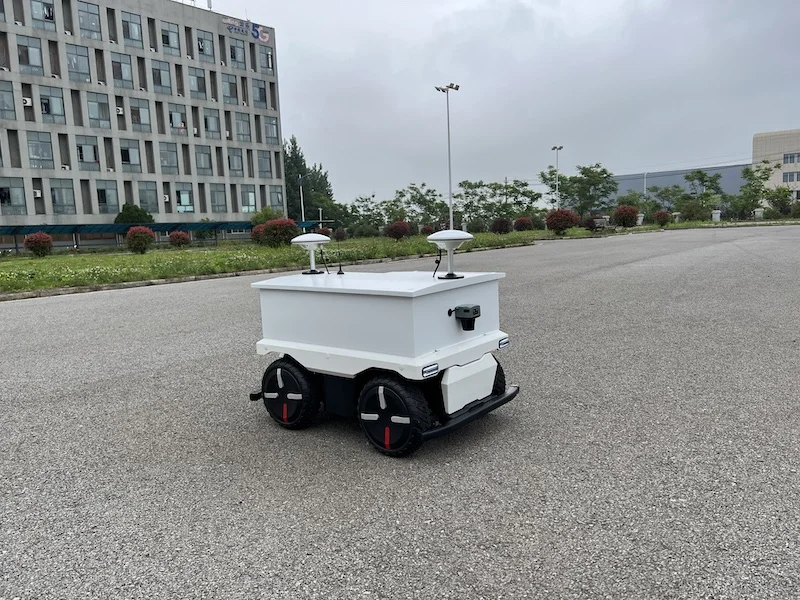

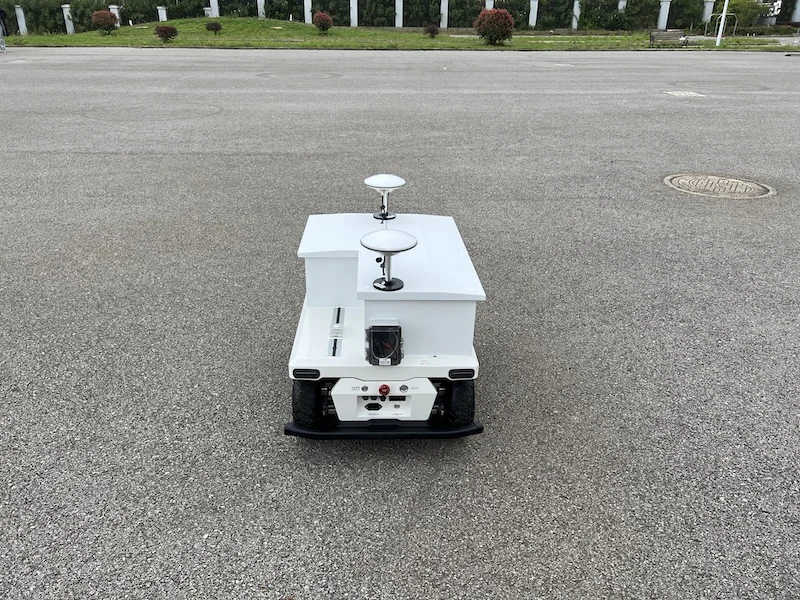

This is UGV-8 robot chassis with outdoor RTK navigation +IMU technology.
Clients add survey prism to the robot and use it for autonomous survey, saving time and labor and improving survey efficiency, accuracy.
Customized outdoor security robot guard tour patrol robot with camera for commercial UGV-8 is suitable for:
Application:
1. Scientific research or education.
2. Food delivery vehicle.
3. Disinfecting robot.
4. Unmanned service robot.
5. Unmanned inspection vehicle.
6. Unmannedsurvey
7. Advertising vehicle.
1. Scientific research or education.
2. Food delivery vehicle.
3. Disinfecting robot.
4. Unmanned service robot.
5. Unmanned inspection vehicle.
6. Unmannedsurvey
7. Advertising vehicle.
8. Indoor and outdoor use
Specification of the Entire Vehicle | ||
Item | Data | |
L*W*H | 852*572*327mm | |
Min. Ground clearance | 87mm | |
Overall weight | About 43kg | |
Rated load | 80kg | |
Chassis and Performance | ||
Item | Data | |
Steering | Front wheel Differential steering | |
Brake form | Anti-drag braking | |
Tire outer diameter | 266mm | |
Running speed | ≤5km/h | |
Driving range | 5-10km | |
Braking distance | 0.4m | |
Turning radius | 0.5m | |
Climbing angle | ≤15° | |
Obstacle passing | 8cm | |
Safety protection | Touch stop bar; Emergency brake button | |
Electric drive | ||
Item | Data | |
Motor type | Wheel hub motor (Permanent Magnet Synchronous Motor with encoder) | |
Motor Power | 300W*4 | |
Battery parameters | 48V 60AH Lithium iron phosphate Battery (LiFePO4) | |
Battery working temperature | -10~60℃ | |
Charger | AC220V independent charger | |
Charging time | ≤3h (Quick charging can be customized) | |
Protection class | IP35 (IP66 can be customized) | |
Other | ||
Communication protocol | Open underlying CAN protocol | |
Motion control | VCU control | |
Sensor types (already included in the robot) | Steering feedback sensor Walking wheel speed sensor Front and rear brake feedback sensor | |
Advantage:
1. Simple and easy to operate.
2. High configuration core hardware.
3. The four 300W high power wheel hub motor enjoys independent driving of each wheel, so it is easily implemented by four-wheel
drive.
4. Vehicle-grade drive by wire chassis control unit(VCU).
5. Electronic control logic design more suitable for autonomous driving needs.
6. Reading parameters, coordinating power output, intelligent body system.
2. High configuration core hardware.
3. The four 300W high power wheel hub motor enjoys independent driving of each wheel, so it is easily implemented by four-wheel
drive.
4. Vehicle-grade drive by wire chassis control unit(VCU).
5. Electronic control logic design more suitable for autonomous driving needs.
6. Reading parameters, coordinating power output, intelligent body system.

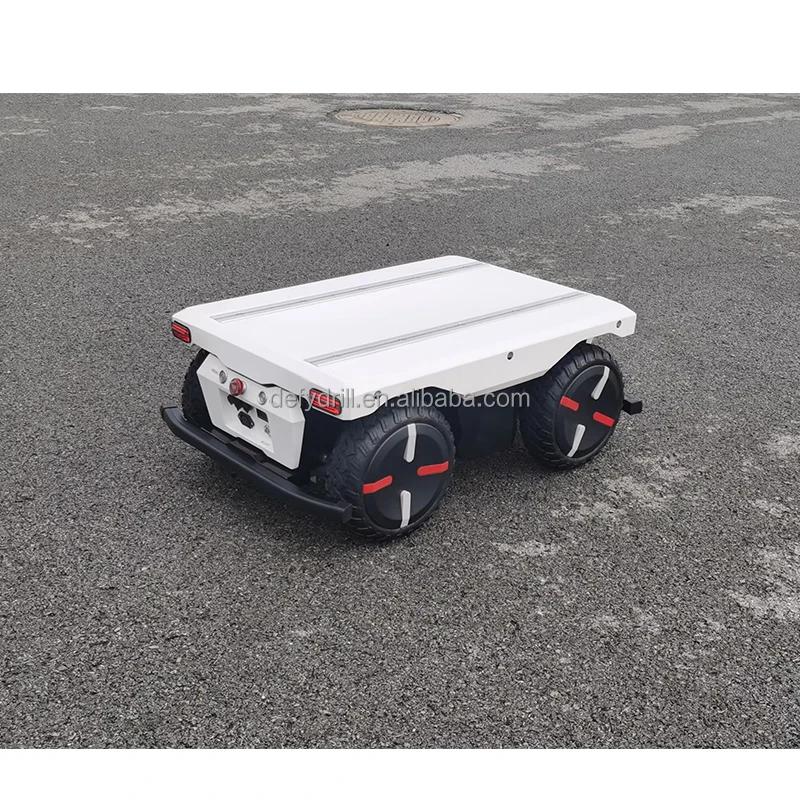

UGV-8 is a small robot chassis, using lightweight, modular, intelligent design to create a mobile robot development platform.
It has strong load capacity, stable control performance, a wide range of applications, can be flexible movement on all kinds of
typical pavement.

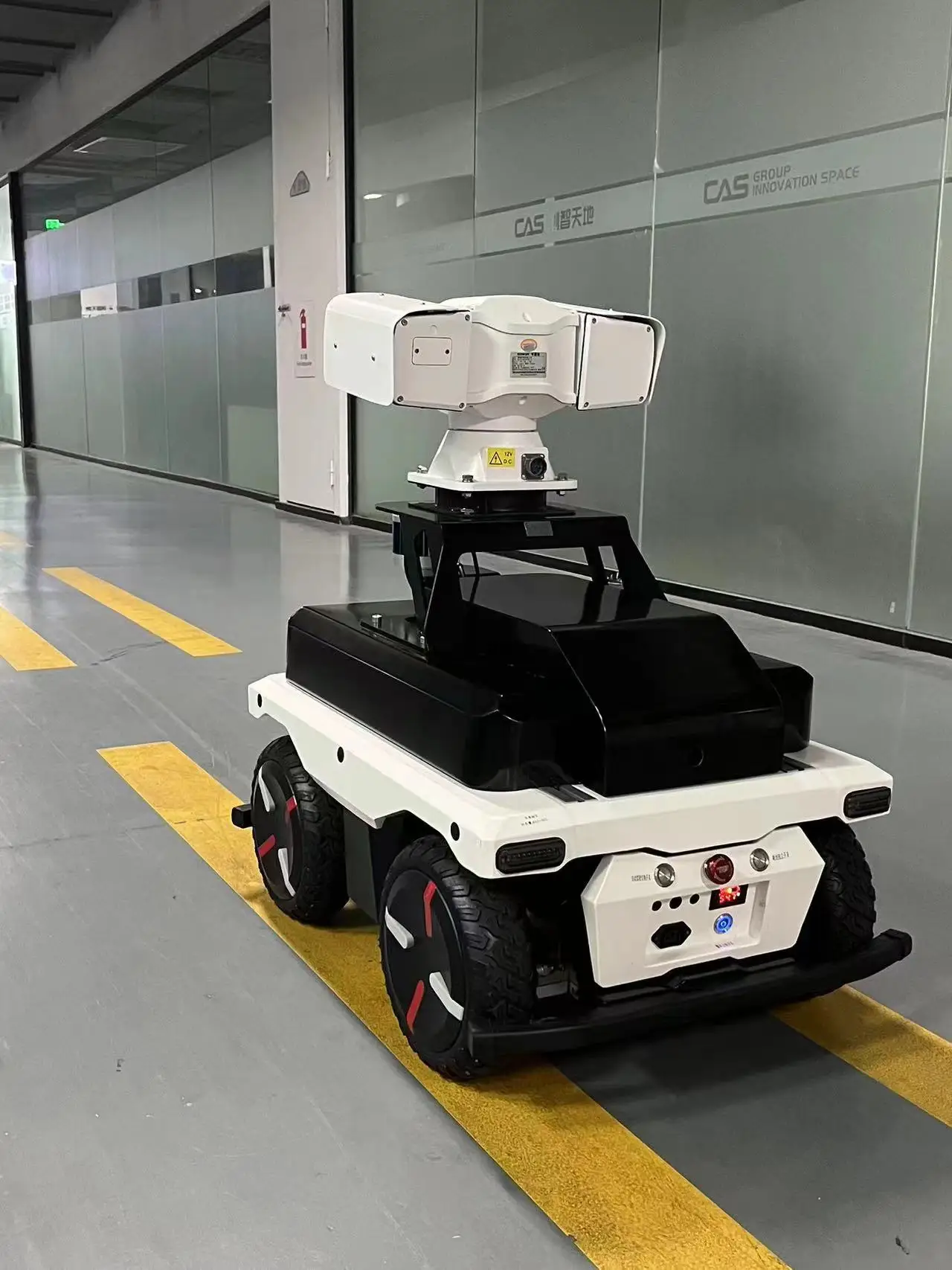

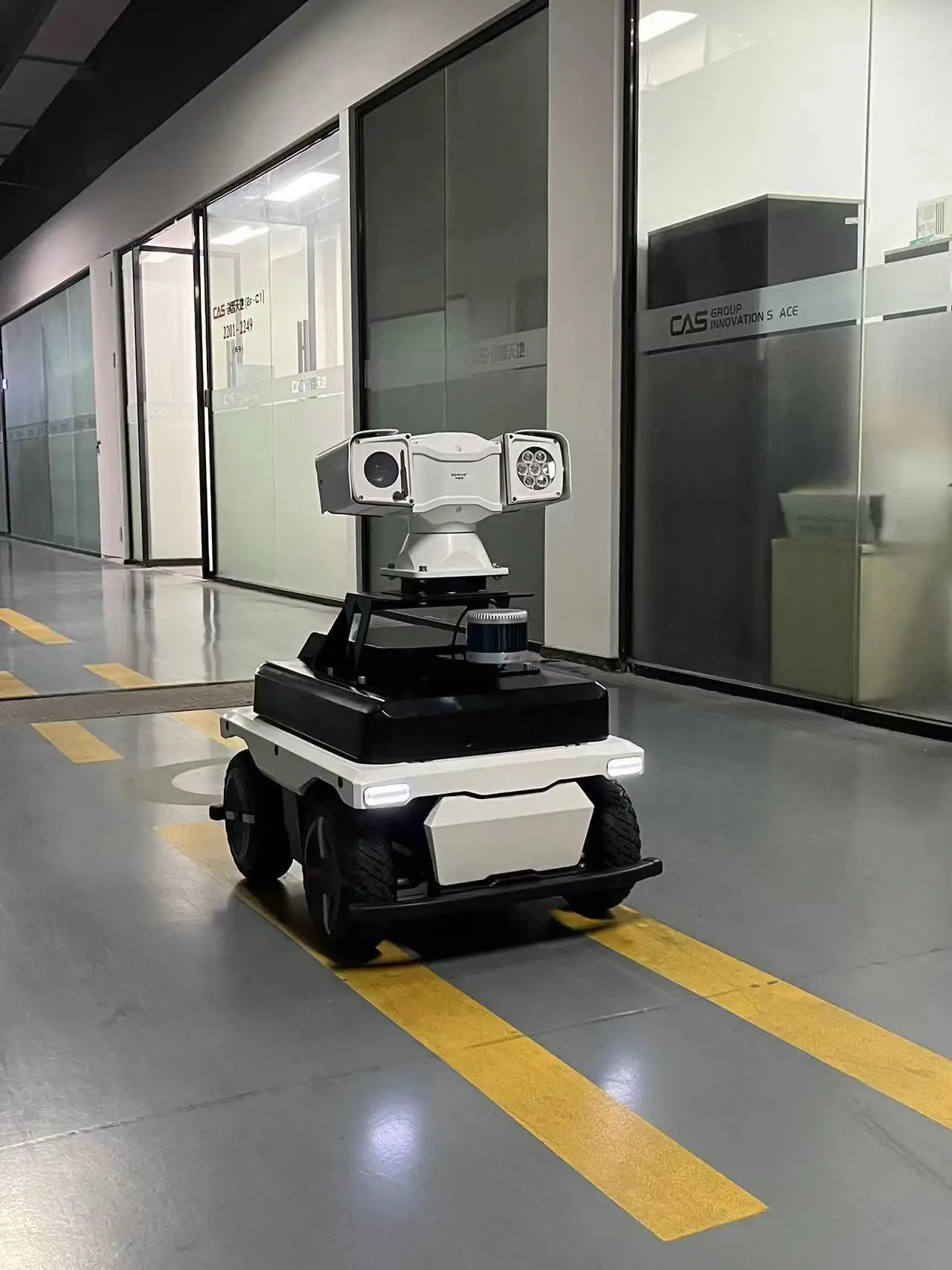

Stereo camera, laser radar, GPS, IMU, manipulator (robot arm) and other equipment can be installed on the chassis as an extension
application, can be applied to scientific research, distribution, logistics and other fields
It has strong load capacity, stable control performance, a wide range of applications, can be flexible movement on all kinds of
typical pavement.
Stereo camera, laser radar, GPS, IMU, manipulator (robot arm) and other equipment can be installed on the chassis as an extension
application, can be applied to scientific research, distribution, logistics and other fields
Services | ||
1 year warranty for main parts | During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight. | |
Spare Parts | most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients. | |
Operation and Maintenance | we will offer you detailed operation manual, ensuring you can use it perfectly. | |
Online support | Video technical support | |
Online Service | your question will be answer within 24 hours during working days, 48 hours during holiday. | |
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
