SSR 40DV 40A solid state voltage regulator 40DV SSR special for SCR voltage regulator
- Category: >>>
- Supplier: Beijing Bense Times Import And Export Co. Ltd.
Share on (1600869587629):
Product Overview
Description

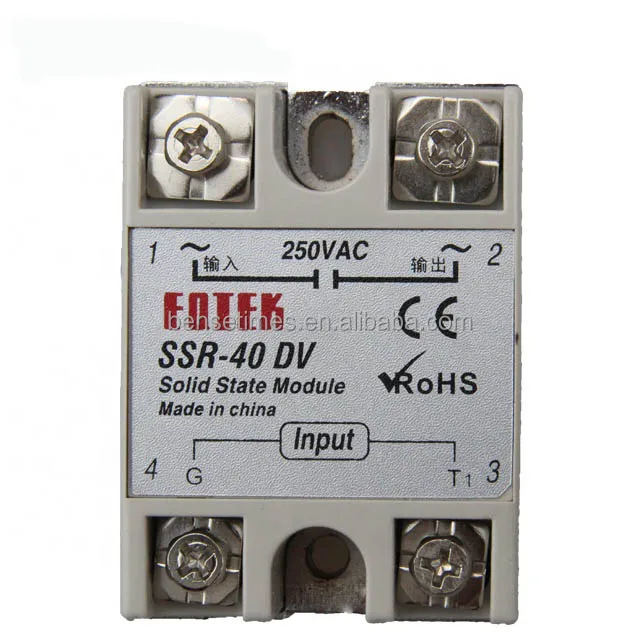

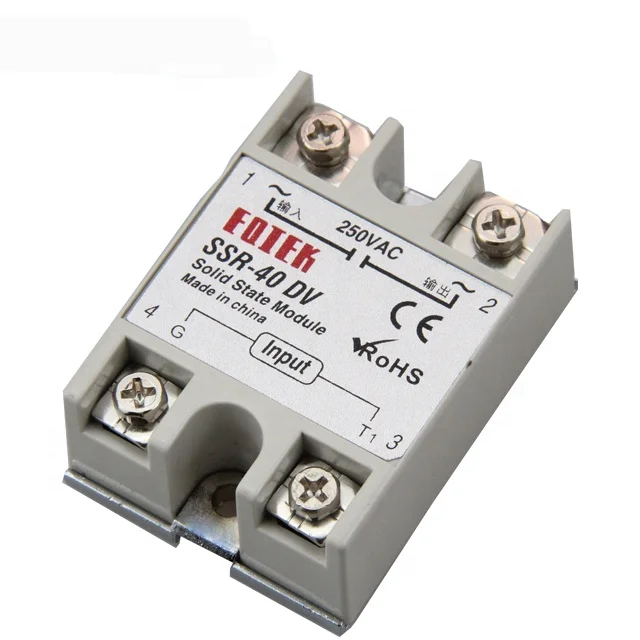

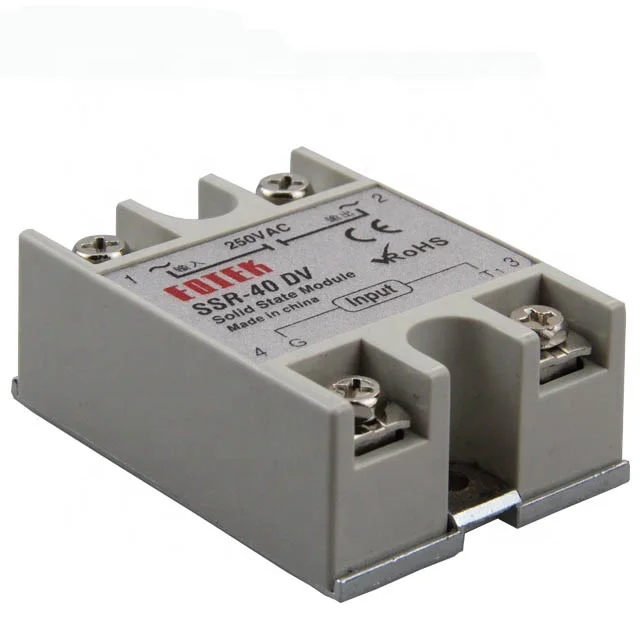

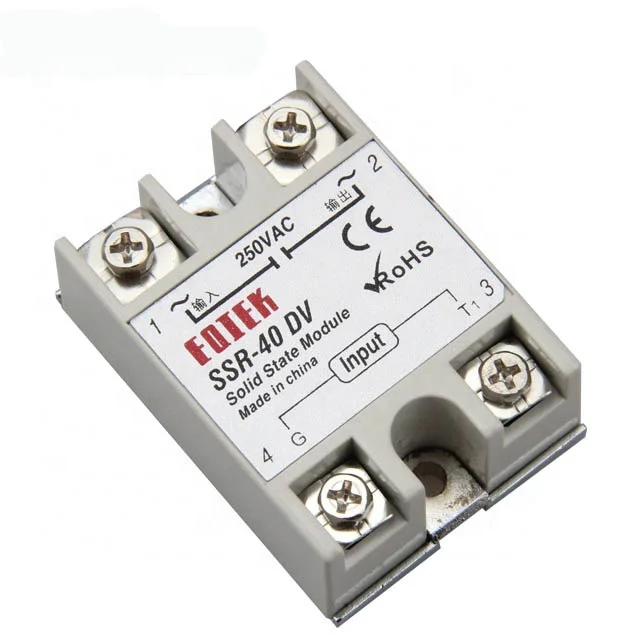

SSR-40DV 40A solid state voltage regulator 40DV SSR special for SCR voltage regulator
1. 0-100% output, which is available for resistive load or inductive load.

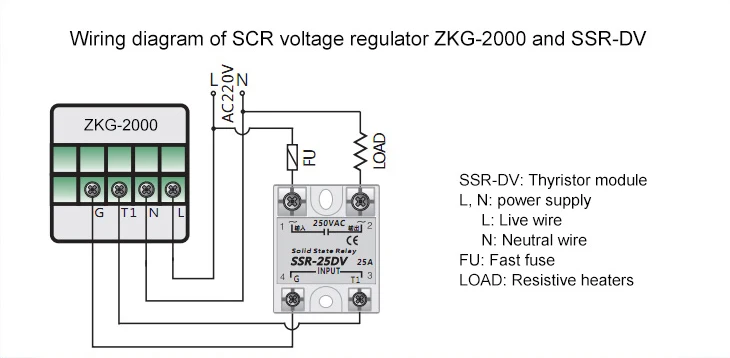

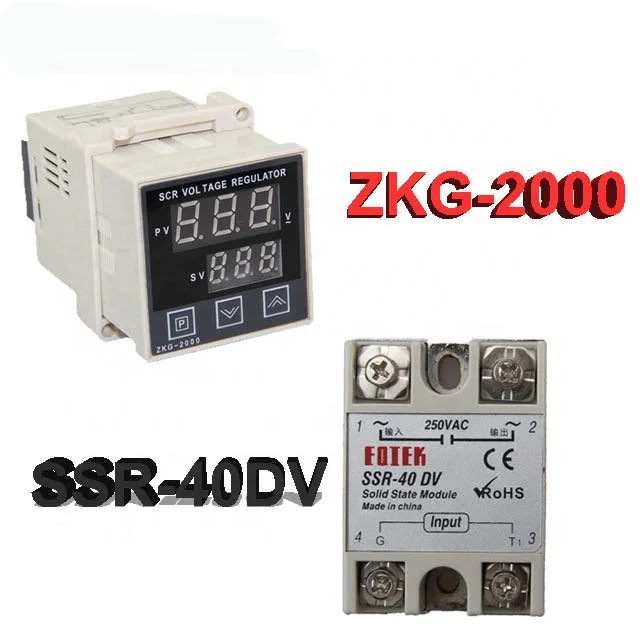

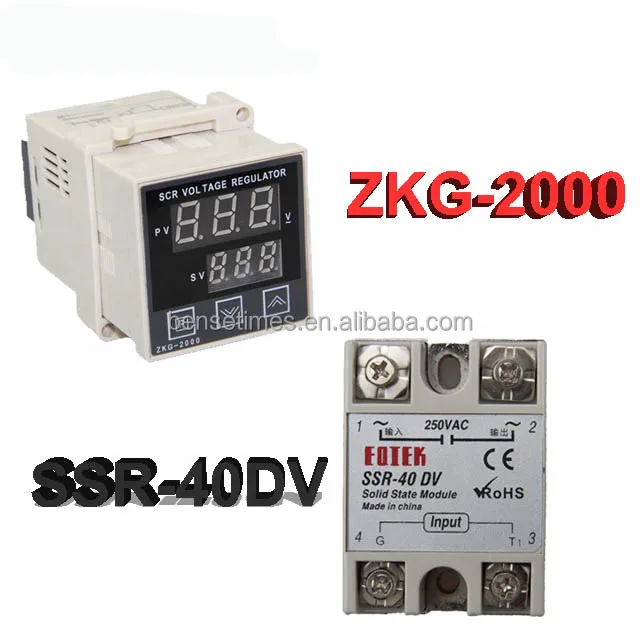

2. Easy to be controlled by ZKG-2000 SCR power controller
3. Simple installing and wiring connection.
4. Zero-crossing triggering, eliminates the surge current completely.
5. Adopt imported components, endure high current and voltage.
6. Pretty structure match safe and high quality requirement.
7. Select high quality SCR, DCB ceramic substrate and SMT technology.
| Model | SSR-DV series |
| Rated input control current | Voltage regulator (DC3-25mA) |
| Control type | SCR Voltage regulator |
| Input-ON indication | LED |
| On-state leakage current | 4mA max |
| On-state voltage drop at Imax | 1.5Vac |
| Matched heat sink | ≤40A: pls ask the sales for suitable heatsink |
| Matched thermal grease | Pls ask the sales for suggestion |
| Dielectric strength | 2000VAC 50/60Hz for 1 minute |
| Insulation resistance | 500 MΩ min at 500 VDC |
| External dimensions | 62x45x23.5mm |
| Terminals | Screw |
| Operational temperature | -20 to 70°C |
| Operational humidity | 95% max no condensation |
