6000 Time Deep Cycle 48v Solar Lithium Battery pack 5kwh 10kwh Rack Mounted 48v 100ah 200ah Lifepo4 Battery for solar panel
- Category: >>>
- Supplier: Air Bath International Trade (Chengdu) Co. Ltd.
Share on (1600869593909):
Product Overview
Description
1、What voltage should a LiFePO4 battery be?
The nominal voltage of the LiFePO4 battery is 3.2V, the termination charge voltage is 3.6V, and the termination discharge voltage is 2.0V
2、Why use solar Lifepo4 energy storage battery？
First, the Lifepo4 battery is reliable and does not cause scalding or structural collapse even under high temperature or overcharge standards, and is not harmful to the environment. Lifepo4 cells play an important role in energy storage in solar systems.
3.、Is it better to have 2 100ah lithium batteries or 1 200Ah lithium battery?
if you prioritize redundancy and flexibility, two 100Ah batteries may be the better choice, while a single 200Ahbattery may be a more practical and cost-effective option. Ultimately, the decision depends on your specific needs and preferences.
Products Description
Product Paramenters

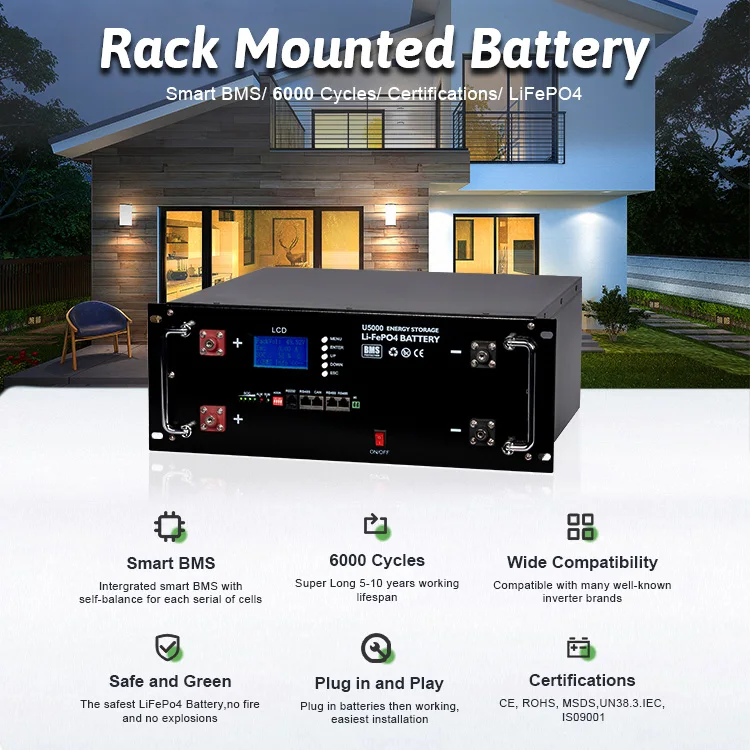

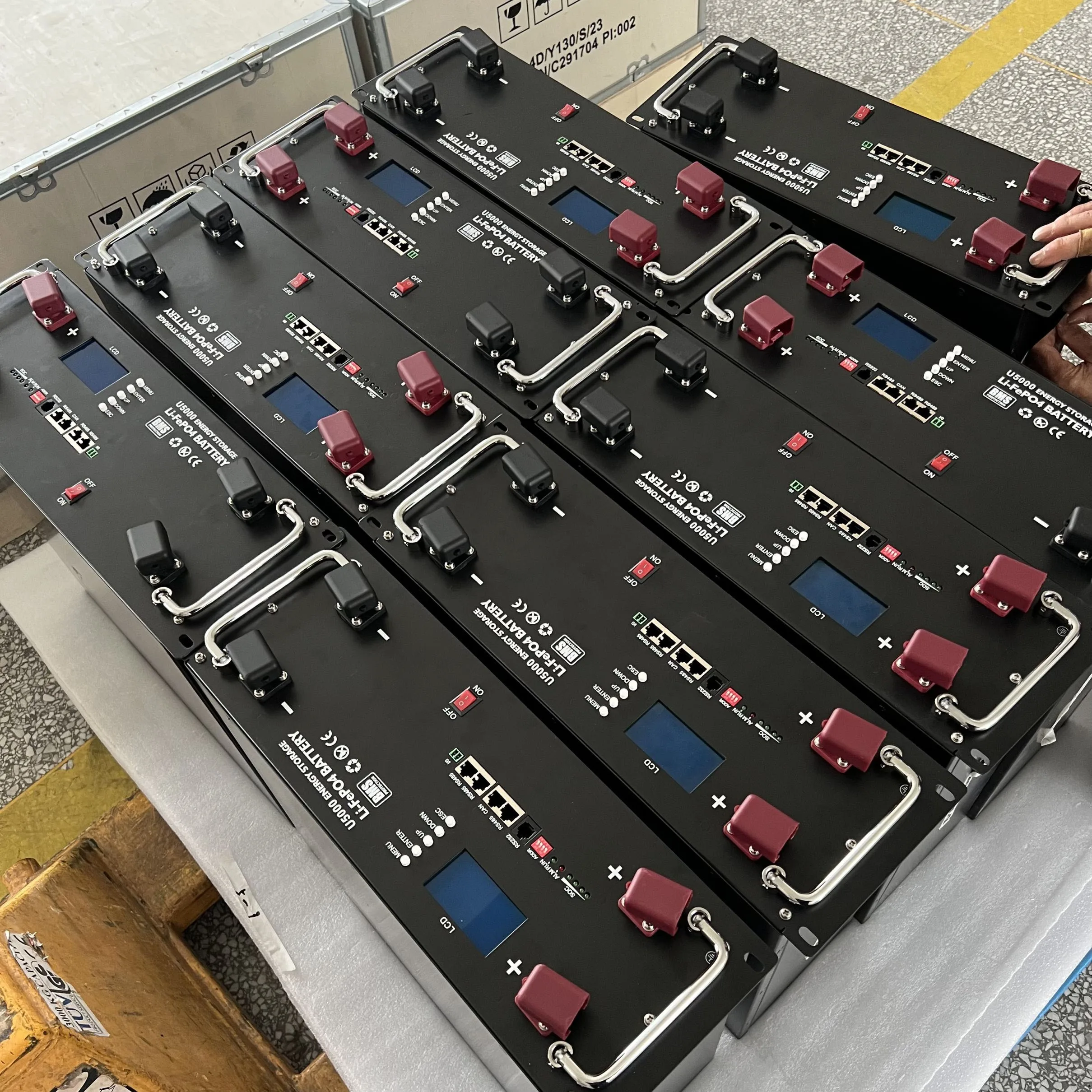

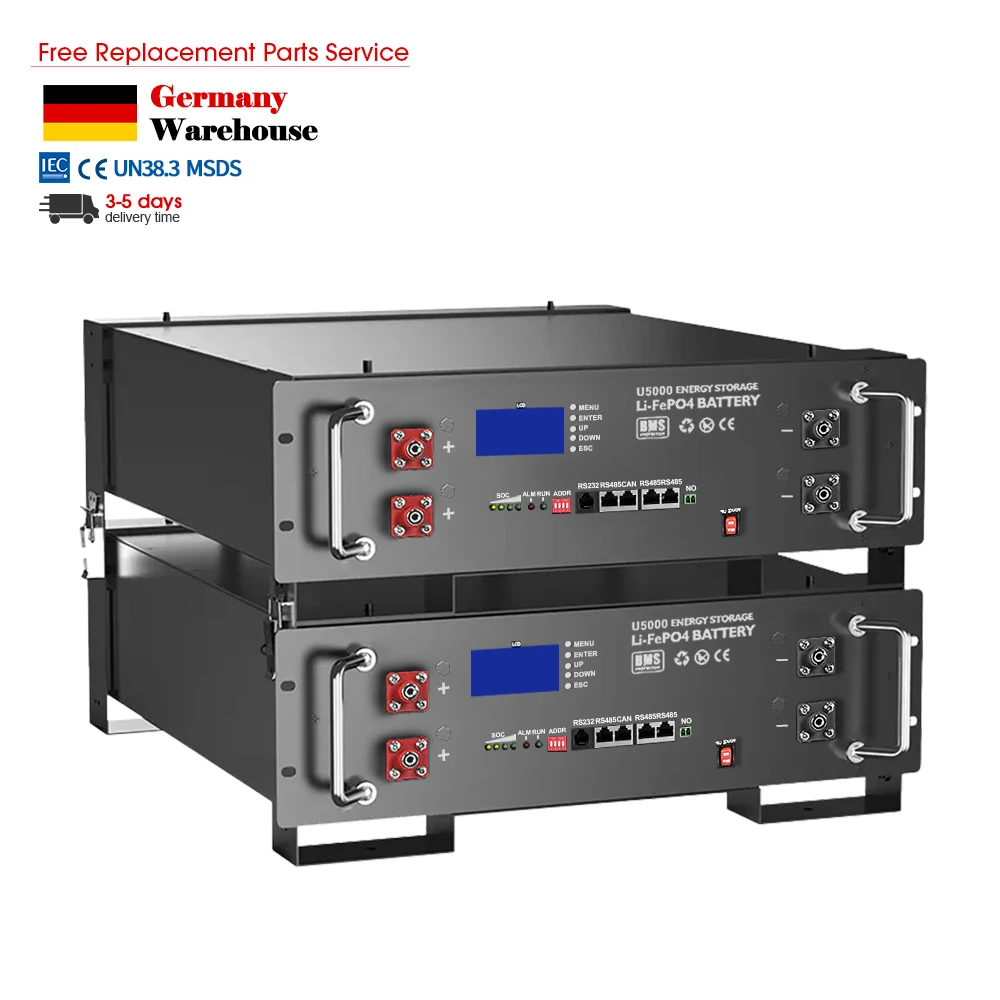

Rack-mounted lifepo4 energy storage (Home/Industrial)
Model | LFR-4850/5150 | LFR-48100/51100 | LFR-48150/51150 | FR-48200/51200 | ||||
Standard Voltage | 48VDc/51.2VDc | |||||||
Voltage | 39.75-54.75VDc/42.4-58.4VDc | |||||||
Norminal Capacity | 50Ah | 100Ah | 150Ah | 200Ah | ||||
Rated Energy Capacity | 2.4/2.56kWh | 4.8/5.12kWh | 7.2/7.68kWh | 9.6/10.24kWh | ||||

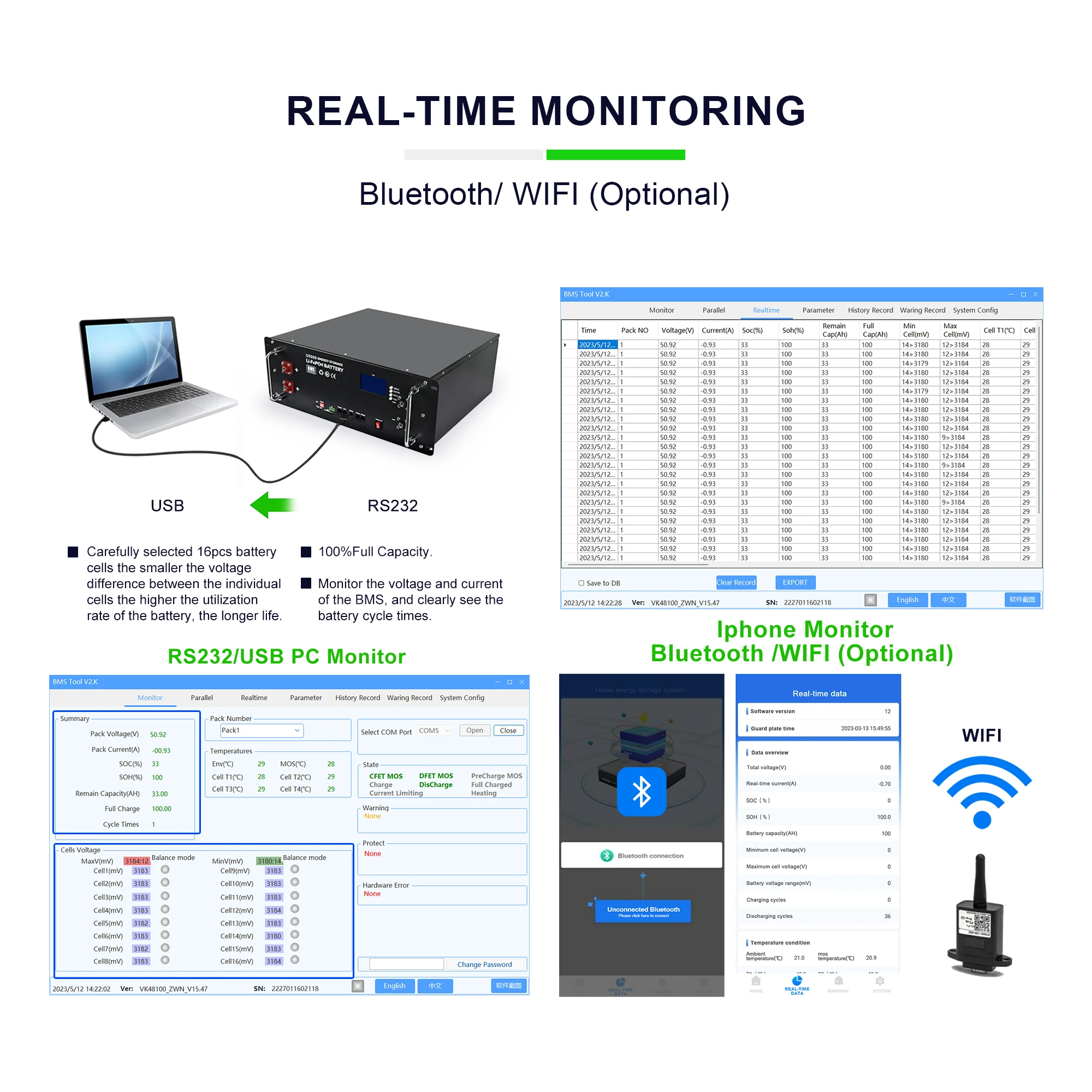

Commumication Protocol | CAN/RS485/RS232/WIFI/4G/Blue Tooth | |||||||
Efficiency (at 0.5C) | 98% | |||||||
Cell Self-Discharge | <5 %/ Month | |||||||

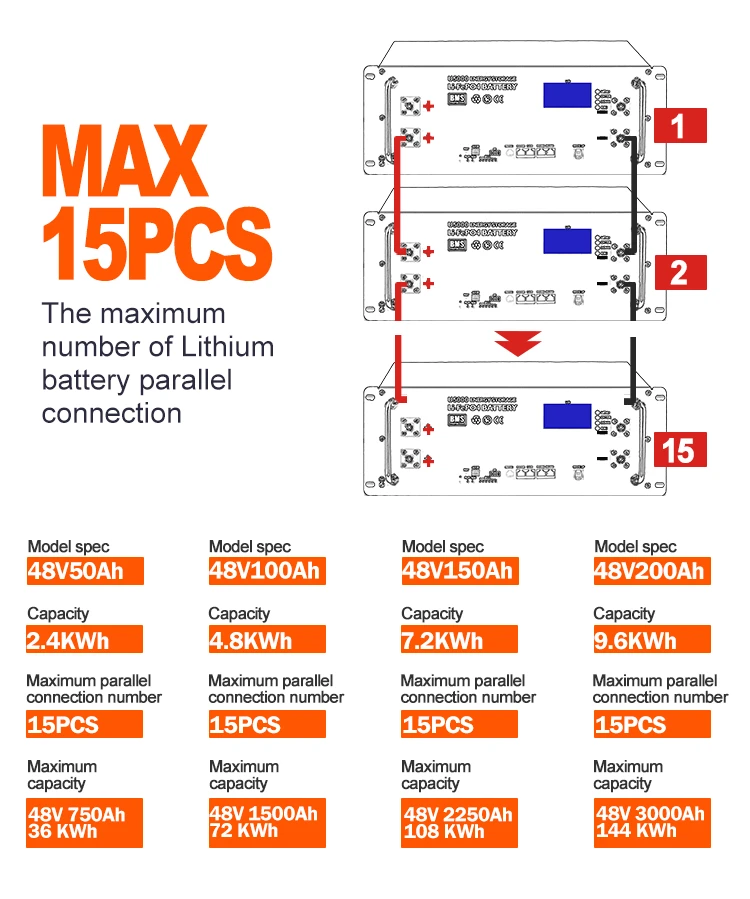

Maximum Allowed Modules in Parallel | 15 (36/38.4kWh) | 15 (72/76.8kWh) | 15 (108/115.2kWh) | 15 (144/153.6kWh) | ||||
Depth of Discharge | Up to 100% | |||||||
Useful Life | 8-10 Years | |||||||
Cycle Life | 6000 (@ 80% DoD) | |||||||

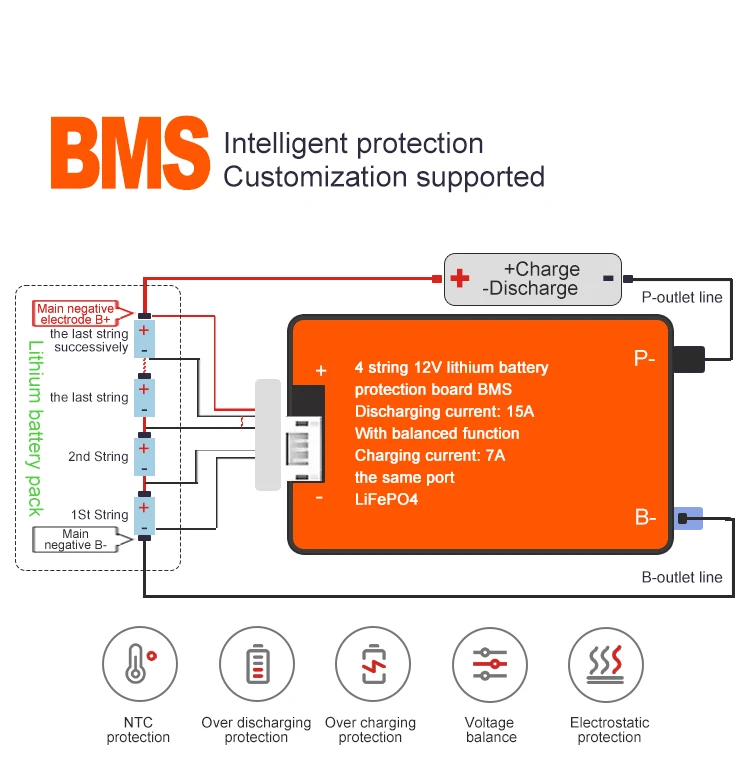

Protection | Over temperature, over current, short circuit, over-charging, over-discharging, Low voltage | |||||||
Charge Specifications | ||||||||
Recommended Charge Current | 25A | 50A | 75A | 100A | ||||
Maximum Charge Current | 50A | 100A | 100A | 100A | ||||
Recommended Charge Voltage | 54/57.6V | 54/57.6V | 54/57.6V | 54/57.6V | ||||
Maximum Charge Voltage | 54.75/58.4V | 54.75/58.4V | 54.75/58.4V | 54.75/58.4V | ||||
Discharge Specifications | ||||||||
Recommended Discharge Current | 25A | 50A | 75A | 100A | ||||
Maximum Discharge Current | 50A | 100A | 100A | 100A | ||||
Recommended Low Voltage Disconnect | 41.25/44V | |||||||
Battery Low Voltage Protection | 39.75/42.4V | |||||||
Battery Recovery Voltage | 45/48V | |||||||
Mechanical Specifications | ||||||||
Dimenstions | 484*410*120mm | 484*410*178mm | 484*590*178mm | 484*590*178mm | ||||
Weight | 24.5/26.5kg | 38.5/41kg | 59/63kg | 70.5/75kg | ||||
Terminal Type | M6 | |||||||
Case Material | Industrial Grade Iron | |||||||
Enclosure Protection | IP20 | |||||||
Installation | Cabinet | |||||||
Cell Type Chemistry | LiFePO4 | |||||||
Compliance Specifications | ||||||||
Certifications | CE,FCC, CCC | |||||||
Shipping Classification | UN 38.3. UN 3480, Class 9 | |||||||
Temperature Specifications | ||||||||
Discharge Temperature | -20~65℃ | -20~65℃ | -20~65℃ | -20~65℃ | ||||
Charge Temperature | 0~55℃ | 0~55℃ | 0~55℃ | 0~55℃ | ||||
Storage Temperature | -20~45℃ | -20~45℃ | -20~45℃ | -20~45℃ | ||||
Cautions
1、 The charging current should be less than the maximum charging current specified in the product specifications. A charging current greater than the recommended current may damage the battery;
2、 The discharge current should be less than the maximum discharge current specified in the product specifications; the discharge current greater than the recommended current may damage the battery;
3、 Do not reverse the polarity of the battery pack for any reason;
4、 Do not charge in reverse polarity;
5、 Please use a professional charger for charging;
6、If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the battery, Will cause the battery performance,characteristics or battery function to decline;
7、 A single battery cell is not waterproof, and the finished battery pack has a waterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
8、If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can view more.
1、 The charging current should be less than the maximum charging current specified in the product specifications. A charging current greater than the recommended current may damage the battery;
2、 The discharge current should be less than the maximum discharge current specified in the product specifications; the discharge current greater than the recommended current may damage the battery;
3、 Do not reverse the polarity of the battery pack for any reason;
4、 Do not charge in reverse polarity;
5、 Please use a professional charger for charging;
6、If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the battery, Will cause the battery performance,characteristics or battery function to decline;
7、 A single battery cell is not waterproof, and the finished battery pack has a waterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
8、If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can view more.
