Lucky Fox Core3566 Module Rockchip Rk3566 Quad Core Processor Compatible with Raspberry Pi CM4
- Category: >>>
- Supplier: Shenzhen SHCHV Technology Co. Ltd.
Share on (1600869595790):
Product Overview
Description
Description

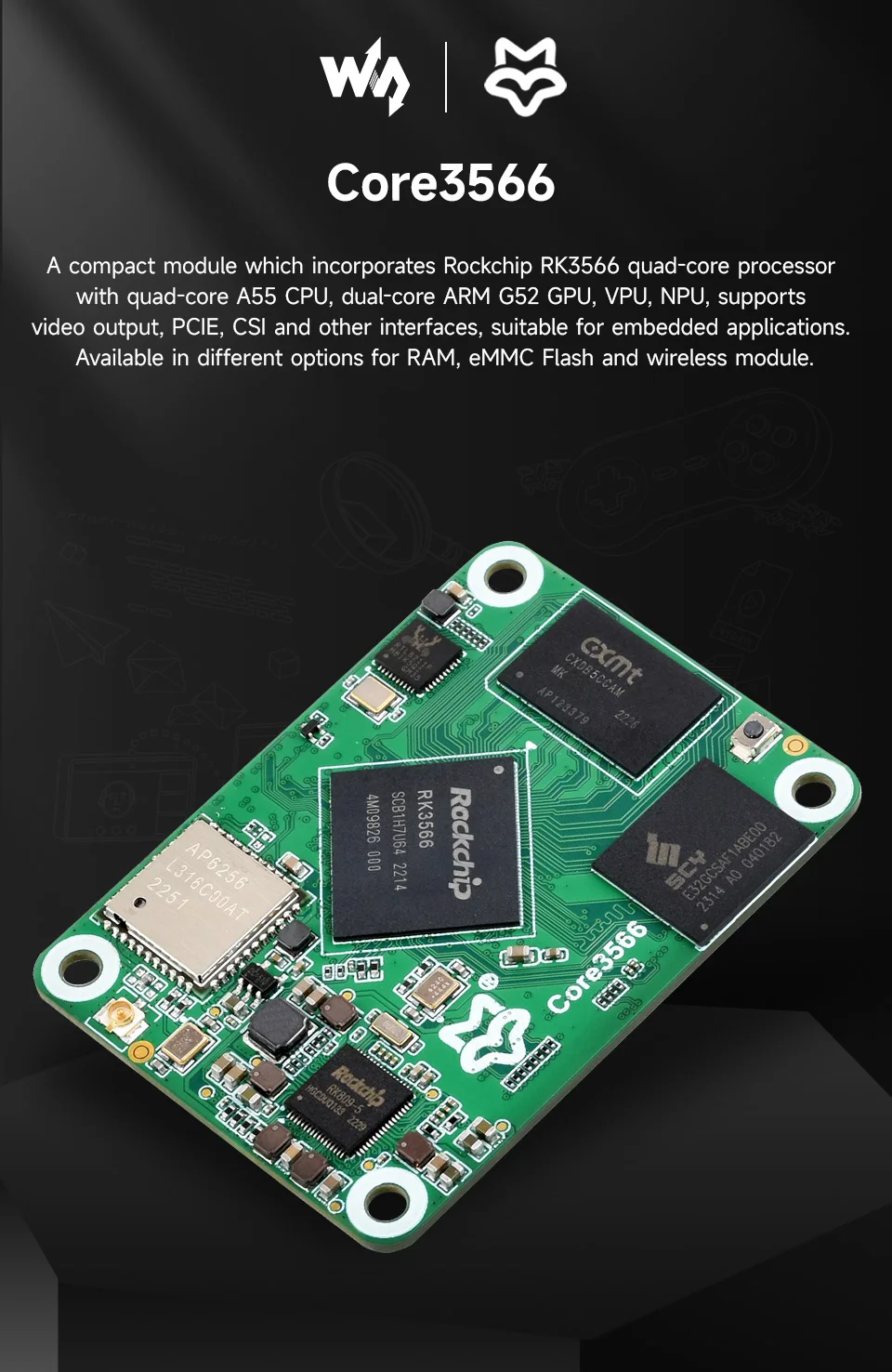

Core3566 Module, Rockchip RK3566 Quad-Core Processor, Compatible With Raspberry Pi CM4, Options For RAM / EMMC/ Wireless
Specifications
Processor | Quad-core Arm Cortex-A55 @1.8GHz |
Memory | Options for 2GB/4GB LPDDR4 SDRAM memory |
Storage | Options for 0GB (Lite) or 32GB eMMC Flash |
NPU | 0.8 TOPS @INT8 |
GPU | Arm Mali-G52 2EE |
Connectivity | Optional dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE, supports external antenna |
Supports IEEE 802.3 Gigabit Ethernet. | |
USB 2.0 × 1 | |
PCIe Gen 2 x 1 | |
28 GPIO signals | |
SD card interface (booted from eMMC first) | |
Video | HDMI interface (4Kp60 supported) |
2-lane MIPI DSI display interface × 2 | |
2-lane MIPI CSI camera interface × 2 | |
Multimedia | 4Kp60 H.264/H.265/VP9 (decode), 1080p60 H.264/H.265 (encode) |
Operating Voltage | 5V DC |
Operating Temp. | -10°C ~ 80°C ambient |
Dimensions | 55 × 40 × 4.7mm |

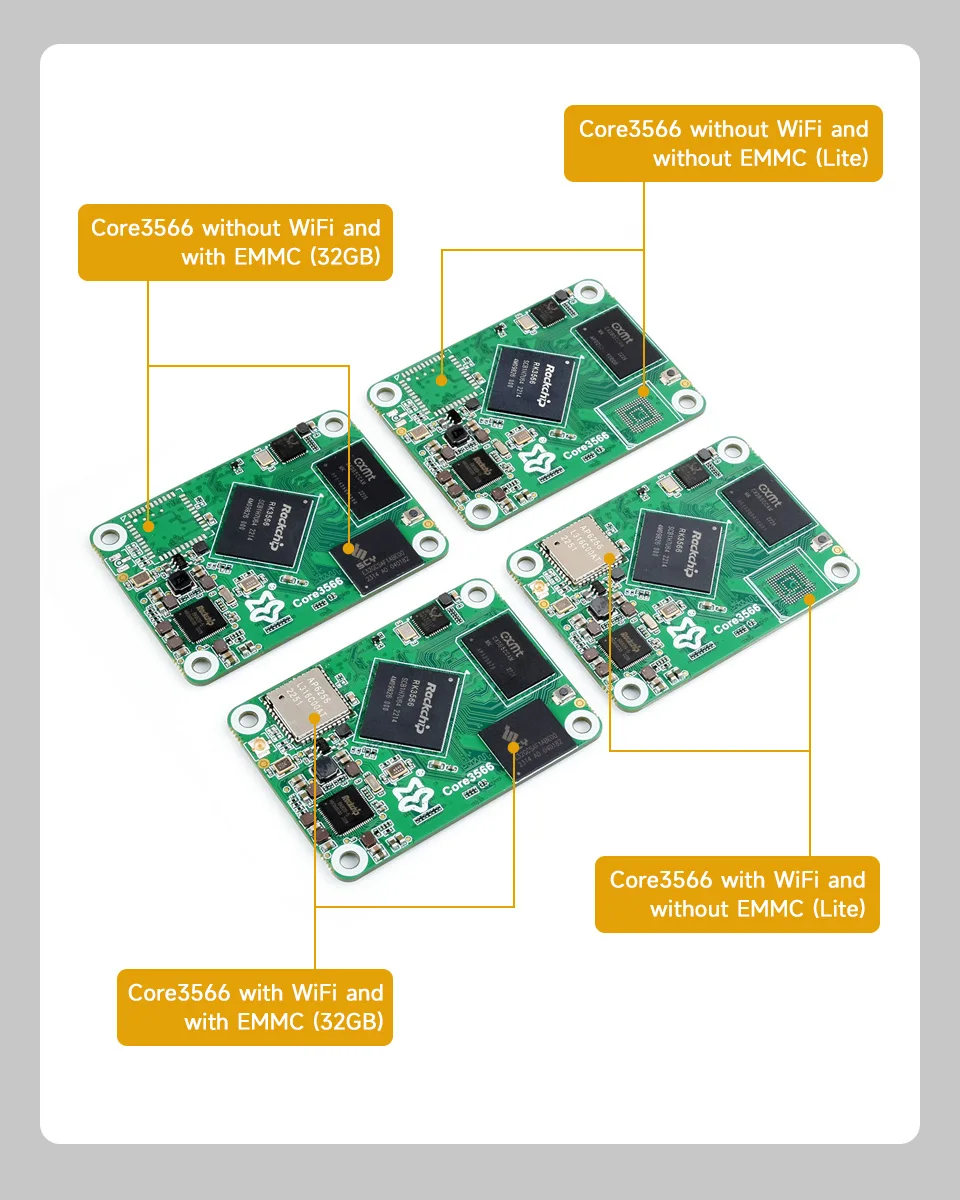

Available Options

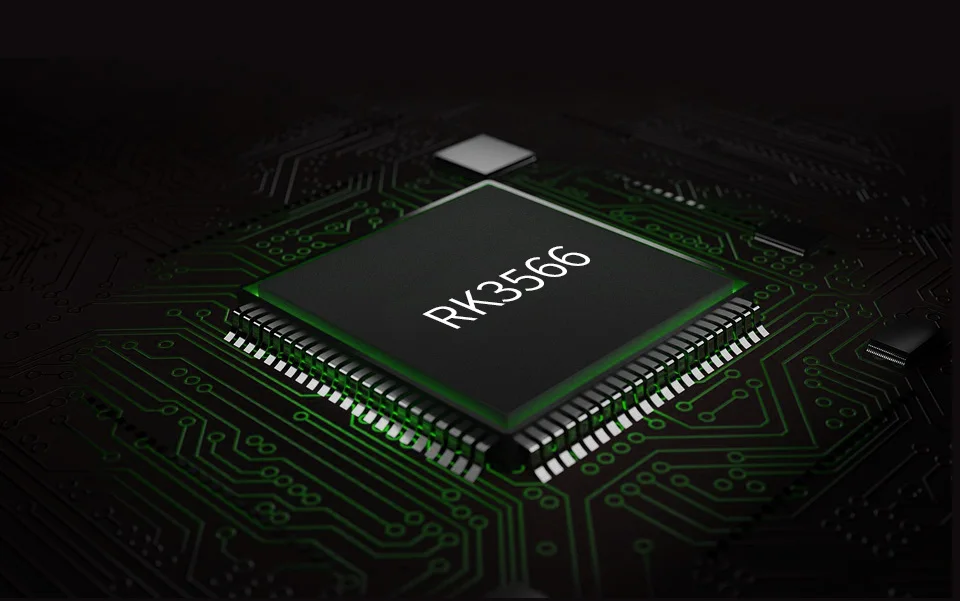

Highly Integrated, Powerful Performance
Integrated With CPU, GPU, VPU, NPU, Etc.
* RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
* Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
* The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
* The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
* The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow
* Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
* The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
* The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
* The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow

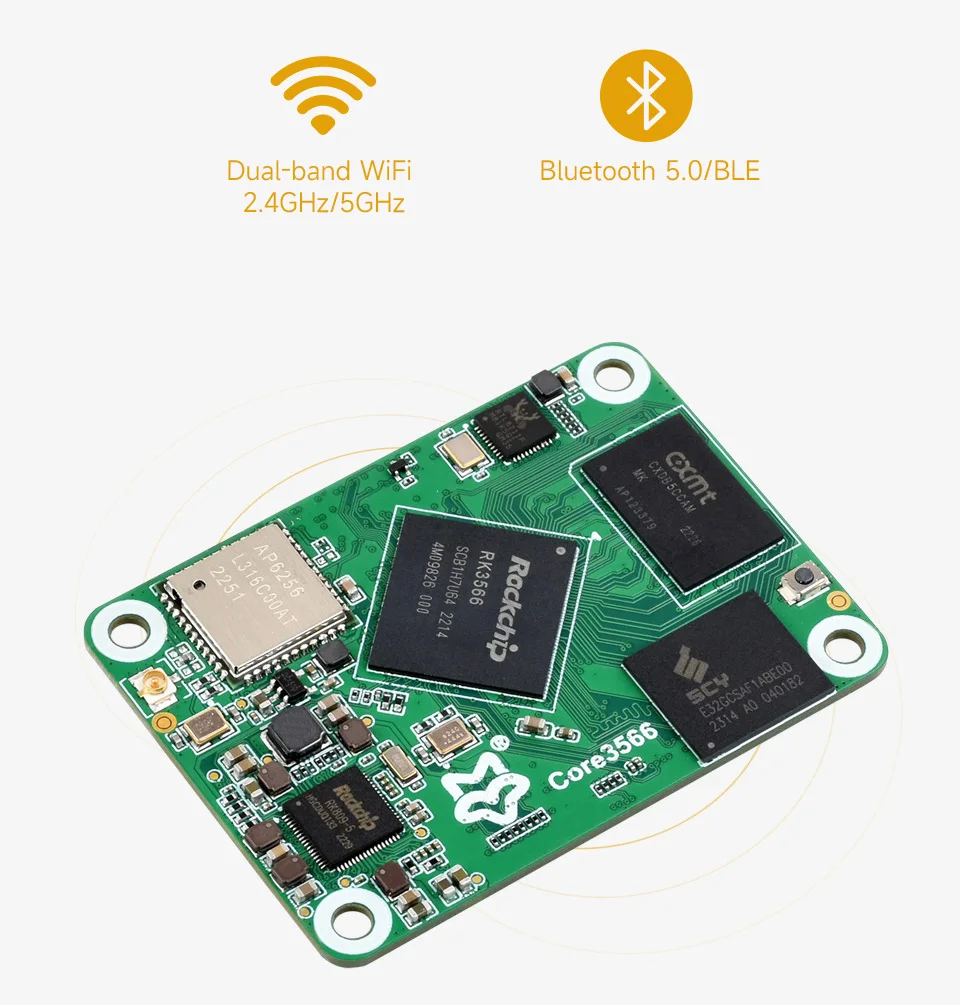

High Speed WiFi And Bluetooth
Dual-Band WiFi And Bluetooth AP6256 Module, Surf The Web Anywhere
* Note: WiFi function is optional, and an additional antenna is required for WiFi module since it has no onboard antenna.

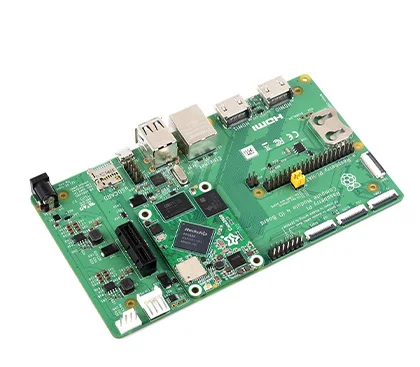

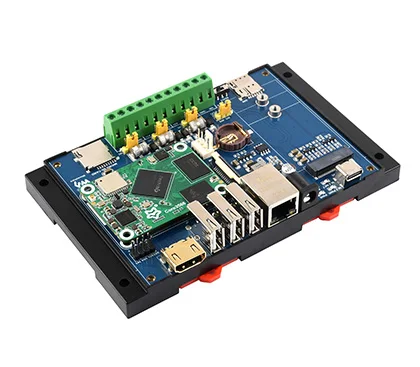

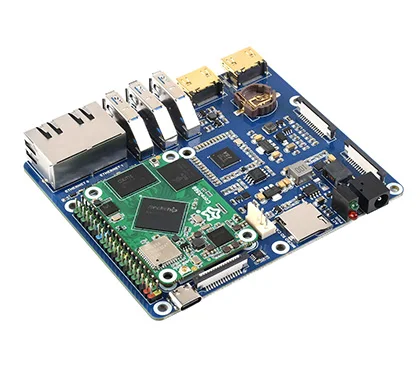

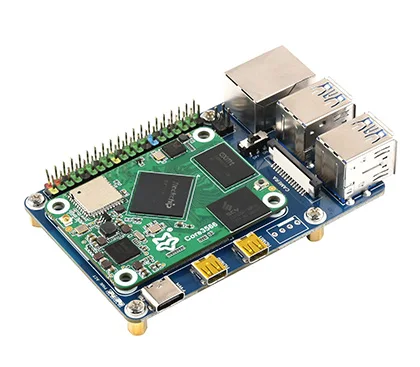

Compatible With CM4 Base Board
CM4-IO-BASE-B
Compute Module 4 IO Board

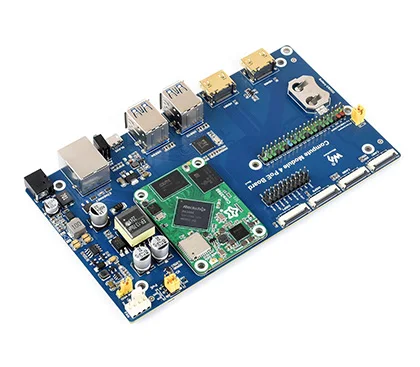

Compute Module 4 PoE Board
CM4-DISP-BASE-5A

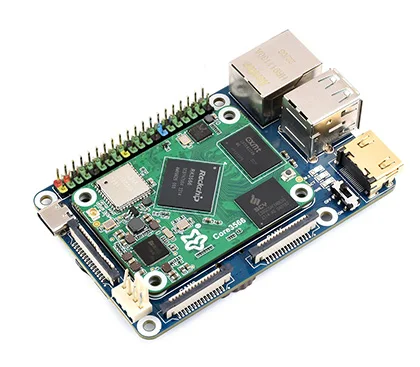

CM4-to-Pi4-Adapter
CM4-IO-WIRELESS-BASE

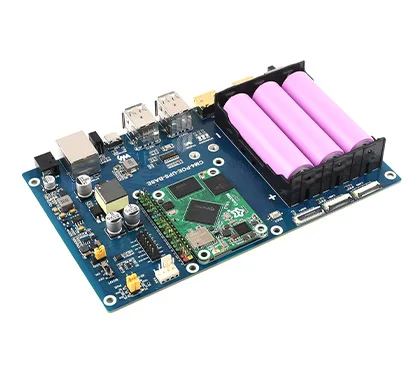

CM4-POE-UPS-BASE
CM4-DUAL-ETH-BASE
* Note: some interfaces such as USB2.0, HDMI, CSI, etc. are not compatible, please check our Wiki for details.
Product Details

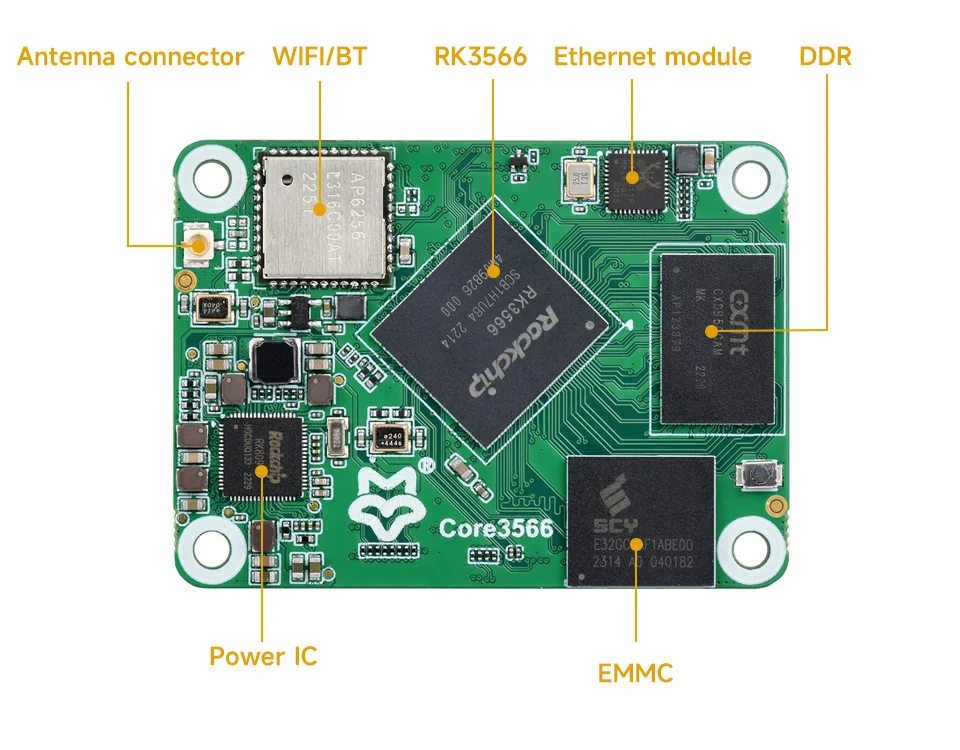

Onboard Resources

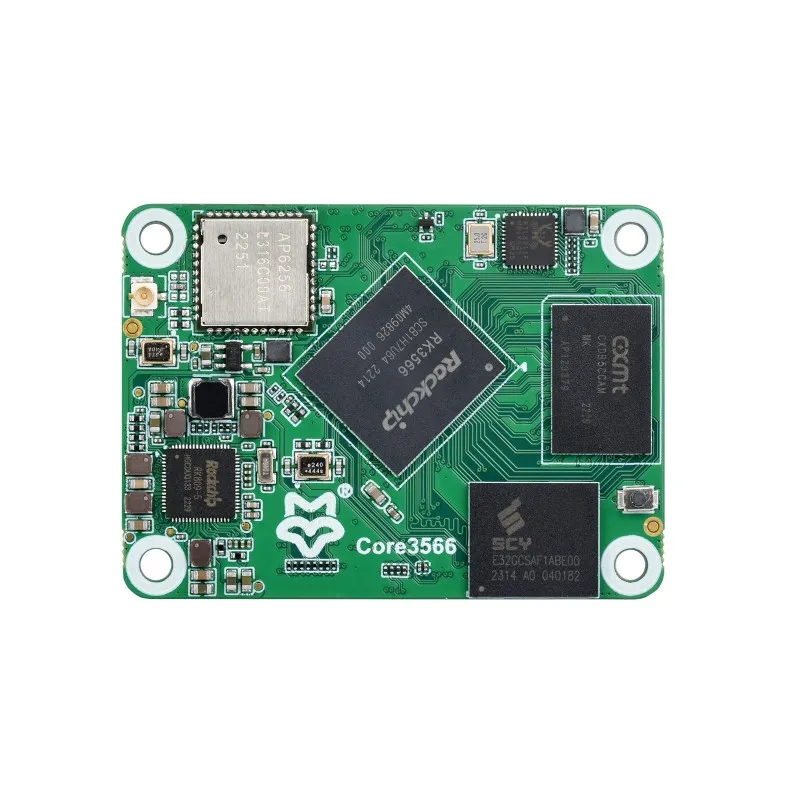

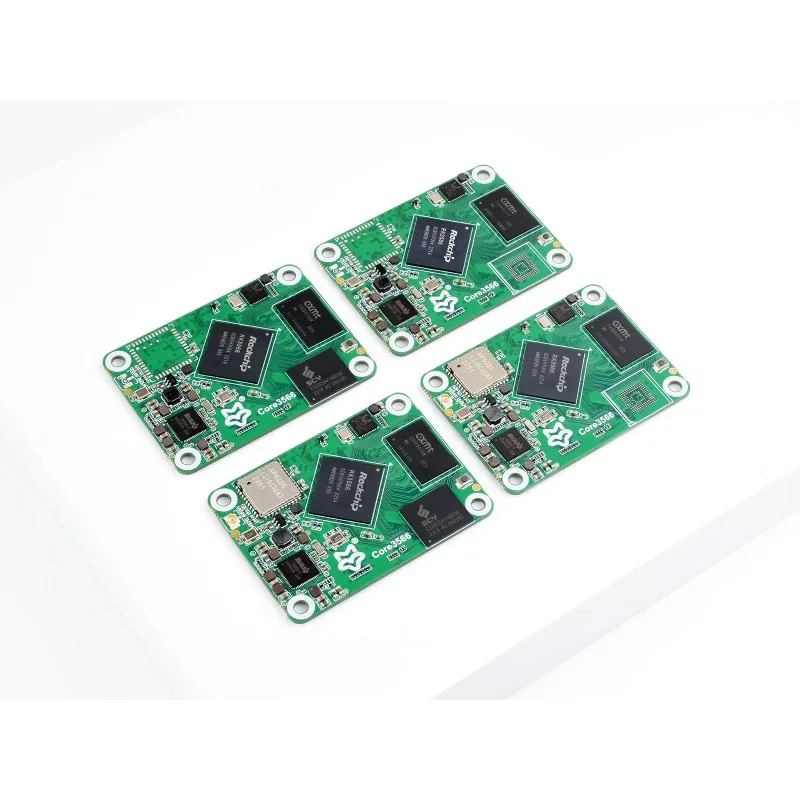

Product Show
