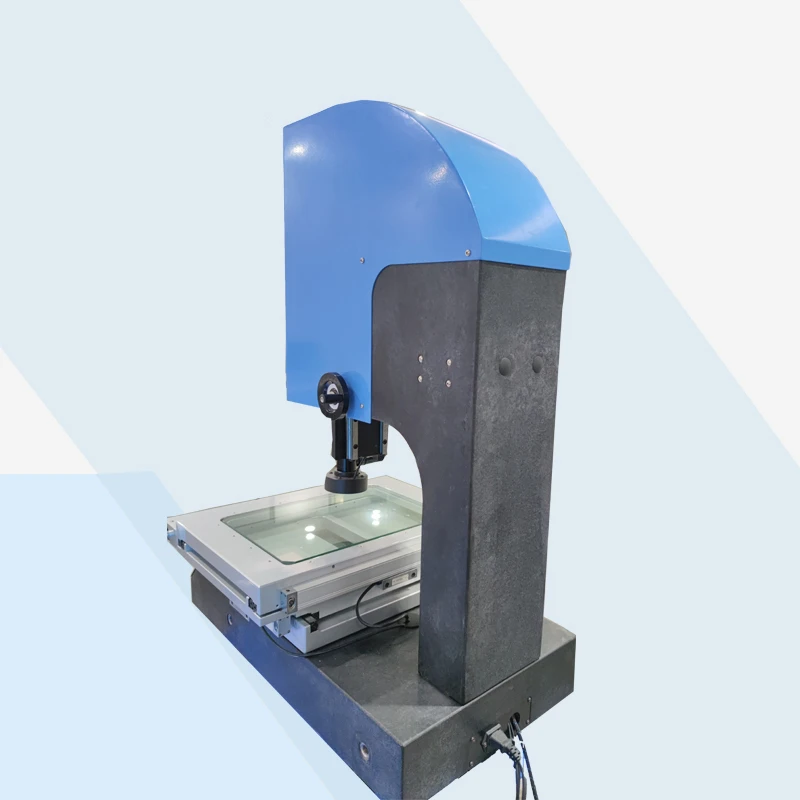

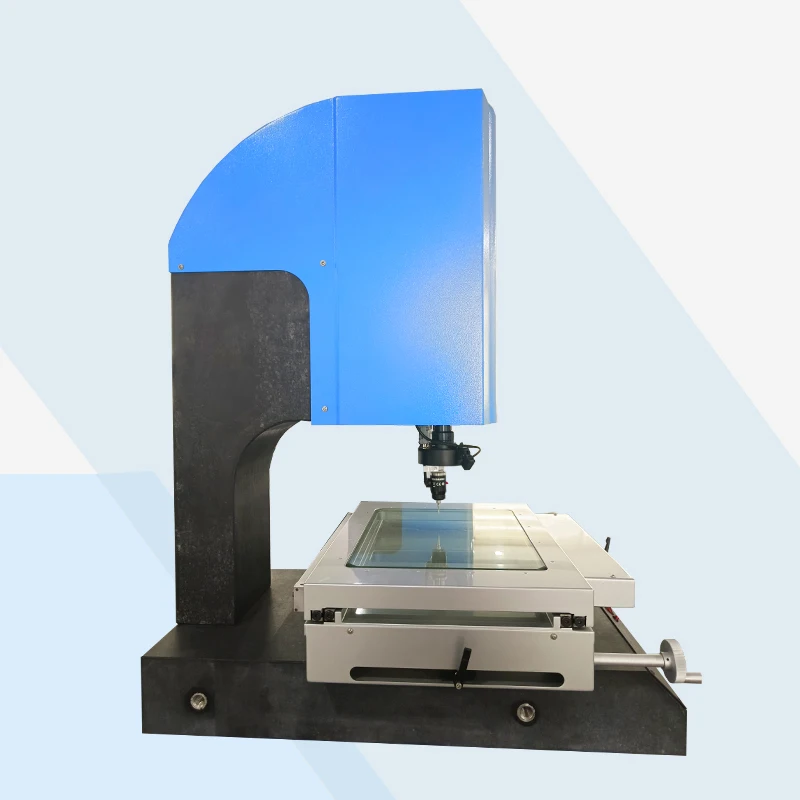

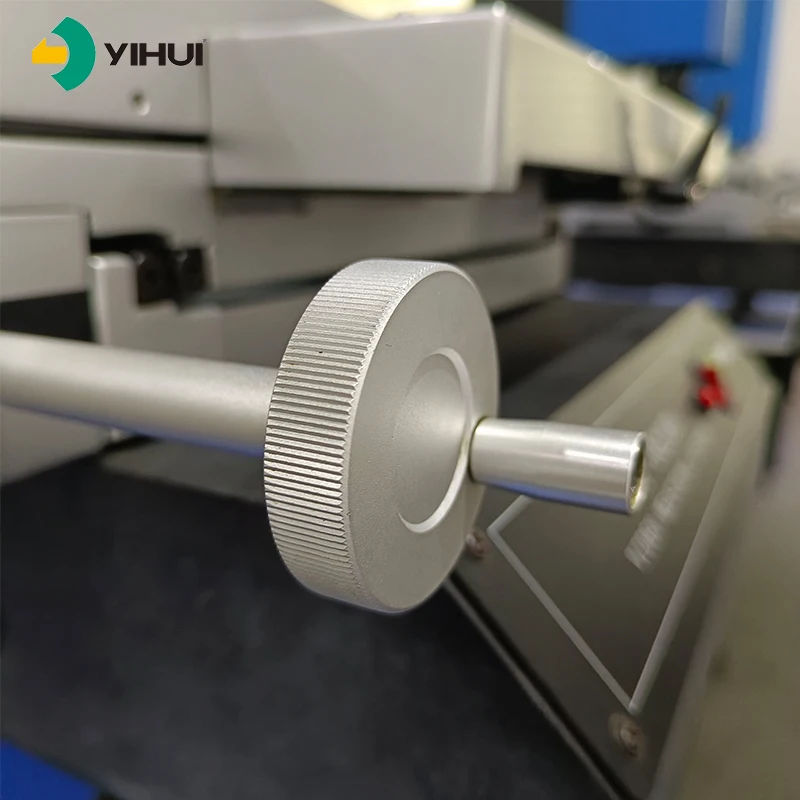

3D Manual Video Measuring System YF-T Series
I. Usage
YF-T Series is the 3D manual type Video Measuring System produced by YIHUI.
It is designed to inspect, measure and analyze the 2D, 3D data in all application areas, widely used in different kinds of precision finishing industries like machinery, electronics, ironware, plastics, etc.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
II. Features

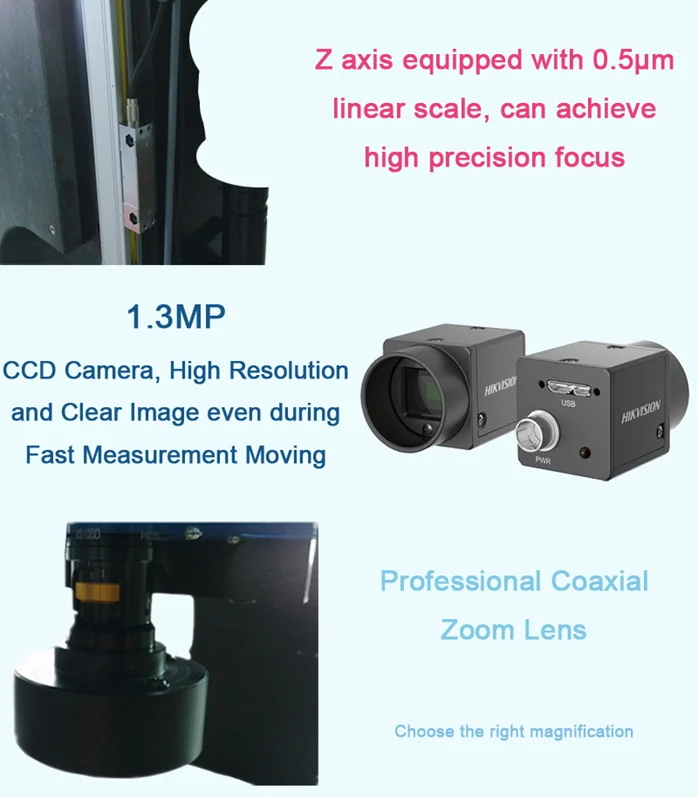

1. It adopts TEO™ 1 / 2’’ color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the SDK-2000 data card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.

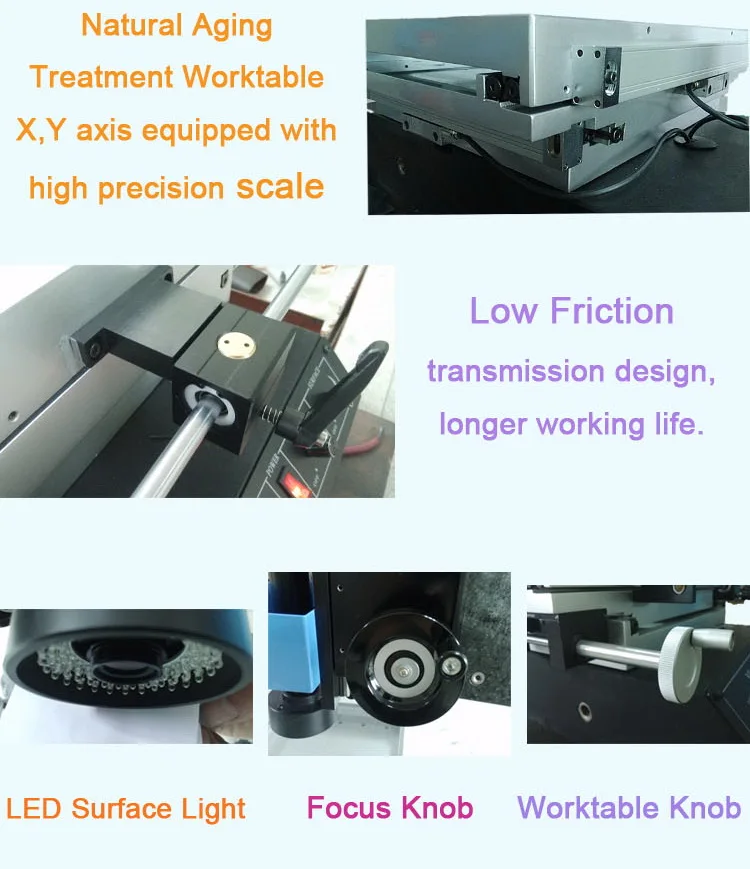

4.Granite base and column, high stability.
5. ‘Image+Probe’ measuring method, equipped with Renishaw™ probe and our company's self-developed 3D metrology software, can achieve rapid measurement with high accuracy.
It is designed to inspect, measure and analyze the 2D, 3D data in all application areas, widely used in different kinds of precision finishing industries like machinery, electronics, ironware, plastics, etc.
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
2. In metrology terms, the machine can test and dimension width, length, height, thickness, diameter, angel, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
3. Combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
II. Features
1. It adopts TEO™ 1 / 2’’ color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate’s studio, the optical grating and the SDK-2000 data card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
4.Granite base and column, high stability.
5. ‘Image+Probe’ measuring method, equipped with Renishaw™ probe and our company's self-developed 3D metrology software, can achieve rapid measurement with high accuracy.
Structure

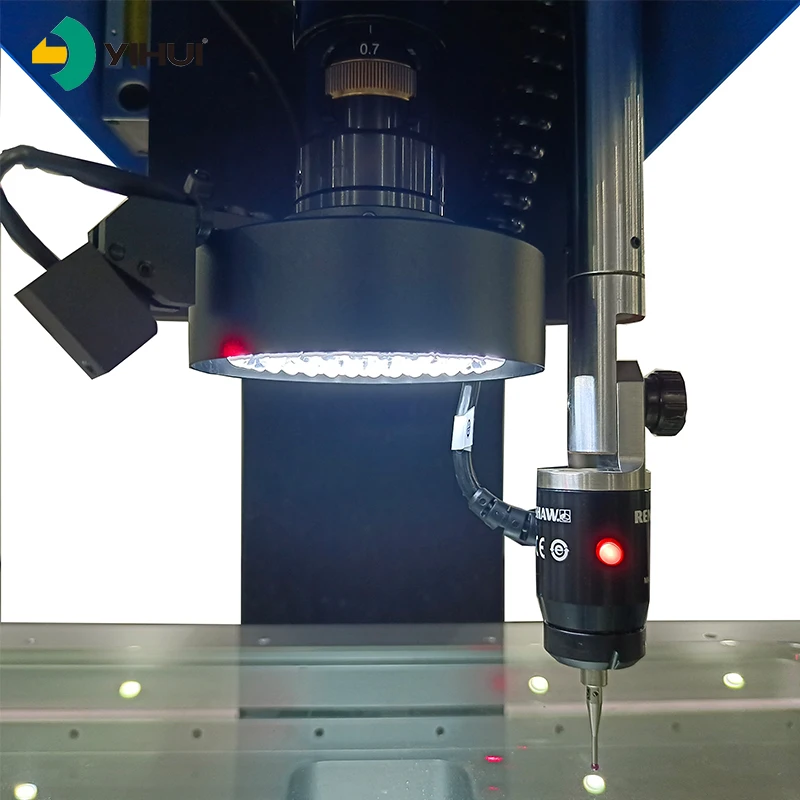

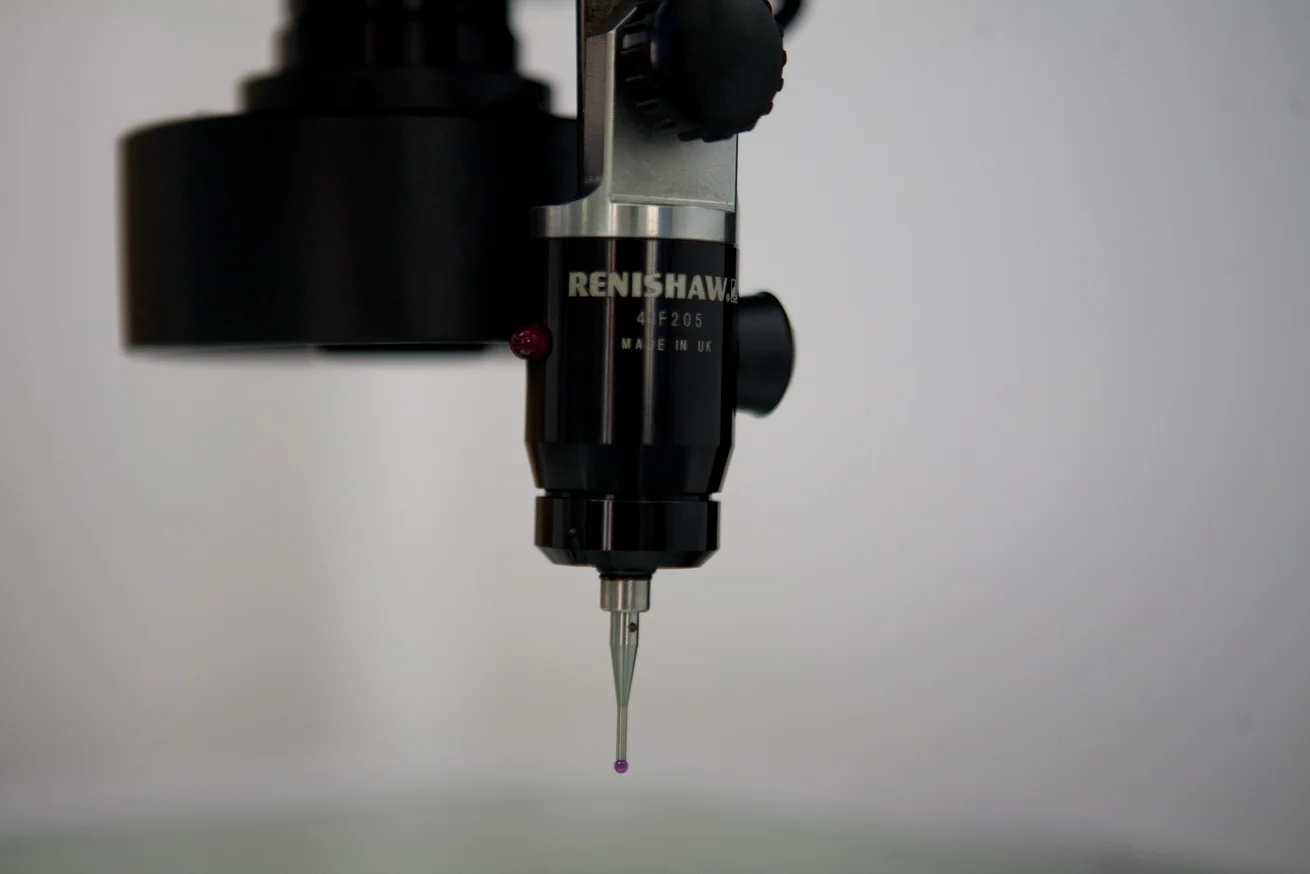

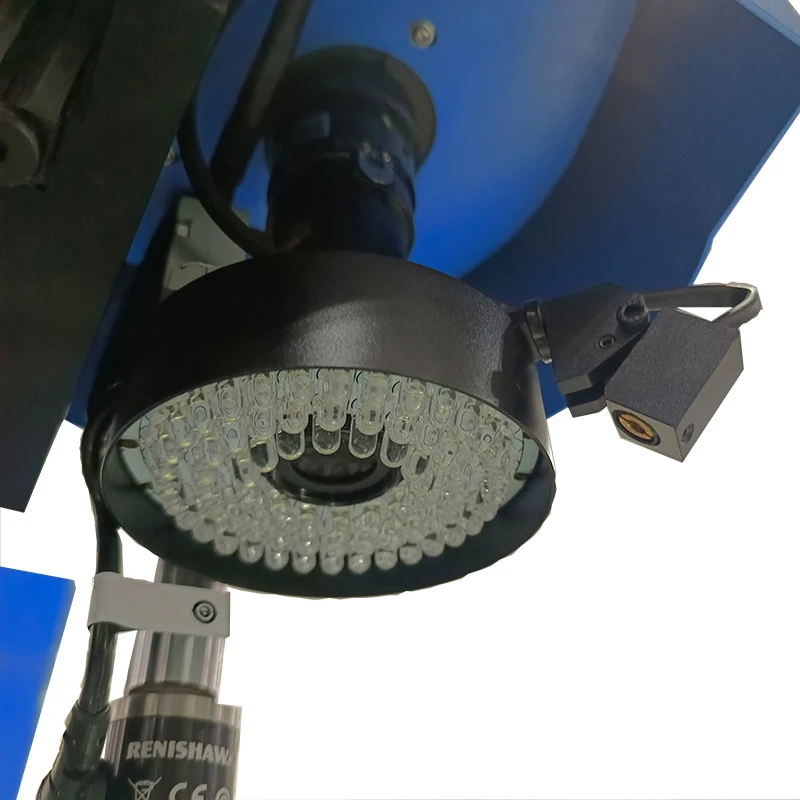

RENISHAW™ probe MCP, brings simple and efficient
‘Image+Probe’ 3D Measurement!!!
Specification

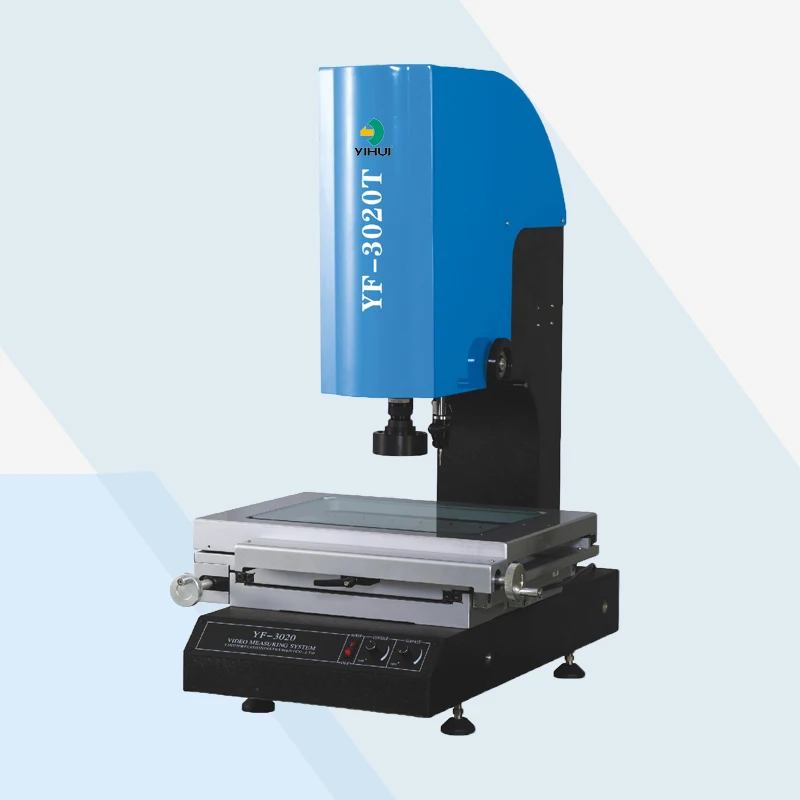

Model | YF-2010T | YF-3020T | YF-4030T | |||||
Table | The metal table’s size(mm) | 404*228 | 500*330 | 606*466 | ||||
The glass table’s size (mm) | 260*160 | 350*280 | 450*350 | |||||
Travel(mm) | 200*100 | 300*200 | 400*300 | |||||
Load Capacity | approx. 15 kg | approx. 20 kg | approx. 30 kg | |||||
Weight(kg) | 180 | 260 | 315 | |||||
Dimensions(L*W*H)mm | 556*540*860 | 670*660*950 | 720*950*1020 | |||||
Measuring Targeting System (Standard Accessories) | Camera: 1.3MP Color Camera | |||||||
Zoom lens: Guiguang™ optical lens With British RENISHAW™ probe | ||||||||
Zoom lens magnification: 0.7 ~ 4.5X Scale Resolution: 0.001mm | ||||||||
Video Total Magnification: 20 ~ 128X FOV:7~1.1mm | ||||||||
Z-axis travel (mm):150mm The indication error of X,Y-axis ≤(3+L/200)μm (L be regarded as measuring the length unit :mm) | ||||||||
Illumination: Surface light and transmission light adopt LED, brightness adjustable Power: 110/220V(AC), 50/60Hz 30W | ||||||||
Software
Part of the Metrology Software (YH-3D™)
1. 2D measurement: measure height, width, length, both sides of the angle, the cone angle, the diameter of the cylinder,
chamfering, straightness, roundness, cylindricity, perpendicularity, parallelism, etc.
chamfering, straightness, roundness, cylindricity, perpendicularity, parallelism, etc.
2. Probe measurement: Renishaw™ probe, can measure 3D data like hole depth, diameter of ball, cylindricity, etc.
3. Max.and Min. Limit: can set max. and min. limits, when the actual size of the product is out of range, the corressponding measurement data will have warning in red background.
4. Reverse engineering: software draws measurement graphics, can have real direct entry into AutoCAD, also can be saved as DXF, dwg. files (can be a fast scanner, more than two times faster than general software speed).
5. Picture output: measurement or observation results can be saved as pictures in various format like BMP, Jpg.
6.Real-time sub-pixel to find the point: the first sub-pixels, advanced image processing technology into video measurement
industry, greatly improves the measurement accuracy and measurement efficiency of a pixel, compared to similar software, saves at least 3/5 time, improve the accuracy of more than 2 times (in the same optical magnification).
industry, greatly improves the measurement accuracy and measurement efficiency of a pixel, compared to similar software, saves at least 3/5 time, improve the accuracy of more than 2 times (in the same optical magnification).
7. Vector drawing functions: the image or fonts can be zoomed in or out steplessly.
8. Maps measurements: can capture and form a complete picture of large work piece, can directly dimension on the graph.
9. The command line: directly form the command line, enter the coordinate information to generate the point, line, circle,
arc, to meet the special needs of virtual measurement.
arc, to meet the special needs of virtual measurement.
10. Line position tolerance: roundness, straightness, parallelism, perpendicularity, concentricity, etc.
11. Dimensioning function: radius, diameter, angle, linear dimensions, text annotation, coordinate label etc.
12 Automatic measurement functions: automatically find a straight line, multi-zone automatic find a straight line, cl2ck
circle marquee round, round multi-zone automatic arc.
circle marquee round, round multi-zone automatic arc.
13. Report function: measurement results can be directly converted to EXCEL, WORD, CAD.
14. Language: support Chinese, English, Korean, Japanese.
