All Dielectric Self supporting Aerial ADSS Cable 6 12 24 48 96 144 288 core G652D Outdoor Non Armored optical Fiber
- Category: >>>
- Supplier: Ningbo FB Communication Technology Co. Ltd.
Share on (1600869627313):
Product Overview
Description
Specification
Items | Specifications | ||
Fiber Count | Up To 288 Fibers | ||
Colored Coating Fiber | Dimension | 250µm±15µm | |
Product name | Color | Blue、Orange、Blue、Brown、Grey、White or else | |
Loose Tube | Dimension | 2.0mm±0.1mm | |
Material | Material | PBT | |
Color | Color | Blue, Orange | |
Filler | Dimension | 2.0mm±0.05mm | |
Material | PP | ||
Color | Natural、Natural、Natural | ||
Central Strength Member | Diameter | 1.8mm or Customized | |
Material | FRP | ||
Outer Jacket | Dimension | 10.5mm±0.2mm or customized | |
MOQ | Material | PE/MDPE/HDPE | |
Weight | Color | Black | |
Jacket Structure | Single or Double Jacket | ||
Structure | 1+5 or 1+6 | ||
Span | Up to 400m | 2/4/6/8 or customazation | |
Product Description

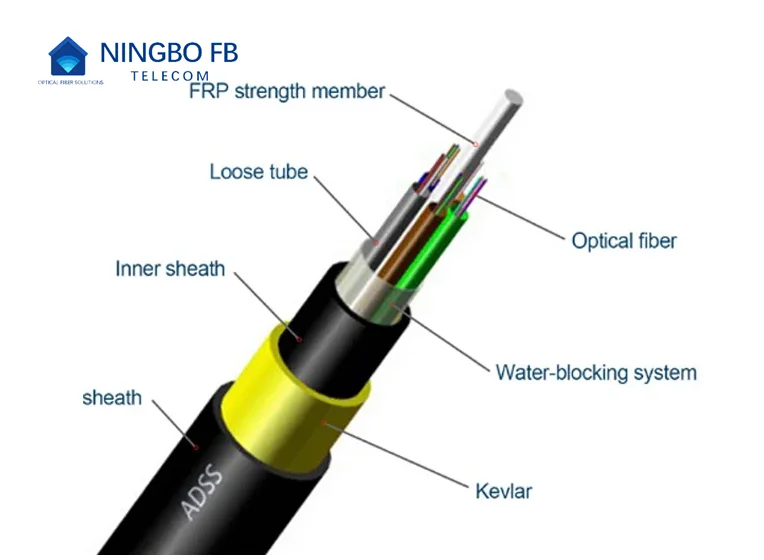

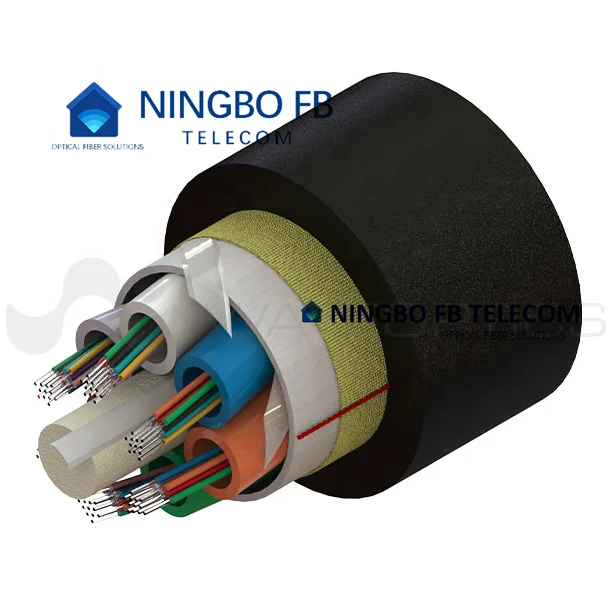

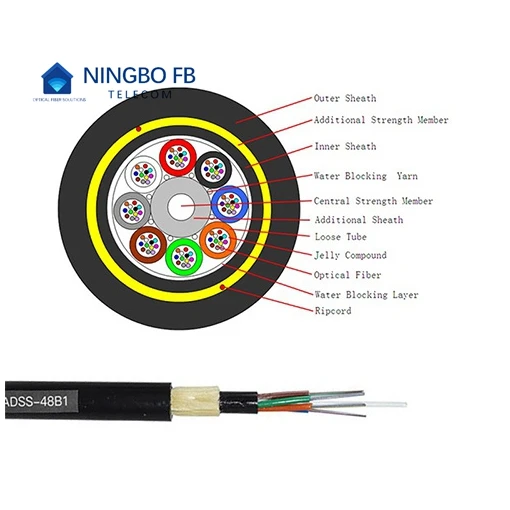

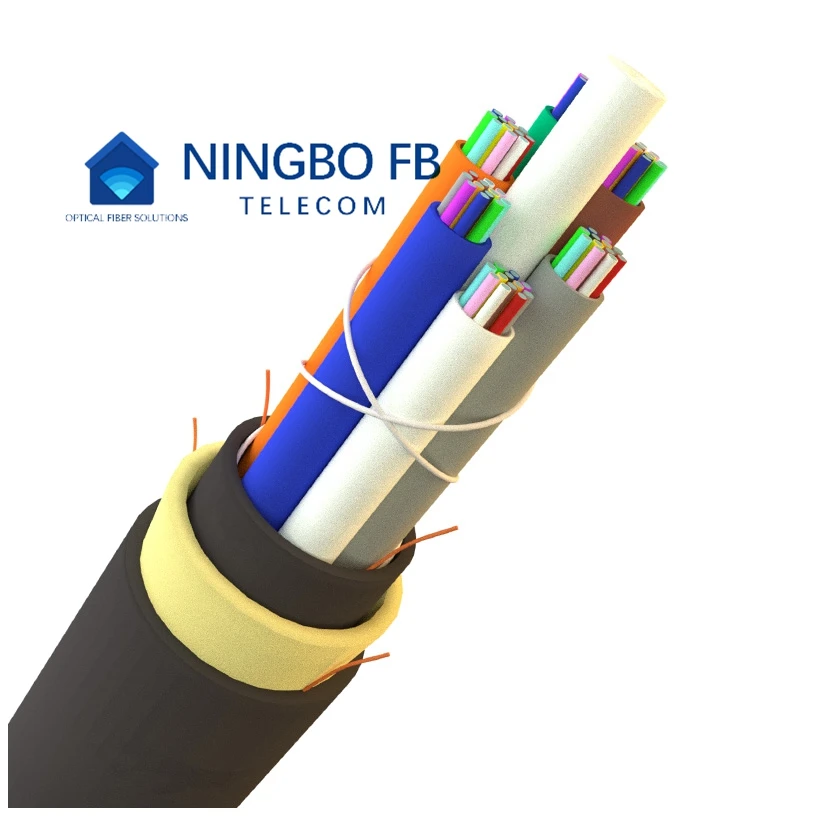

ADSS cable is loose tube stranded. The 250um bare fibers are positioned into a loose tube made of high modulus
plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a
FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After
stranded layer of armaid yarns are applied over the inner sheath as strength member, the cable is completed with
PE or AT (anti-tracking) outer sheath.
plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a
FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After
stranded layer of armaid yarns are applied over the inner sheath as strength member, the cable is completed with
PE or AT (anti-tracking) outer sheath.

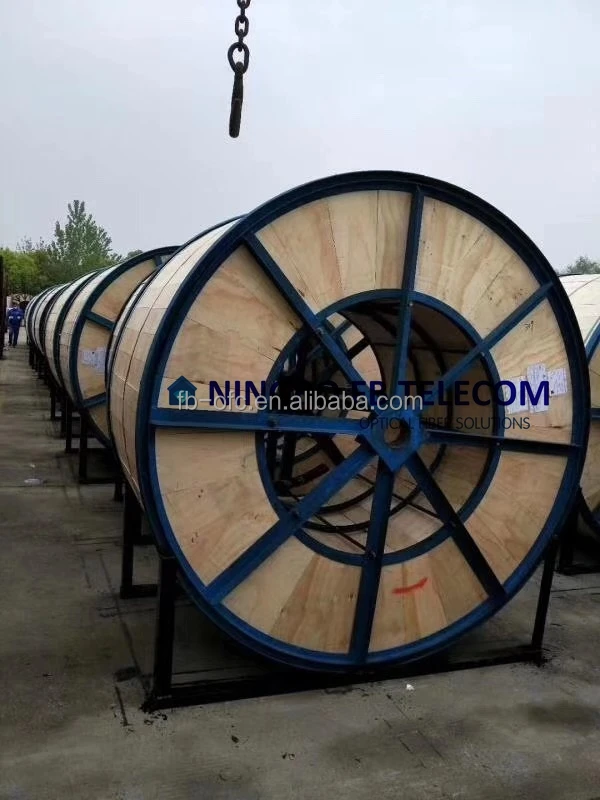

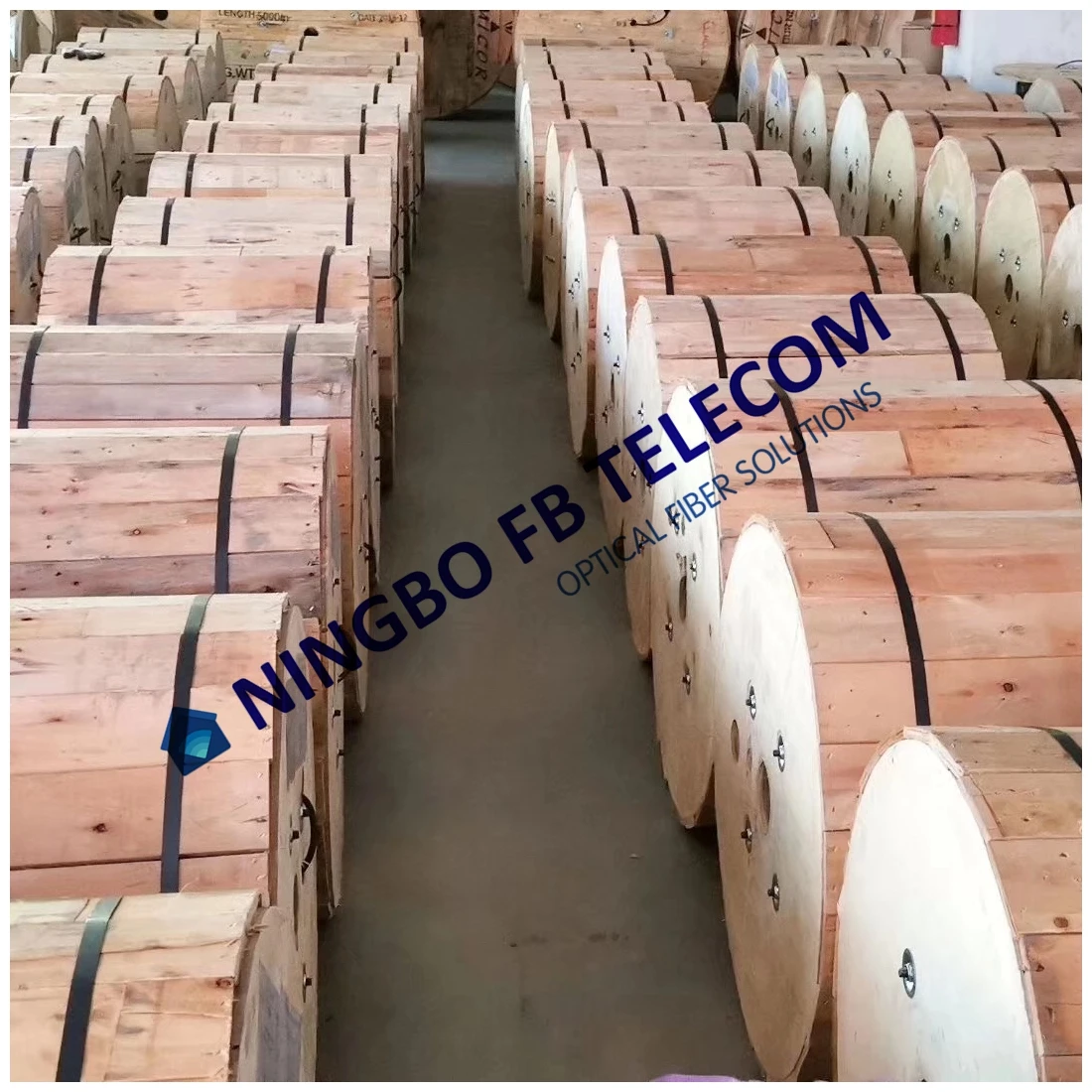

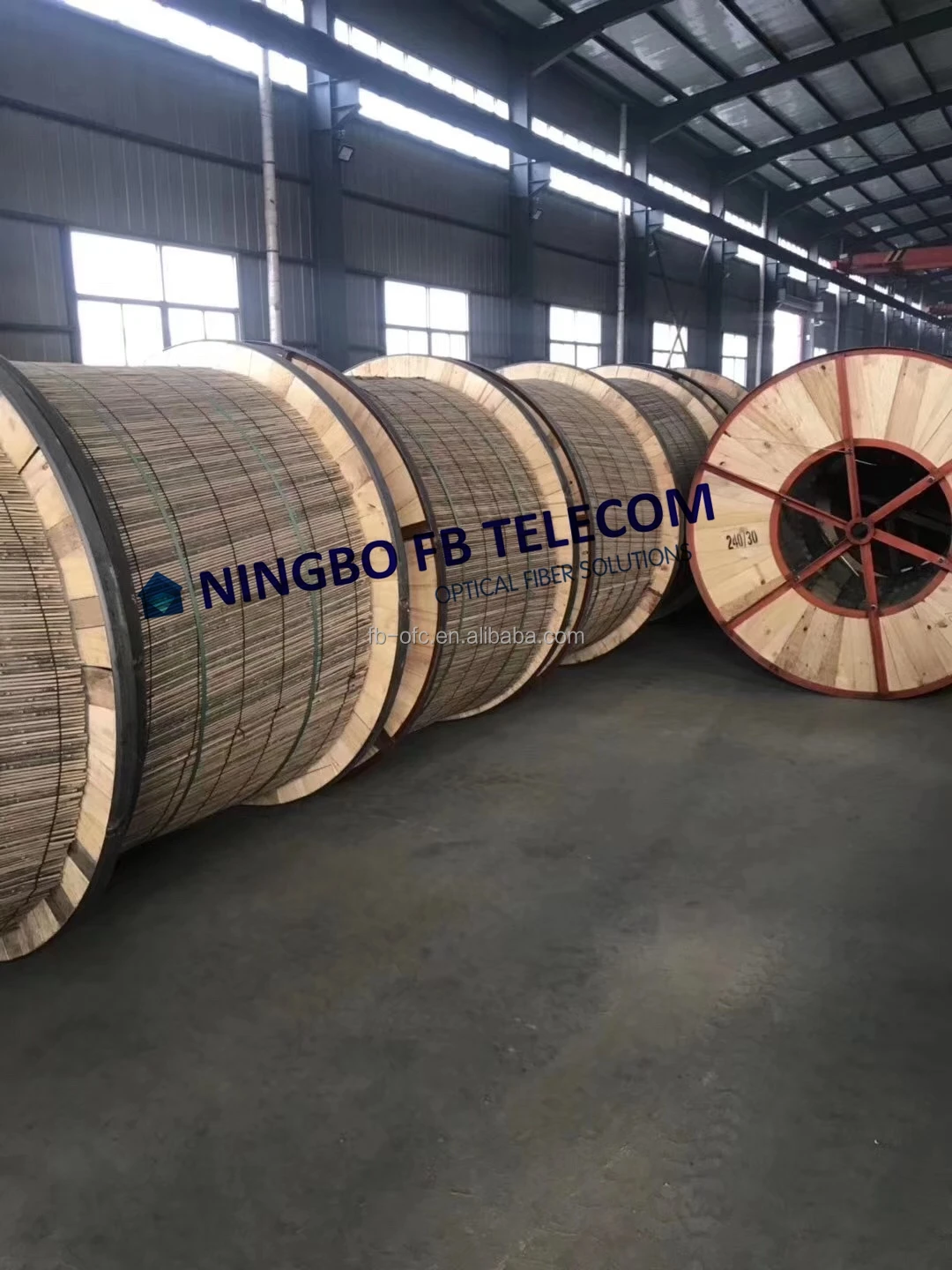

Packing & Delivery
