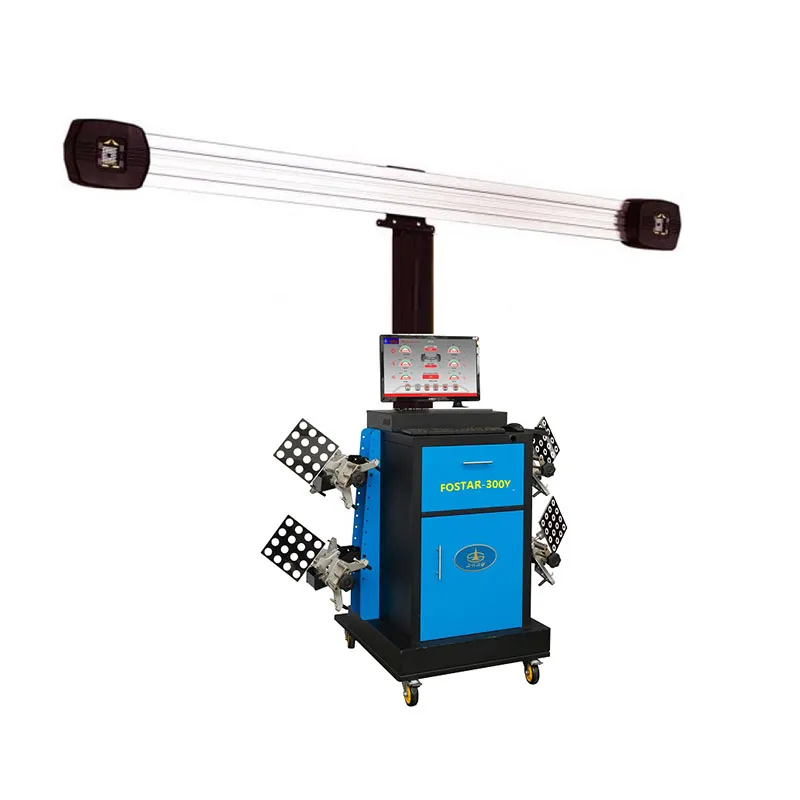

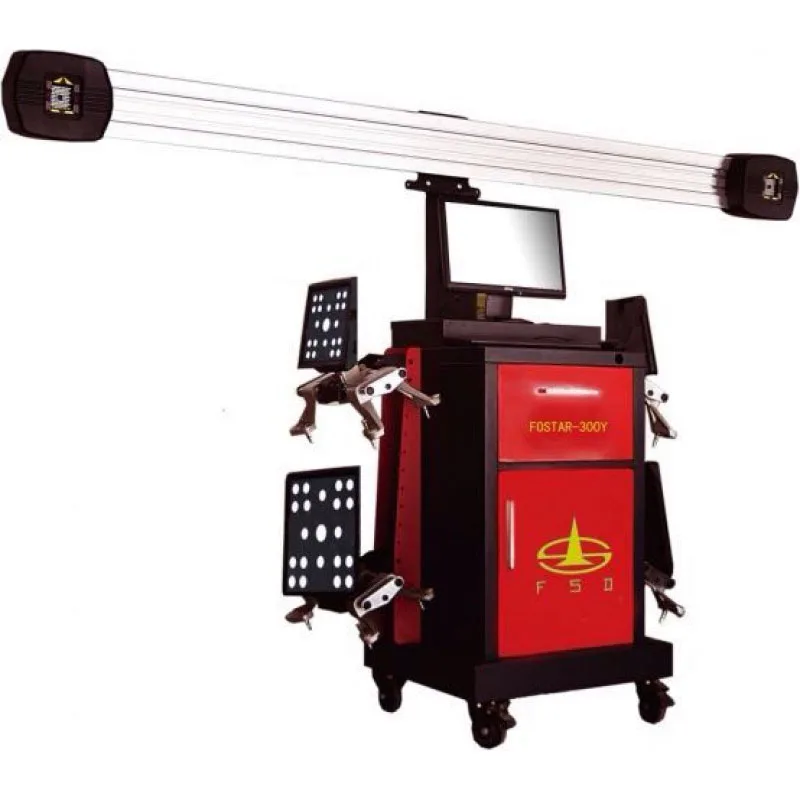

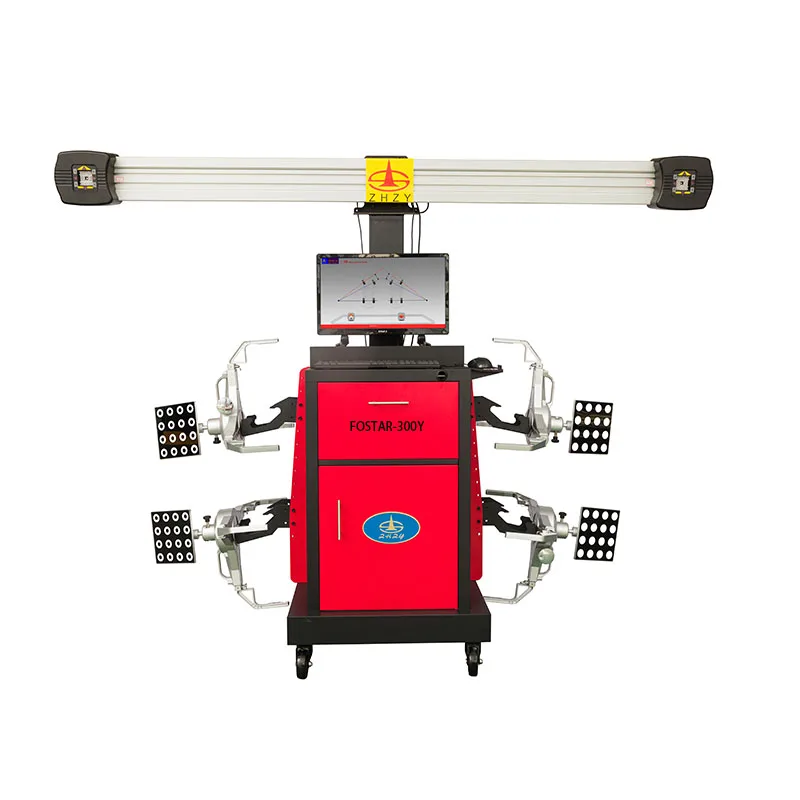

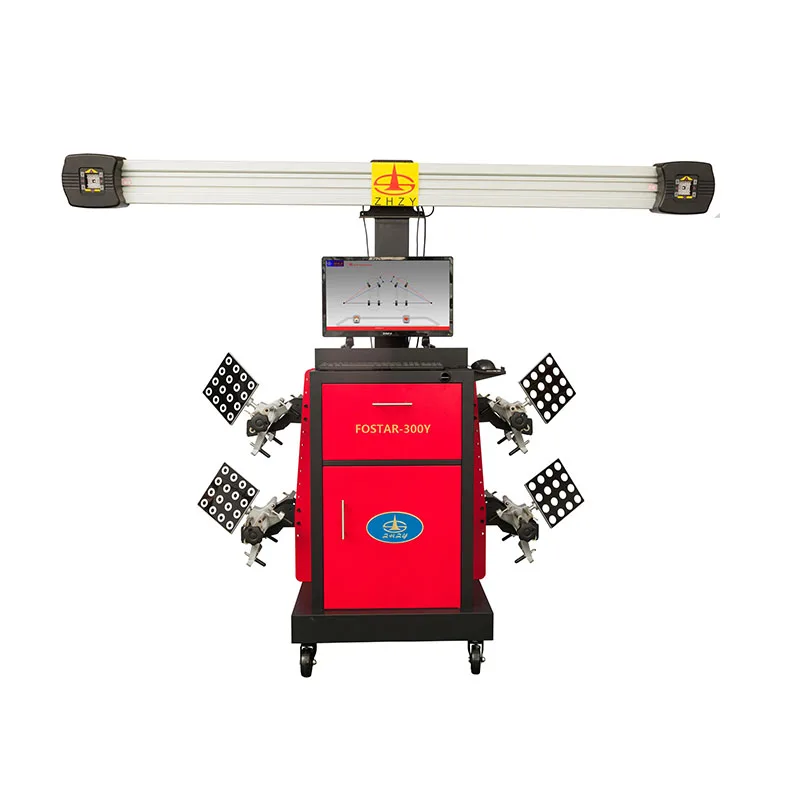

Fostar 220V Automotive Car Launch Wheel Alignment Machine
- Category: >>>
- Supplier: Zhuhai Fostar Machinery And Equipment Co. Ltd.
Share on (1600869647241):
Product Overview
Description
Product Description
Fostar Custom ISO Certificated Garage Hot Sale High Accuracy Tracking Ceamera Software Database Wheel Aligner For Truck
The wheel aligner is used to detect the vehicle wheel alignment parameters, compare them with the original parameters, and guide the user to adjust the wheel alignment parameters accordingly to meet the original requirements, so as to achieve the ideal driving performance of the car, that is, easy to operate, stable and reliable to drive, and reduce tire wear. During the
inspection work, the wheel aligner first measures the actual alignment parameters of the car, and then the computer automatically compares it with the value of the corresponding model to calculate the deviation value for the wheel alignment. The maintenance personnel can restore the original wheel alignment parameters by correcting according to the prompts of the aligner.
inspection work, the wheel aligner first measures the actual alignment parameters of the car, and then the computer automatically compares it with the value of the corresponding model to calculate the deviation value for the wheel alignment. The maintenance personnel can restore the original wheel alignment parameters by correcting according to the prompts of the aligner.
Where to use Wheel Alignment Required?
1. The driving performance of the vehicle has been affected. The most intuitive feeling of the driver is that the vehicle
deviates, and the steering direction does not automatically turn back.
2. Damage to the chassis and suspension of the vehicle caused by the accident.
3. Abnormal and severe tires wear(it needs to be considered whether the abnormal wear is caused by abnormal tire pressure. If
there is eccentric wear on one side, there may be a deviation in the camber angle).
4. Parts such as axles and suspensions have been disassembled.
Kindly Notice: Generally speaking, wheel alignment shall be carried out for new vehicles after three months of driving; It is
recommended that the wheel alignment should be done at least once a year or once after the vehicle has driven 10000 km
accumulatively; In case of collision due to tire rotation, wheel positioning shall be carried out in time; If the car is used for
a long time, such as taxis, trucks, etc., it is recommended to do four-wheel alignment every six months or three months.and this 3D wheel aligner work with 4 post lift, 2 post lift is unavaiable.
deviates, and the steering direction does not automatically turn back.
2. Damage to the chassis and suspension of the vehicle caused by the accident.
3. Abnormal and severe tires wear(it needs to be considered whether the abnormal wear is caused by abnormal tire pressure. If
there is eccentric wear on one side, there may be a deviation in the camber angle).
4. Parts such as axles and suspensions have been disassembled.
Kindly Notice: Generally speaking, wheel alignment shall be carried out for new vehicles after three months of driving; It is
recommended that the wheel alignment should be done at least once a year or once after the vehicle has driven 10000 km
accumulatively; In case of collision due to tire rotation, wheel positioning shall be carried out in time; If the car is used for
a long time, such as taxis, trucks, etc., it is recommended to do four-wheel alignment every six months or three months.and this 3D wheel aligner work with 4 post lift, 2 post lift is unavaiable.
PRODUCT ADVANTAGES
1) Higher precision, more powerful2) The accuracy of the equipment can reach 0.01°0.1mm
In addition to the detection of all the traditional general parameters, and can measure wheel deviation, axis deviation and other parameters
3) Easy to realize the full set out to give you laser locator can not complete many functions.
4) Simple operation(With detailed instructions before delivery)

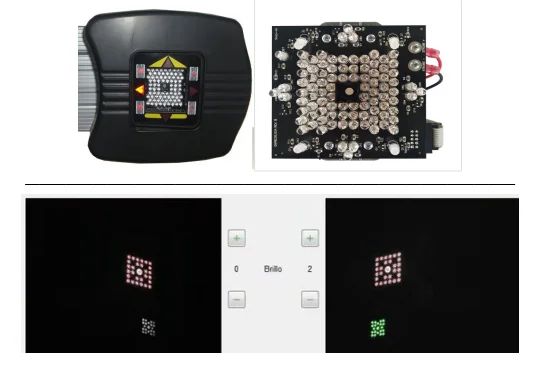

5)The camera responds quickly
7) Passed ISO quality system certification and CE certification
8) The appearance and color of the product are optional
9) Optional three - point fixture to detect the global series of vehicles
8) The appearance and color of the product are optional
9) Optional three - point fixture to detect the global series of vehicles
Product Paramenters
Item | Precision | Measurement range | Maximum measurement range |
Camber Angle | ±0.015° | ±0.01° | ±30° |
Rear Angle | ±0.025° | ±0.01° | ±30° |
Kingpin inward Angle | ±0.025° | ±0.01° | ±15° |
Kingpin inward Angle | ±0.025° | ±0.01° | ±20° |
Rear wheel propulsion Angle | ±0.015° | ±0.01° | ±6° |
Maximum steering Angle | ±0.015° | ±0.01° | ±30° |
Angle of retreat | ±0.015° | ±0.01° | ±6° |
Wheel pitch | ±0.25cm | ±0.01° | 3000mm |
Wheelbase | ±0.25cm | ±0.01° | 8000mm |
Diagonal | ±2mm | ±0.3cm | 12000mm |
Wheel radius | ±2mm | ±0.3cm | 700mm |
Packing & Delivery
One pieces pack in one wooden carton.
