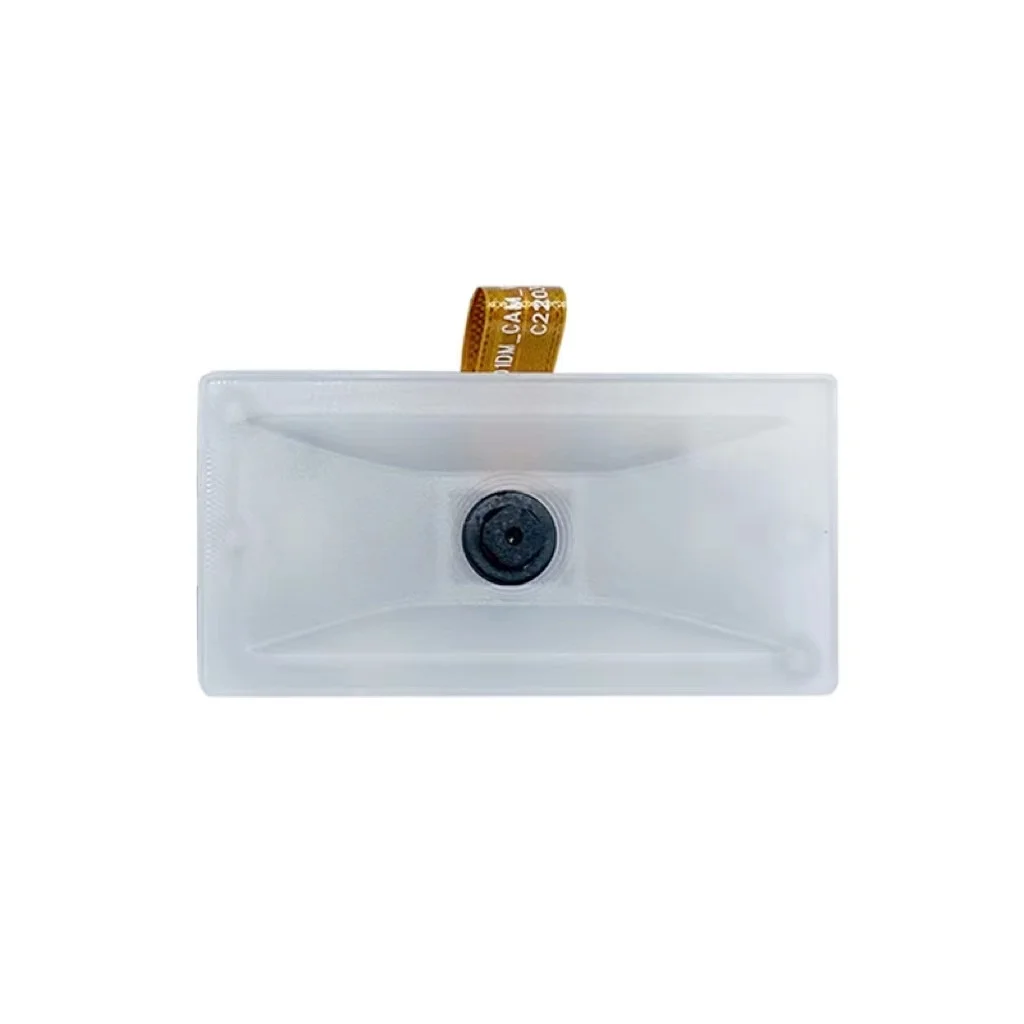

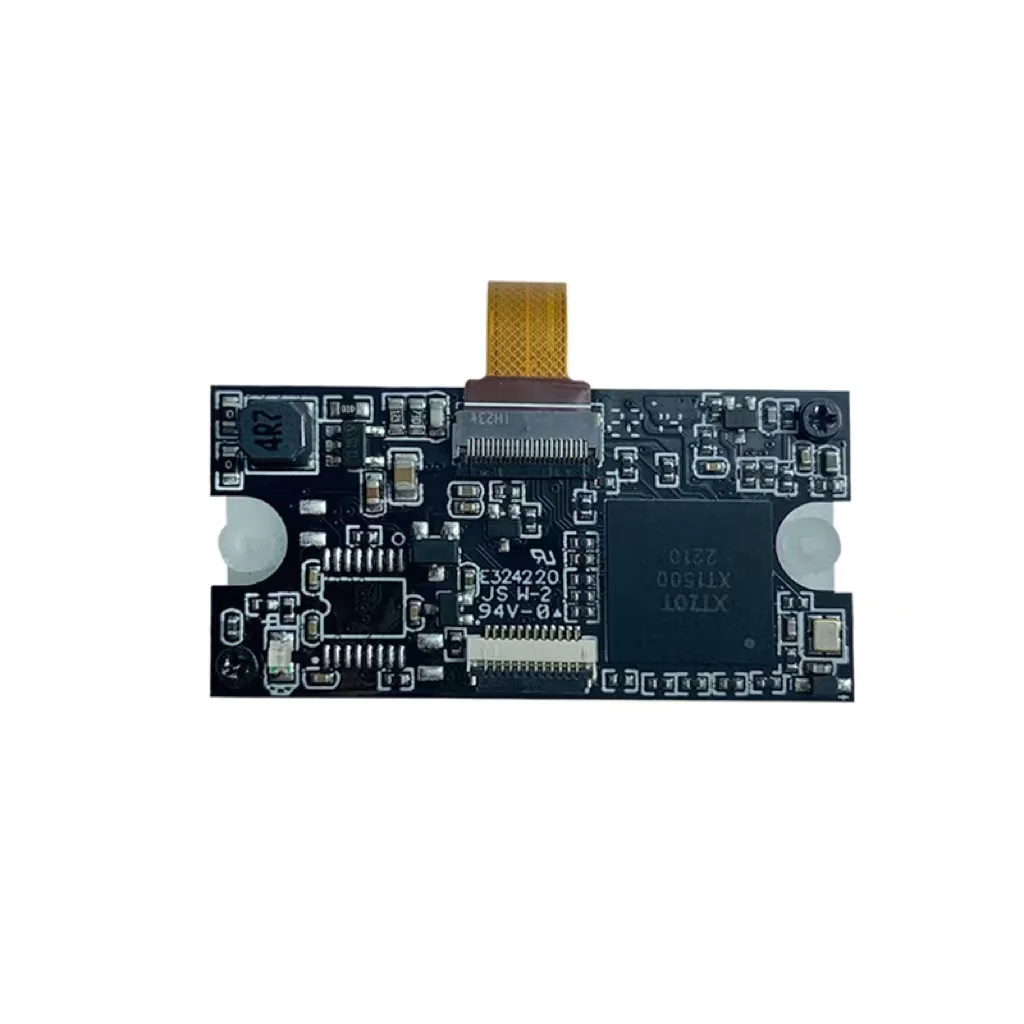

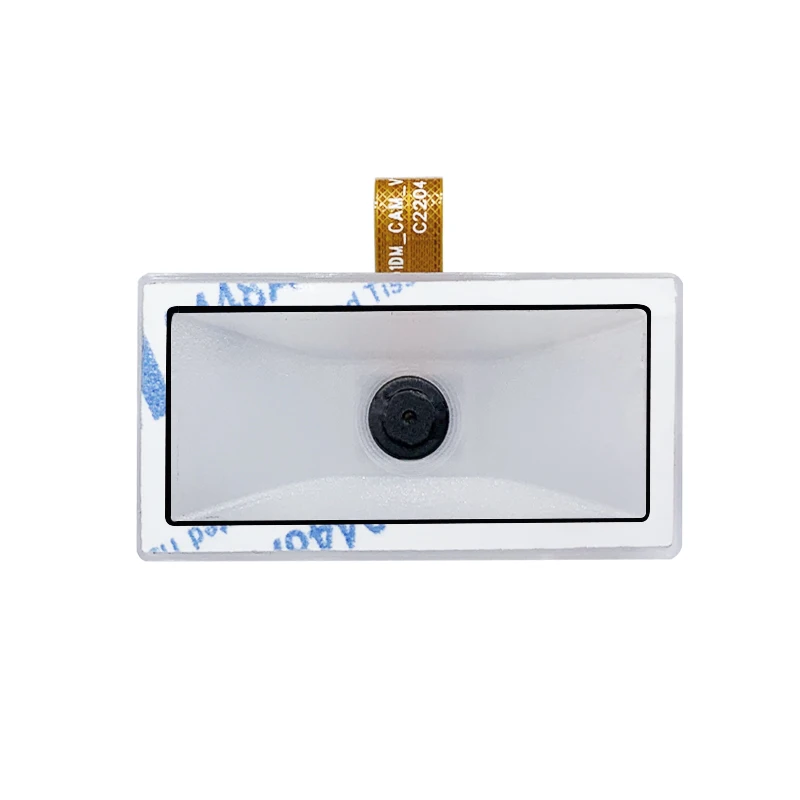

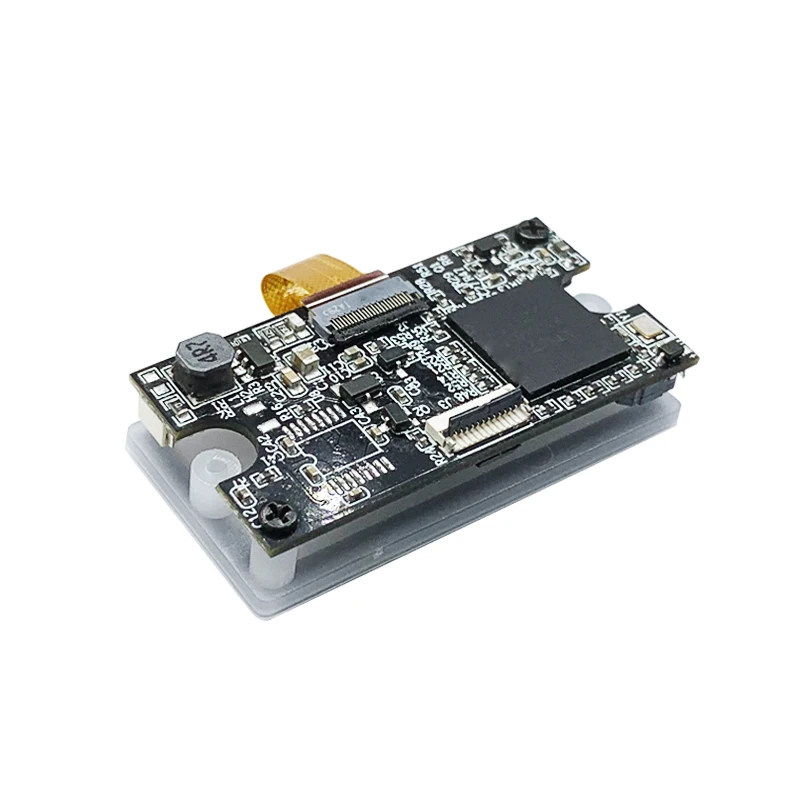

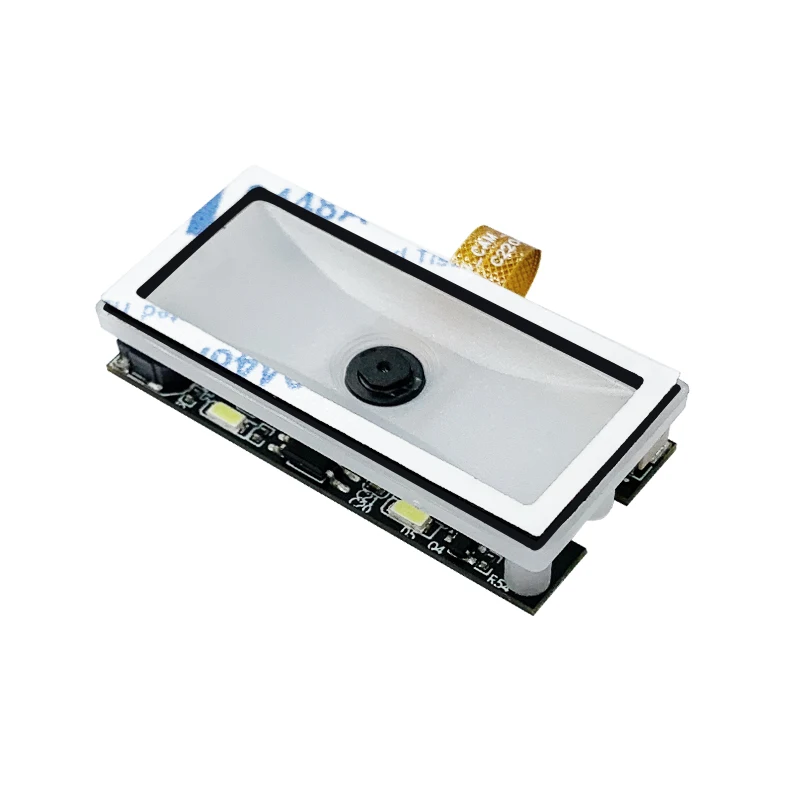

Сканер штрих кодов с фиксированным креплением XT206M1
- Category: >>>
- Supplier: Nanjing Chengben Electronic Technology Co. Ltd.
Share on (1600869649404):
Product Overview
Description
Fixed Mount Barcode Scanner
XT206M1 is fixed mount barcode scanner which suitable for KIOSK, vending machine, wash machine, POS device, etc.
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Barcode Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control
Communication: USB-HID, USB-CDC, USB-HID POS/RS232/TTL
Compatible System: Android, IOS, Windows, Linux OS, MAC, etc.
Technology: CMOS, 640x480 rolling shutter image sensor
Barcode Decoding Ability: 1D, 2D
Resolution: ≥5mil
Support: serial commands control
Technical Specifications
Image Sensor | CMOS |
DPI(W*H) | 640px*480px |
1D | Code128/AIM128/EAN128/NL128, UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93, Code 11, ITF-25/ITF-14/ITF-6/ Deutsche12/ Deutsche14, Industrial 25, Matrix 25, Japan Matrix 25/NEC 25, Standard 25, DataLogic 25, MSI-Plessey, Plessey, RSS-EXP /RSS_14/GS1 Data, Telepen |
2D | AZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code, Micro QR, Hanxin code, DOTCODE |
Accuracy | ≥5mil |
Contrast Ratio | ≥20% |
1D: EAN-13 | (5mil) 30-60mm (13mil) 20-130mm |
2D: QR Code | (15mil) 15-110mm (30mil) 15-200mm |
Tilt | ±65° |
Rotate | 360° |
Deflection | ±55° |
Field of View Angle | Horizontal: 66.4° Vertical: 49.8° Diagonal: 83° |
Data Interface | USB KBW, USB HID POS, USB CDC, TTL, RS232 |
Working Voltage | 5VDC±5% |
Electric Current Work | 185mA±10% |
Stand by | 160mA |
Working Temperature | 0℃~+50℃ |
Storage Temperature | -20℃~+60℃ |
Relative Humidity | 5%~95% (No condensation) |
Product Size | 40*20*11mm |
