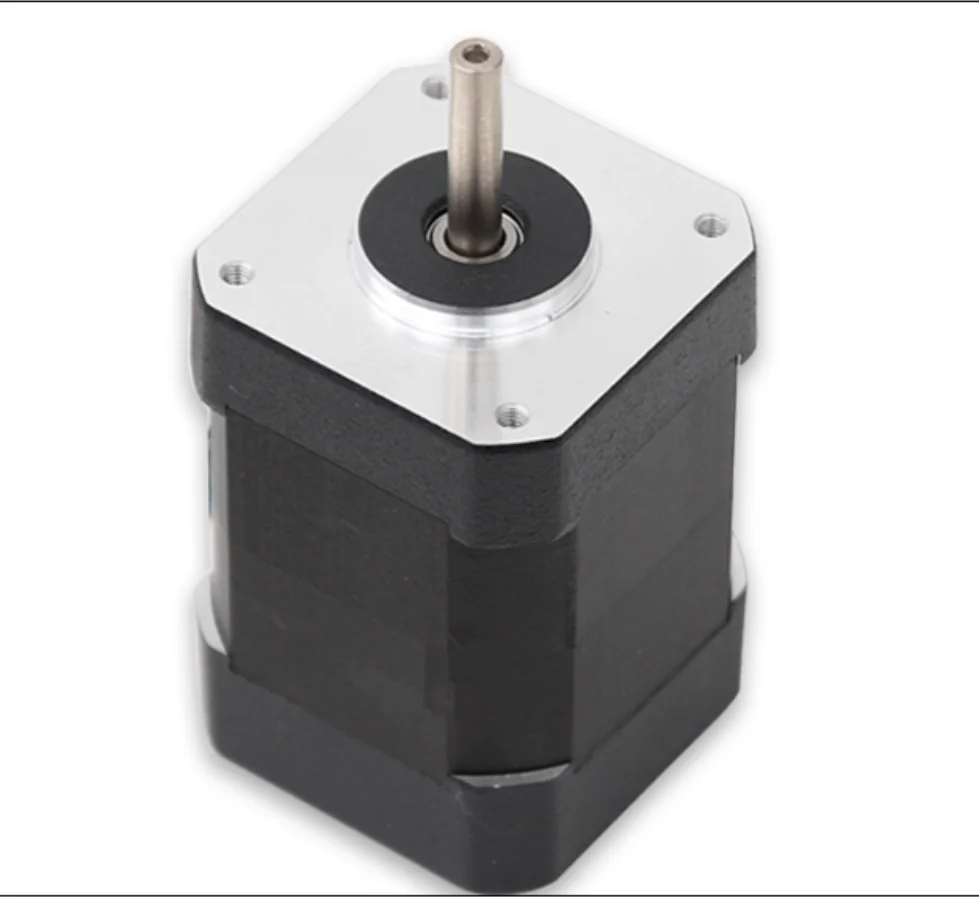

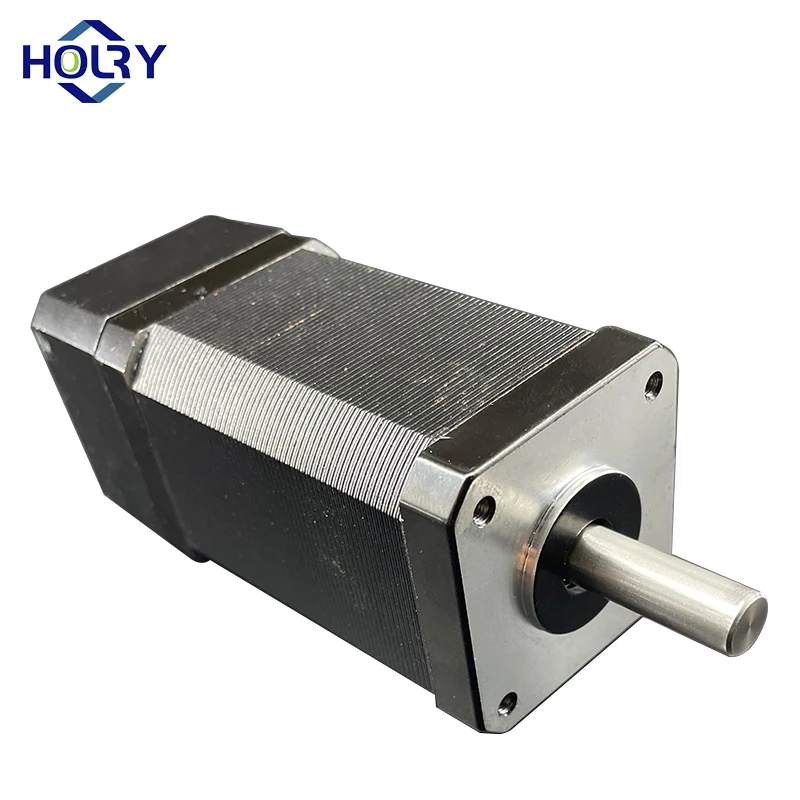

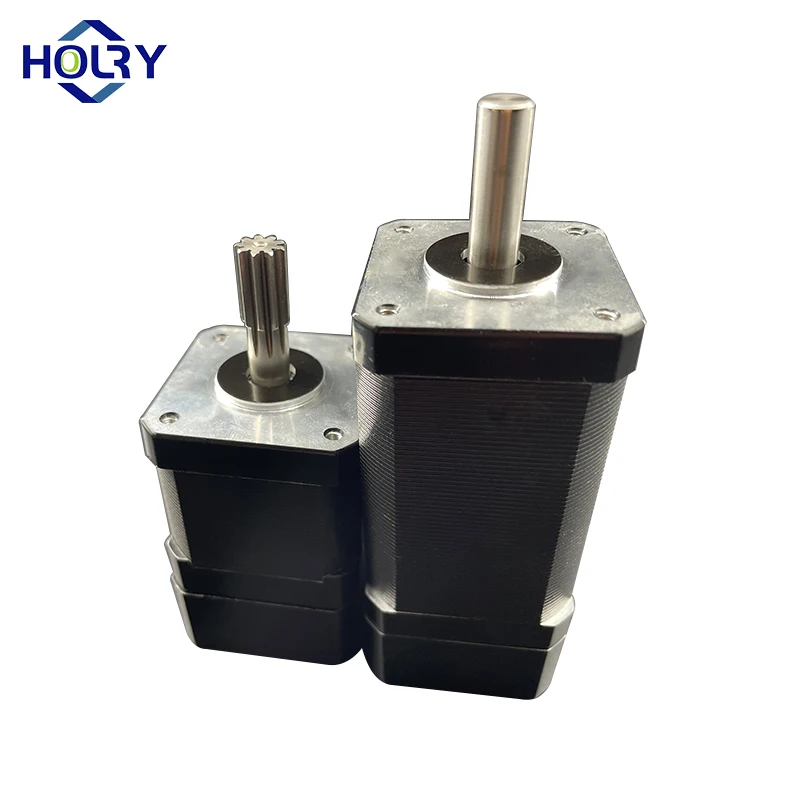

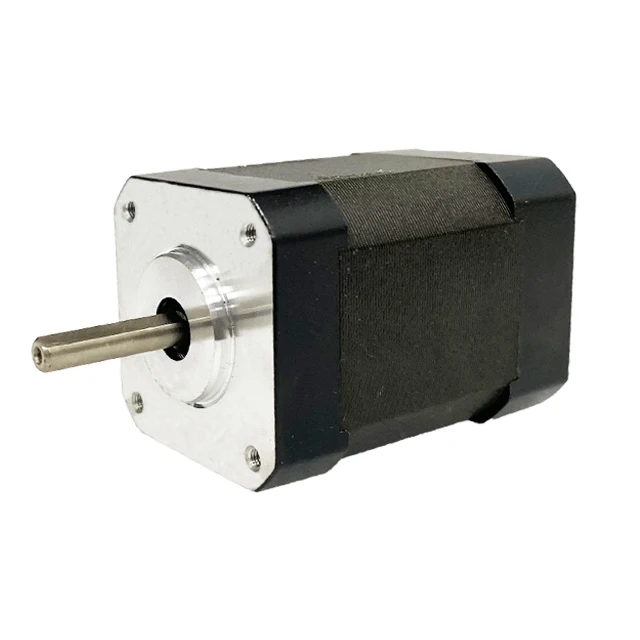

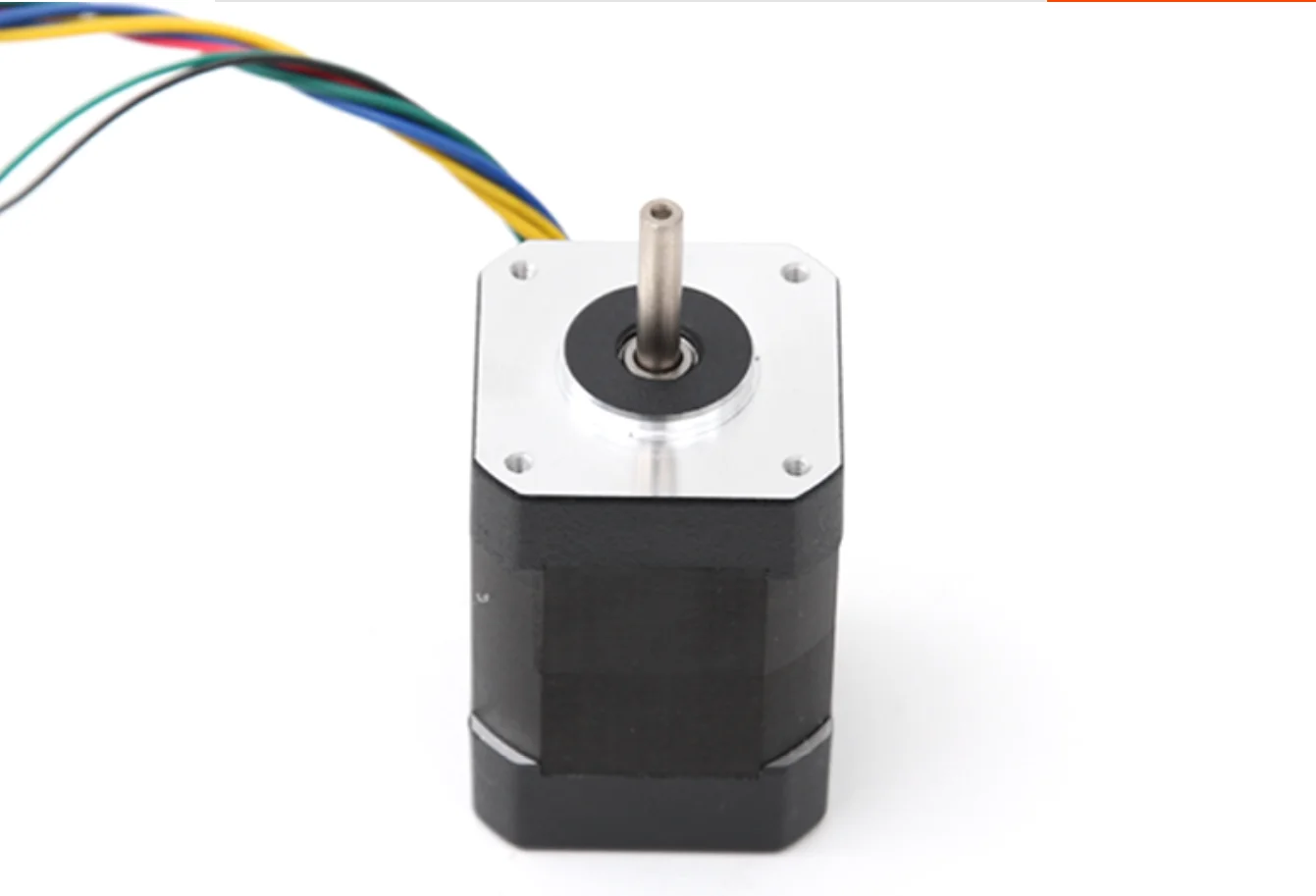

Nema17 BLDC motor 42mm*101mm 105W 4000rpm
Nema17 BLDC motor 42mm*101mm 105W 4000rpm
Nema17 BLDC motor 42mm*101mm 105W 4000rpm
Nema17 BLDC motor 42mm*101mm 105W 4000rpm
Nema17 BLDC motor 42mm*101mm 105W 4000rpm
Nema17 BLDC motor 42mm*101mm 105W 4000rpm
Nema17 BLDC motor 42mm*101mm 105W 4000rpm

Nema17 BLDC motor 42mm*101mm 105W 4000rpm

Share on (1600869654868):


Price:$20.70 - $28.50

Quantity:


Product Overview

Description





Why Choose Us




Products Description






Product Paramenters




motor model
42BLDC2330B-01
42BLDC2530B-01
42BLDC2830B-01
42BLDC21030B-01
42BLDC21230B-01
Phase
3
Number of poles
8
Winding connection
Y
Hall electrical angle
120
Rated voltage DC（V）
24
24
24
24
Rated power Pn (W)
36
66
100
130
Rated torque Tn (N.m)
0.12
0.159
0.318
0.382
Rated speed n (rpm)
3000
3000
3000
3000
Rated current In (A)
2.4
4.2
6.4
7.6
Maximum instantaneous torque Tm (N.m)
0.36
0.63
0.96
1.14
Instantaneous maximum current Im (A)
7.2
12.6
19.2
22.8
Back EMF constant e (V/kr pm)
4.3
4.3
4.3
4.3
Torque constant Tt (N.m/A)
0.05
0.05
0.05
0.05
Line resistance RL(Ω)
1.95
0.97
0.55
0.55
Line inductance LL(Mh)
0.87
0.49
0.72
0.55
Moment of inertia Jm (Kgcm)
44
72
116
143
Insulation class
B
Bearing radial force Fr (N)
180
180

180
180
Bearing radial force Fr (N)
90
90

90
90
Weight (Kg)
0.23
0.33
0.43
0.53
0.53
cooling method
Fully enclosed, self-cooling
Protection level
IP54
Use environment
temperature
-25~+40℃ (no freezing)
humidity
Below 95%RH (no condensation)
surroundings
Keep away from corrosive, flammable gas, oil drop, dust
altitude
The highest altitude is 4000 meters, and the altitude is more than 1000 meters. For every additional 100 meters, the power is
reduced by 1.5%
Rated condition
Temperature rise
When the ambient temperature is 40℃, the surface temperature of the case rises by 60K














Company Profile




Certifications




Exhibition








Product packaging




FAQ




1. Do you have online contact info?
A1: Yes, whatsapp is +86 13646117381

2. How can we know the product quality?
A2: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.

3. Is this your final price? May i have the discount?
A3: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.

4.Is there cheap shipping cost to import to our country?
A4: Yes, we have our regular shipping company, they have very good price.

5. Can we visit your factory?
A5: Yes welcome warmly. No. 295, Fumin Road, Lucheng Town, Qishuyan, Changzhou City, Jiangsu Province, China.

6.What is the Warranty for your products?
A6: All products product warranty for one year, free service for 10 years.
