Customized Tooth Paste Cream Making Equipment Hydraulic Vacuum Emulsifying Machine Machine Homogenizing Emulsifying Mixer
- Category: >>>
- Supplier: Guangzhou Lianhe Machinery Co. Ltd.
Share on (1600869657947):
Product Overview
Description
VR
Machine Details
▽ Parameters
Model | Effective | Emulsifying Motor | Agitator | Vacuum pump | electirc Heating power/kw | Steam heating pressure /Mpa | ||||||||||||
Capcity/L | ||||||||||||||||||
KW | RPM | KW | RPM | KW | Limit vacuum | |||||||||||||
VME-5L | 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 | |||||||||
VME-10L | 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 | |||||||||
VME-20L | 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 | |||||||||
VME-50L | 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 | |||||||||
VME-100L | 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 | |||||||||
VME-200L | 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 | |||||||||
VME-300L | 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 | |||||||||
VME-500L | 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 | |||||||||
VME-1000L | 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 | |||||||||
VME-2000L | 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam hetaing | 0.2 | |||||||||
VME-5000L | 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | ||||||||||
The parameters for reference ONLY, all the machines can be customized accordingly. | ||||||||||||||||||

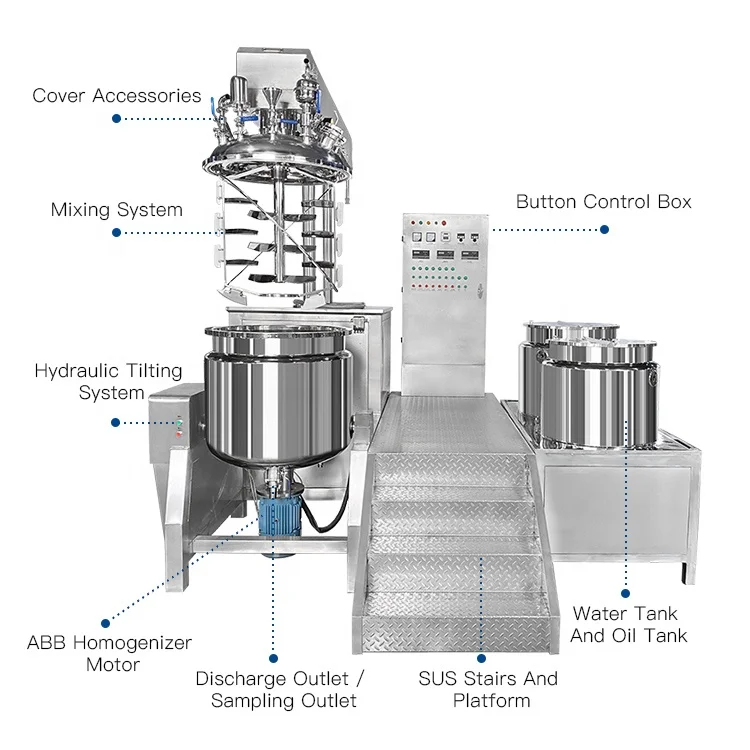

▽ Details

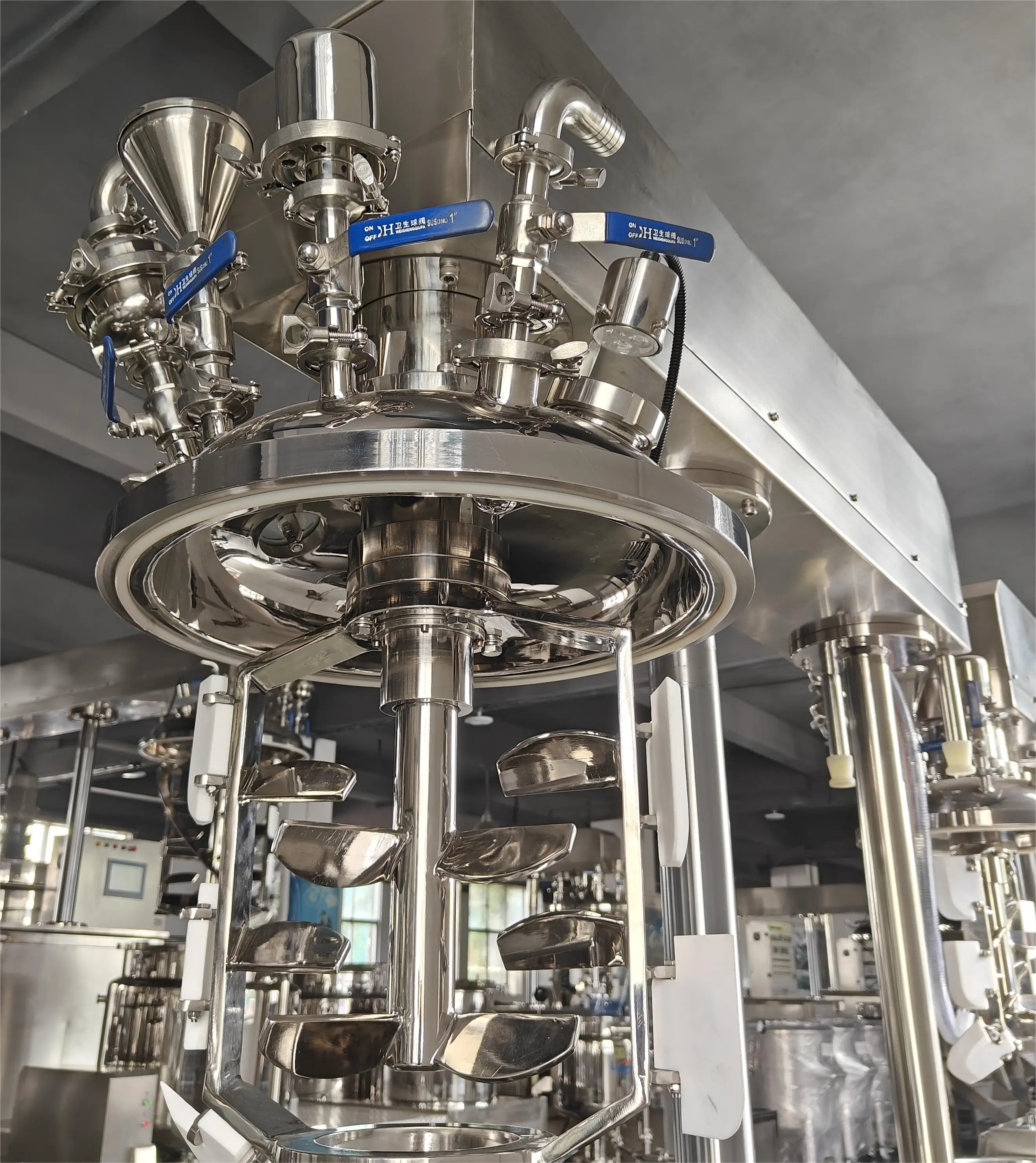

Top fitting view
Contains:
● Air filter,
● Fragrance bucket,
● Material filter,
● LED light,
● CIP spray system
● Pressure sensor.

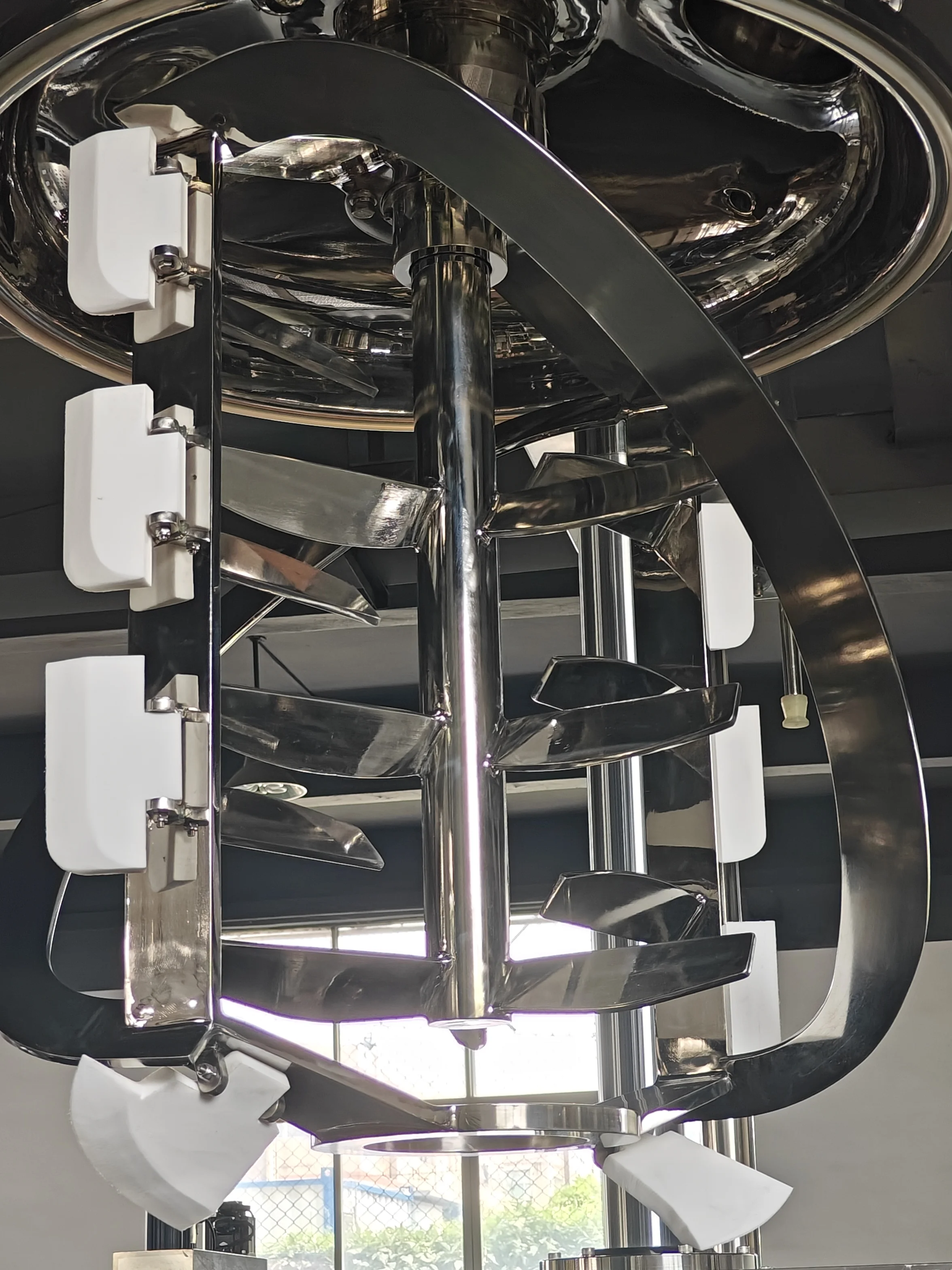

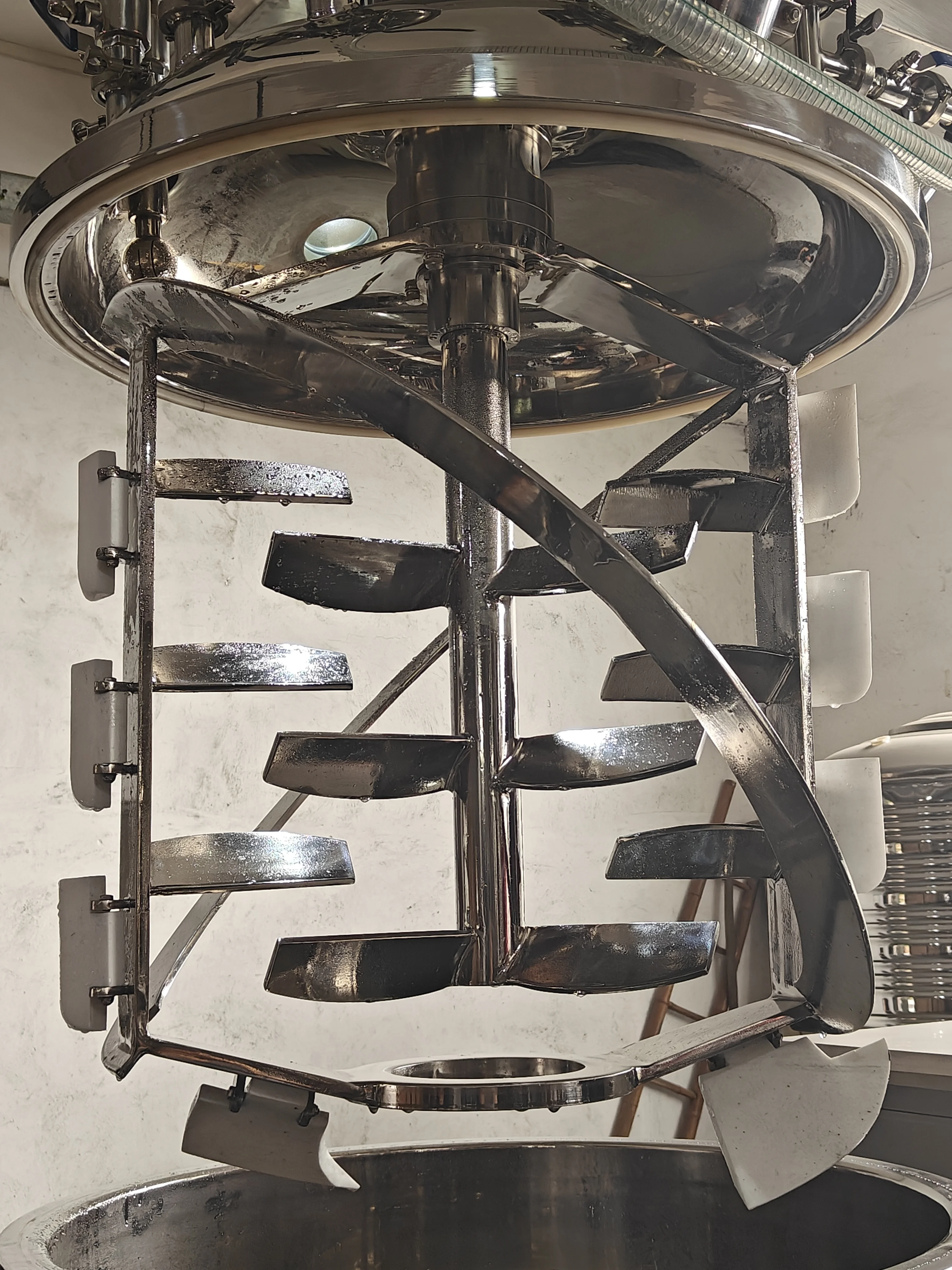

Spiral type bidirectional stirring
● Frequency conversion speed regulation 0-65r/min.
● The screw tape can be optional according to the requirements.

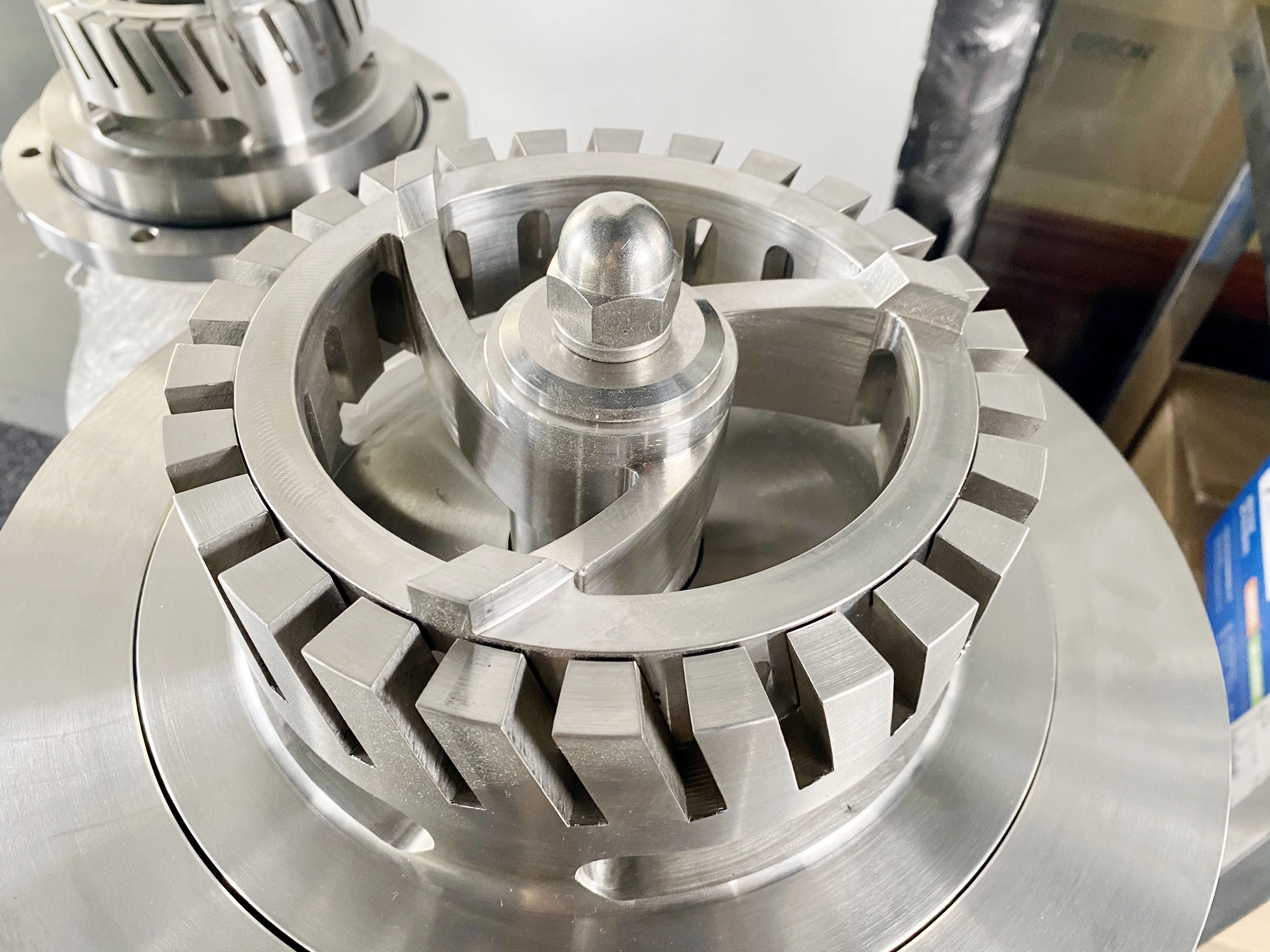

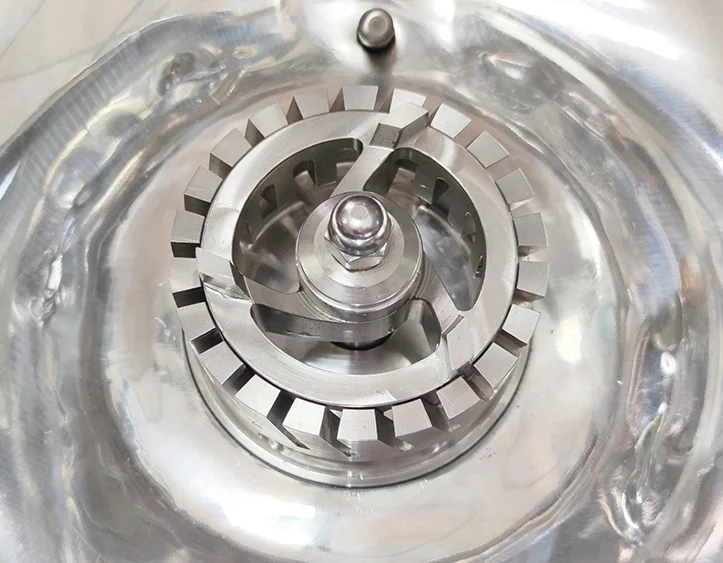

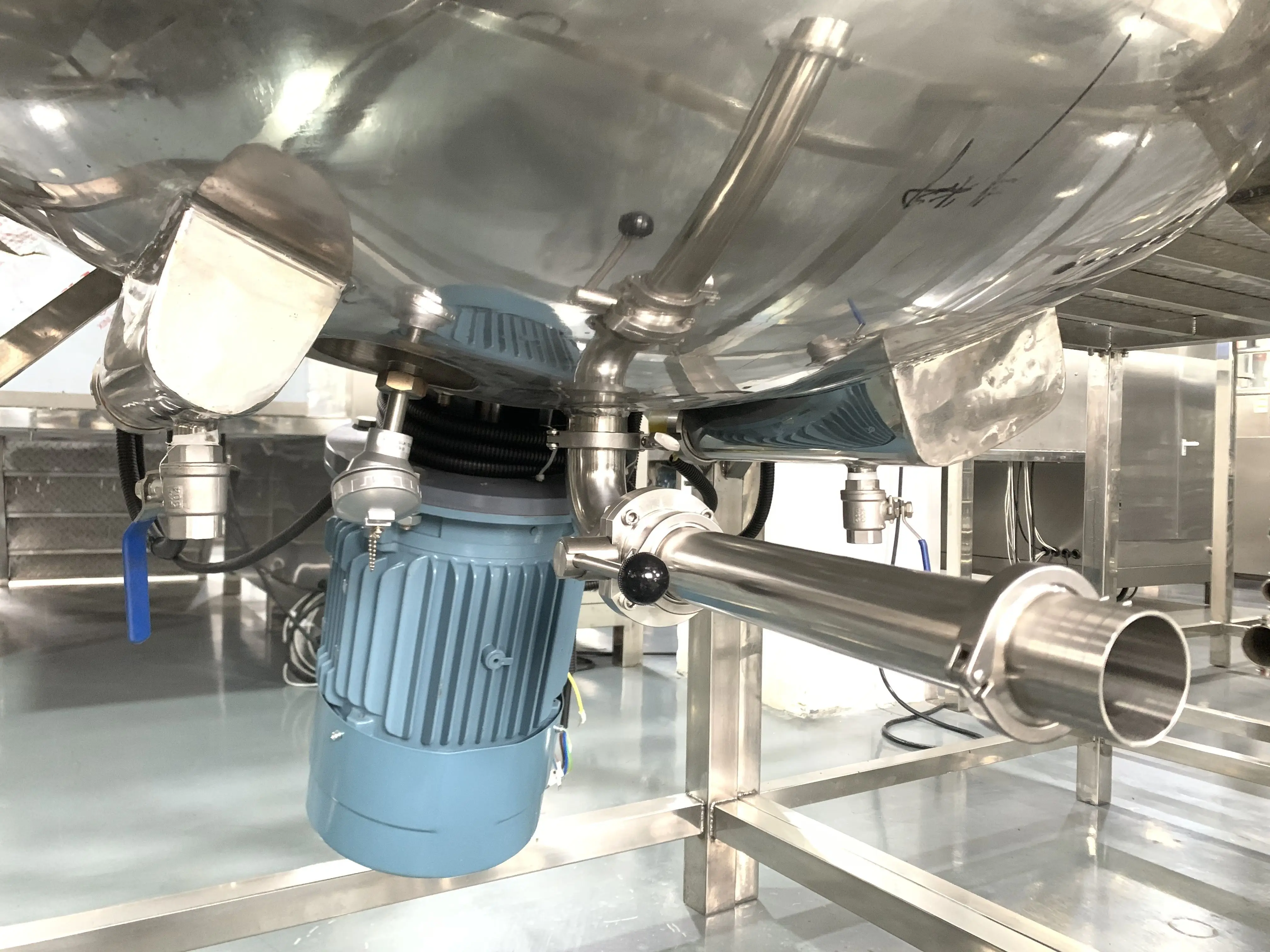

High shear Homogenizier
● Bottom installed homogenizier, sped 0-3600rpm, make pretty and high-end emulsion product.

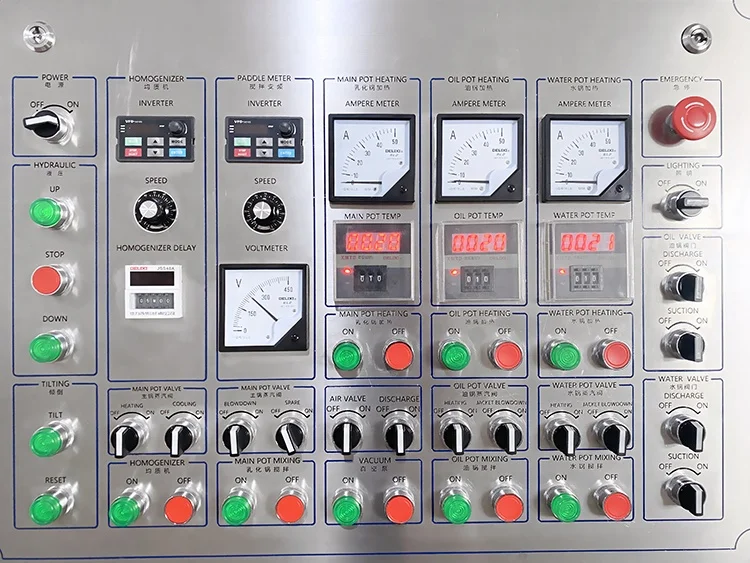

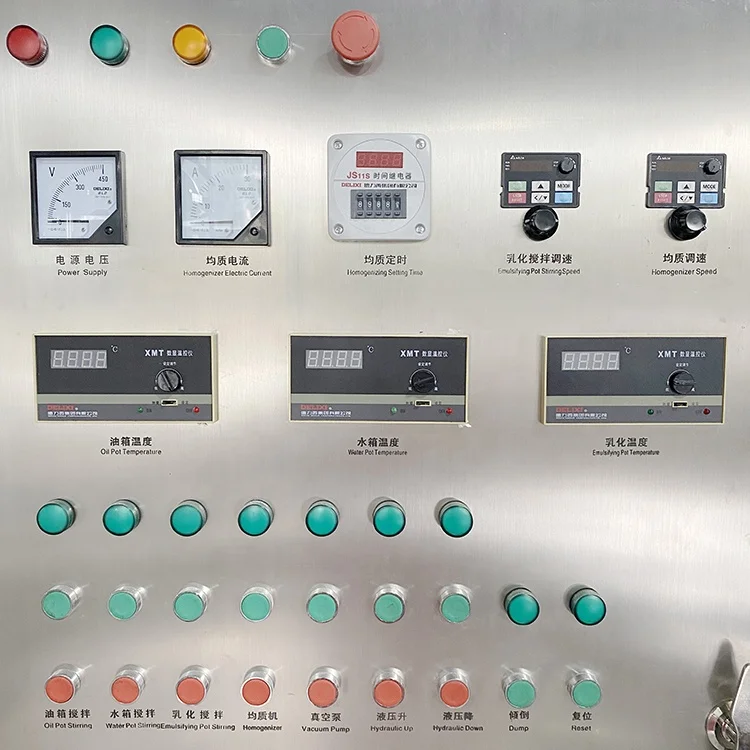

Botton control system
● All functions clearly show on the control box,easier to operate.
● PLC touch screen can be optional according to the requirements.

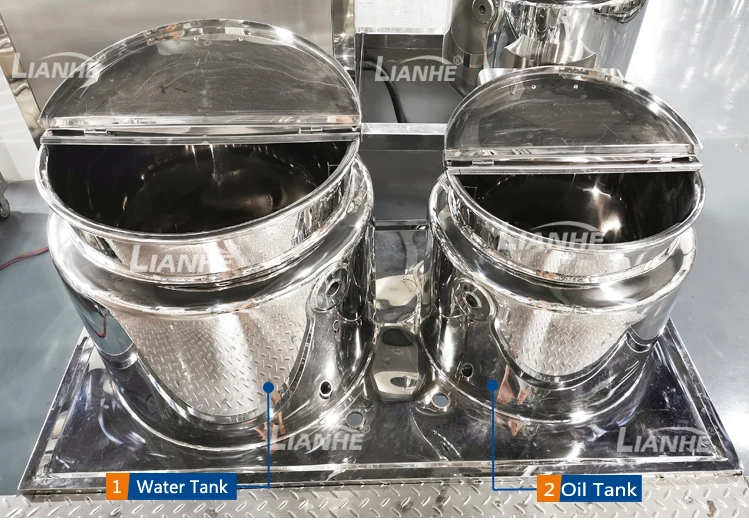

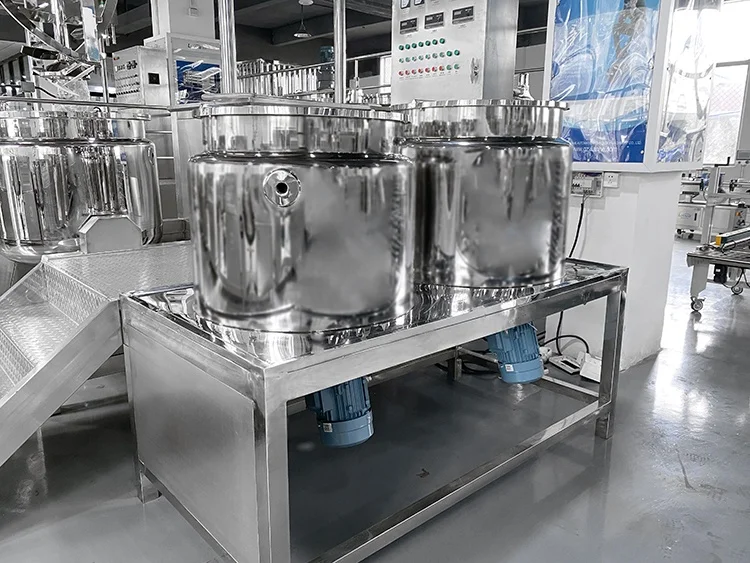

Oil and water pot
● Pre-treatment: to pre-heat and disperse the raw materials.
● The size can be customized according to the size of the main pot.● Optional according to the requirements.
▽ Advantages
▽ Well-known accessories
Customer Praise
▽ Application
Recommend Products
Why Choose Us
▽ Certificates
▽ Professional R&D quality inspection team
▽ Factory cases
Company Profile
▽ Packing & transportation
FAQ
Q: Are you a factory?
A: Yes we are a factory with more than 20 years manufacturing experience. One is in Jjiangsu Province,
Another is in Guangzhou next to our office.
Another is in Guangzhou next to our office.
Q:I'm new in our industry,but I'm planing to set up a factory, what canI do?
A: We will design the most suitable proposal based on your actual situation, such as the daily production,raw material formula, factory layout, etc. Also we would like to intro- duce some excellent suppliers of raw materials, bottles,labels, etc if needed. After sales, engineer will be send to fields installation, training and commissioning.
Q: How long is your warranty? After warranty, what if we encounter problem about the machine?
A: Our warranty is one year.After warranty we still offer you lifetime after-sales service, anytime you need we are there to help. If the problem is easily to solve, we will shoot a solution video for you. If video doesn't work out, we will send engineer to your factory.
Q: How can you control the quality before delivery?
A: First, our component/spare parts providers test their products before they offer com- ponents to us.Besides, our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we wil take a video to record the testing procedure and send the video to you.
Q:Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines'functions and to teach you how to use them.If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines.
Q: Can I come to your factory to observe machine running?
A: Yes, customers are warmly welcome to visit our factory.
Q: Can you make the machine according to buyer's request?
A: Yes,OEM is acceptable. Most of our machines are customized design based on cus- tomer's requirements or situation.
