Farm Use Hydraulic Mineral Vitamin Licking Salt Block Press Equipment For Goat/cow/sheep
- Category: >>>
- Supplier: Zhengzhou Anho Machinery Co. Ltd.
Share on (1600869685238):
Product Overview
Description
Products Description
Product Introduction

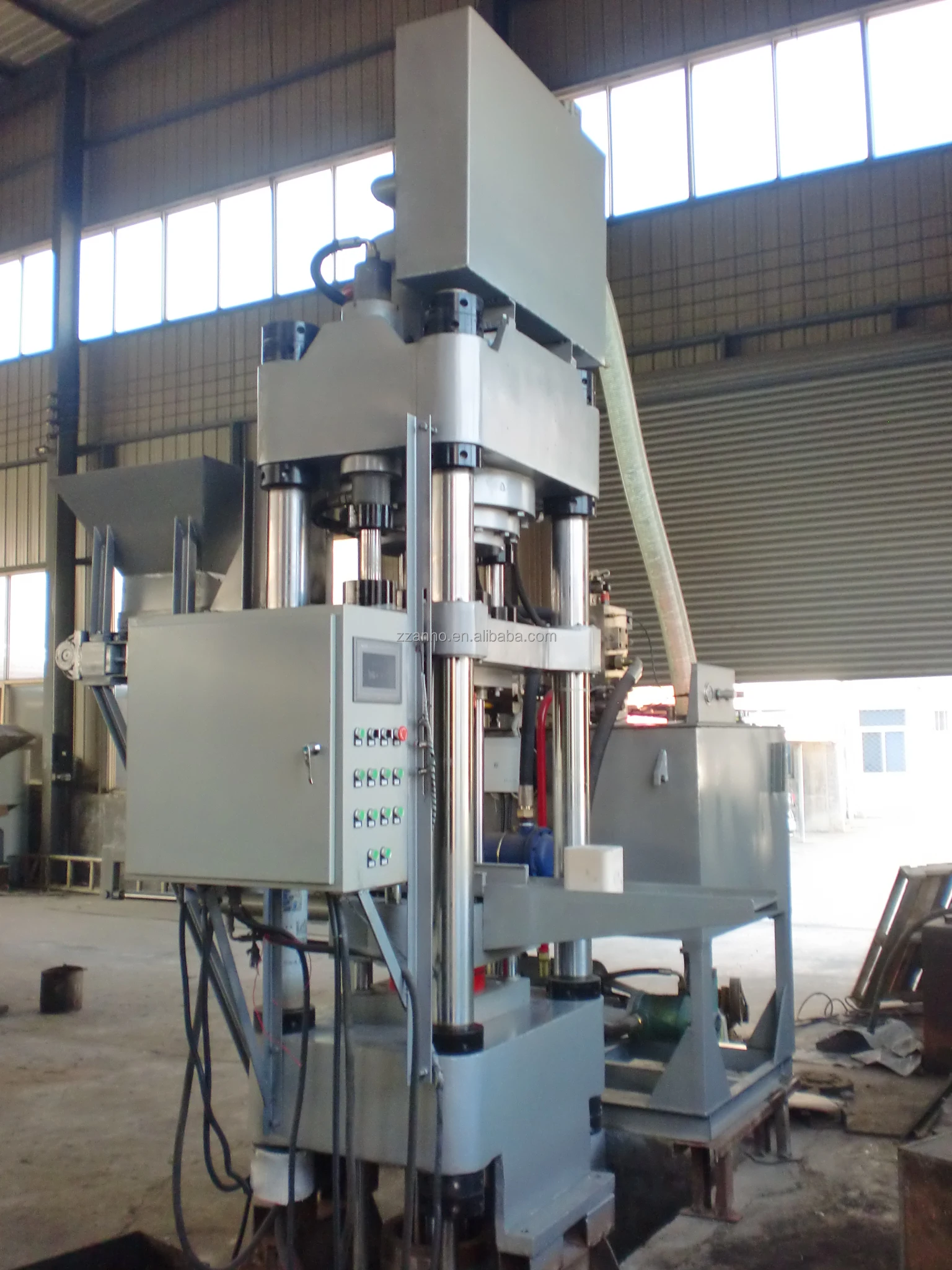

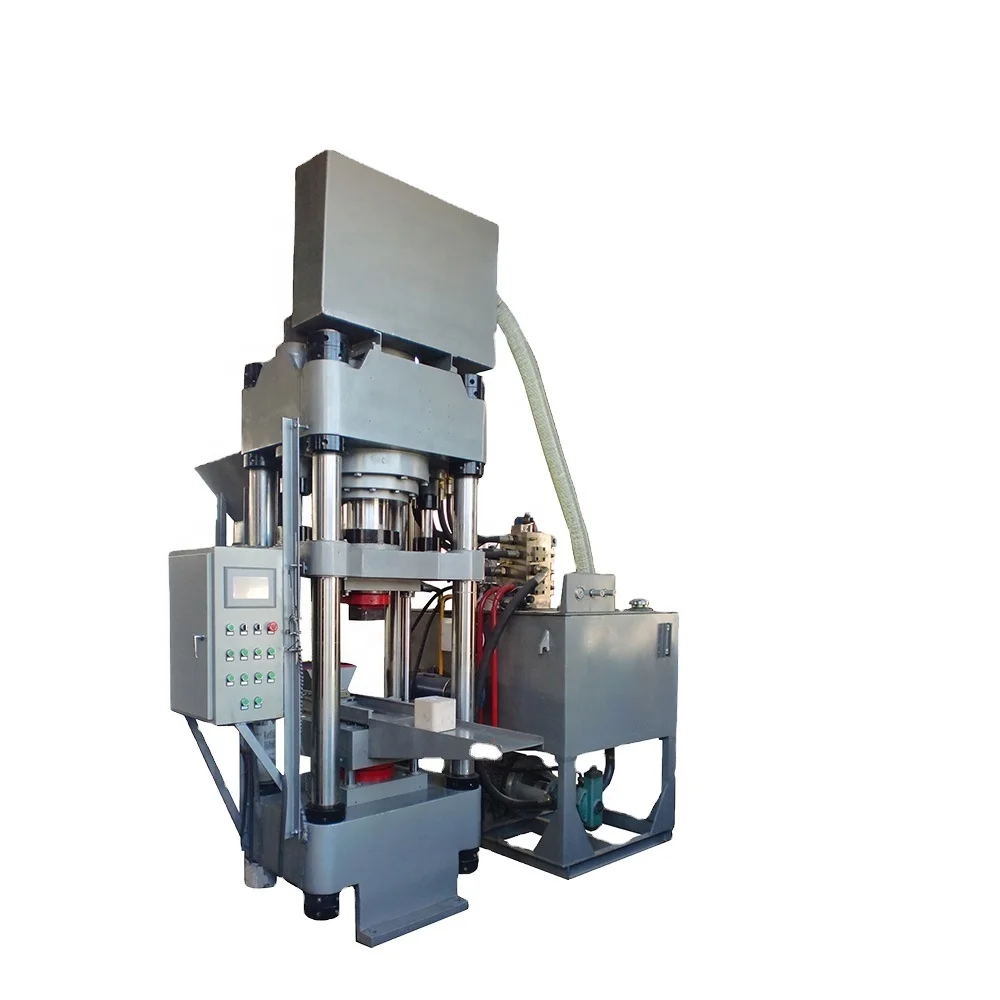

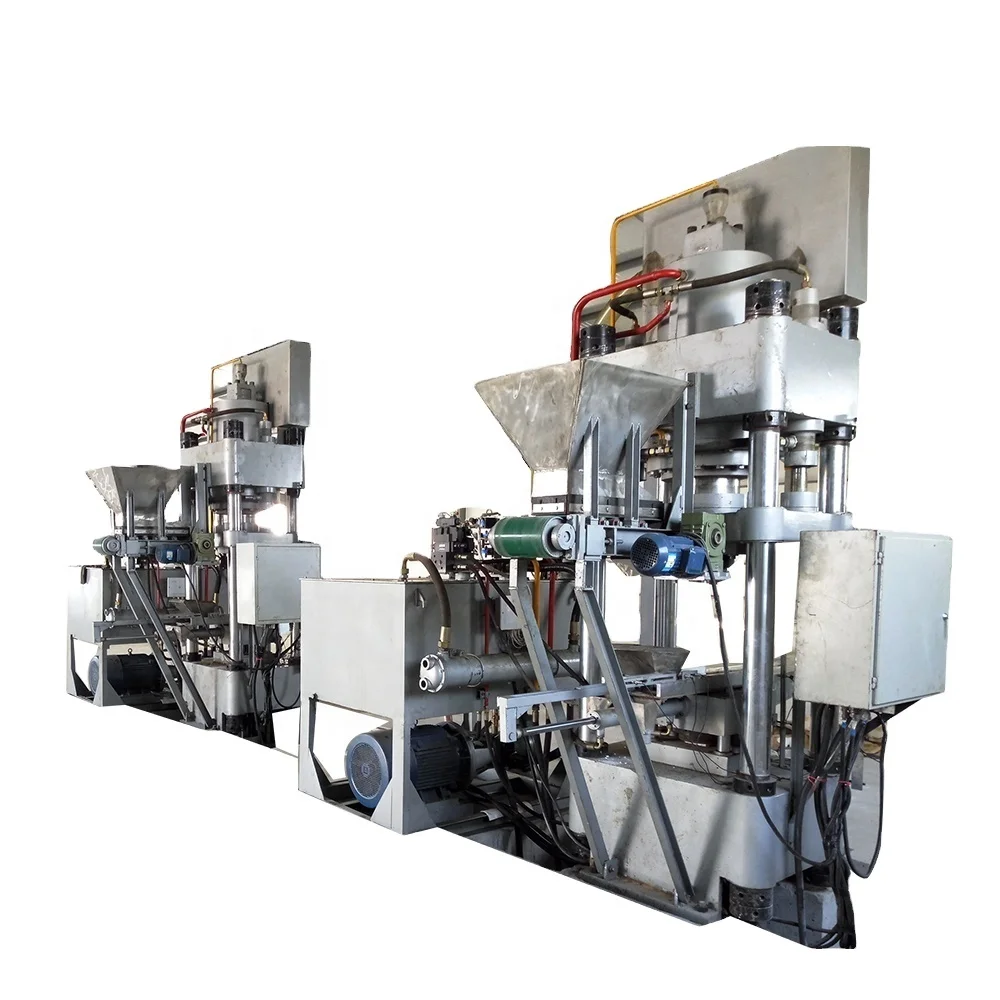

Hydraulic automatic animal licking salt block press machine with high pressure and high accuracy. This press machine uses advanced mechanical, electrical, hydraulic and pneumatic control, with automatic feeding device, floating pressure, so that the density of molded products has been effectively controlled, hydraulic system uses advanced cartridge valve blocks, hydraulic machine to ensure continuous and frequent stability working; Mechanical stopper positioning and stepless adjustment mechanism of Loading, molding, demolding three-position to determine the stability, adjustable of the product's geometry size. With oil fluid cooling device. PLC and man-machine interface centralizedcontrol, while equipped with a mechanical limit device to ensure product consistency.
①Mainframe
Composed of main hydrauliccylinder, material pushing hydraulic cylinder, bottom plate hydraulic cylinder,matching mould frame and
mould, pressure head and so on.
Composed of main hydrauliccylinder, material pushing hydraulic cylinder, bottom plate hydraulic cylinder,matching mould frame and
mould, pressure head and so on.
②Hydraulic pressure station
Composed of motor, hydraulic pump, pump protection device,control valve, pipe system that used to connect block machine
Composed of motor, hydraulic pump, pump protection device,control valve, pipe system that used to connect block machine
③Control box
Composed of electrical system and PLC control system.
Composed of electrical system and PLC control system.
Item | Unit | AH100 | AH200 | AH315 | AH400 | AH500 | XY720 |
Nominal pressure rating | kN | 1000 | 2000 | 3150 | 4000 | 5000 | 7200 |
Max liquid working pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
Max distance from sliding block flat to workbench | mm | 1100 | 1100 | 1150 | 1200 | 1200 | 1200 |
Motor total power | kw | 7.5 | 15 | 22 | 30 | 30 | 45 |
Block weight | kg | 2 | 2-5 | 4-7 | 2-10 | 5-10 | 10-20 |
Main Features
1.Adopt the most advanced professional cartridge valve blocks, large flow path, save system pressure loss. Good seal performance,
under long-term heavy load work condition the system also won't appear insufficient phenomenon; equipped with Preliminary unloading device, eliminate the hydraulic impact.
2.Use two-way floating pressure adding system, ensure the uniform density of blocks, make sure the high density of blocks; The block hole part adopt core pulling cylinder, make the hole edge smoothly and good looking.
3.Hydraulic cylinder are made of thick-wall seamless high strength alloy . In wall was honing by raw sandpaper and fine sandpaper by honing machine, ensure the cylinder in wall reach mirror surface, then make sure the good using performance.
4.Adopt PLC automatic control system, strong anti-interference ability and low failure rat. Miniature relay adopt Japanese omron electric equipment, ensure the safety of control system.
5.Adopt professional mould frame, use Six guide pin to ensure accurate positioning, and equip mechanical position limitation, not only ensure the perfect outlook of pressed material also ensure the high quality.
6.Adopt advanced fast device, small calorific value, high productivity, durable and energy saving ( around 3.5 times per minutes)
FAQ
Q: How do I know the quality of your machine?
A: You can send your sample to us and we will test the machine for you without charging the fees. And we can send the machine test
video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: What is your payment method?
A:30% deposit in T/T advance, 70% balance before shipment.
Q4. Can you print my brand name on it?
A: Of course, you just need to send us the picture of your brand.
Q: How long is the warranty? Does your company supply the spare parts?
A: Warranty is for One year. Spare parts for you at lowest cost.
Q: How long is your delivery time?
A:10 days for the stock, 15-30 days for the mass production.
