Huawei 5288 V5 4U Rack Server Huawei Server
- Category: >>>
- Supplier: Beijing Jingda Shengye Technology Co. Ltd.
Share on (1600869686274):
Product Overview
Description
Why Choose Us? |
We directly collaborate with server manufacturers such as Dell, Lenovo, Huawei, and Inspur.As a trade distributor, we provide affordable servers and accessories for small and medium-sized enterprises.You can purchase servers and customized accessories according to your needs. |
What Servers For Sale？ |
Dell, Lenovo, Huawei, and Inspur servers. |
What Accessories For Sale？ |
Processor, Hard drive, Memory, Raid card, PCIe card, Network card, Heat sink, Power supply, etc. |
Why Send Us Your Inquiry？ |
One-stop shopping experience,most server models and accessories are available for sale. |
HUAWEI 5288V5 Server | ||
Features | technical specifications | |
Processor | 1/2 first generation Intel ® xeon ® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W 1/2 Second generation Intel ® xeon ® Scalable processor 3200/4200/5200/6200/8200 series, up to 205W | |
RAM | 24 DDR4 memory sockets, up to 2933MT/s; Up to 12 Intel ® Aoteng ™ Persistent memory 100 series, up to 2666MT/s | |
Storage controller | Optional configuration supports RAID0, 1, 5, 50, 6, 60, etc., Cache super capacitor protection, RAID level migration, disk roaming, self diagnosis, Web remote settings, etc | |
Drive Bay | Various hard disk configurations are supported, and the hard disk supports hot plug: front end: • 24 3.5 inch SAS/SATA hard disks can be configured built-in: • Four 3.5 inch SAS/SATA hard disks can be configured Back end: • 16 3.5 inch SAS/SATA hard disks can be configured • 16 3.5-inch SAS/SATA hard disks+4 2.5-inch SAS/SATA/NVMe hard disks can be configured • 14 3.5-inch SAS/SATA hard disks can be configured (NVMe models support 4 NVMe SSD disks)+4 2.5-inch SAS/SATA/NVMe SSD hard disks (in this configuration The built-in hard disk and IO module 1 are not configurable) Support Flash storage: • Double M 2 SSDs | |
Power Supply | Two redundant hot swappable power supplies can be configured to support 1+1 redundancy. The optional specifications are as follows: • 900W AC platinum/titanium power supply (input: 100V AC~240V AC or 192V DC~288V DC) • 1500W AC platinum power supply 1000W (input: 100V AC~127V AC) 1500W (input: 200V AC~240V AC or 192V DC~288V DC) | |
Fan | 4 hot plug counter rotating fans, supporting N+1 redundancy | |

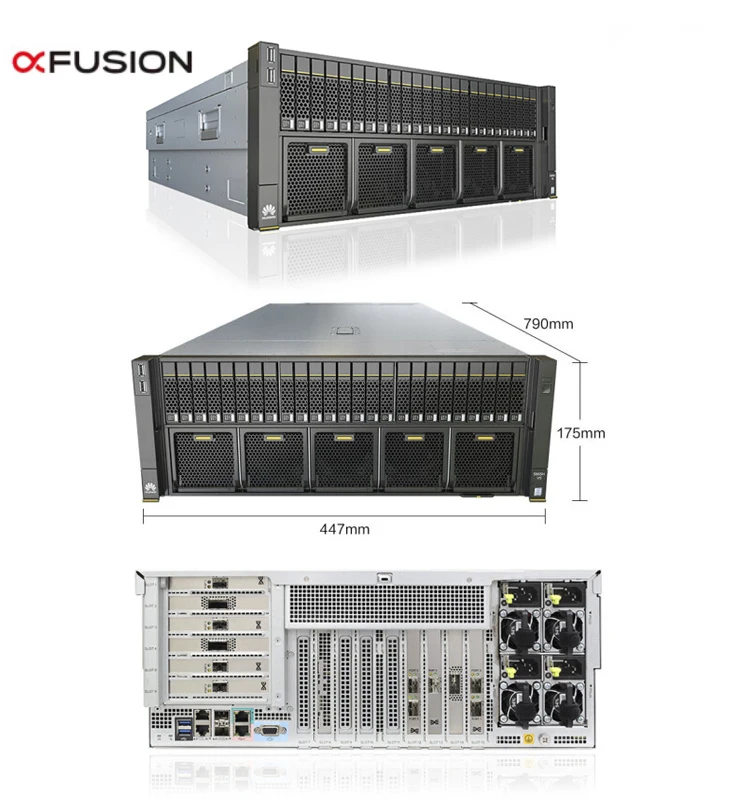

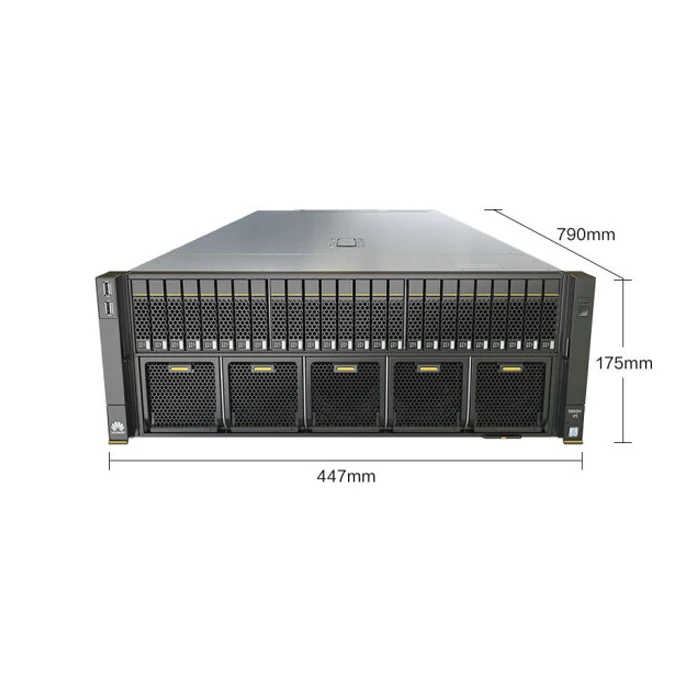

Size | Box size: 175 mm × 447 mm × 748 mm | |
4Outline specification | 2U rack server | |
Port/PCIe | Port： Onboard network card: two 10GE interfaces and two GE interfaces Flexible plug-in card: 2 * GE or 4 * GE or 2 * 10GE or 2 * 25GE or 1/2 56G FDR IB interfaces are optional PCIE： Up to 10 PCIe 3.0 expansion slots, including one dedicated PCIe expansion card for RAID card and one flexible LOM card | |
Operating system and hypervisor | Microsoft Windows、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、CentOS、Citrix XenServer、VMware ESXi | |
Warranty | three years | |
