Product Overview
Description
Product Description

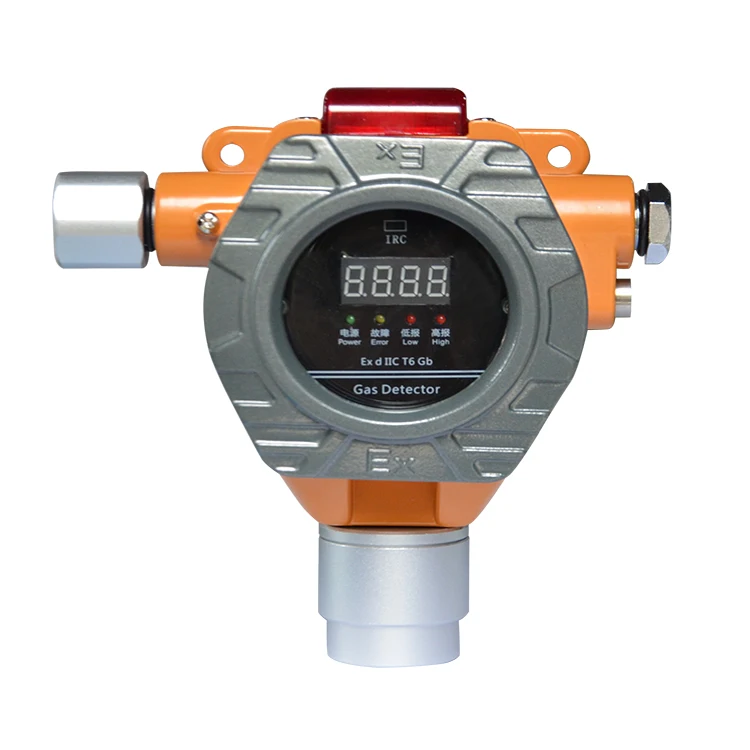

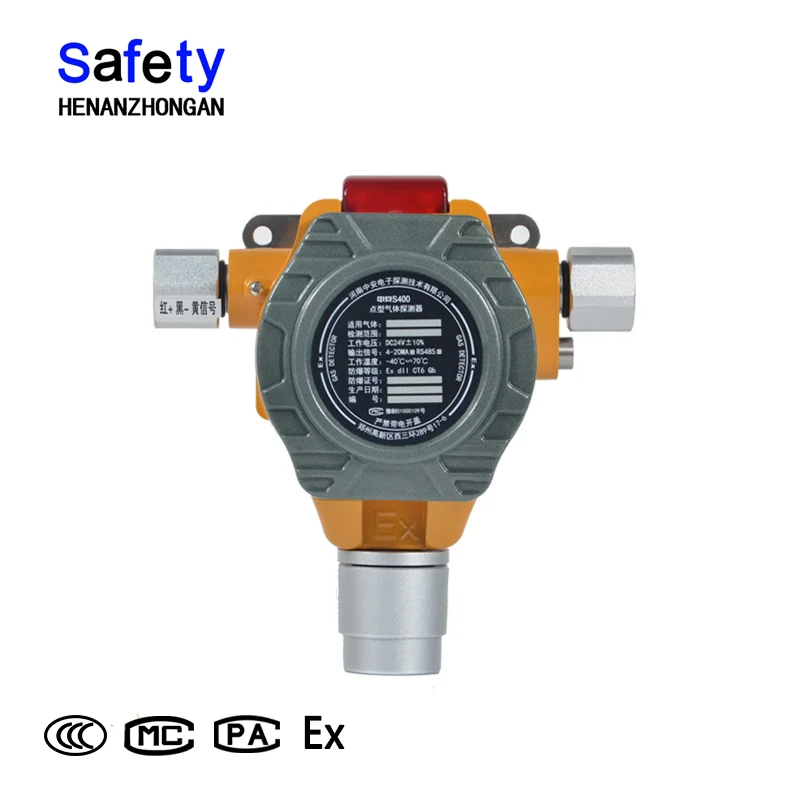

S100 fixed type gas detector
Product Introduction
Model S100 integrated point-type gas detector can satisfy the sound and light alarm prompt in
gas detection field, and real-time display the field gas concentration. The debugging adopts
infrared remote control, and the parameters can be set without opening the cover.

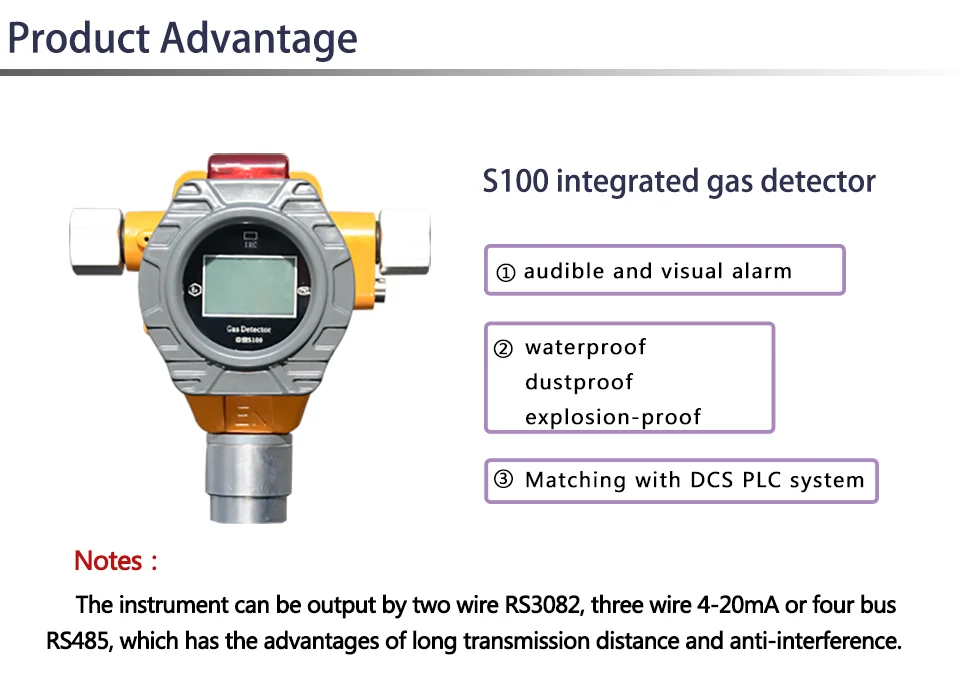

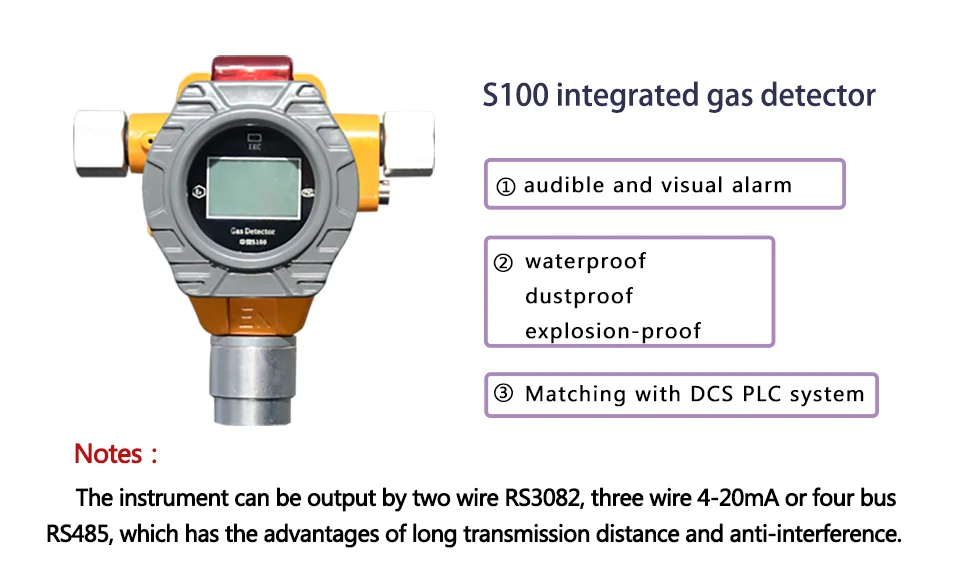

Model S100 integrated point-type gas detector can transform the leakage gas concentration
signal in air into electrical signal for long-distance transmission. The instrument can adopt

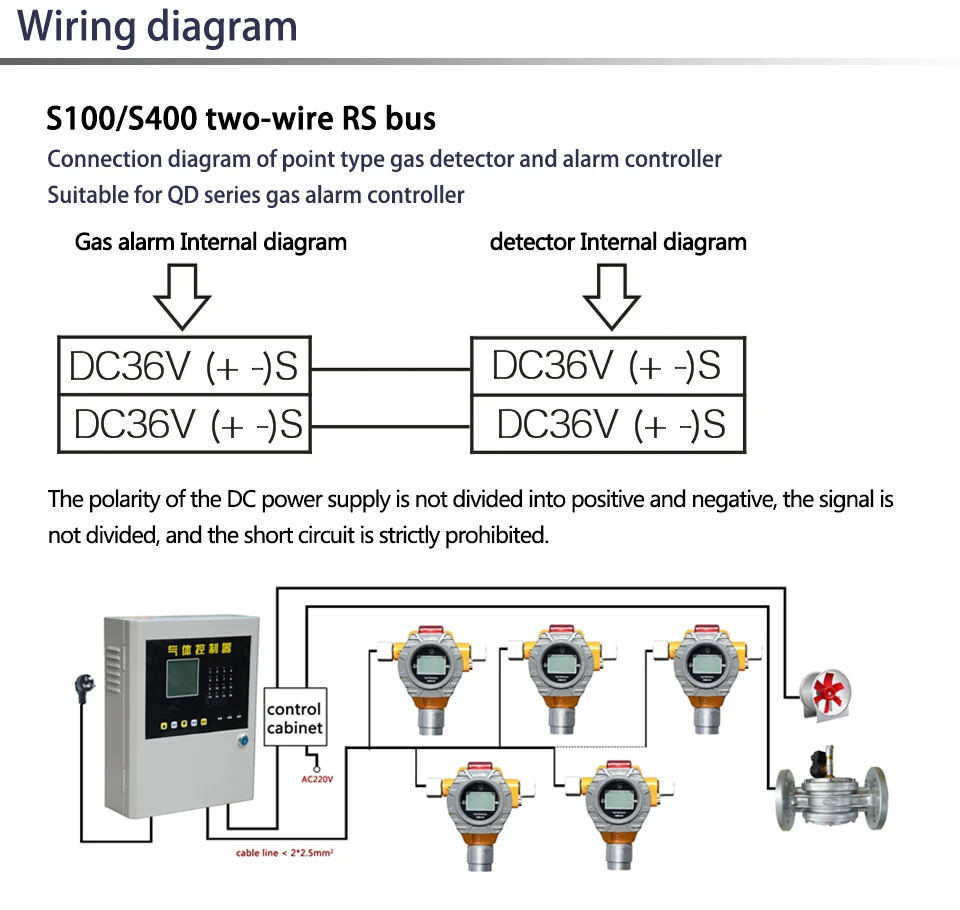

two-wire system RS3082, three-wire system 4-20mA or four-bus RS485 output mode, which
has the advantages of long transmission distance and anti-interference. The instrument can be
wireless transmission and can be used independently.
Product Parameters
point-type gas detector | |
Gas detected | lel (other gas can be customized) |
Detection principle | catalytic |
Sampling mode | Natural diffusion |
Detection range | 0-100%lel |
Resolution | 1%lel |
Measurement error | Full Scale ±3% |
Status indication | LCD |
Debugging mode | Controller |
Response time | <15s |
Recovery time | <30s |
Environment temperature | (-40~70)℃ |
Power | DC24V or AC220V |
Output signal | Relay+4~20mA or RS485 |
Other functions | Can linkage solenoid valve and other functions |
Power consumption | ≤3W |
Relative humidity | <95% |
Explosive proof mode | Flame-proof type |
Explosion proof grade | Exd ⅡC T6 Gb |
Explosion proof number | CNEx16.2871 |
Ingress protection | IP66 |
Maximum distance between detector and host | ≤1000m |
Weight | ≤1500g |
Measurement number | No. 2016C242-41 |
(18.5×18×8)cm | |
