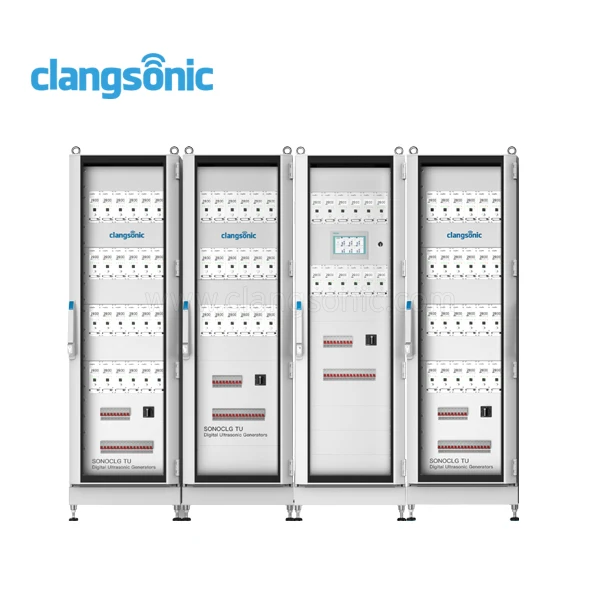

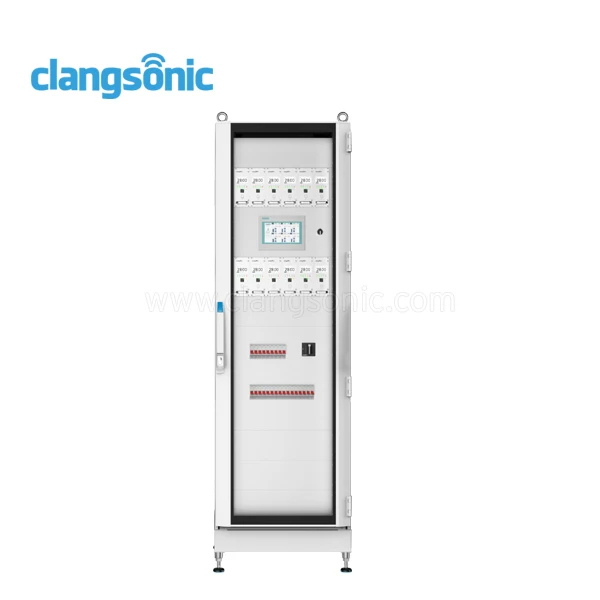

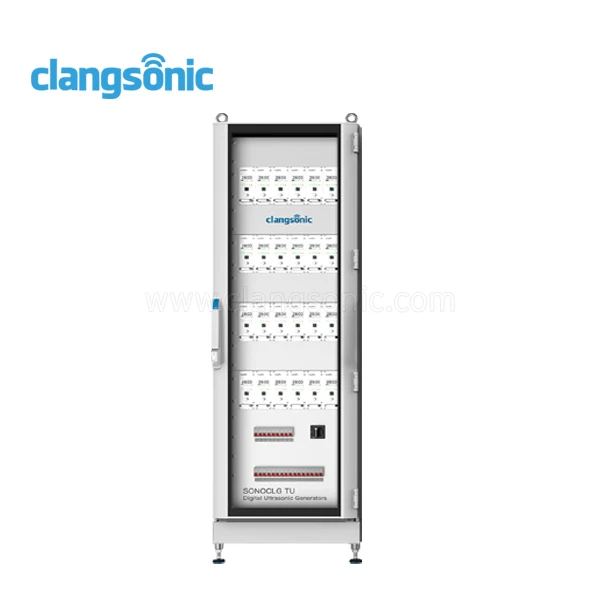

China Factory Clangsonic 24pcs 1500W high power ultrasonic frequency generator ultrasonic pcb generator
- Category: >>>
- Supplier: Yuhuan Clangsonic Ultrasonic Co. Ltd.
Share on (1600869755380):
Product Overview
Description
Product Description
T series generator was developed through more than 10 years of accumulated experience for high-end industrial cleaning applications. It adopts the 4 major technologies: Full Bridge Phase Shift, Constant Power Output, Automatic Frequency Tracking And Load Self-Adaptation which would improve the stability and compatibility to different working conditions.
Ultrasonic Frequency | 80/130kHz |
Ultrasonic Power | 3600Watts |
HMI | Customized |
Dimension | 600*650*2000mm |
Module | 24pcs Cabinet PCB |
Weight | 130kg |
Self Protection | Overcurrent,OvertemperatureOvervoltage, Short Circuit |
Main Features
Features
1. Industrial level LCD display supporting parameters setting and status monitoring.
2. Remote control,connectable to PLC and good HMI man-machine Interaction Interface.
3. High-frequency connector or CE connector (US ,EU or standard type).
4.Full automatic freuency control, self-adaptive wideband sweep and load adaptive.
2. Remote control,connectable to PLC and good HMI man-machine Interaction Interface.
3. High-frequency connector or CE connector (US ,EU or standard type).
4.Full automatic freuency control, self-adaptive wideband sweep and load adaptive.
5. 19 inch network standard cabint which can include 24pcs PCB module at most.
6. Times peak power technology which has better cleaning effect to stubborn stains.
7. Independent module slot design, plug and play.
8. Well heat dissipation design to effectively ensure cooling of generator modules and cabinet, internal protection for over
current,over voltage and short circuit.
9. Ultrasonic power adjustable and ultrasonic frequency, working current etc can be readable, integrated easily into existing
system.
10. Safety protection measurement for each generator module.
11. Internal strong and weak electric integrated wiring scheme, convenient for on-site installation.
12. Maximum ultrasonic power for single PCB module is 2000 Wrials 4.0
14. 150 ° C standard for inductive transformers and vacuum impregnation is adopted for wire package.
15. The circuit board is made of four layers of 2OZ copper and 40A design standard for power part.
16. Capacitor adopts Wima, TDK brand, 50A Infineon power tube.
17. IGBT full bridge phase shift technology,support dual frequency output.
18. Frequency sweep function which can effectively eliminate stand wave and improve ultrasonic performance.
19. Support TU/TD PCB Installation, automatic frequency-tracking and constant power output.
6. Times peak power technology which has better cleaning effect to stubborn stains.
7. Independent module slot design, plug and play.
8. Well heat dissipation design to effectively ensure cooling of generator modules and cabinet, internal protection for over
current,over voltage and short circuit.
9. Ultrasonic power adjustable and ultrasonic frequency, working current etc can be readable, integrated easily into existing
system.
10. Safety protection measurement for each generator module.
11. Internal strong and weak electric integrated wiring scheme, convenient for on-site installation.
12. Maximum ultrasonic power for single PCB module is 2000 Wrials 4.0
14. 150 ° C standard for inductive transformers and vacuum impregnation is adopted for wire package.
15. The circuit board is made of four layers of 2OZ copper and 40A design standard for power part.
16. Capacitor adopts Wima, TDK brand, 50A Infineon power tube.
17. IGBT full bridge phase shift technology,support dual frequency output.
18. Frequency sweep function which can effectively eliminate stand wave and improve ultrasonic performance.
19. Support TU/TD PCB Installation, automatic frequency-tracking and constant power output.
Our Advantage
1. The factory integrating R & D, design, production and sales has better product adaptability, longer service life, faster
after-sales service and lower maintenance cost. Best performance, matching and controllability. 2. Considering low frequency,
high frequency, single frequency, double frequency and multi frequency, it has good sustainability and higher efficiency.
3. Low resistance, high conversion performance, low parameter change with temperature change.
4. A complete set of Japanese production management and technology, imported machinery with rigorous process, operators with
more than five years of experience, beauty and precision coexist.
after-sales service and lower maintenance cost. Best performance, matching and controllability. 2. Considering low frequency,
high frequency, single frequency, double frequency and multi frequency, it has good sustainability and higher efficiency.
3. Low resistance, high conversion performance, low parameter change with temperature change.
4. A complete set of Japanese production management and technology, imported machinery with rigorous process, operators with
more than five years of experience, beauty and precision coexist.

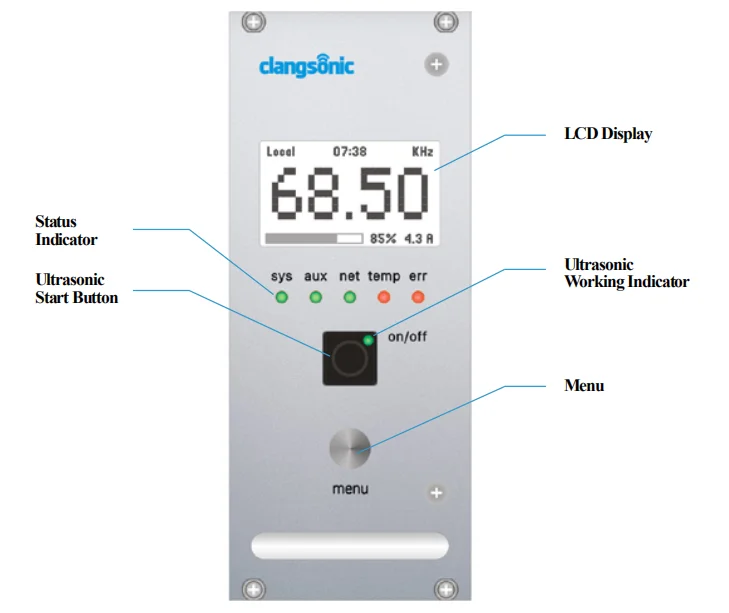

Front Panel
aux: external start control
net: external communication indicator light
temp: temperature alarm indicator light
err: generator error indicator light
on/off: ultrasonic working indicator
net: external communication indicator light
temp: temperature alarm indicator light
err: generator error indicator light
on/off: ultrasonic working indicator

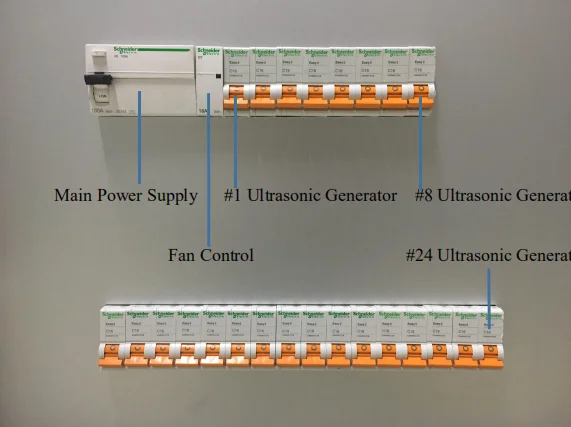

Power Supply Control Panel
3 Phase 5 Wire Star Connection is recommended. The phase lines and neutral line needs copper wire with diameter no less than
16mm². Power supply inlet port is reserved on the back panel of cabinet, please connect the relevant wires to the port.
If there is control switch connected to power supply, please use 100A/3P miniature circuit breaker or molded case circuit breaker.
16mm². Power supply inlet port is reserved on the back panel of cabinet, please connect the relevant wires to the port.
If there is control switch connected to power supply, please use 100A/3P miniature circuit breaker or molded case circuit breaker.

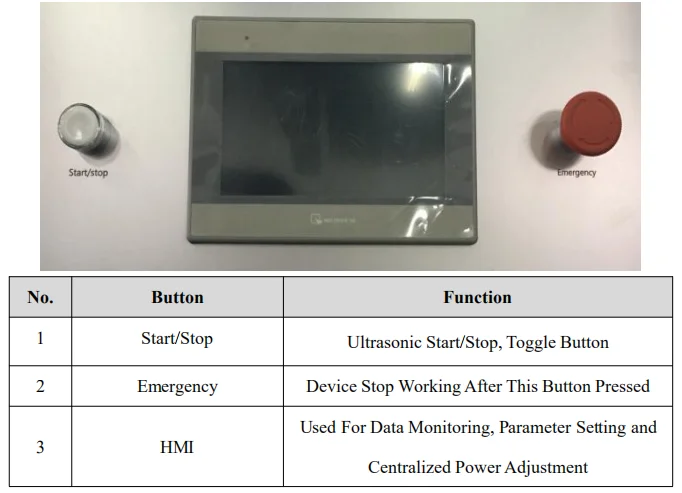

Cabinet Front Panel

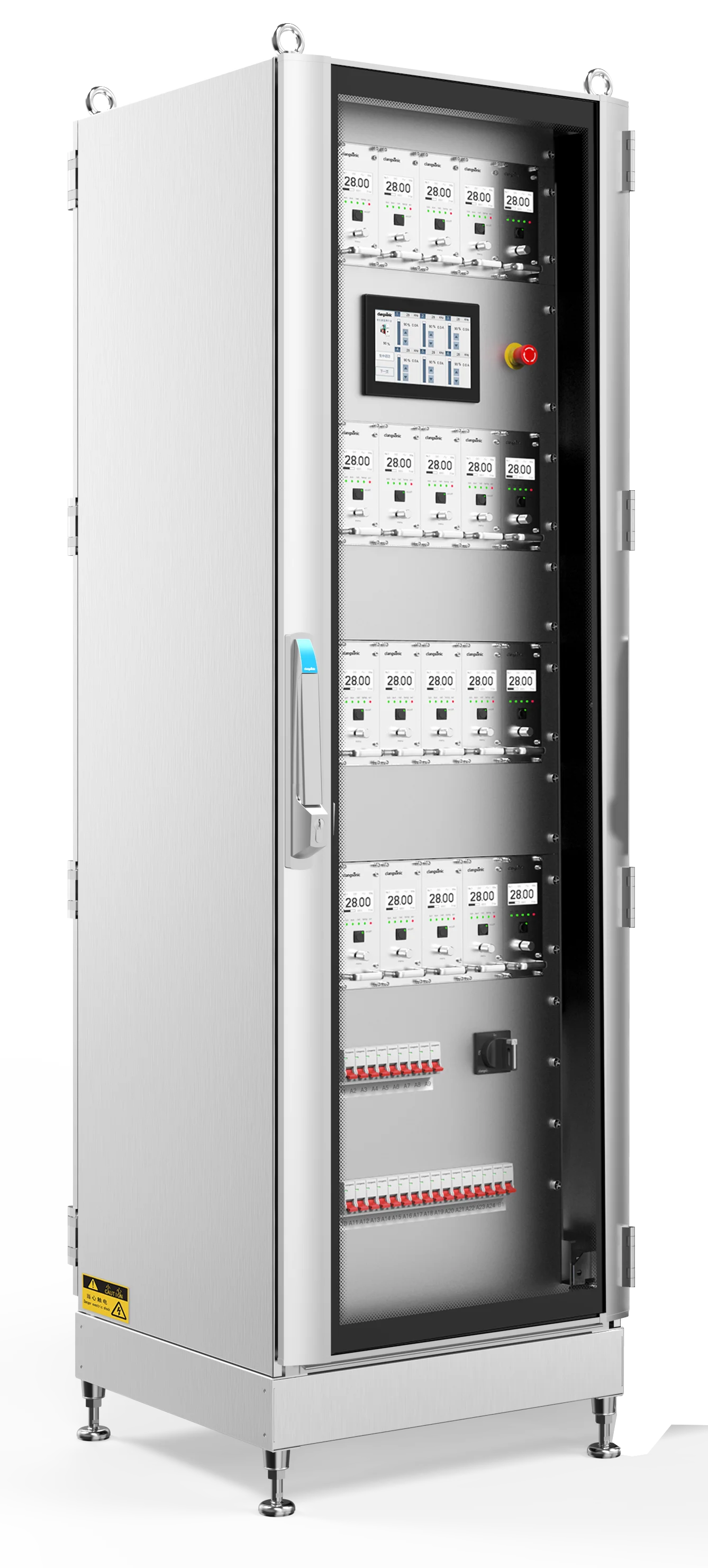

This HMI is installed in the middle of the front of this device, powered by 24VDC.
The communication port is connected to 24pcs TU PCB via RS485. The status and parameters can be monitored
The communication port is connected to 24pcs TU PCB via RS485. The status and parameters can be monitored
Real-time monitoring
Digital control of the frequency power of each tank, switching frequency at any time, real-time monitoring.
Plug and play
Easy maintenance, small footprint, easy to use.
More Choice (Click)
Single frequency &double frequency tabletop model
TD dual-frequency generator is developed on the T platform for high-end cleaning. A single generator can output two different
frequencies.
TU single-frequency ultrasonic generator is a perfect solution for high power ultrasonic cleaning project. It adopts modular
ultrasonic generator PCB, which can achieve constant power output and automatic ultrasonic frequency tracking.
frequencies.
TU single-frequency ultrasonic generator is a perfect solution for high power ultrasonic cleaning project. It adopts modular
ultrasonic generator PCB, which can achieve constant power output and automatic ultrasonic frequency tracking.
Ultrasonic generator driver circuit
High Performance DSP processor is adopted to provide continuous ultrasonics with power linearly adjustable. Improved over-heat
protection and over-current protection allow the generator better working stability and environmental suitability.
Fully automatic sweep functionality adapts the driving frequency to load changing status. Multi-channel is realized for friendly
communication and control Industrial Control Protocol (MODBUS).
protection and over-current protection allow the generator better working stability and environmental suitability.
Fully automatic sweep functionality adapts the driving frequency to load changing status. Multi-channel is realized for friendly
communication and control Industrial Control Protocol (MODBUS).

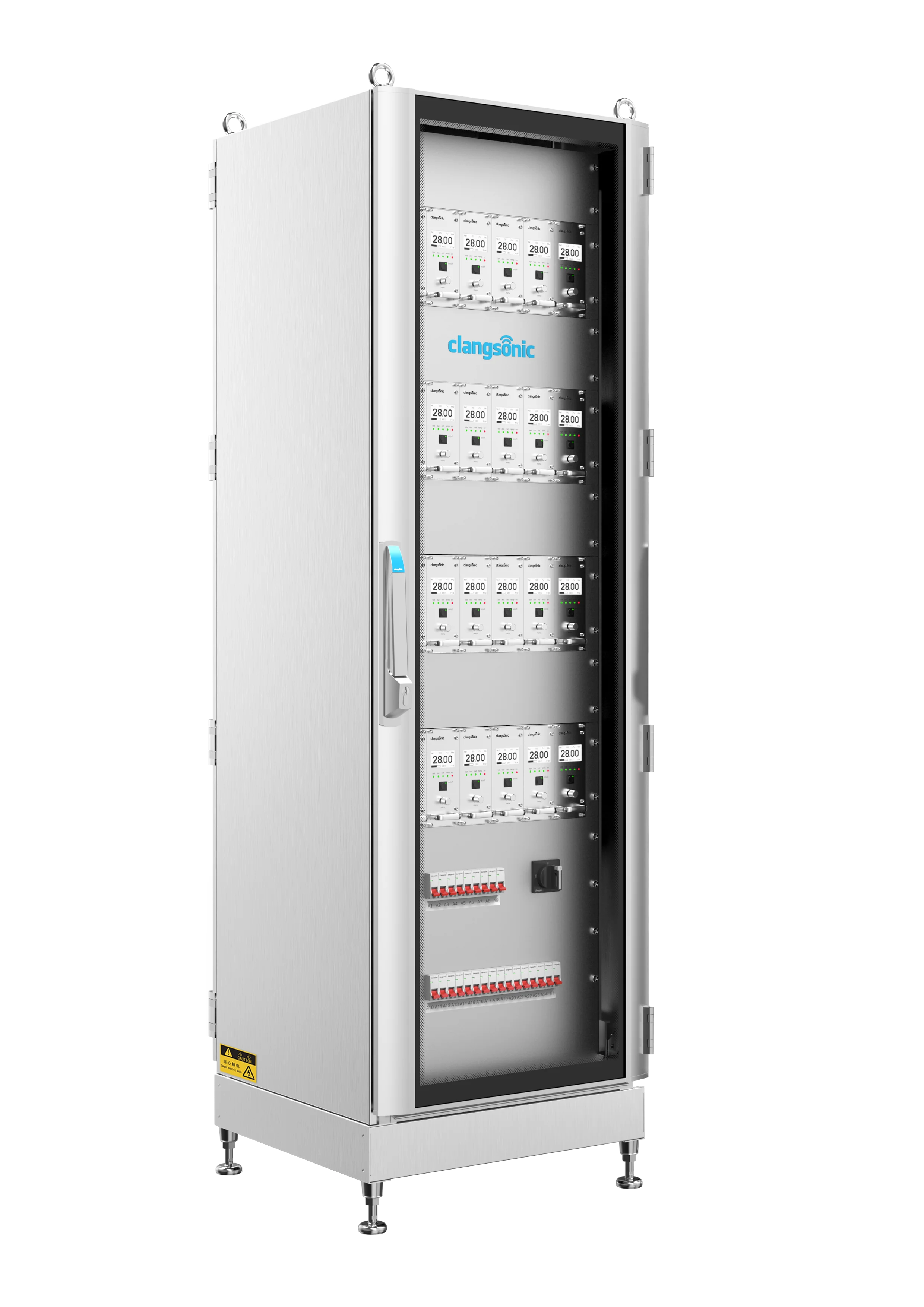

Ultrasonic T-Cabinet Generator
This cabinet uses an independent cooling system and integrated wiring scheme,including power supply to ultrasonic generators,
ultrasonic HF cable, control system and communication bus to ultrasonic generator etc.
Only 1 cabinet can drive the whole high power ultrasonic cleaning tank. Easy to install, operate and maintain. It is very stable.
More importantly, it avoids the problems caused by generator placement, wiring and heat dissipation in the conventional solution.
ultrasonic HF cable, control system and communication bus to ultrasonic generator etc.
Only 1 cabinet can drive the whole high power ultrasonic cleaning tank. Easy to install, operate and maintain. It is very stable.
More importantly, it avoids the problems caused by generator placement, wiring and heat dissipation in the conventional solution.
TCR Ultrasonic Generator
This generator can be individually connected to a washing tank or integrated to large ultrasonic cleaning system.Either way,it
will get fast,uniform and perfect cleaning effect.
The unique design of the chute design and installation is effortless, and the wall mounted fuselage saves space and is more
beautiful.

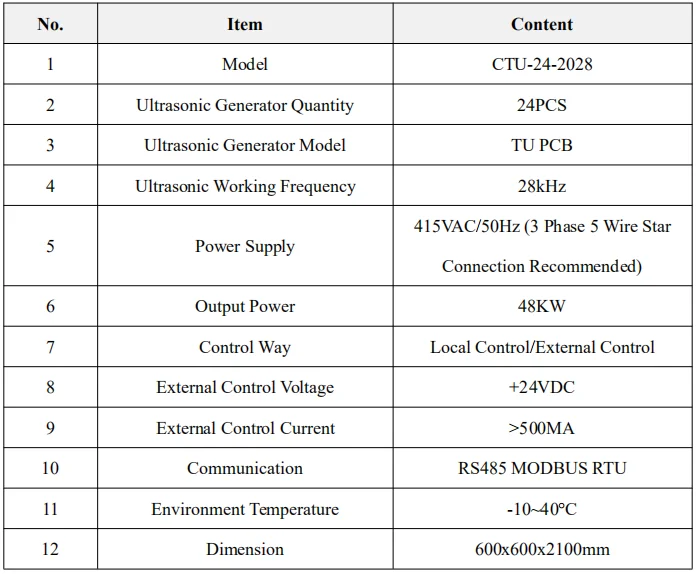

Size Information
Company Introduction
FAQ
(1) Delivery time Standard products can be delivered within 7 working days. Customized products depend on the design., customized
products are based on the order quantity.
(2) Payment method
1. T/T
2. L/C
3. D/P
4. D/A
5. West Union
6. Paypal
7. MoneyGram
8. Escrow
(3) Warranty
100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of
2years from the date of trial run finish under our technician's guidence. If any quality problem within warranty, we’ll provide
free spareparts or repairing service.
Clangsonic provides 18 months warranty from the date of factory under normal use. The manufacturer shall not be responsible for
any direct or indirect loss,compensation and repair due to improper use,installation,misuse or abnormal temperature,dust and
corrosive atmosphere etc.
Below are not covered by Warranty:
1. Cavitation erosion on ultrasonic tank or surface of submersible transducer,which is a normal phenomenon during ultrasonic
cleaning
2. Damage caused by abuse,improper installation,alternation,overload or neglect of precautions During the warranty,the device will
be repaired or replaced by professional.Clangsonic reserves all the right.
(4) Our Services

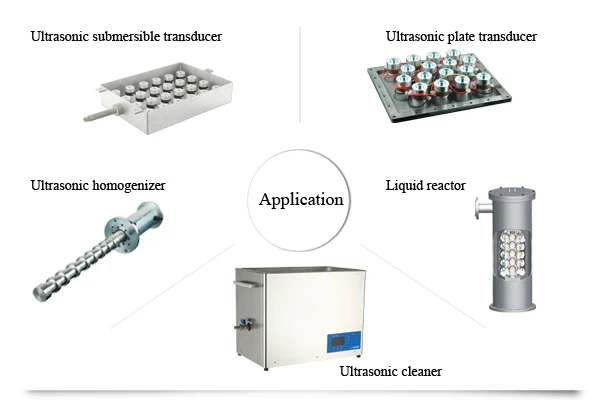

Multiple single frequency and multiple frequency ultrasonic generator are available The model can be used for reference, and the
ultrasonic transducer with different power and frequency can be customized according to your specific use or size.
OEM,ODM and Customization
(5) Do you accept customization?
Yes, we have professional R&D teams to respond your special requirements quickly.
(6) Can we tune the generator by ourselves?
We will tune the generator to the optimum resonant status before factory . It's forbidden for user to modify the parameters
without Clangsonic's authorization . Anauthorized modifications may damage the devices or result in untuning betwee ultrasonic
generator and ultrasonic transducer. And these are also not covered by warranty . Any question please contact us.
products are based on the order quantity.
(2) Payment method
1. T/T
2. L/C
3. D/P
4. D/A
5. West Union
6. Paypal
7. MoneyGram
8. Escrow
(3) Warranty
100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of
2years from the date of trial run finish under our technician's guidence. If any quality problem within warranty, we’ll provide
free spareparts or repairing service.
Clangsonic provides 18 months warranty from the date of factory under normal use. The manufacturer shall not be responsible for
any direct or indirect loss,compensation and repair due to improper use,installation,misuse or abnormal temperature,dust and
corrosive atmosphere etc.
Below are not covered by Warranty:
1. Cavitation erosion on ultrasonic tank or surface of submersible transducer,which is a normal phenomenon during ultrasonic
cleaning
2. Damage caused by abuse,improper installation,alternation,overload or neglect of precautions During the warranty,the device will
be repaired or replaced by professional.Clangsonic reserves all the right.
(4) Our Services
Multiple single frequency and multiple frequency ultrasonic generator are available The model can be used for reference, and the
ultrasonic transducer with different power and frequency can be customized according to your specific use or size.
OEM,ODM and Customization
(5) Do you accept customization?
Yes, we have professional R&D teams to respond your special requirements quickly.
(6) Can we tune the generator by ourselves?
We will tune the generator to the optimum resonant status before factory . It's forbidden for user to modify the parameters
without Clangsonic's authorization . Anauthorized modifications may damage the devices or result in untuning betwee ultrasonic
generator and ultrasonic transducer. And these are also not covered by warranty . Any question please contact us.
Product packaging
Contact
