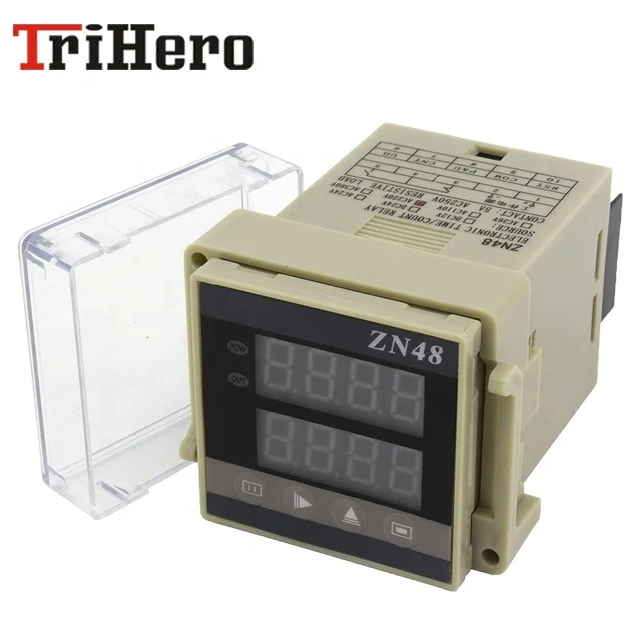

ZN48 Digital Time Relay Counter Multifunction Rotating speed frequency DC12V DC24V AC22V AC380V Original binding High quality
- Category: >>>
- Supplier: Beijing Bense Times Import And Export Co. Ltd.
Share on (1600869834604):
Product Overview
Description
ZN48 Digital Time Relay Counter Multifunction Rotating speed frequency DC12V DC24V AC22V AC380V Original binding High quality
- With delay timer, cycle delay timer, counter function, multi relay function, meet multi need
- Connect with proximity sensor, switch, photoelectric sensor, encoder, photoelectric tube and other sensor.
- The set value keeps remaining even after power failure
| Model number | ZN series |
| Supply voltage | 36, 220, 380VAC 50/60 Hz; 12VAC/DC, 24VAC/DC |
| Operating mode | Single delay (Up): 99.99s/9999s//9999min/99min59s/99h59min. out code: 1-6 Single delay (Down): 99.99s/9999s//9999min/99min59s/99h59min. out code: 1-6 Double delay (Up): 9999s/9999 min/99min59s/99h59min. out code: 1,2 Double delay (Down): 9999s/9999min/99min59s/99h59min. out code: 1,2 Accumulation (reset immediately): 99h59min59.99s/999h59min59s/9999d23h59min. out code: 1-6 Accumulation (reset after 8s): 99h59min59.99s/999h59min59s/9999d23h59min. out code: 1-6 Frequency: 9999Hz/999.9Hz. out code: 1,3 Rotation: 60-9999RPM. out code: 1,3 Frequency/Rotation: 0-9999. out code: 1,3. Multiple: a,b Reversible count: 0-9999. out code: 1,3,5 Reversible count: 0-9999. out code: 1,3,5. Multiple: a Reversible count: 0-99999999. out code: 1,3,5 Reversible count: 0-99999999. out code: 1,3,5. Multiple: a |
| Output mode | 1. When power on, the counter works, reach or exceed the set value, relay switch on. 2. When power on, the counter doesn't work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch on. 3. When power on, the counter works, reach or exceed the set value, relay switch off. 4. When power on, the counter doesn't work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch off. 5. When power on, the counter works, reach or exceed the set value, relay switch on, when reach to preset reset time, the counter reset automatically, begin work again. 6. When power on, the counter doesn't work (can make it work by reset button or reset terminals), reach or exceed the set value, relay switch on, when reach to preset reset time, the counter reset automatically, begin work again. |
| Input Signal | Contact, sensor (NPN type) |
| Max. counting speed | 10KHz |
| Control form | SPDT |
| Contact rating | 5A@250Vac, 7A@24Vdc |
| Mechanical life | 1x106 |
| Electrical life | 1x105 |
| Power consumption | 3W max |
| Setting method | Dial switch |
| Indication method | 8-segment 4-digital display |
| Counting error | ≤1 |
| Reset time | ≥0.05s |
| Power reset | ≥1s |
| Dielectric strength | 2000Vac, 50/60Hz for 1min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Matched sensor | NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn M30 4m Sn |
| Operating temperature | -10 to 50 ℃ |
| Operating humidity | 30-85% RH max, non-condensing |
| Alias name | ZN series time relay, counting relay, counter relay |
