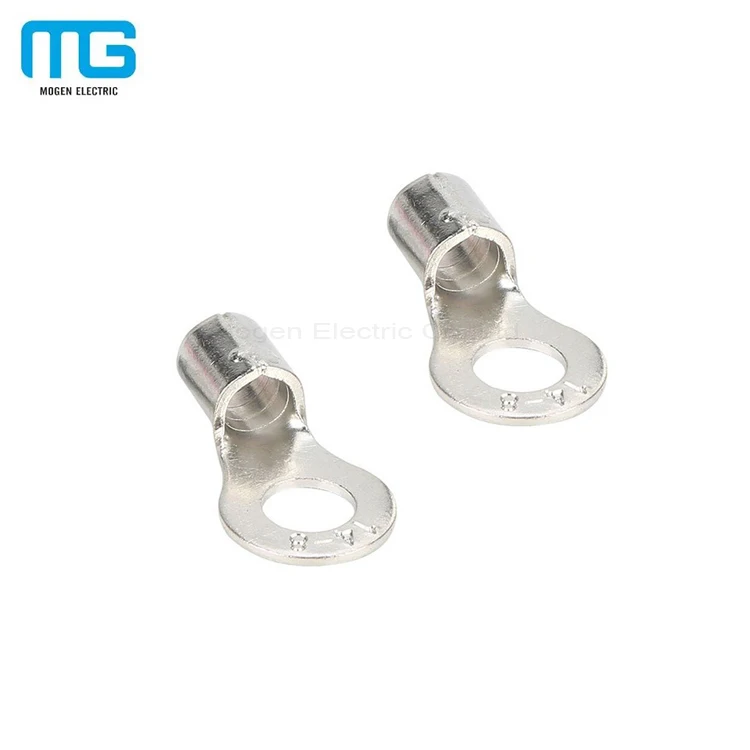

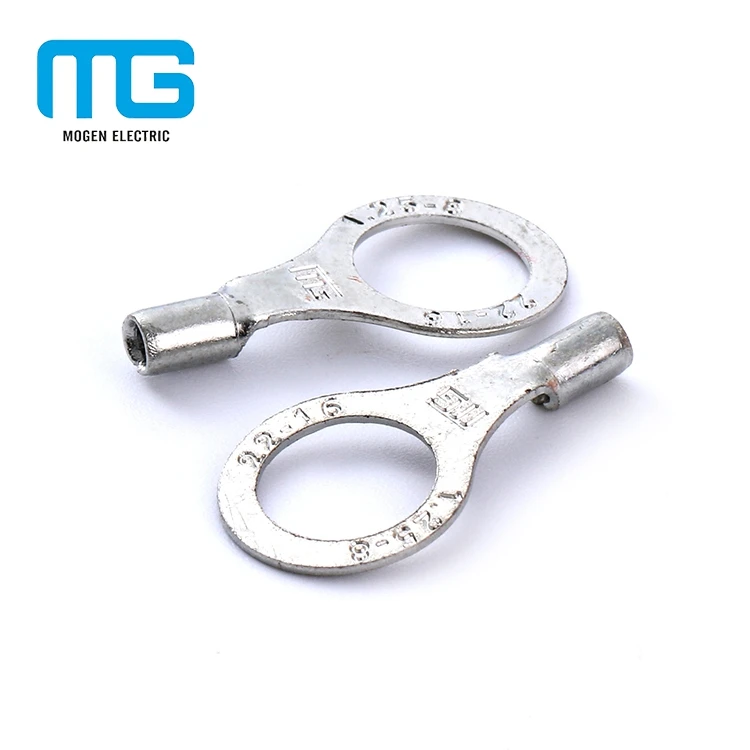

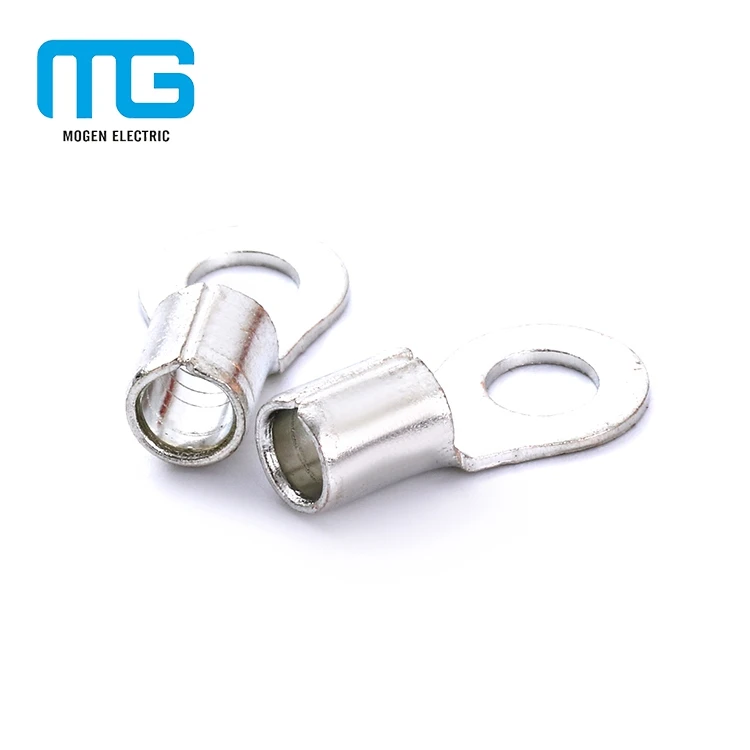

Bare copper ring terminal non insulated cable lugs crimp wire terminals

Share on (1600870320381):


Price:

Quantity:


Product Overview

Description


Bare copper ring terminal non-insulated cable lugs crimp wire terminals




Product Description




































































































































Conductor section:0.5-1.5mm2 (A.W.G22-16) 1max=19A

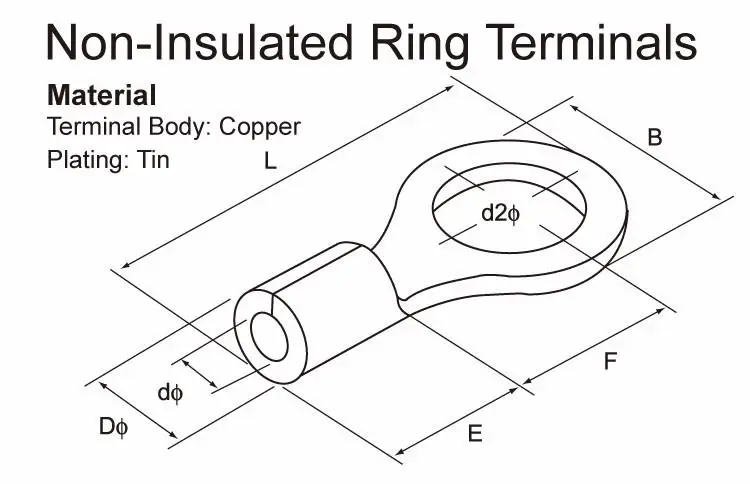

Item NoAmericand2(mm)Dimension(mm)
Stud sizeBLFEDd
RNB1.25-3.2#43.25.712.64.954.8 3.4 1.7
RNBS1.25-3.5#63.75.712.64.95
RNBM1.25-3.5#63.76.614.46.3
RNBL1.25-3.5#63.7815.87
RNBS1.25-4#84.36.614.46.3
RNBL1.24-4#84.3815.87
RNB1.25-5#105.3815.87
RNBL1.25-5#105.39.8188.5
RNBS1.25-61/46.49.8188.5
RNB1.25-61/46.411.621.811.1
RNB1.25-85/168.411.621.811.1
RNB1.25-103/810.513.625.513.9
RNB1.25-121/21319.23116.5





























































































































Conductor section:1.5-2.5mm2 (A.W.G 16-14) 1max=27A
Item NoAmericand2(mm)Dimension(mm)
Stud sizeBLFEDd
RNB2-3.2#43.26.612.34.34.8 4.1 2.3
RNBS2-3.5#63.76.612.34.3
RNBM2-3.5#63.76.6167
RNBL2-3.5#63.78.516.87.75
RNBS2-4#84.36.6167
RNBL2-4#84.38.516.87.75
RNBS2-5#105.38.516.87.75
RNBL2-5#105.39.516.87.25
RNB2-61/46.41221.811
RNB2-85/168.41221.811
RNB2-103/810.513.625.513.9
RNB2-121/21319.23116.9

















































































Conductor section:35-50mm2 (A.W.G 1/0) 1max=215A
ITEM NO.Americand2(mm)Dimension(mm)
Stud sizeBLFEDd
RNB60-61/46.422.0?49.7?20.718.0?15.4?11.4
RNB60-85/168.4
RNB60-103/810.5
RNB60-117/1611.5
RNB60-121/213
RNB60-149/161532.0 57.5 23.5
RNB60-165/817
RNB60-1811/1619
RNB60-203/421
RNB60-227/823

















































































Conductor section:50-70mm2?(A.W.G?2/0) 1max=235A
ITEM NO.Americand2(mm)Dimension(mm)
Stud sizeBLFEDd
RNB70-61/46.424.0?51.0 20.019.0 17.5 13.3
RNB70-85/168.4
RNB70-103/810.5
RNB70-117/1611.5
RNB70-121/213
RNB70-149/161532.0 61.0 26.0
RNB70-165/817
RNB70-1811/1619
RNB70-203/421
RNB70-227/823




Related Products


H3eb2c700.jpg      HTB121.png

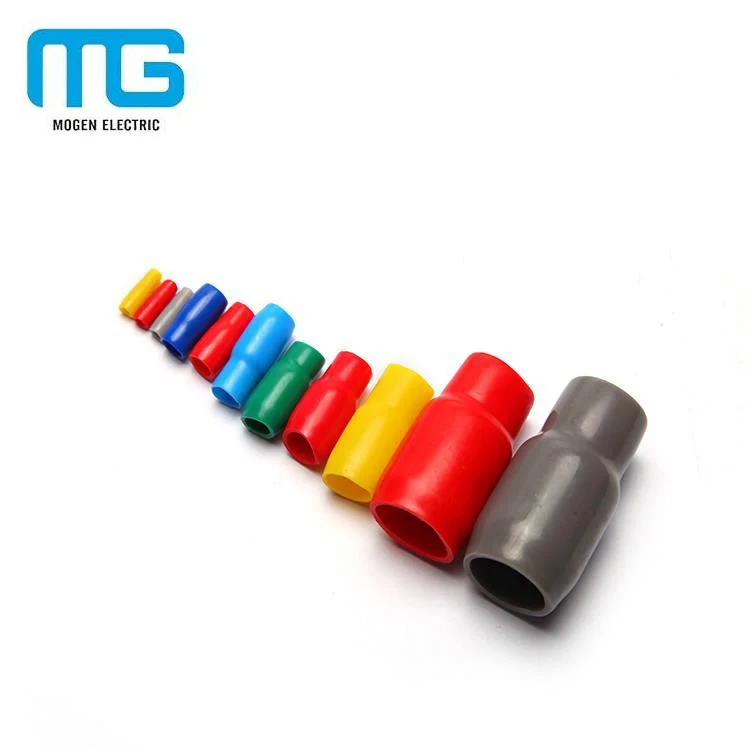

                Terminal Insulation                         Insulated copper fork terminal








H55765e5.png      202103246.jpg

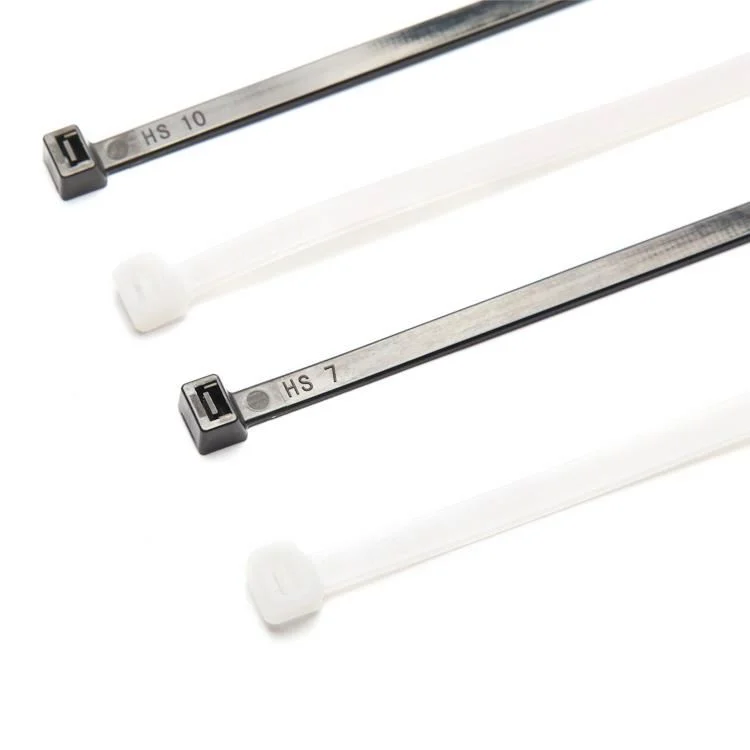

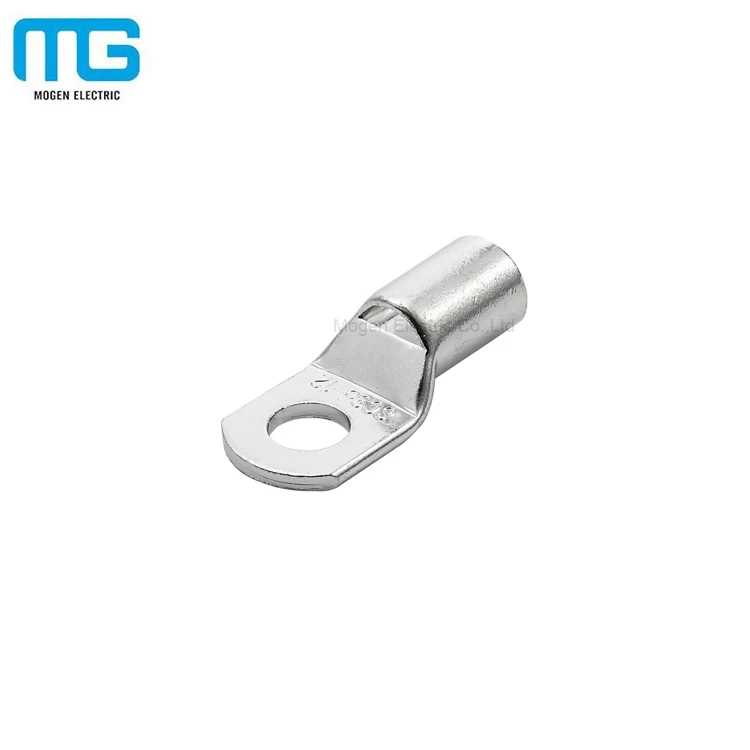

                       Nylon Cable tie                                         Cable lug
