Atomization Spray Dryer For Milk Powder Atomizer For Mini Spray Dryer Bench top Spray Dryer
- Category: >>>
- Supplier: Xiamen Crtop Machine Co. Ltd.
Share on (1600870337258):
Product Overview
Description
Laboratory spray dryer & centrifugal spray dryer
Product Description

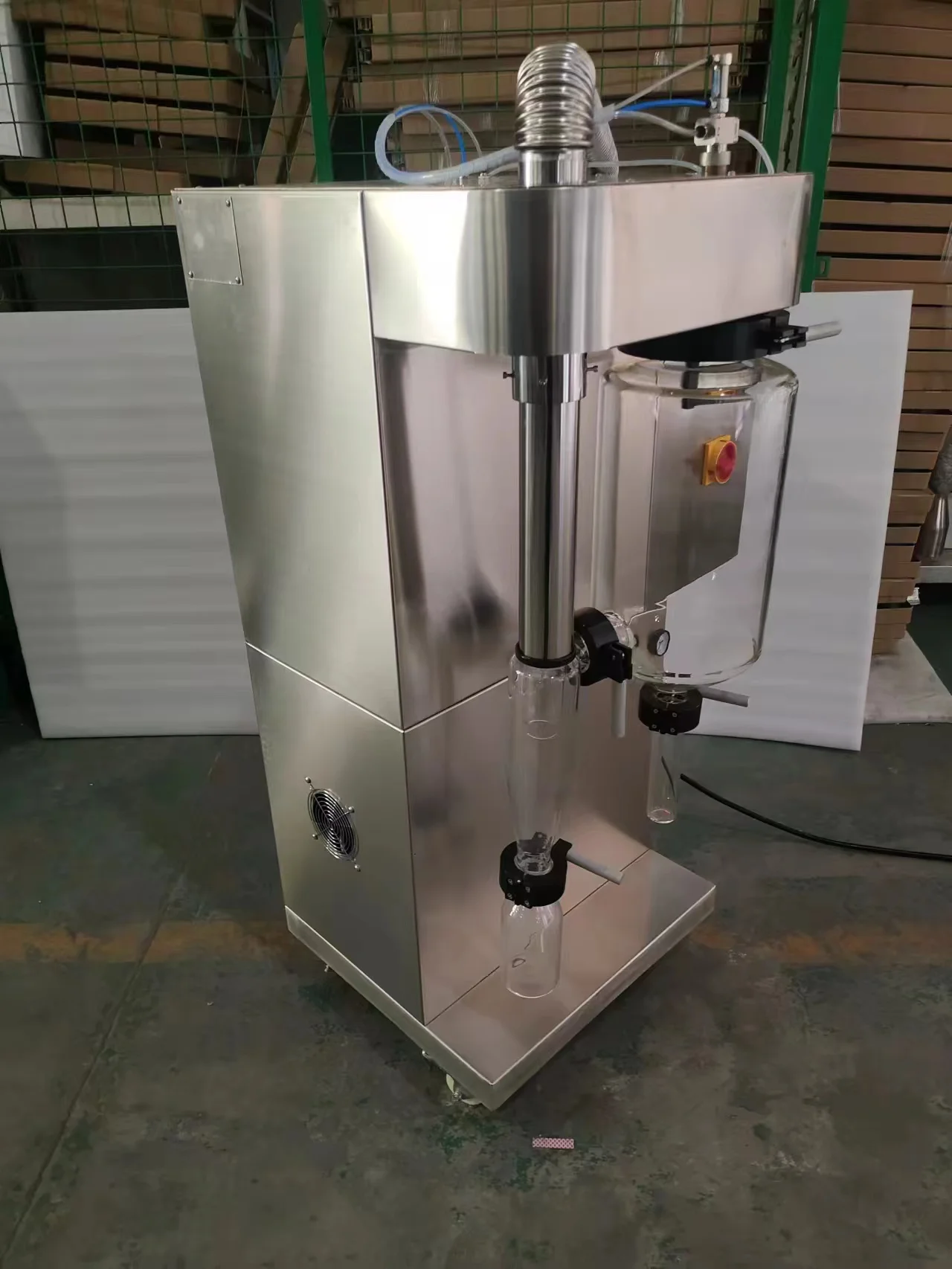

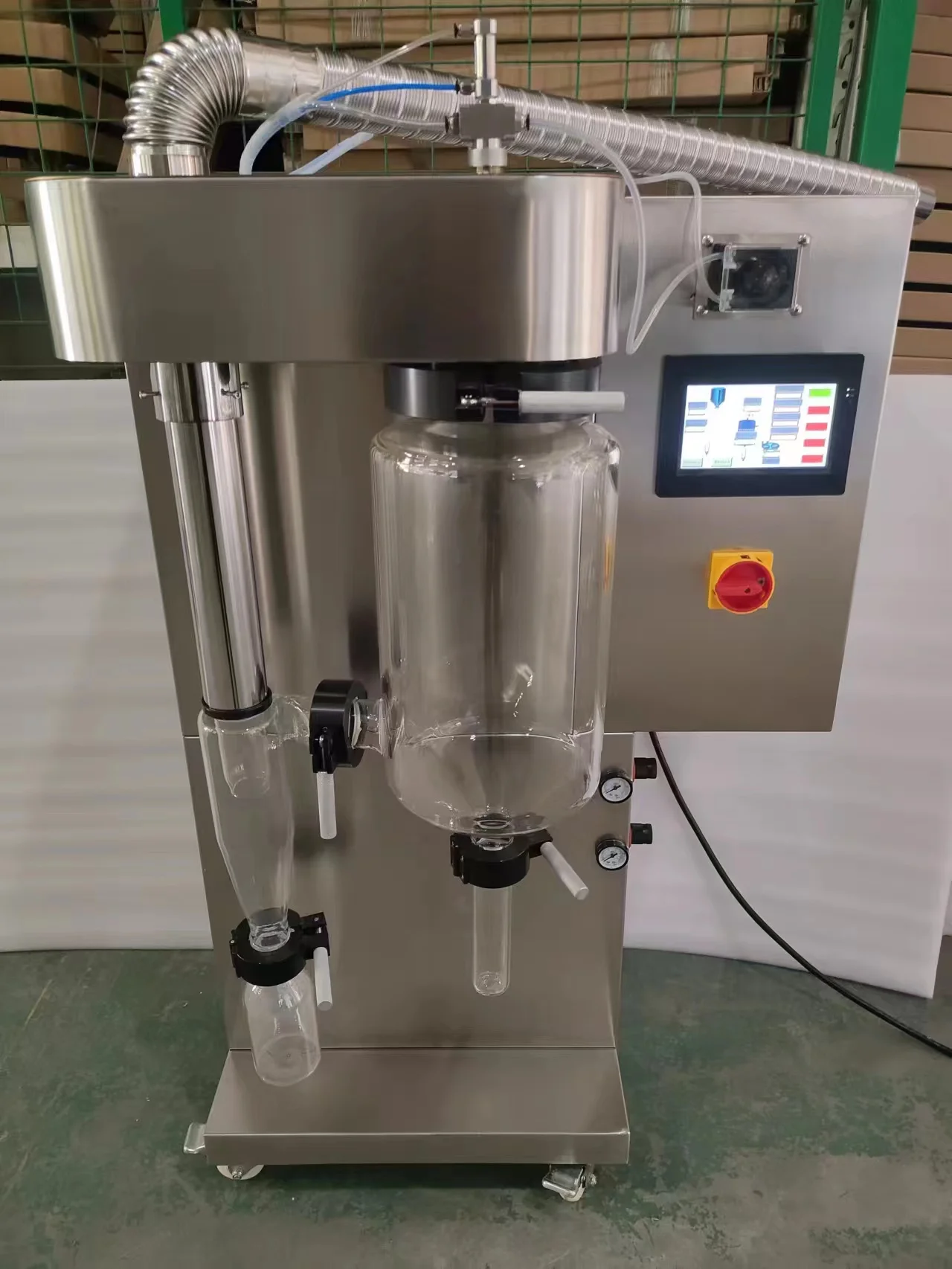

Laboratory spray dryer:

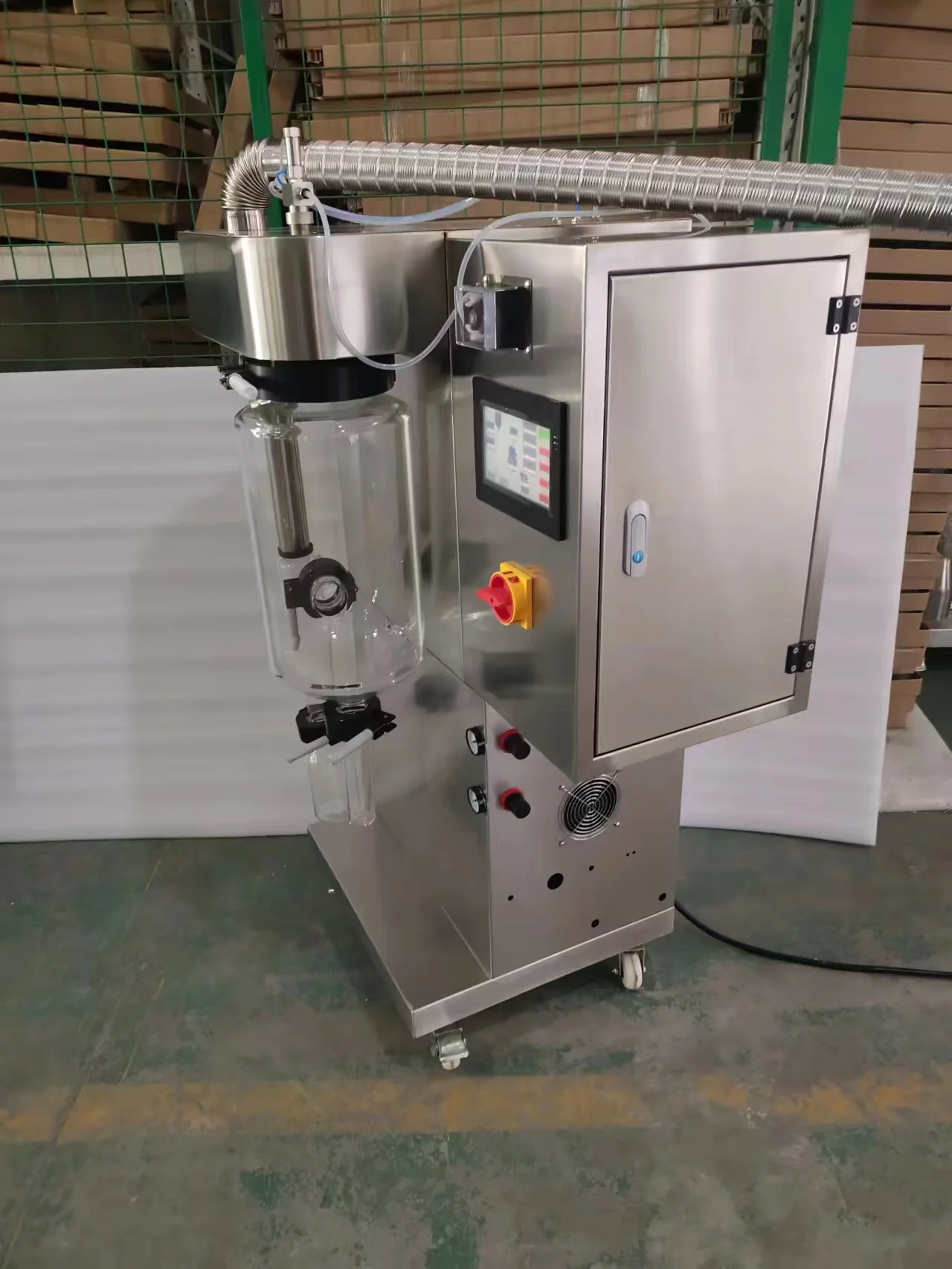

The whole HF-015 experimental spray dryer (small spray dryer) is compact in design and can be independently placed in the laboratory or on a specially designed stainless steel rack. It is self-contained and can operate without other facilities. One button startup, large color LCD touch screen operation, can adopt two operation modes of fully automatic or manual monitoring,convenient operation and monitoring of the experimental process is a spray dryer with small volume, low noise and excellent drying effect.
Product Paramenters
Model | HF-15 | HF-30 | HF-50 | HF-100 | ||||
Max capacity | 1500-2000 ml/h | 3000 ml/h | 5000 ml/h | 10000 ml/h | ||||
Temperature range of inlet air | 40℃ ~ 300℃ | 30℃ ~ 300℃ | 140°C ~ 300°C | 50°C ~ 300°C | ||||
Temperature range of outlet air | 40℃ ~ 140℃ | 80°C ~ 90°C | 30°C ~ 150°C | |||||
Spray system | Two-fluid nozzle | Centrifugal nozzle | ||||||
Precision of temp | ±1 ℃ | |||||||
Dryer time | 1.0 ~ 1.5 S | |||||||
Speed of squirt pump | 50 ~ 2000 | 3000 | 5000 | 10000 | ||||
Nozzle size | 0.5/0.7/0.75/1.0/1.5/2.0mm | |||||||
Spray direction | Downwards co-current | |||||||
Heater Power | 7KW 220V or custom | |||||||
Total power | 9KW 380V or custom | |||||||
Heat source | Electric heating | |||||||
Features
1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
11. A filter has been equipped to the inlet unit to prevent the sample from contamination.
12. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.
13. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
14. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
15. Innovative tower wall purging device, improves the material recycling rate.

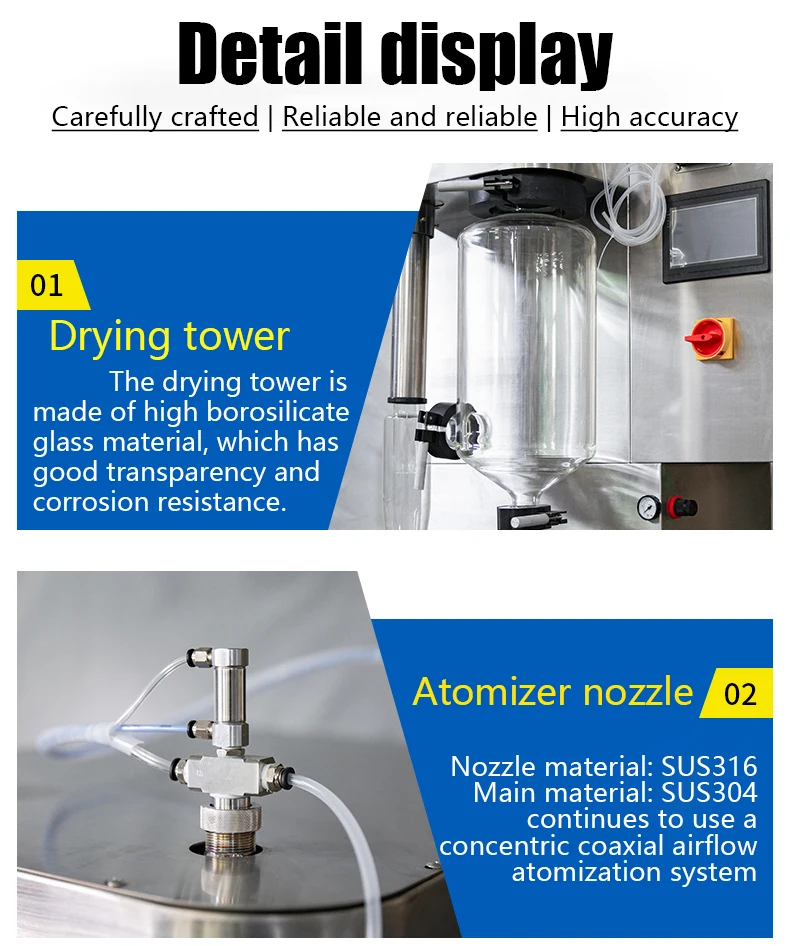

Drying tower
The drying tower is made of high borosilicate glass material, which has good transparency and corrosion resistance

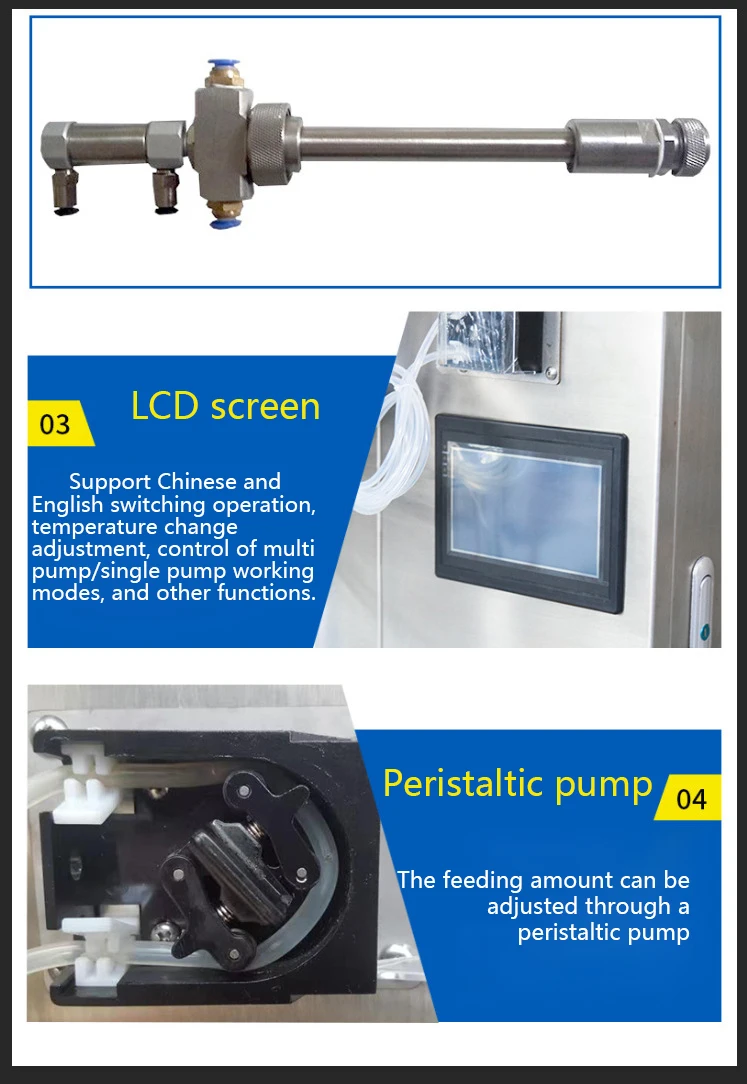

Atomizer nozzle
Nozzle material: SUS316
Main material: SUS304Continue to use concentric coaxial airflow atomization system
LCD screen
Support Chinese andEnalish switching operationtemperature changeadjustment, control of multipump/single pump workingmodes, and other functions
Peristaltic pump
Product Details
1.The man-machine interface
2.Pump-fan
3.Glass set
4.Nozzle

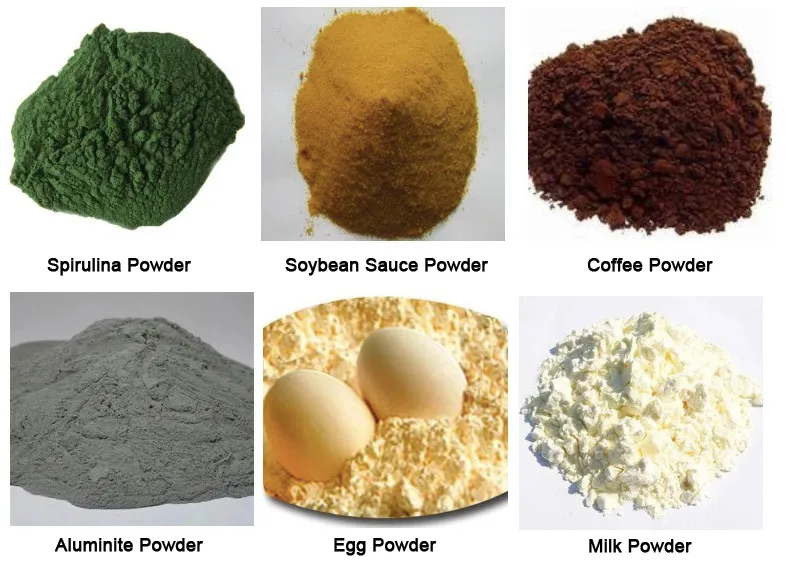

Application
