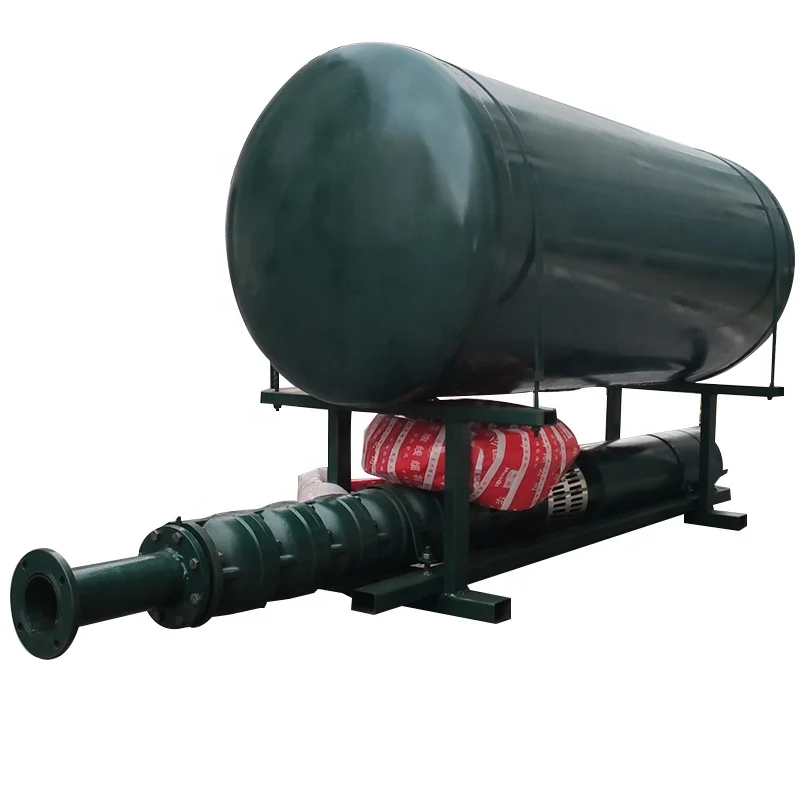

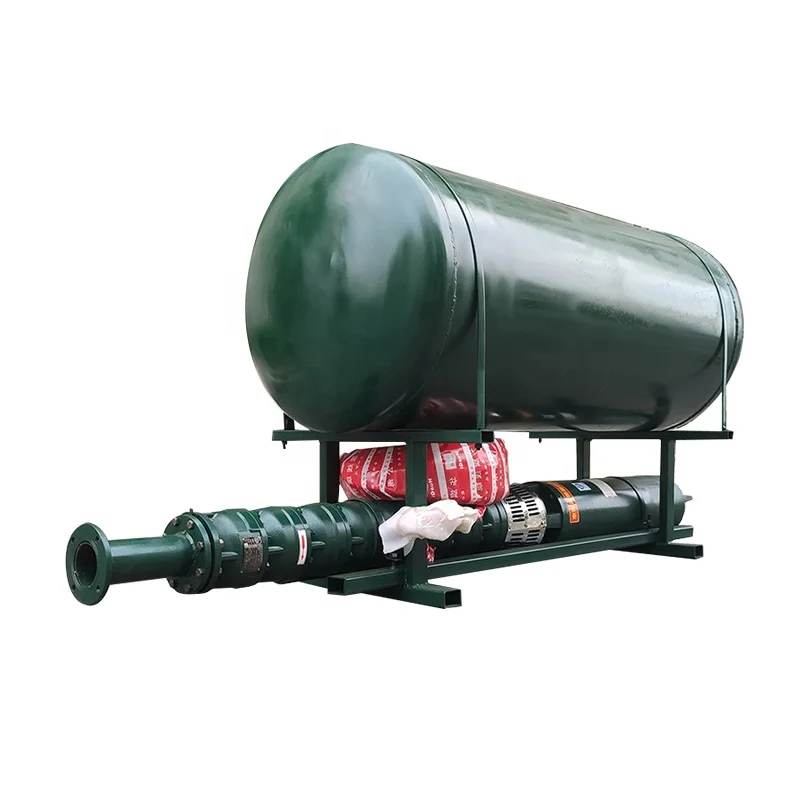

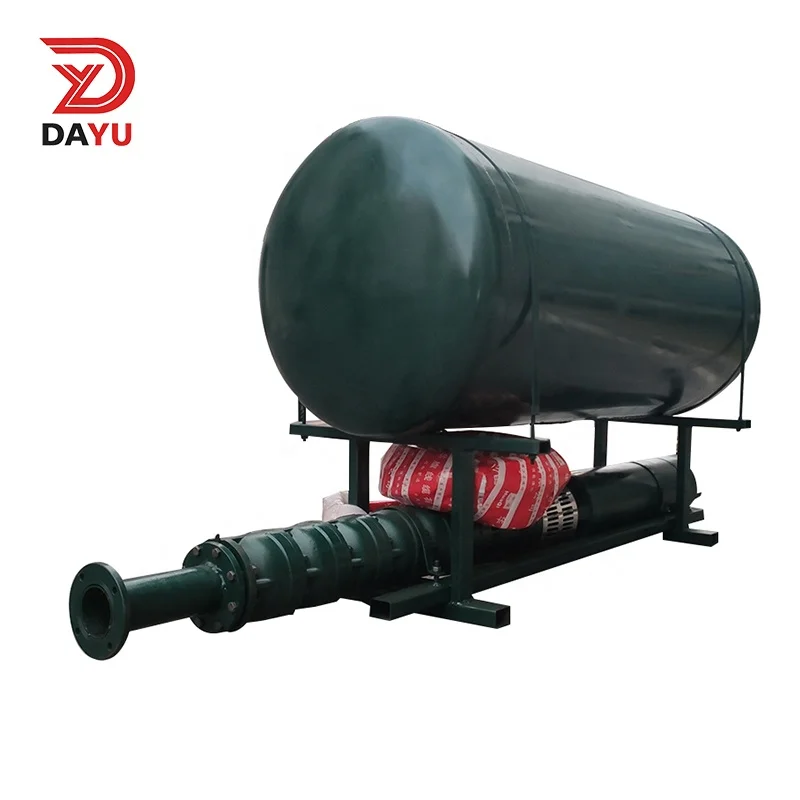

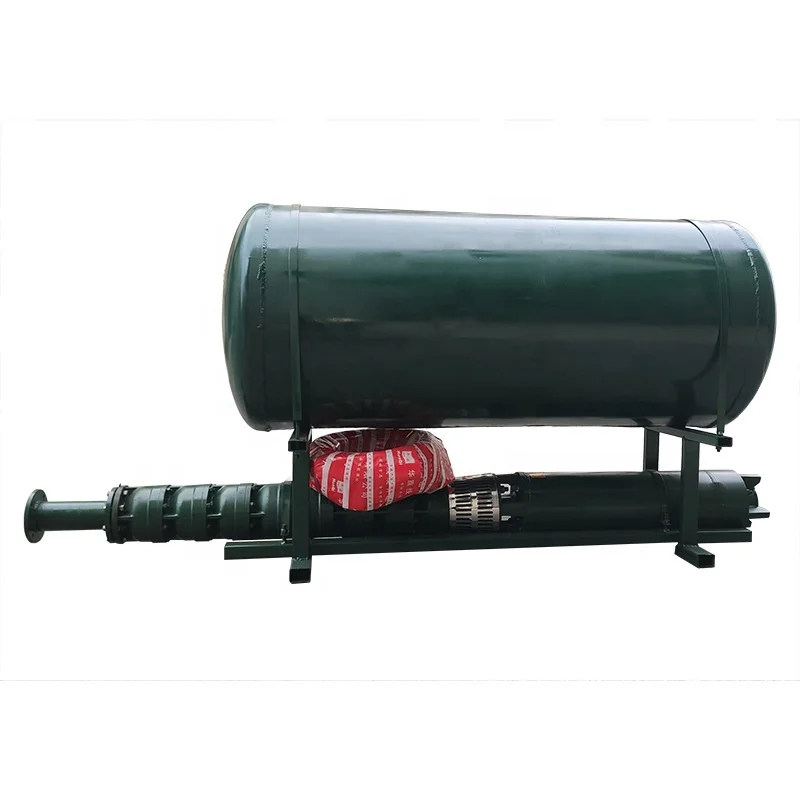

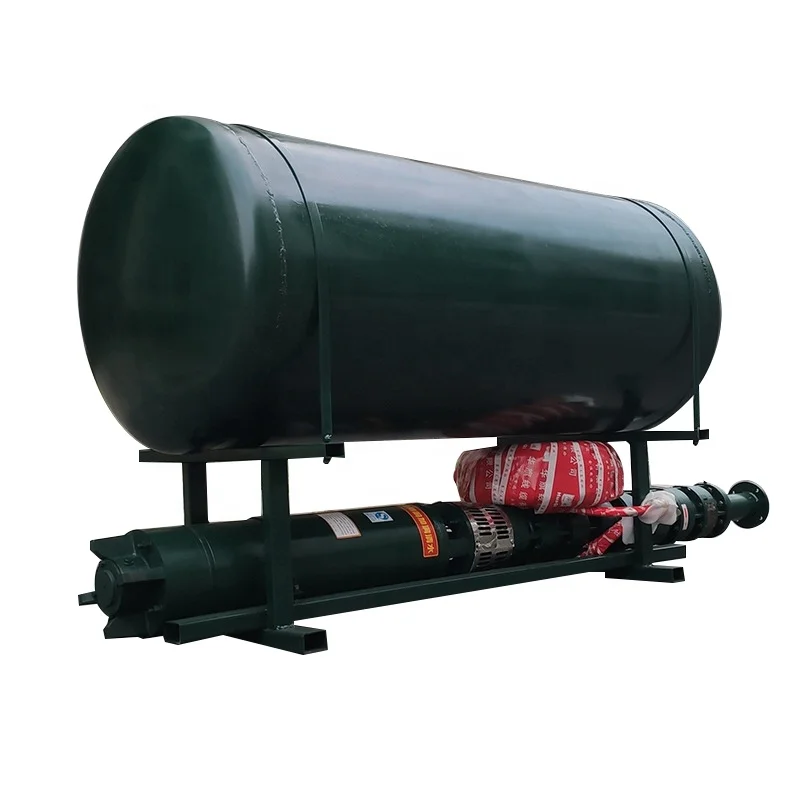

Screw Powered Submersible Borehole Water Pump System For Agriculture Irrigation Deep Well Bombas Sumergibles De Agua
- Category: >>>
- Supplier: Hebei Antai Water Pump Manufacturing Co. Ltd.
Share on (1600870433715):
Product Overview
Description
Product Description

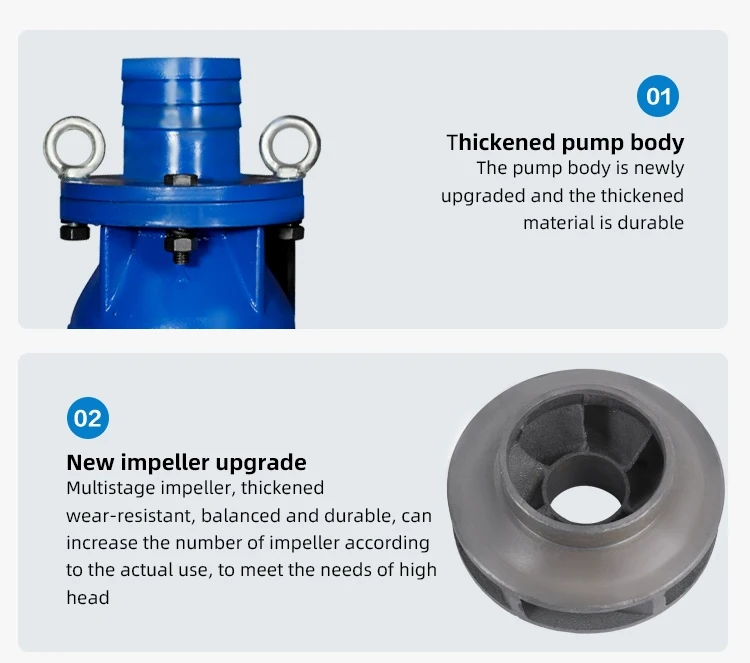

1. Submersible multi-stage pump is centrifugal or mixed flow type; water lubricated bearing is used; coupling rigid connection is used for connection with motor. The impeller of the pump is driven by the motor to generate centrifugal force, which increases the liquid energy and carries out water lifting through the diversion function of the pump shell. A check valve body is set at the upper end of the water pump to prevent the working parts from being damaged by the backflow water in the lifting pipe when the electric pump is shut down. There is a drain hole on the valve, which can slowly drain the water in the pipeline to prevent the pipeline from freezing and cracking in winter. (Note: low head submersible pump does not have check valve body)

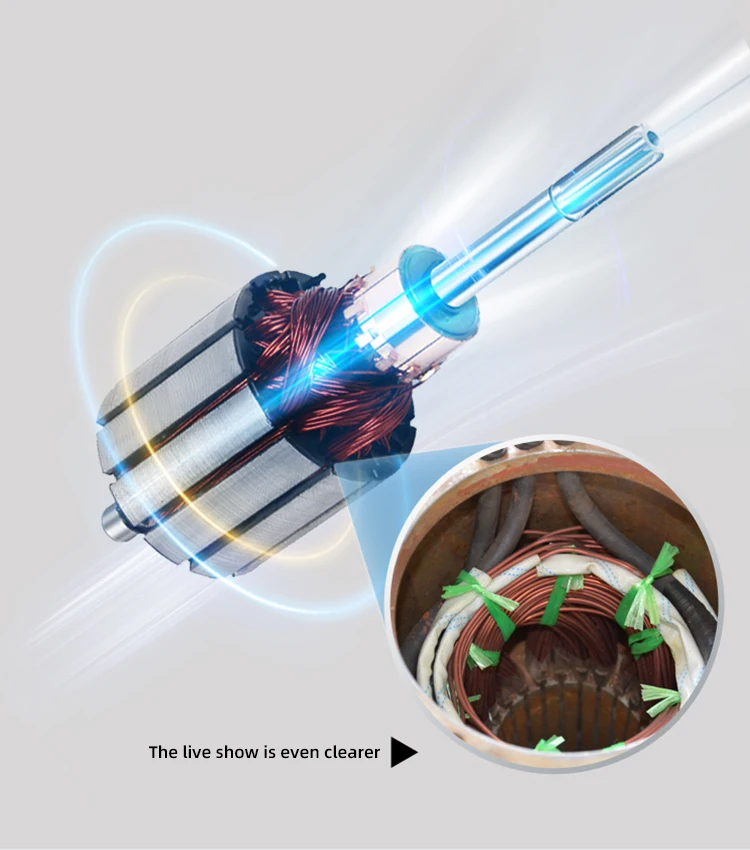

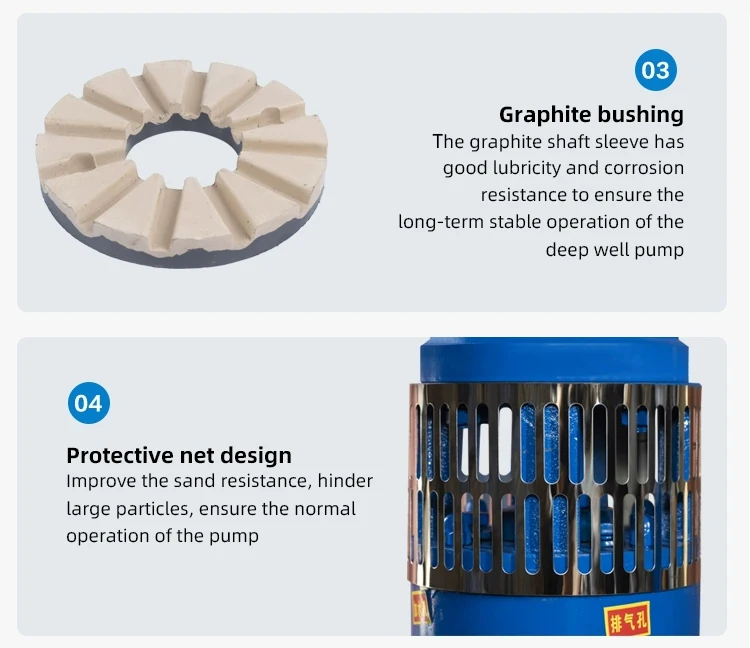

2. The motor of deep well submersible pump is a closed water filled wet structure. Motor stator winding insulation, nylon sheath multilayer structure of electromagnetic wire. The guide bearing and thrust bearing are made of water lubricated material. The motor is filled with clean water to cool the motor and lubricate the bearing. A pressure regulating membrane is installed at the bottom of the motor to adjust the expansion and contraction pressure difference of water in the body caused by the temperature rise of the motor. The upper shaft of the motor is equipped with a sand control mechanism, which is used to prevent the mud and sand in the water from entering into the body of the deep well submersible pump.

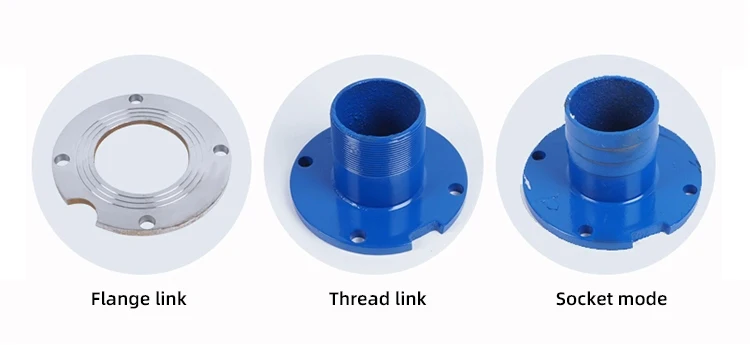

3. Pipeline part: it is used to connect the multi-stage pump, which is installed in the machine well to transport water to the ground. It is mainly composed of short water pipe, water pipe, elbow, splint and other parts of the electric pump installation parts. The short output pipe is the connecting transition part between water pipeline and multi-stage pump. The elbow is installed at the wellhead to change the direction of water flow. The splint is used to lift and fix the output pipeline in the process of chemical pump installation.
Product Paramenters
Specification and model | Flow rate (m3/h) | Head (m) | Motor power (kW) | Efficiency (%) | Speed (r/min) | Outlet diameter (mm) |
175QJ20-26-3 | 20 | 26 | 3 | 74 | 2850 | 50 |
175QJ20-52-5.5 | 20 | 52 | 5.5 | 77 | 2850 | 50 |
175QJ20-208-22 | 20 | 208 | 22 | 81 | 2850 | 50 |
175QJ25-26-3 | 25 | 26 | 3 | 74 | 2850 | 50 |
175QJ25-182-22 | 25 | 182 | 22 | 81 | 2850 | 50 |
175QJ32-36-5.5 | 32 | 36 | 5.5 | 77 | 2850 | 65 |
175QJ32-144-22 | 32 | 144 | 22 | 81 | 2850 | 65 |
175QJ40-48-9.2 | 40 | 48 | 9.2 | 78 | 2850 | 75 |
175QJ50-96-22 | 50 | 96 | 22 | 81 | 2850 | 75 |
175QJ63-66-18.5 | 63 | 66 | 18.5 | 80.5 | 2850 | 75 |
175QJ80-27-11 | 80 | 27 | 11 | 79 | 2850 | 100 |
175QJ80-72-25 | 80 | 72 | 25 | 81 | 2850 | 100 |
200QJ20-54-5.5 | 20 | 54 | 5.5 | 77 | 2850 | 50 |
200QJ20-210-22 | 20 | 210 | 22 | 82.5 | 2850 | 50 |
200QJ25-56-7.5 | 25 | 56 | 7.5 | 78 | 2850 | 50 |
200QJ32-52-7.5 | 32 | 52 | 7.5 | 78 | 2850 | 65 |
200QJ40-91-18.5 | 40 | 91 | 18.5 | 81.5 | 2850 | 75 |
200QJ50-117-25 | 50 | 117 | 25 | 83 | 2850 | 75 |
200QJ63-48-15 | 63 | 48 | 15 | 80 | 2850 | 75 |
200QJ80-143-55 | 80 | 143 | 55 | 84 | 2850 | 100 |
200QJ100-45-22 | 100 | 45 | 22 | 82.5 | 2850 | 100 |
250QJ50-160-37 | 50 | 160 | 37 | 85 | 2875 | 75 |
250QJ80-120-45 | 80 | 120 | 45 | 85.5 | 2875 | 100 |
250QJ100-126-55 | 100 | 126 | 55 | 86 | 2875 | 100 |

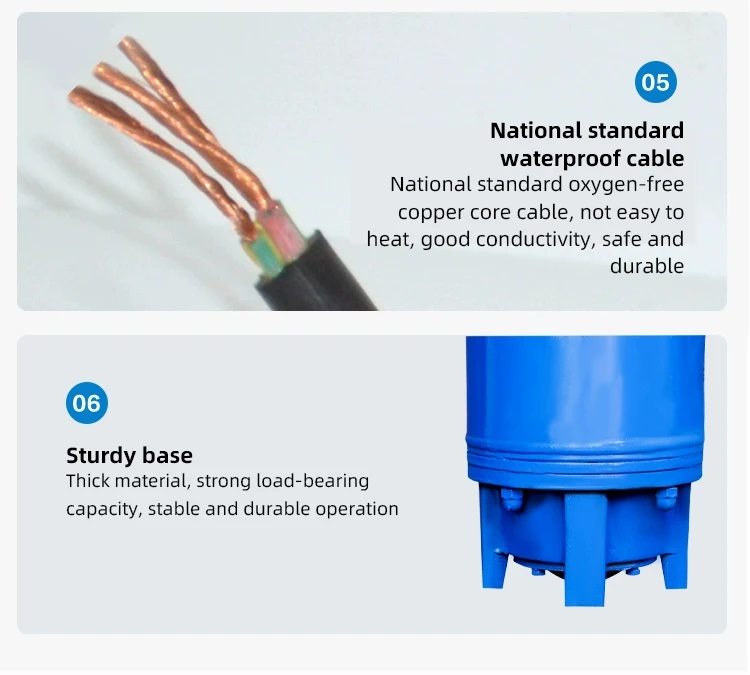

Details Images

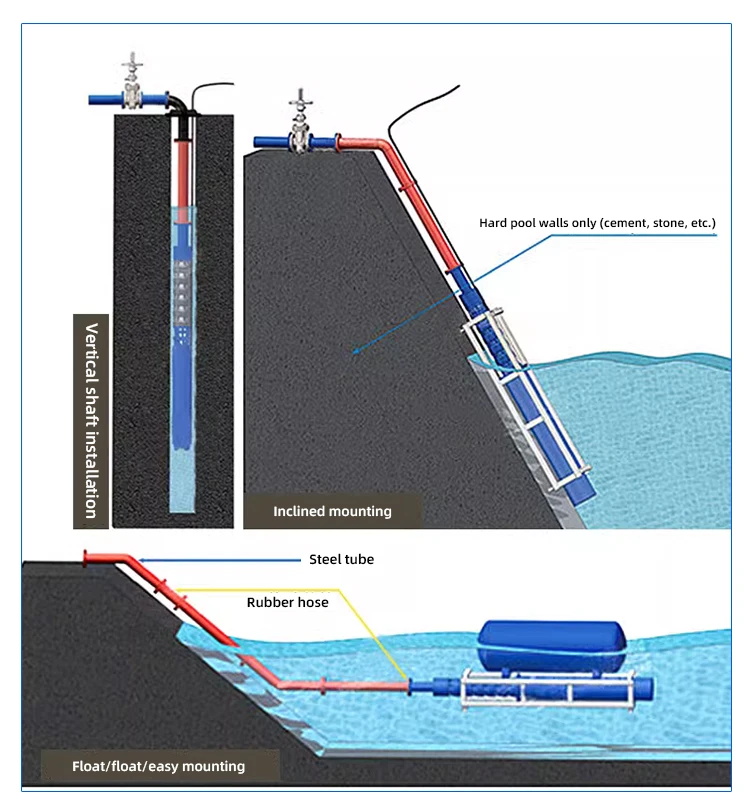

Installation Instructions
1、 Fill the motor with clean water before use, and tighten the water injection and air release bolt.
2、 The test run on land shall not exceed one second.
3、 Do not use the electric pump.
4、 The motor must be fully submerged, but the depth of submergence should
not be more than 70 meters.
not be more than 70 meters.
5、 Lead wire and cable joint shall be operated according to regulations (see the figure for details).
6、 Order high head submersible pump (high head submersible pump type Atlas) and (high head submersible pump manual).
6、 Order high head submersible pump (high head submersible pump type Atlas) and (high head submersible pump manual).
Conditions ofuse
The submersible pump can be used continuously under the following conditions:
1. Three phase AC power supply with rated frequency of 50 Hz and rated voltage of 380 ± 5% v. The water level of the submersible pump is less than 70 meters, but the water level of the static water pump shall not exceed 70 meters,
The submersible pump can be used continuously under the following conditions:
1. Three phase AC power supply with rated frequency of 50 Hz and rated voltage of 380 ± 5% v. The water level of the submersible pump is less than 70 meters, but the water level of the static water pump shall not exceed 70 meters,
The water depth between the lower end of the motor and the bottom of the well is more than 1 m.
3. The water temperature shall not be higher than 20. c。
4.Water quality requirements: (1) sand content in water shall not be greater than 0.01% (weight ratio);
(2) The pH value ranged from6.5 to 8.5
(3) The content of chloride ion is not more than 400 mg / L.
5. It is required that the well should be positive and smooth, and there should be no staggered well pipes
matters needing attention: The cable joint shall be carried out in strict accordance with the attached drawings;
matters needing attention: The cable joint shall be carried out in strict accordance with the attached drawings;
1. Before going down the well, check whether the screws of each part are loose, whether the cable is broken, whether the motor is leaking, and whether the rotation of the motor shaft and water pump shaft is flexible and free of obstruction;
2. Before running into the well, check that the motor resistance should be above 150 m Ω
3. Motor water injection should be carefully prevented from false full;
4.Protection switch and starting equipment shall be equipped according to regulations;
5. When the motor is running for 2500d, a major overhaul should be carried out, and a minor overhaul should be carried out at 1500d;
6. When the electric pump is stoppedfor storage, the water stored in the motor shall be drained completely;
7. It is strictly forbidden to pretend that you don't understand. Disassembly and repair should be carried out in our factory or fixed repair factory;
8. Frequent "start" and "stop"are prohibited:
9. Ground test motor steering shall be carried out within one second in an instant;
10. When installing the electric pump, be careful to prevent foreign matters from falling into the well;
11. Stop the machine for maintenance in case of the following conditions:
(1) The current and voltage exceed the rated value. (2) The flow rate decreased significantly
(3) Waterpump intermittent water or sound vibration is large. (4) The protection switch trips frequently.
(5) The motor resistance is less than 0.5 megohm.
Company Profile
Company profile
Hebei Antai Pump Manufacturing Co., Ltd. is a slurry pump, desulfurization pump, double suction pump, gravel pump as the main products, research and development, design, manufacturing, sales and service as one of the professional pump production and manufacturing enterprises, can provide users with modeling design, installation research, renovation, mapping and customization, machine accessories and other services. Since its establishment, the company has always pursued the enterprise purpose of survival by quality and development by reputation, strengthened enterprise management, highlighted the service level, and won wide praise from users at home and abroad.
Hebei Antai Pump Manufacturing Co., Ltd. is a slurry pump, desulfurization pump, double suction pump, gravel pump as the main products, research and development, design, manufacturing, sales and service as one of the professional pump production and manufacturing enterprises, can provide users with modeling design, installation research, renovation, mapping and customization, machine accessories and other services. Since its establishment, the company has always pursued the enterprise purpose of survival by quality and development by reputation, strengthened enterprise management, highlighted the service level, and won wide praise from users at home and abroad.
Exhibition
Packing & Delivery
FAQ
Q:Are you a factory or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years
Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation
Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )
Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international courier.
Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days
Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable. The sample order payment with Paypal,Western union are both ok.
Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
