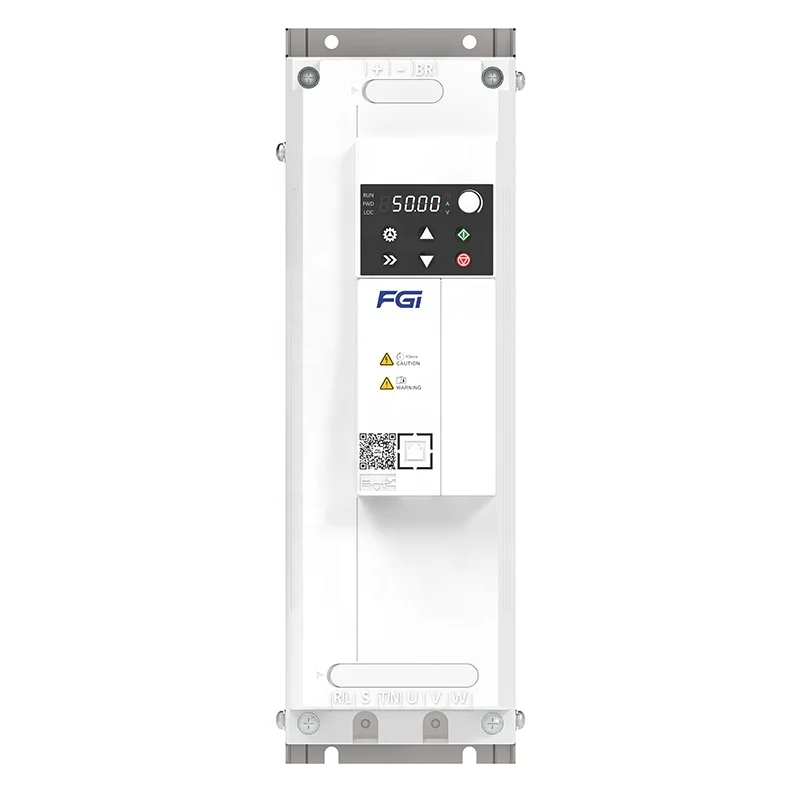

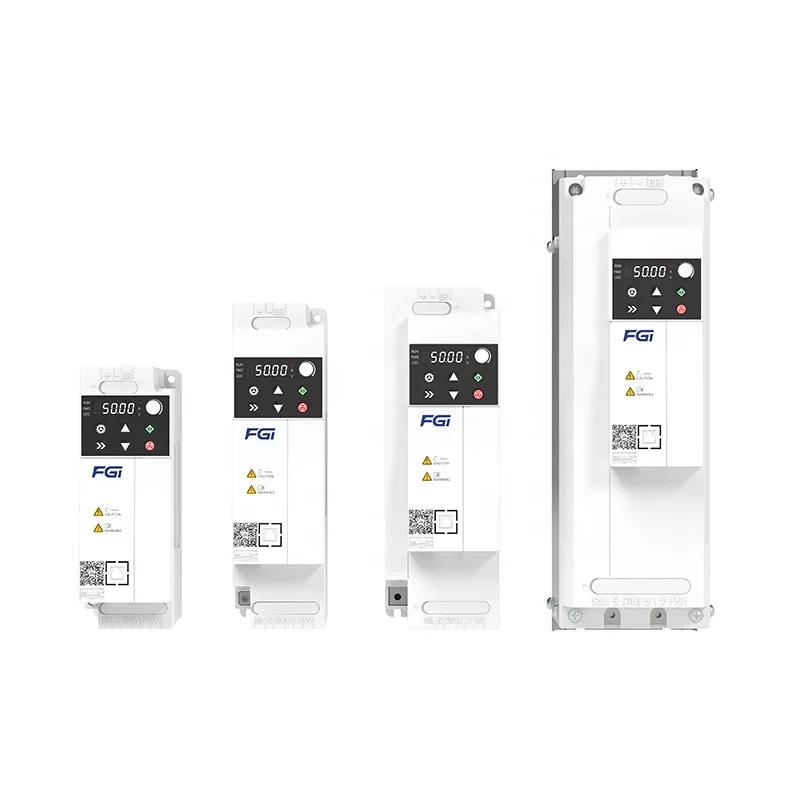

Factory Wholesale Better Press Feeling 4kW Converter Variable Frequency Drive VFD for Packing Machine

Input voltage (V)

3AC 380V (-15%)–440V (+10%)
1AC/3AC 220V±15%

Input frequency (Hz)

47–63Hz

Output voltage (V)

0–Input voltage

MoOutput current (A)

Model depends

Output power (kW)

Model depends

Output frequency (Hz)

0–600Hz

Control mode

Space voltage vector control, sensorless vector control (SVC), and vector control with sensor feedback (FVC)

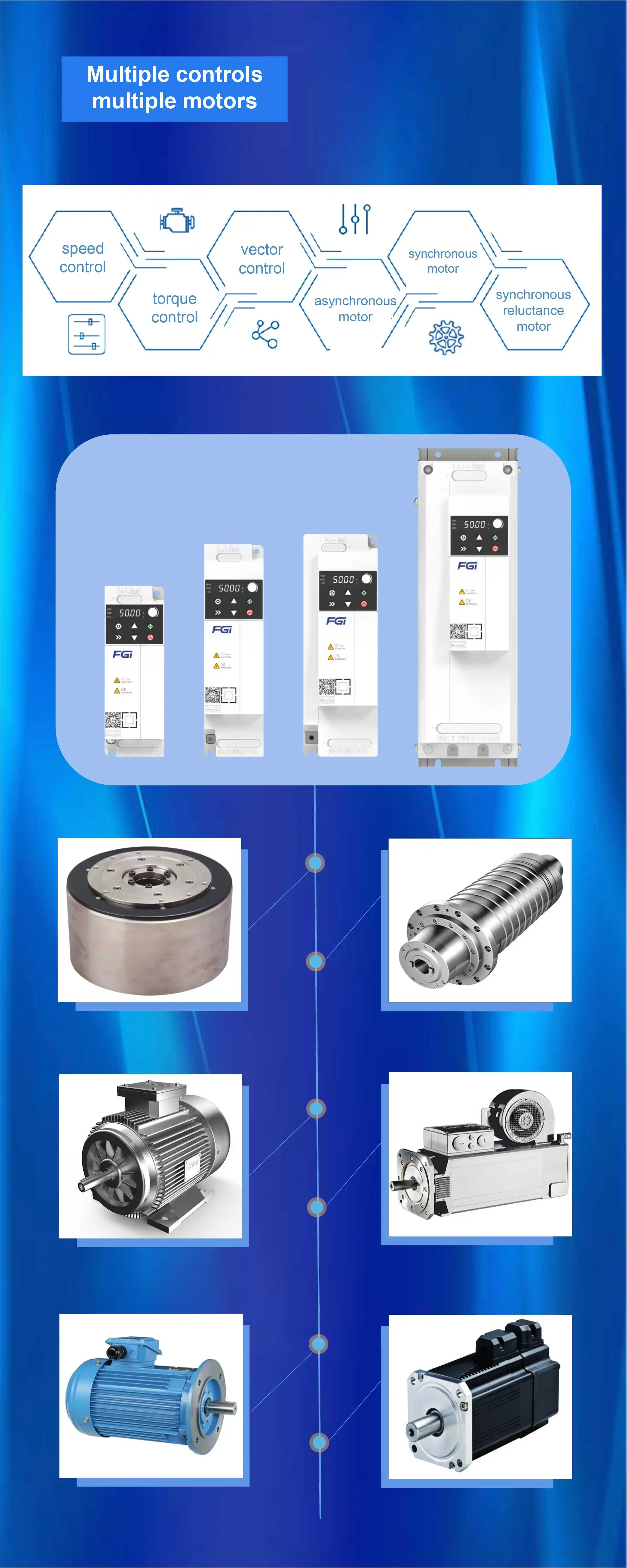

Motor type

Asynchronous motor (AM)
Permanent magnetic synchronous motor (SM)

Speed regulation ratio

For AM1: 1:200 (SVC); for SM1, 1:20 (SVC); 1:1000 (FVC)

Speed control precision

± 0.2% (SVC); ± 0.02% (FVC)

Speed fluctuation

± 0.3% (SVC)

Torque response

< 20ms (SVC); < 10ms (FVC)

Torque control precision

10% (SVC); 5% (FVC)

Starting torque

For AMs: 0.25Hz/150% (SVC)
For SMs: 2.5Hz/150% (SVC)
0Hz/200% (FVC)

Overload capacity

150% for 1 min (every 5 mins); 180% for 10s; 200% for 1s

Frequency setting method

Settings can be implemented through digital, analog, pulse frequency, multi-step speed running, simple PLC, PID communication,
communication and so on.
Settings can be combined and the setting channels can be switched.

Automatic voltage regulation

The output voltage can be kept constant although the grid voltage changes.

More than 30 protection functions, such as protection against overcurrent, overvoltage, undervoltage, overtemperature, phase loss,
and overload

Speed tracking restart

Used to implement impact-free smooth startup for rotating motors

Terminal analog input resolution

No more than 20mV

Terminal digital input resolution

No more than 2ms

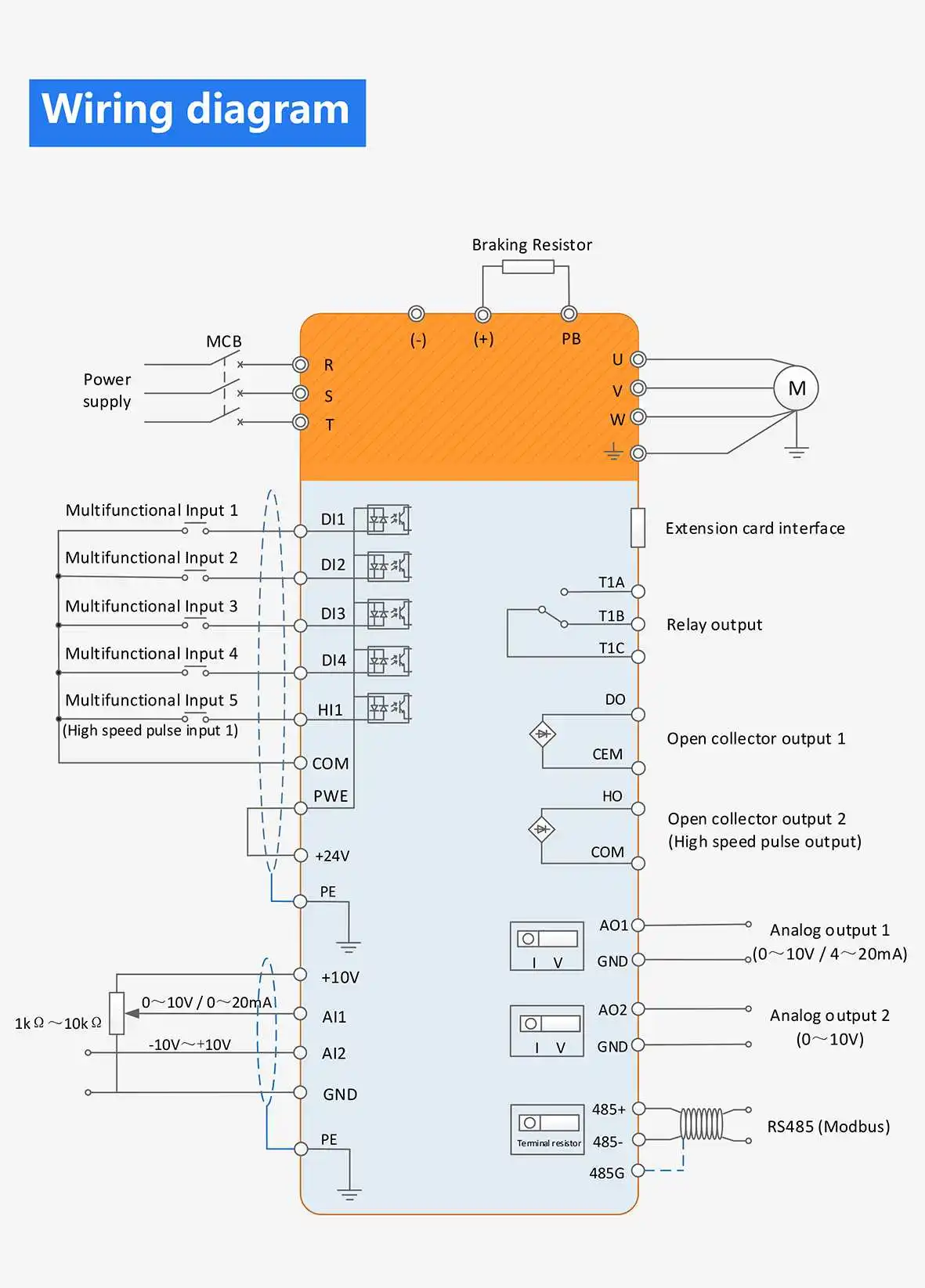

Analog input

2 channels: AI1: 0~10V / 0(4) ~20mA; AI2: -10~+10V

Analog output

2 channels; AO1: 0~10V / 0(4) ~20mA

Digital input

4 channels regular input; max. frequency: 1kHz; internal impedance: 3.3kΩ
1 channel high-speed input; max. frequency: 50kHz

Digital output

1 high-speed pulse output; max. frequency: 50kHz
1 DO terminal of open collector output

Relay output

1 programmable relay outputs
T1A: NO; T1B: NC; T1C: common
Contact capacity: 3A/AC250V, 1A/DC30V

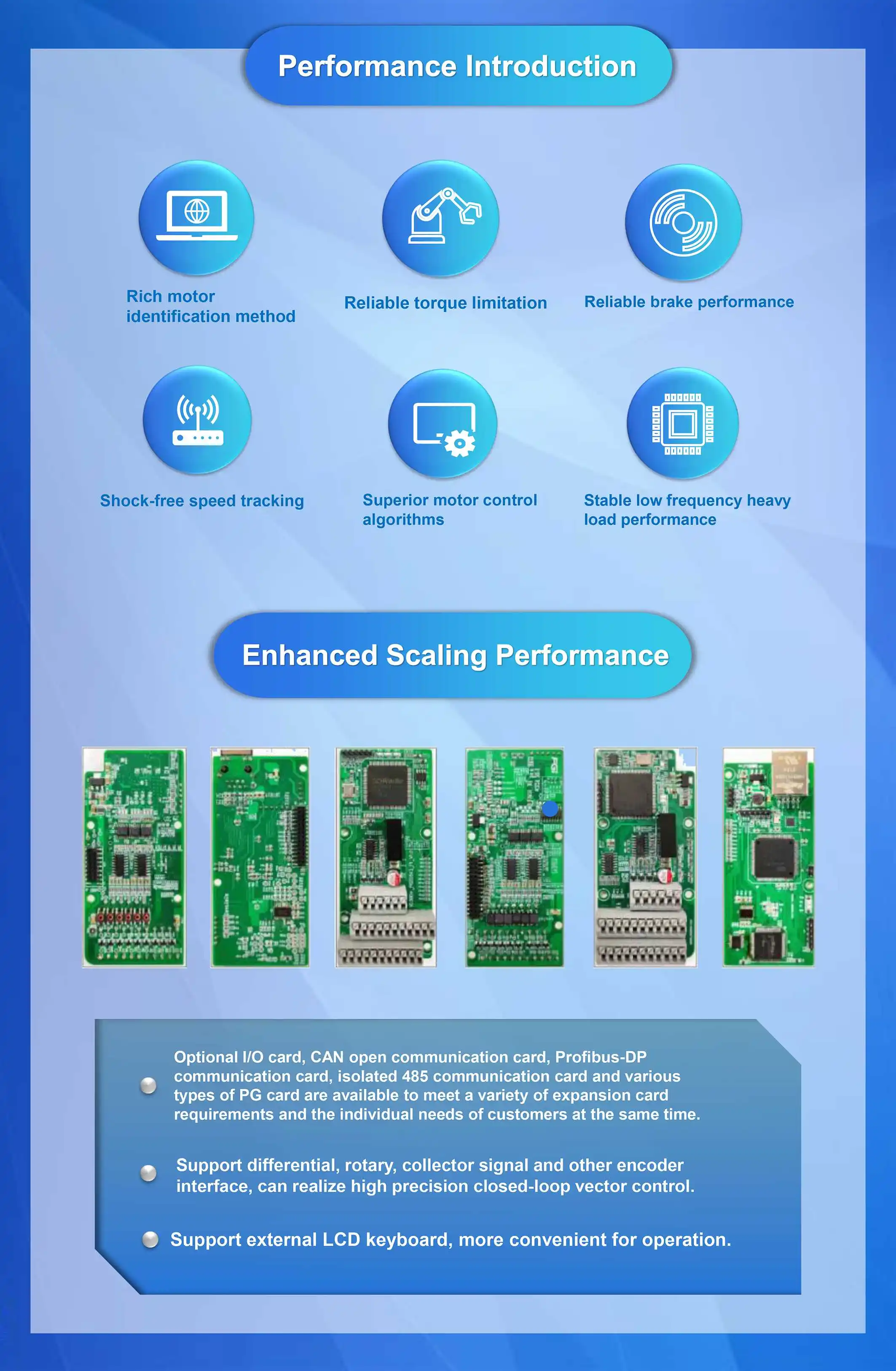

Extended interfaces

1 extension card interface
Supporting PG cards, communication cards, I/O cards and so on

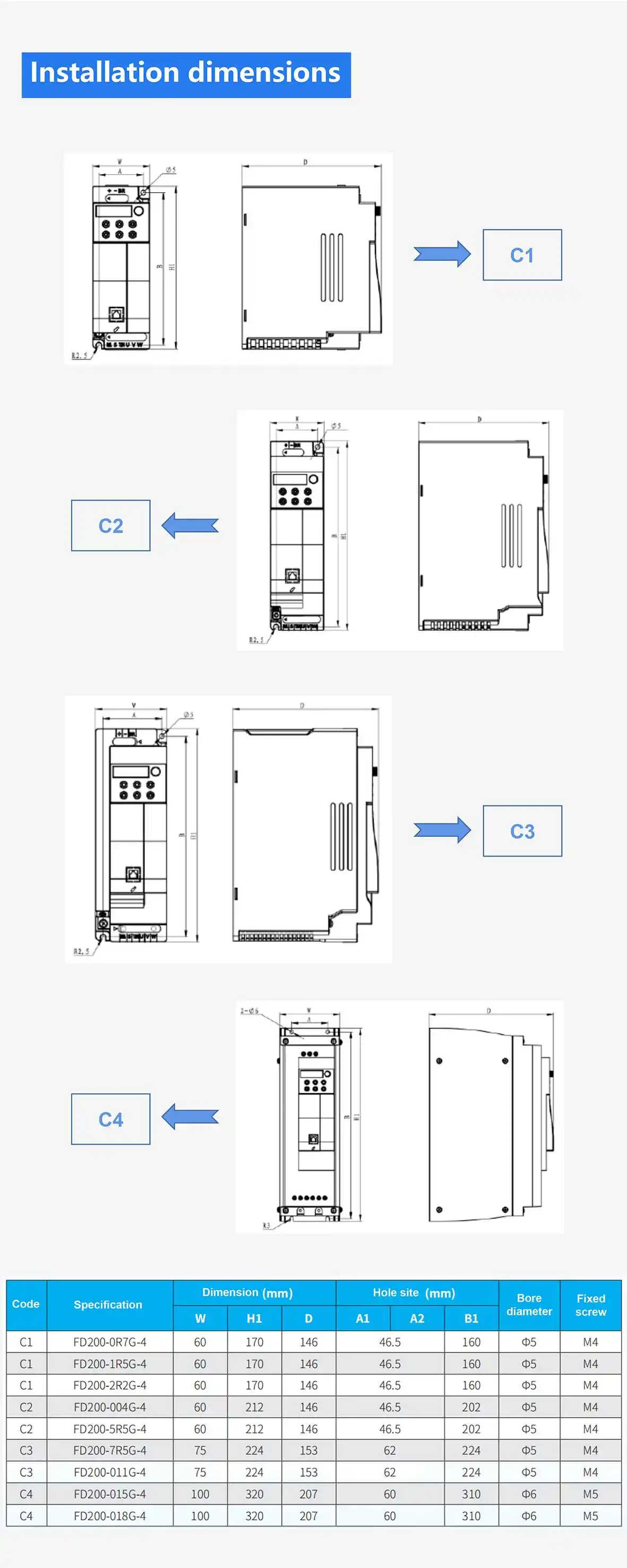

Mounting method

Wall mounting, flange mounting

Temperature of running environment

-10 ~ +50°C; derating is required if the ambient temperature exceeds 40°C

Cooling method

Forced air cooling

Braking unit

Standard built-in

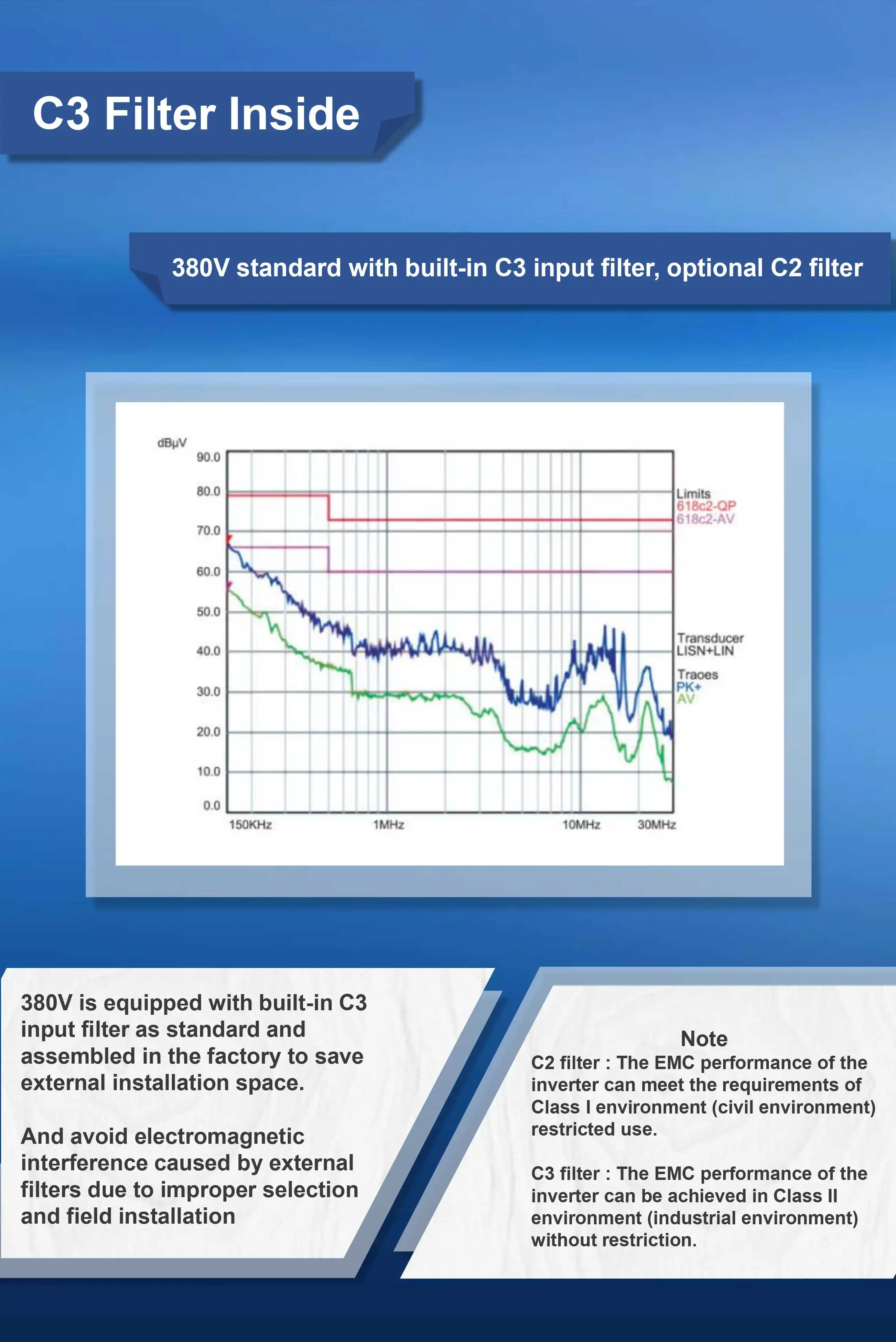

EMC filter

The transmission of the VFD meets the IEC/EN 61800-3 C3 requirements.
When optional filters are connected externally, the transmission of the VFD can meet the IEC/EN 61800-3 C2 requirements.
Note: Comply with the EMC requirements and the technical requirements for the motors and motor cables.
