500w 750w 1000w 1500w bldc motor driver controller 48vdc motor driver with rs48 customized
- Category: >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (1600870458048):
Product Overview
Description
hot sale intelligent 1500w 48v brushless dc motor speed controller
BLDC DRIVER
| Model | Peak Current (A) | Rated Current (A) | Voltage | Adaptive |
| BLD-70 | 6 | 3 | 12-30VDC | ≤70W |
| BLD-120 | 15 | 8 | 12-30VDC | ≤120W |
| BLD-300B | 35 | 15 | 12-56VDC | ≤300W |
| BLD-300R | 20.6 | 2 | 15-62VDC | ≤300W |
| BLD-750 | 45 | 25 | 18-52VDC | ≤750W |
| BLDH-350 | 4 | 2 | 180-265VAC | ≤350W |
| BLDH-400R | 5.5 | - | 110-250VAC | ≤400W |
| BLDH-750 | 8 | 4 | 180-265VAC | ≤750W |

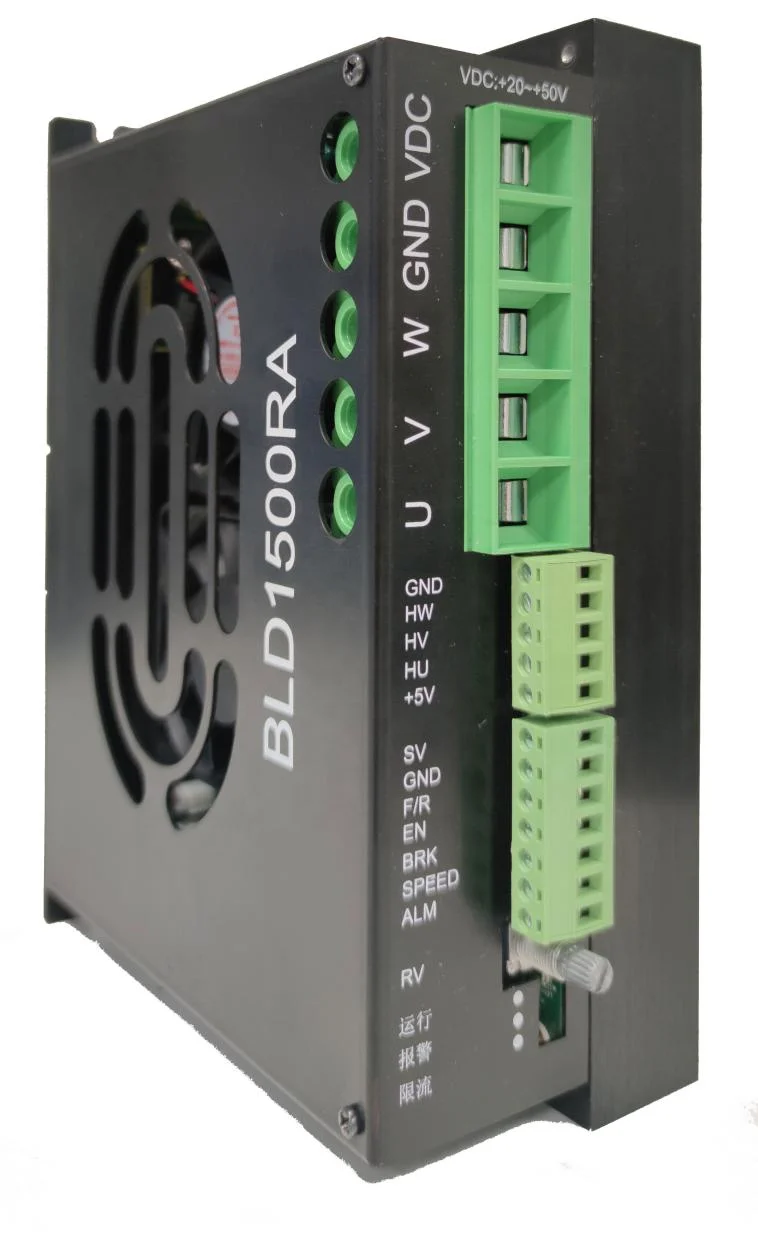

| BLD1500RA | 82 | 40 | 20-50VDC | ≤1500W |
Related Products
Features
ACC/DEC time setting
Phase current limiting adjust
Motor speed setting/ close loop setting/pole pairs setting
Multiple speed control
Speed of revolution tolerance is ±0.01%
Alarm signal
Supporting Modbus communication and suitable for PC control by user.
Connecting Resistance braking
Four speed regulation modes
Build-in potentiometer RV,External potentiometer,Pulse Width Modulation,Input analog signal (0-5V)
Function setting
1. ACC/DEC time setting
2. Motor poles pair selection
3.Open/closed loop setting
4. Peak current setting
5. Quick brake
6.CW/CCW rotation
Dimension
Driver interface

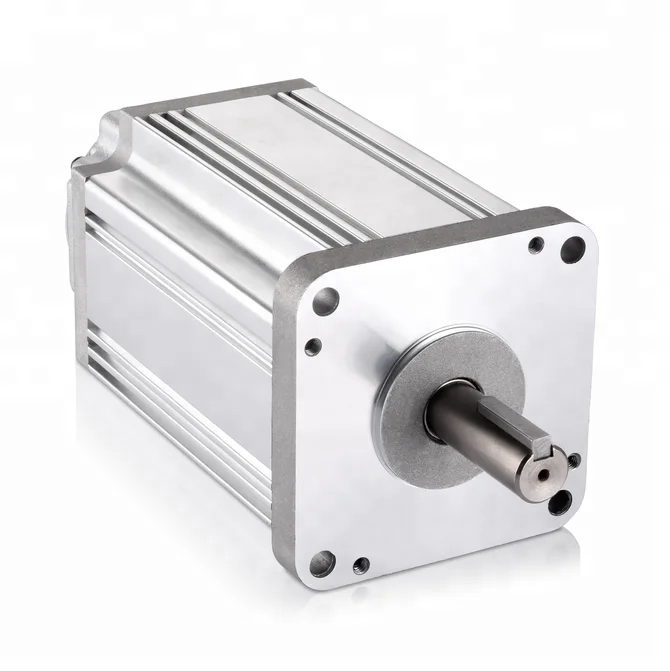

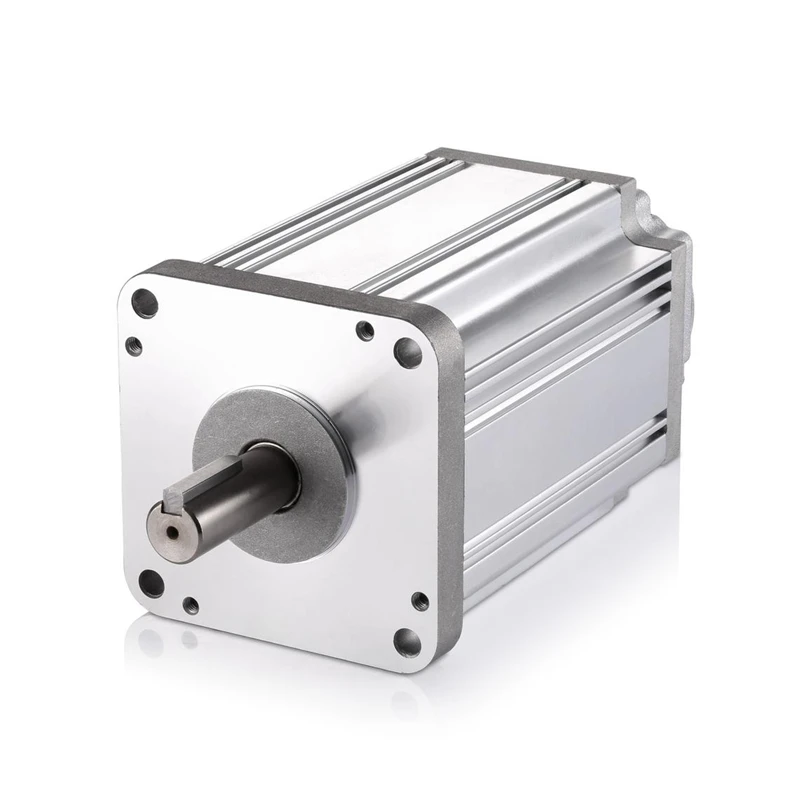

The matched motor:

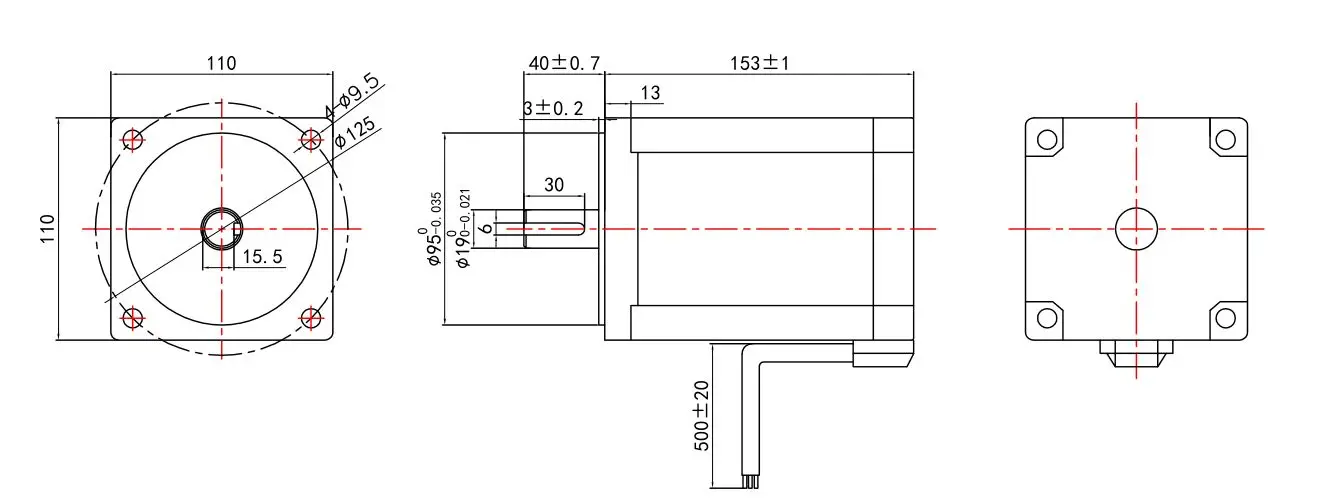

110BLF10018-48-U01A: 48VDC 1000W 1800rpm 5nm

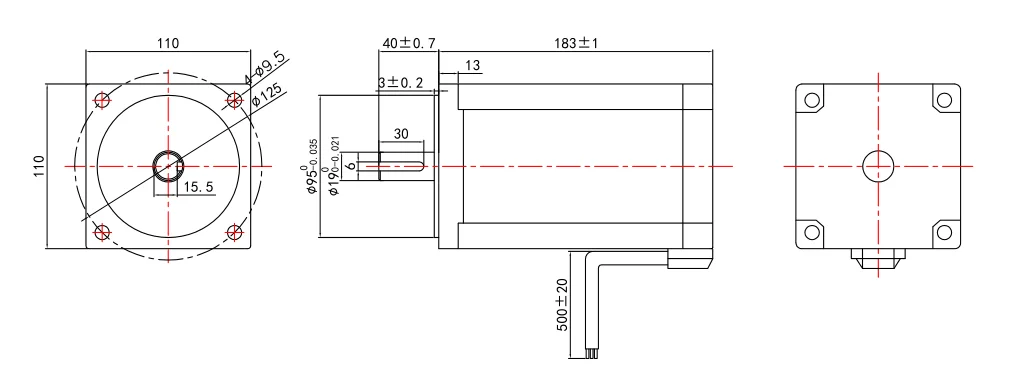

110BLF15018-48-U01A: 48VDC 1500W 1800rpm 7.5nm

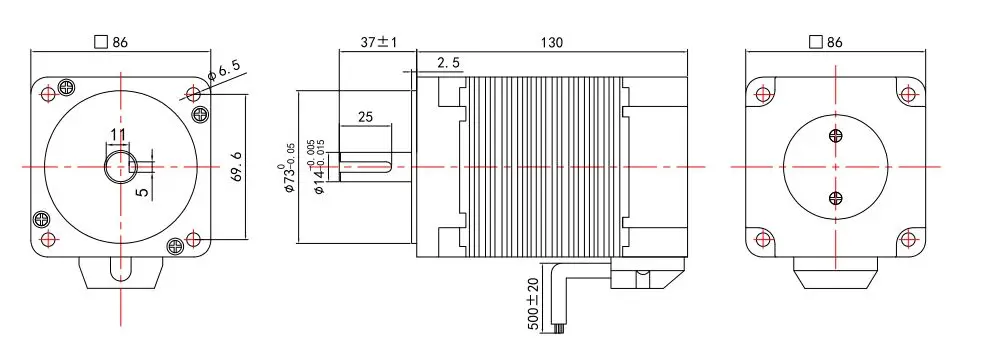

86BLF7530-48-U01A: 48VDC 750W 3000rpm 2.4nm
Main Products Series
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
