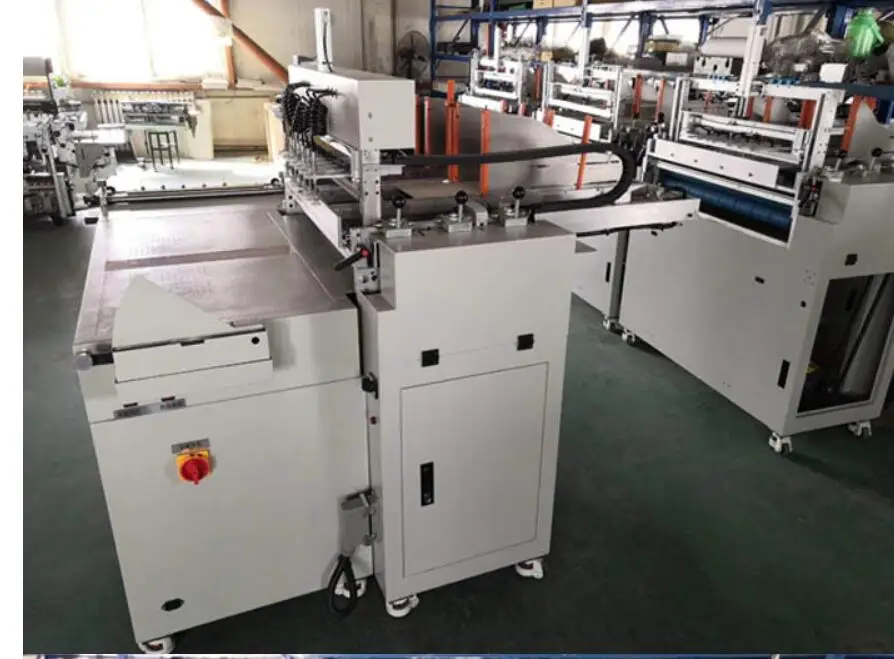

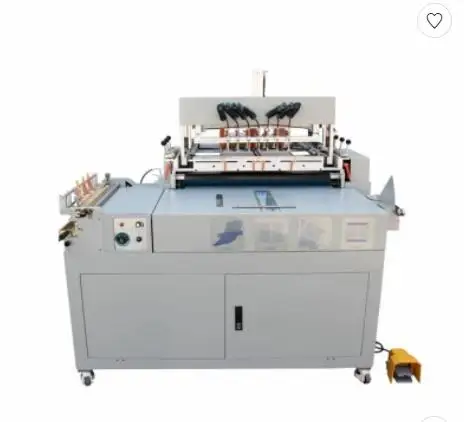

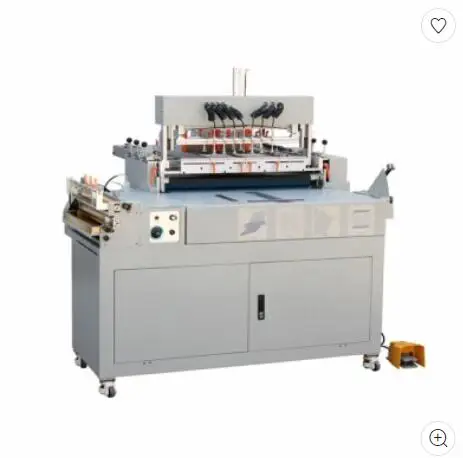

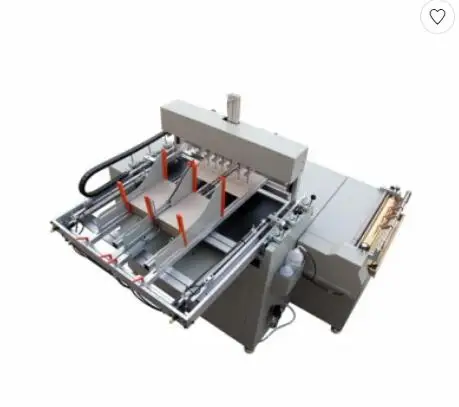

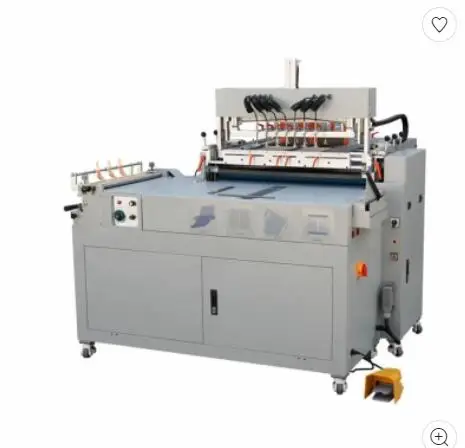

Pneumatic Photo Album Hardcover Book Cover Making Machine with Automatic Paperboard Feeder ZL840A
- Category: >>>
- Supplier: Hubei Zhuozhan Technology Co. Ltd.
Share on (1600870505941):
Product Overview
Description
Hardcover Case Making Machine Photo Book Cover Making Machine ZL840A
Specification
Max. size | 840×480mm |
Operation Desk Size | 980×466mm |
Gluing width | 500mm |
Hardcover edge width | 840mm |
Thickness of the cardboard | 1.5~4mm |
Thickness of the cover paper | 80~400g/m2 |
Power Supply | 220V |
Machine gas | 0.6MPa |
Machine Weight | 730kg |
Machine dimensions | 1640×1550×1680mm |
Standard accessory: 10mm paper guide - Long
Machine air source for selecting, equipment reserved Φ8mm trachea interface.
Main Feature
Multifunction ZL840A includes Hot gluing, suction and position, corner cutter, automatic edge folder, quantitative water replenishment etc.
It's a flexible, high-efficiency and affordable case maker to make different kinds of hard covers for book, album, loose-leaf book, diary, and desk calendar. Suitable for multispecies, short to medium run and wide range of materials to make hard covers.
ZL840A can be operated by one person, protein glue (Hot) and white latex (cold) are both available, fold two edges automatically at one time. It also has the functions like corner cutter, quantitative water filling, fast to adjust the thickness of the cardboards, soft light reflection, center position and cover suction assistance.
PLC system control the feed position, distance of edge folder and running time automatically.
High speed optaical fibre detection control the length and position of the paper feeding accurately.
Independent homothermal impermeable herater unit can use both protein glue (hot) and white latex (cold).
Copper alloy made glue application roller and glue reservoir make the heat conduction fast and well distributed.
Microthermal protein glue dryquickly, no deformation and lower cost.
Quantitative filling the water automatically and the water yield can be adjusted.
Stepless glue application speed.
Large amount of air suction positioning.
Soft light reflection and center position.
Adjust the thicknees to fit the thickness of cardboard quickly, easy to change the spine guides.
The corner cutter can cut four standard corners on different thickness of cardboard without adjustment.
High speed induction automatic feed device.
Reciprocating automatic edge fold system fold two edges automatically at one time.
The base of the machine is equipped with high load bearing footmaster casters, which is convenient for moving the machine, level adjustment and rising fixed.
