Automatic soda wine beverage bottle cap sealing and capping machine price
- Category: >>>
- Supplier: Zhangjiagang Grandee Machinery Co. Ltd.
Share on (1600870510629):
Product Overview
Description
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description

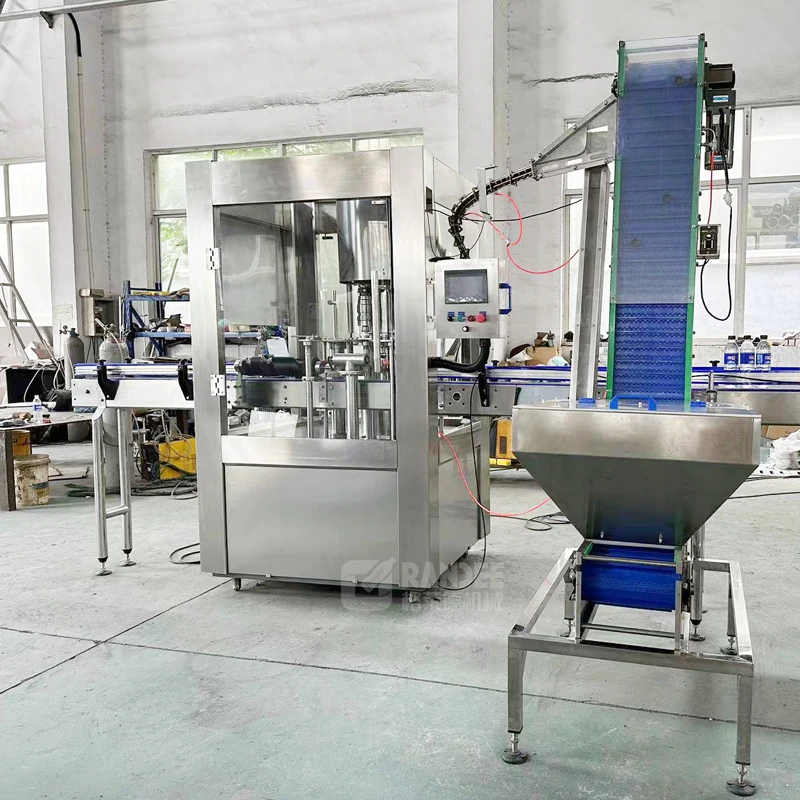

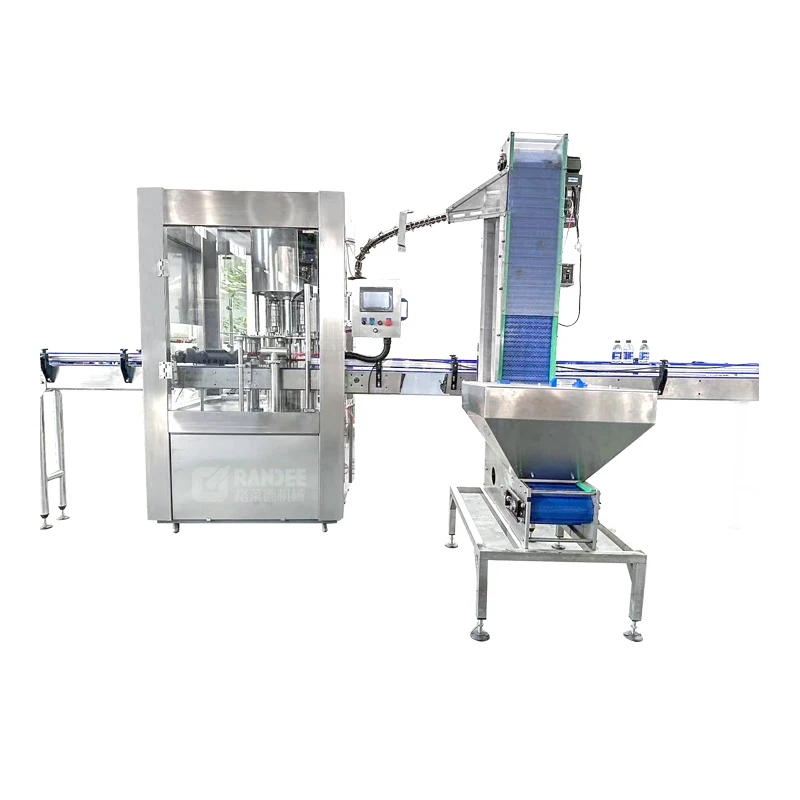

Automatic sealing machine for plastic bottles
The 304 stainless steel cover bin reduces the secondary pollution of the cap. The 304 stainless steel lower cover slot, the cover compartment and the lower cover slot are equipped with an electronic coverless detection system to automatically control the speed of the cap feeder and the whole machine. It can realize automatic shutdown without bottle and no cover, and cover without cover.
Advantage

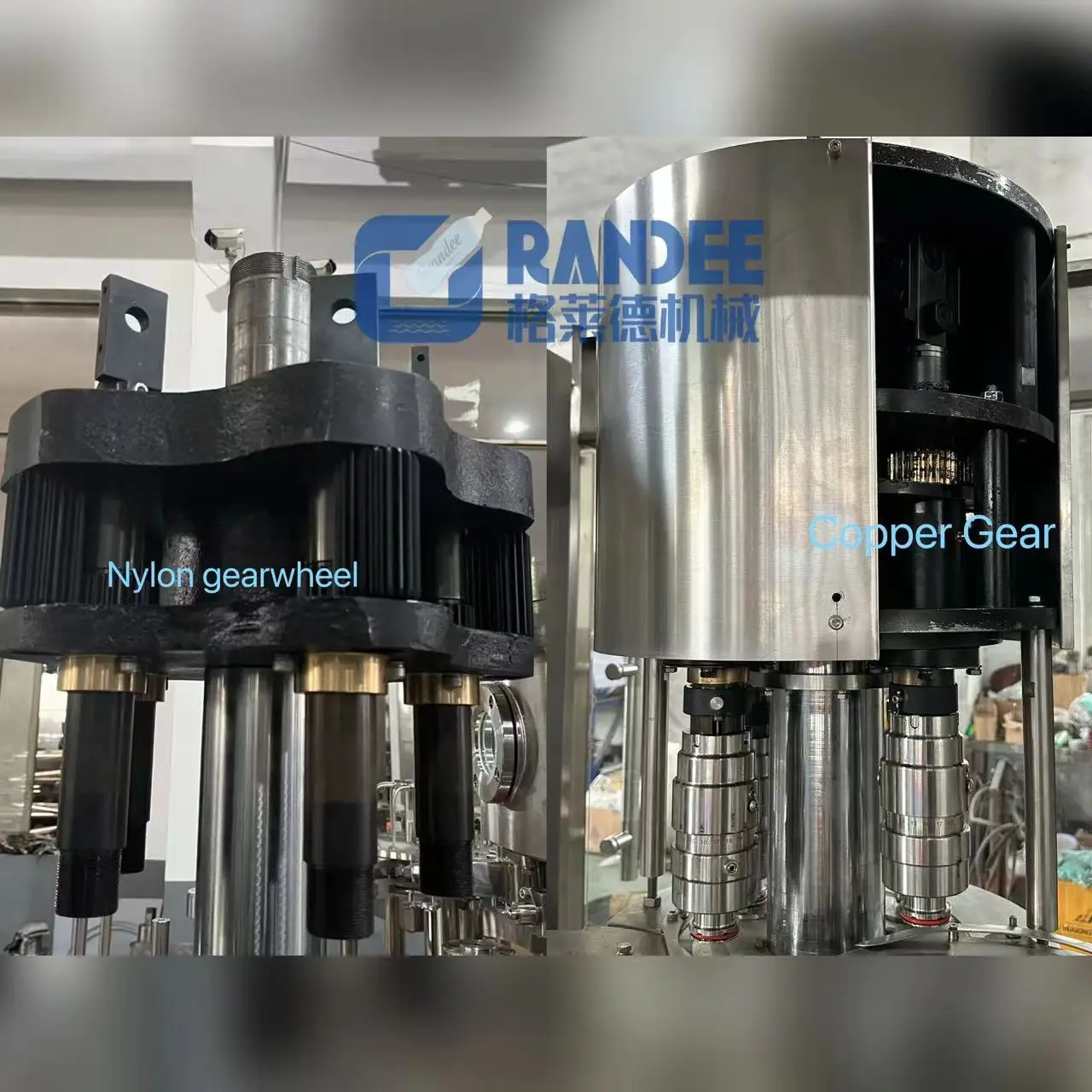

Copper gearwheel for the capping machine instead of Nylon gear wheel.
Capping part

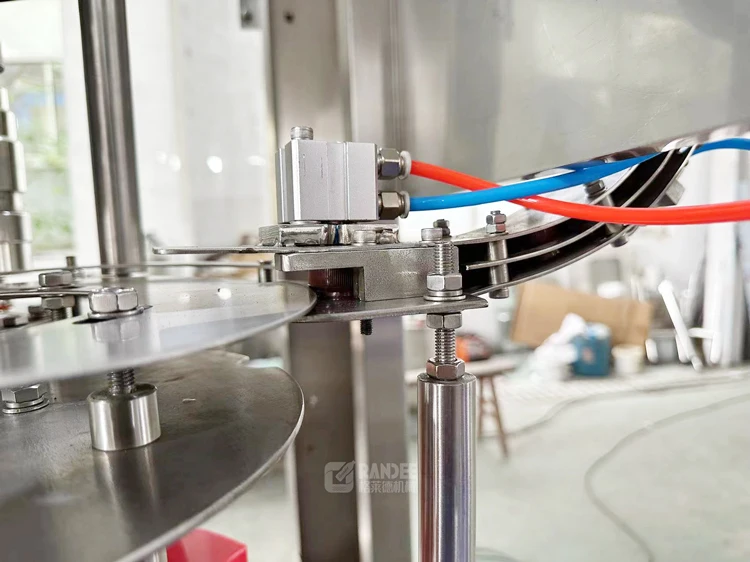

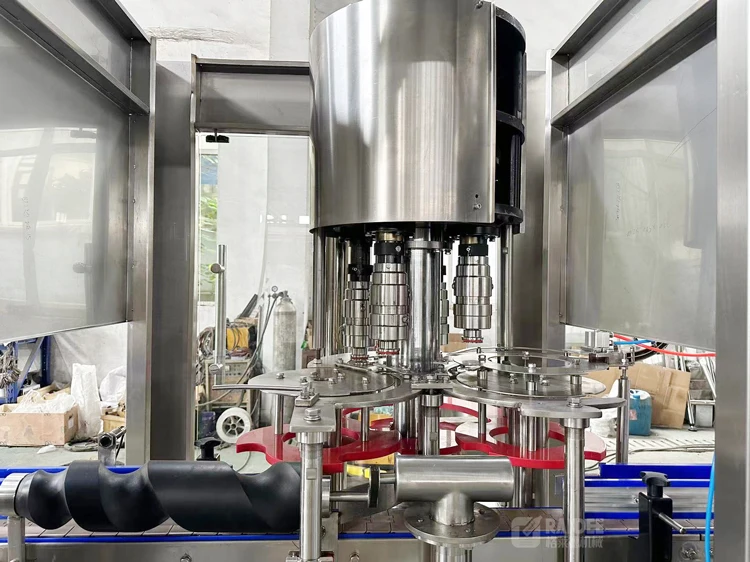

Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.

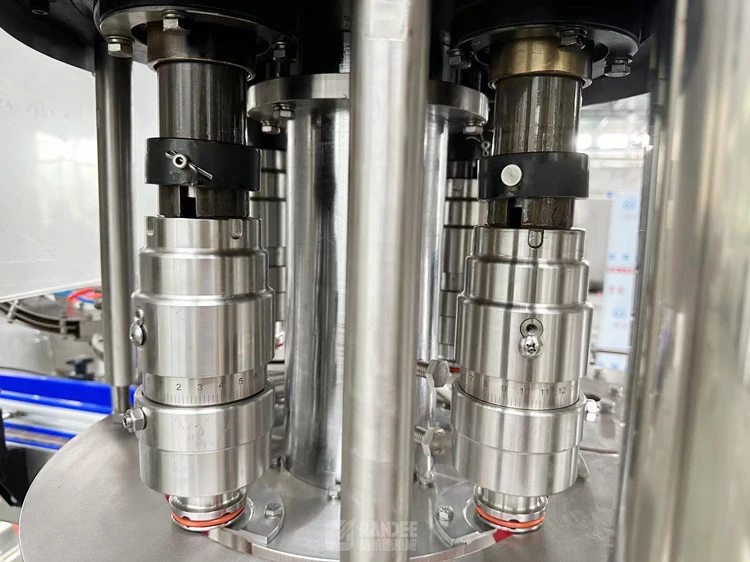

The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Capping technology
We use the taking cap technology to make capping machine more stable and good performance.

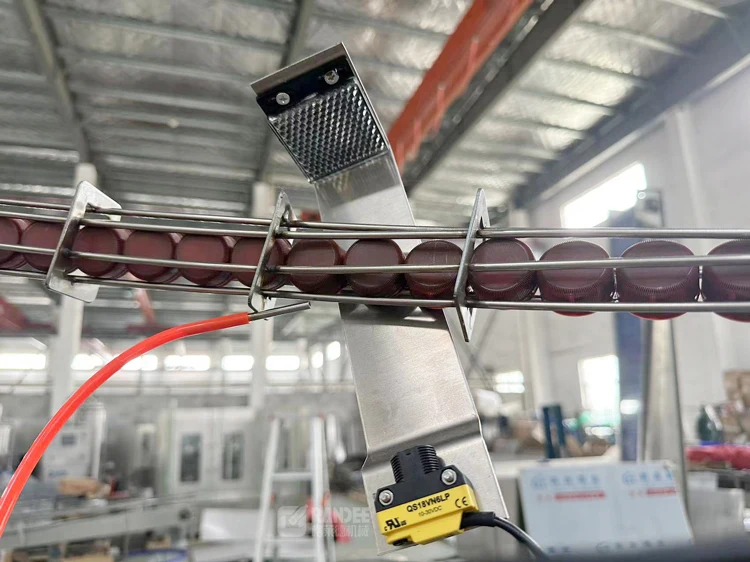

Good brand sensor and backcover
We use this device to test the back cap.
Capping part

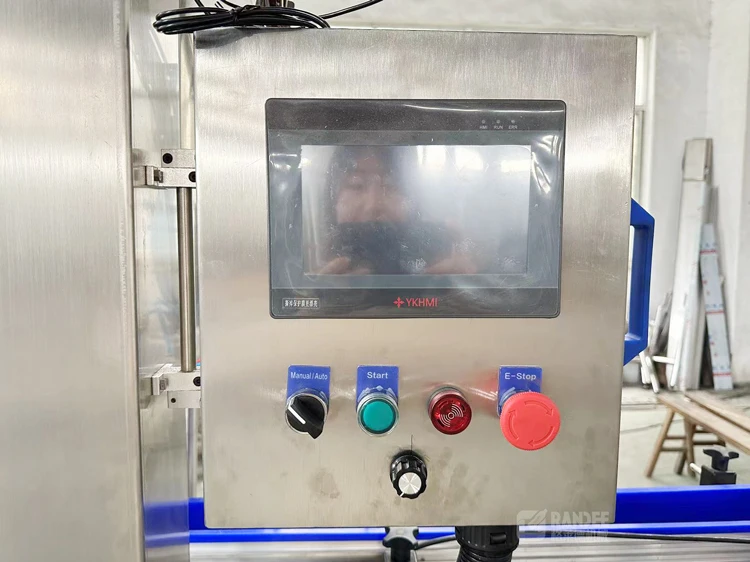

Fully sealed 304 stainless steel cover, conveyor belt cover is smooth, no noise. The fully automatic control system, combined with the electronic detection system of the capping machine, controls the operation of the machine.
Main technical parameter
Model | XG-4 | XG-6 | XG-8 | XG-10 | XGF 24-24-8 | XGF 32-32-10 | XGF 40-40-12 | ||||||
Capacity(5000ml/BPH) | 2000-4000 | 5000-6000 | 11000-12000 | 15000 | 12000 | 14000 | 16000 | ||||||
Suitable bottle shape and size | Both round of square bottle, 300ml-15000ml | ||||||||||||
Compressed air pressure | 0.7MPa | ||||||||||||
Bottle washing medium | Sterile water | ||||||||||||
Washing pressure | 0.25MPa | ||||||||||||
Main motor | 1.5 | 3.5 | 5.5 | 7.5 | 4.5 | 5.5 | 7.5 | ||||||
Dimension(mm) | 1220*1010*2000 | 1450*1050*2000 | 1740*1100*2200 | 1950*1200*2000 | 2700*2100*2300 | 2970*2260*2700 | 3780*2800*2700 | ||||||
30Weight(KG) | 400 | 600 | 800 | 1000 | 4500 | 6500 | 8500 | ||||||
NAME | BRAND | AREA |
PLC | Siemens | Germany |
INVERTER | Siemens | Germany |
CONTACTOR | Siemens | Germany |
TOUCH SCREEN | Siemens | Germany |
INVERTER | Siemens | Germany |
MOTOR | ABB | SWISS |
PNEUMATIC PARTS | FESTO | GERMANY |
ELECTRICAL PARTS | SCHNEIDER | FRANCE |
For more information, please feel free to contact us to send an inquiry!
Turnkey Solution
1.RO system
This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
2.Automatic blow molding machine for PET bottle:
Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity, etc from 2500BPH to 12000BPH for 500ml bottle.
3. Automatic OPP hot glue labeling machine:
Capacity: 100-350bottles/min can be chosen Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
4. High speed automatic PE film shrink packing machine:
Film material: PE Shrink membrane thickness: 70~100um
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
