SZGH Hot Sale Vertical Diamond Cut Rim Fixing Rim Repair Cnc Wheel Lathe Cutting Alloy Wheel Repair Machine Factory
- Category: >>>
- Supplier: Shenzhen Guanhong Technology Co. Ltd.
Share on (1600870524733):
Product Overview
Description
Product Description
Product Overview

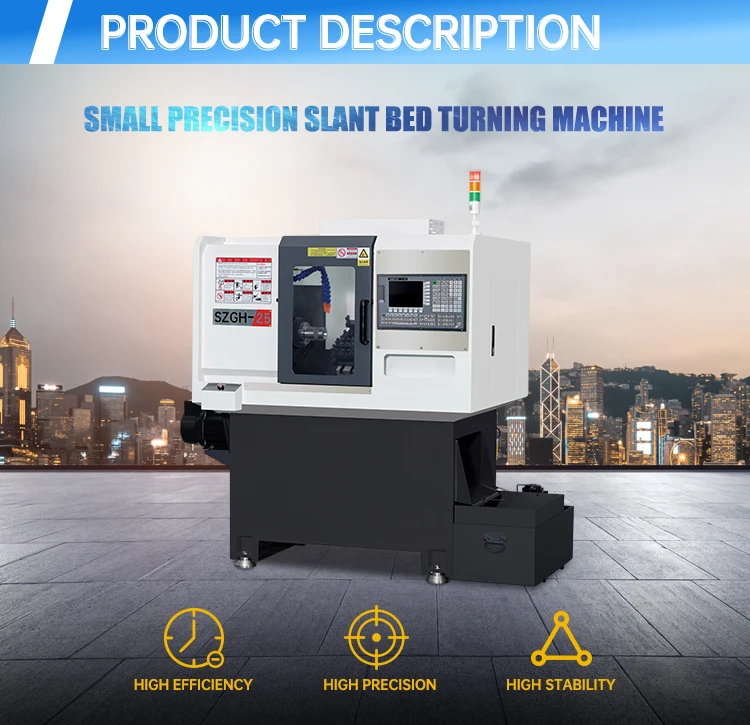

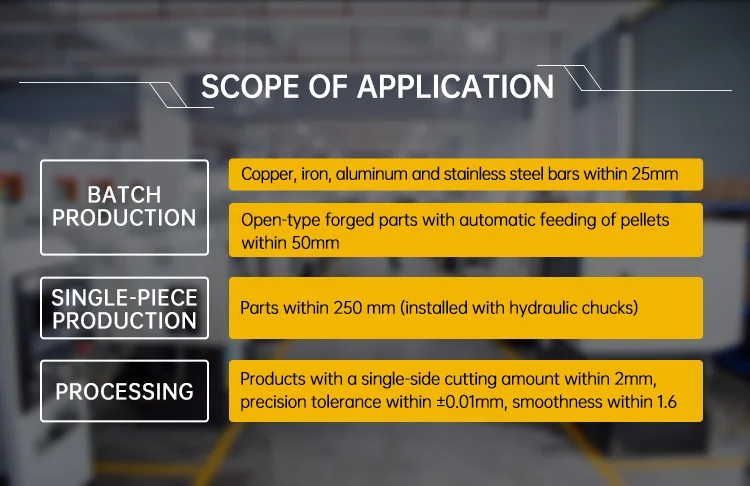

SZGH-25 is suitable for batch production of copper, iron, aluminum and stainless steel bars within 25mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6. It is widely used in the upgrading of hard rail CNC lathes and hydraulic automatic lathes to realize automatic production and to save labor costs and improve product quality.
Standard Configuration
Project | Unit | Standard value | Max value | ||
Processing Capacity | Max. diameter of bar bore | mm | 25 | 26 | |
Max. particle diameter (disk type) | mm | 200 | 300 | ||
Max. length of workpiece | mm | 150 | 180 | ||
Cutting amount of stainless steel on one side | mm | 2 | 2.5 | ||
Machining accuracy of the workpiece | mm | ±0.01 | - | ||
Surface roughness | Ra | 1.6 | - | ||
the height of center tool holder | mm | 40 | - | ||
Turning Diameter | mm | 350 | - | ||
Square Knife Specifications | mm | 16 | - | ||
Travels | X-axis effective travel (diameter) | mm | 500 | - | |
Z-axis effective travel | mm | 180 | - | ||
Feed | X-axis rapid traverse | m/min | 25 | 30 | |
Z-axis rapid traverse | m/min | 25 | 30 | ||
X-axis servo-motor power | kW | 1.3 | - | ||
Z-axis servo-motor power | kW | 1.3 | - | ||
Spindle | Max.Spindle Speed | rpm | 3500 | 4000 | |
Spindle Motor Power | kW | 2.2 | - | ||
Spindle nose taper | - | A2-4 | - | ||
Support hydraulic chuck size | inch | 5 | 6 | ||
Dimensions | Dimensions | mm | 1700*1400*1600 | - | |
Total Weight | kg | 1400 | - | ||
Machine tool specifications and component items | Specification | Standard | Optional | ||
Part Specifications | Screw | 25mm | Taiwan ball grinding precision grade | - | |
Guide rail | 25mm | Taiwan H-class linear guide rail | - | ||
Bearing | - | Domestic brand front 2 rear 2 high-speed angular contact bearings | |||
Spindle motor | 2.2kW | Variable frequency drive type | 3.7kW servo spindle | ||
Feed servo | 1.3kW | SZGH Speed Servo | - | ||
CNC Control | - | SZGH | SZGH | ||
Machine specifications | Bed Type | 30° | Slant Bed | - | |
Base form | - | Heavy-duty anti-deformation patented base | - | ||
Clamping method | - | hydraulic clamping | - | ||
The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
Product Features
Using Anti-deformation patented heavy-duty base, it is heavy enough to support fast speed.
The weight is enough to support the anti-vibration and improves the accuracy and smoothness during bar machining.
The key components adopt high-quality wear-resistant configurations such as Taiwan, and the spindle installation is all dynamically balanced.

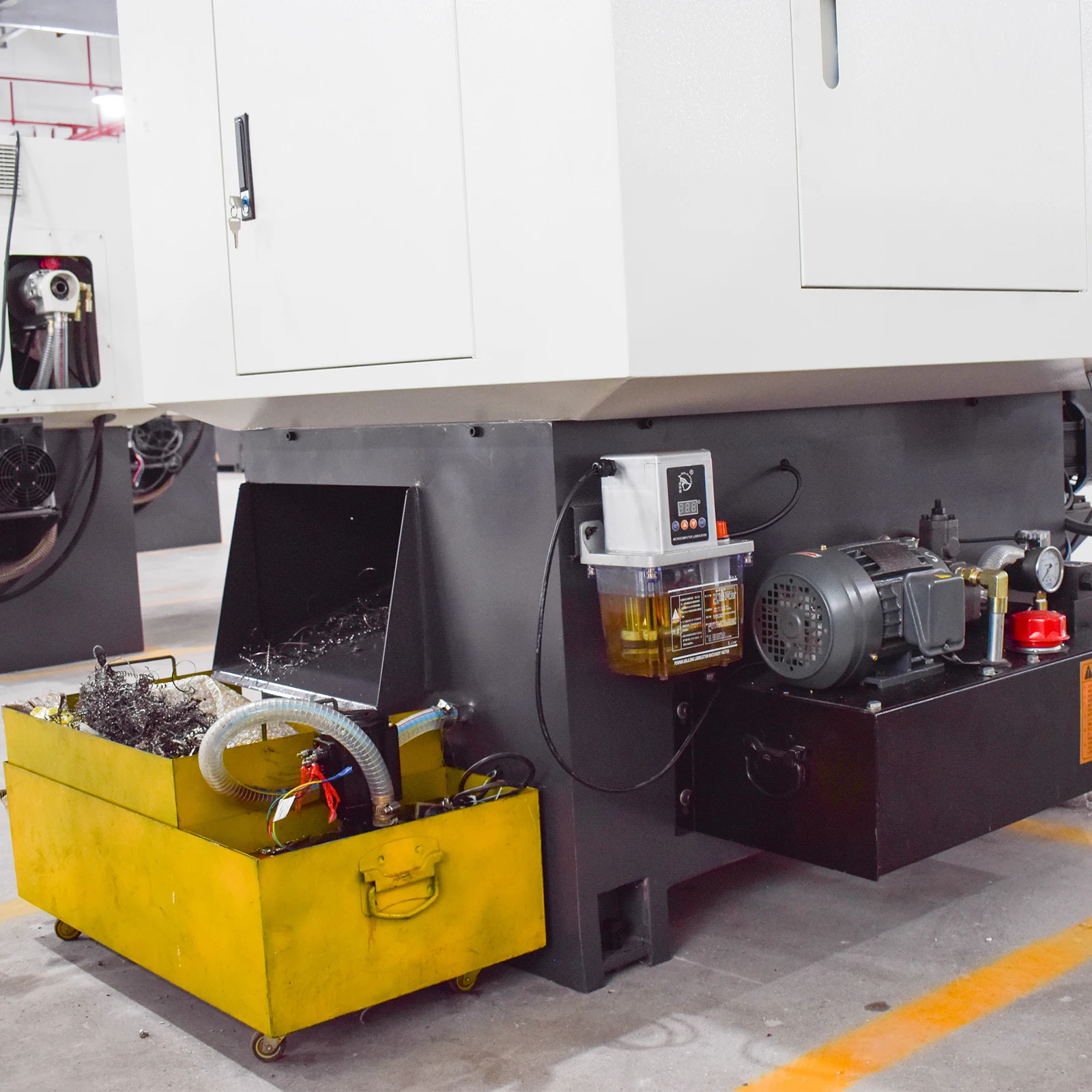

Equips with auto lubrication system to ensure transmission system smoothly and long-term running.
The high rigidity cast base and gantry provide confidence of perfect stability and high precision when the operation.
2.2 kW, 4000 RPM spindle motor; Taiwan H-class linear guide rail; Max. length of workpiece is 180mm
Related Products

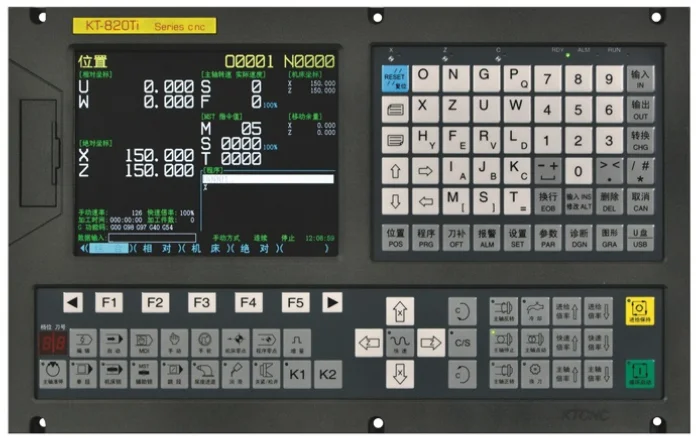

System
KT820TI system supports X, Z two-axis control, KT830TI system supports X, Y, Z three-axis control. Support 0.001mm interpolation accuracy, support straight line, arc, ellipse, parabola interpolation. Support statement-style macro command editing, support macro program call with parameters. With a USB interface, it is convenient to copy the processing program and import and export the system parameters. It can turn all kinds of threads, the length of thread run-out, and the angle of thread cutting can be set. It has multiple compound cycle functions such as tapping, deep hole drilling, grooving, internal and external cylindrical surface, and end surface cycle processing. Backlash and pitch compensation maximize machining accuracy. It has a variety of special functions such as chamfering function, automatic repeated feeding, conditional waiting, etc.

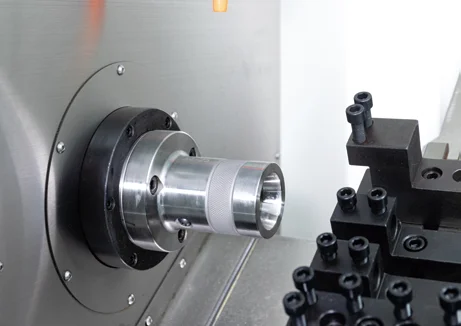

Spindle

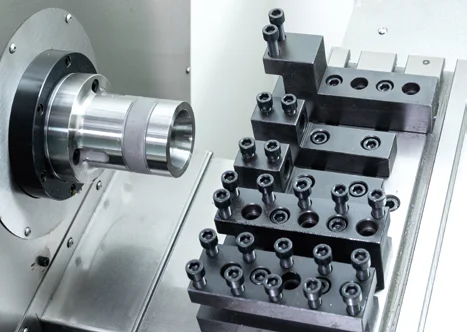

The self-made high-speed paired bearing unit spindle adopts angular contact high-speed bearings, and the normal speed is 3500/min, which is suitable for large-scale machining. The clamping method can be changed from hydraulic to pneumatic clamping according to different usage occasions of customers. If high-speed and high-gloss requirements are required, a 6000-rpm high-speed electric
spindle can be selected.
spindle can be selected.

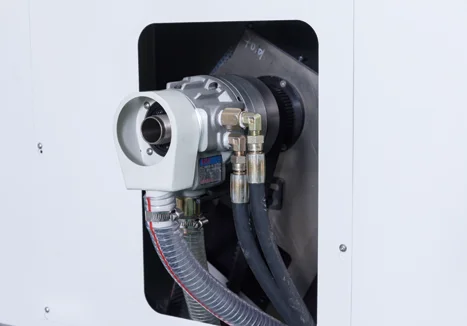

Rotary Cylinder
The standard configuration adopts a hydraulic rotary cylinder to make the clamping force stronger, more stable and have a longer service life. It can be replaced with pneumatic clamping according to the actual situation.
ball screw
Taiwan brand 25 mm ball grinding precision grade screw rod
Linear Guides
Taiwan brand 25mm Linear Guides precision grade
Machining of long shaft workpieces
It can realize the processing of 120mm long workpiece with the nozzle holder.
Application
