Product Overview
Description
Products Description

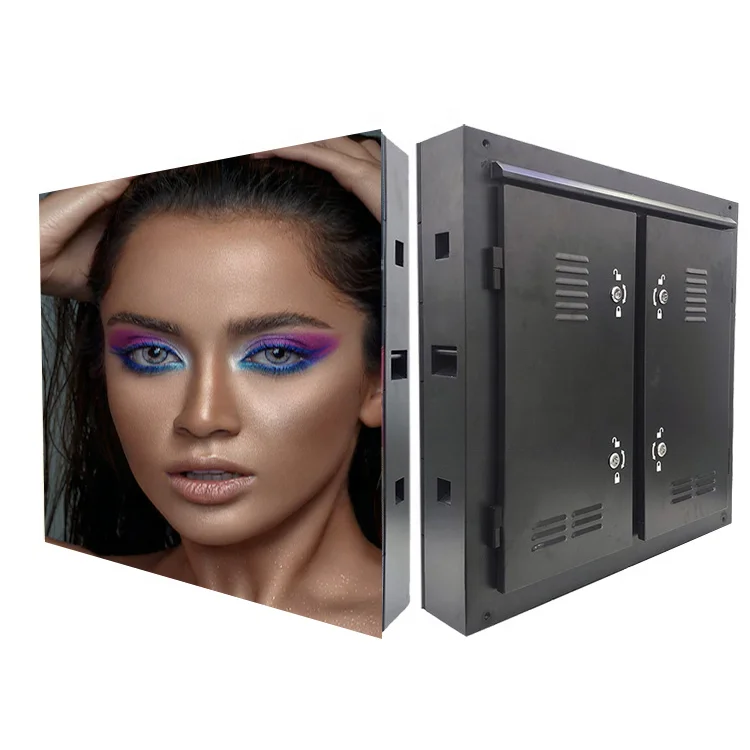

1、Die-casting Magnesium Outdoor LED Display Magnesium-aluminum die-casting cabinet,93% magnesium, full cabinet weight 27kg.
2、Energy saving, IP65 weather rating, adjust the brightness.Your first choice for outdoor led advertising.
Application Places
Ideal for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate.Hotel, Stage rental,TV、Large market、Playground.

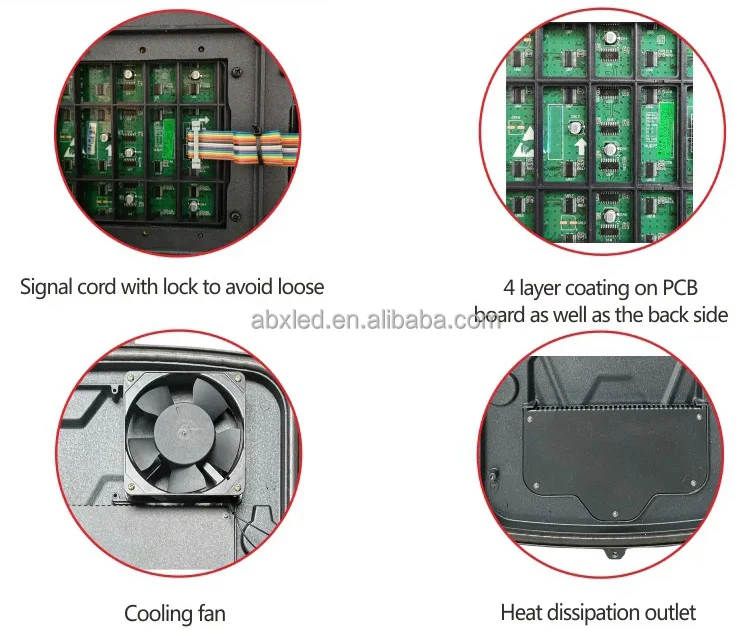

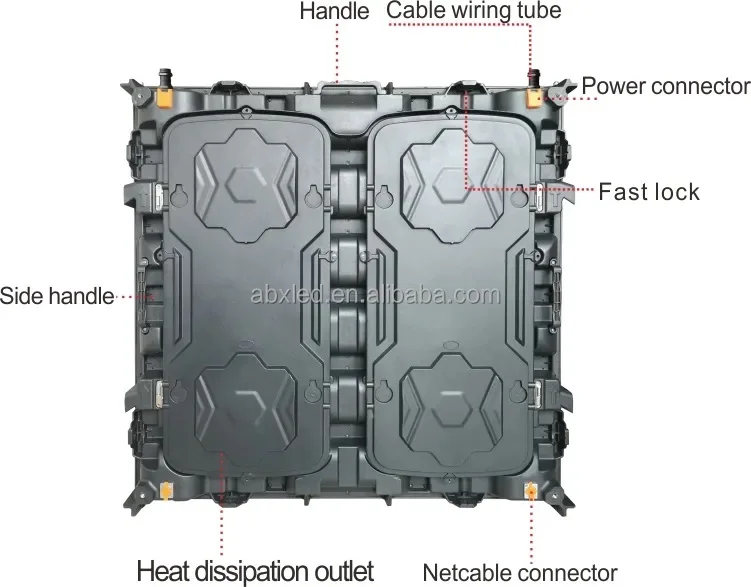

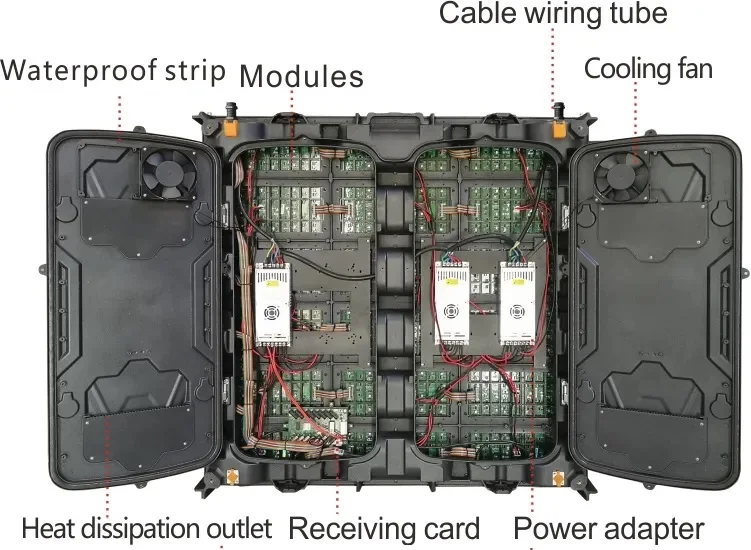

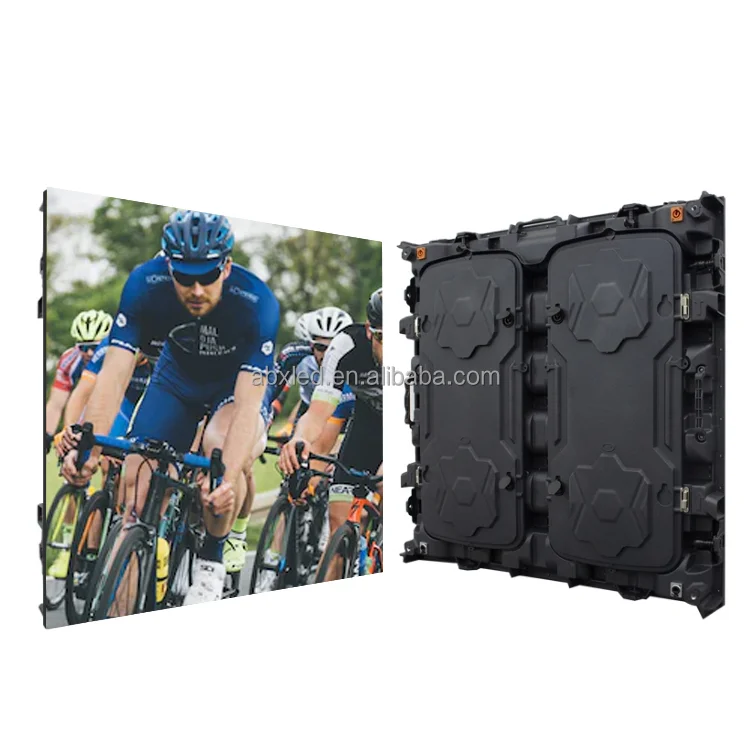

Perfect Cabinet Design With Each Part
ABX960B LED display is designed with aesthetics and industrial idea.Excellent product came in all details from cabinet handle.cabinet fixed slot, fast lock, Power& signal connector,

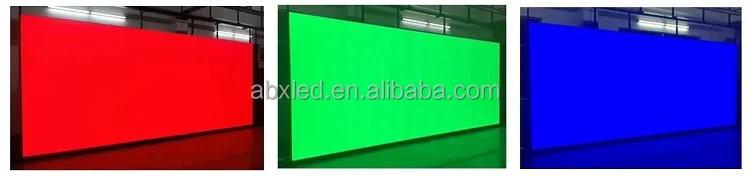

All of our LED display will be tested at least 48 hours before shipping. They will be tested full red, green, blue and white color to see whether there is defect pixels
1.Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle.Changing the pixel spacing is also very convenient, just change the modules .
1. 2.Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
1. 2.Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
ABXLED led LED display screen 3840 high refresh rate and 16 bit high gray level
Specification
960mm*960mm(3.15ft*3.15ft) LED Display ABX960B Series | ||||||||||||||
ITEM | UNIT | ABX960B-P3 | ABX960B-P4 | ABX960B-P5 | ABX960B-P6.667 | ABX960B-P8 | ABX960B-P10 | |||||||
Pixel Pitch | mm | 3.076 | 4 | 5 | 6.667 | 8 | 10 | |||||||
Pixel Matrix Per | Pixel/sqm | 105625 | 62500 | 40000 | 22500 | 15625 | 10000 | |||||||
Module Pixel structure | N/A | SMD1921 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 | |||||||
Brightness | nits | 4500-5500Nits | 4500-5500Nits | 4500-5500Nits | 5000-6000Nits | 4500-6000Nits | 4500-7200Nits | |||||||
Scan | N/A | 1/13 | 1/13 | 1/10 | 1/6 | 1/5 | 1/4,1/2 | |||||||
Cabinet Resolution | Pixel | 240×240 | 192×192 | 160×160 | 144*144 | 120*120 | 96*96 | |||||||
Power Con. (Max / Avg) | W/sqm | 600/180 | 600/180 | 600/180 | 600/180 | 600/180 | 600/180 | |||||||

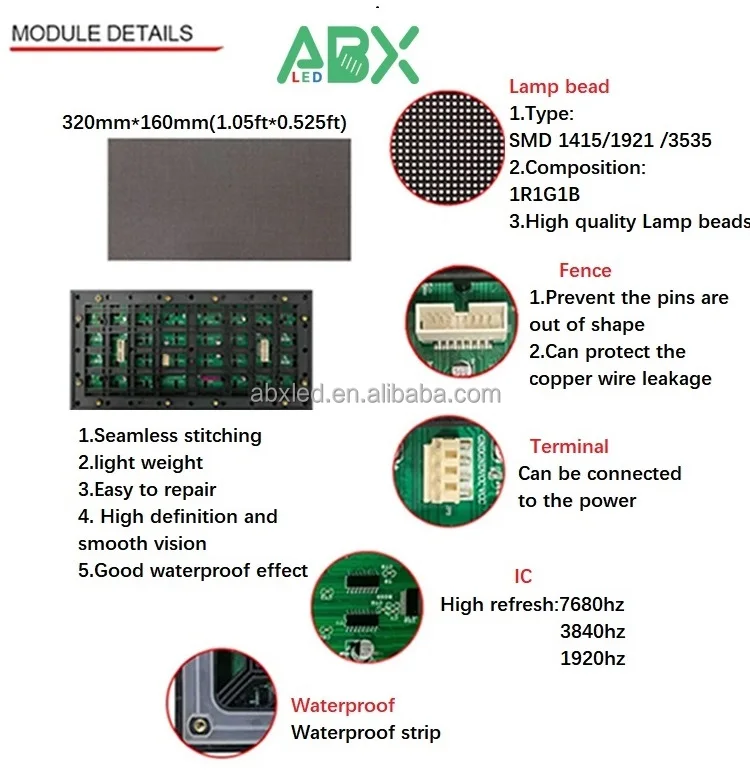

Module Dimension | mm | 320x160 | 320x160 | 192x192 | 320x160 | 320x160 | 320x160 | |||||||
Cabinet Dimension | mm | 960x960x138 | 960x960x138 | 960x960x138 | 960x960x138 | 960x960x138 | 960x960x138 | |||||||
Cabinet Weight | kg | 33kg | 33kg | 33kg | 33kg | 33kg | 33kg | |||||||
Service Access | N/A | Rear | Rear | Rear | Rear | Rear | Rear | |||||||
View angle | ℃ | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° | |||||||
Refresh Rate | Hz | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | |||||||
Grey Scale (bit) | bit | 16 | 16 | 16 | 16 | 16 | 16 | |||||||
IP Rate | IP | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | |||||||
Life span | hrs | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs | |||||||
Working Temperature | ℃ | -30-60 ℃ | ||||||||||||
Storage Temperature | ℃ | -30-60 ℃ | ||||||||||||
Power Supply | V | AC100-240V(50-60Hz) | ||||||||||||
Color temperature | N/A | 3000-10000 K(adjustable) | ||||||||||||

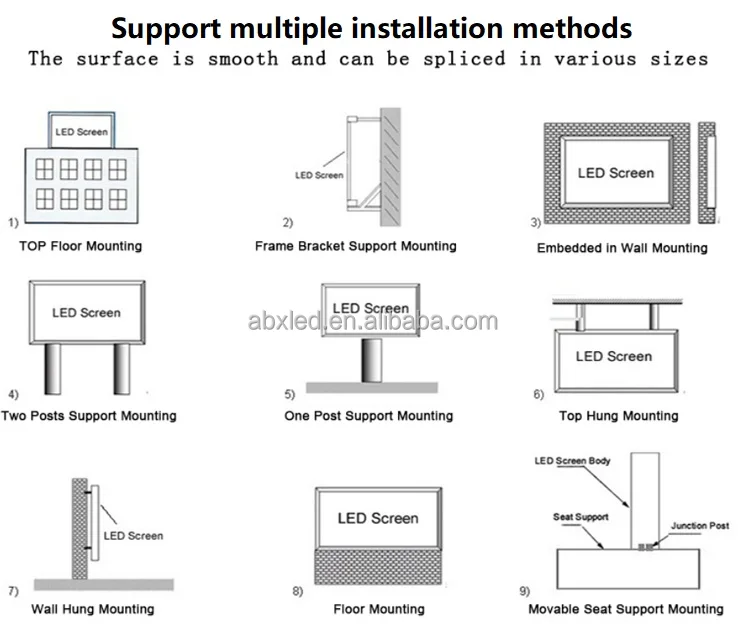

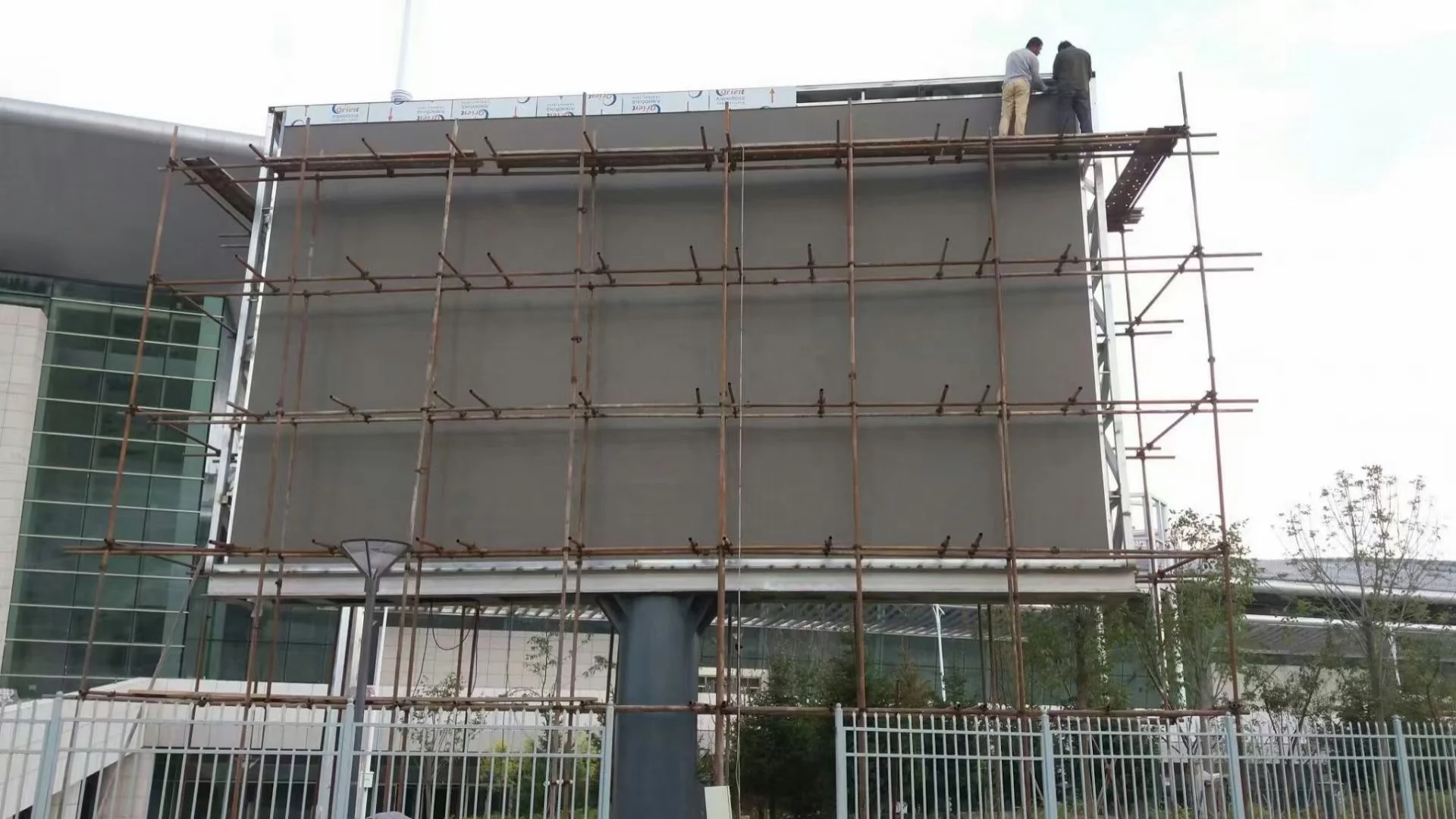

Outdoor LED display installation instructions

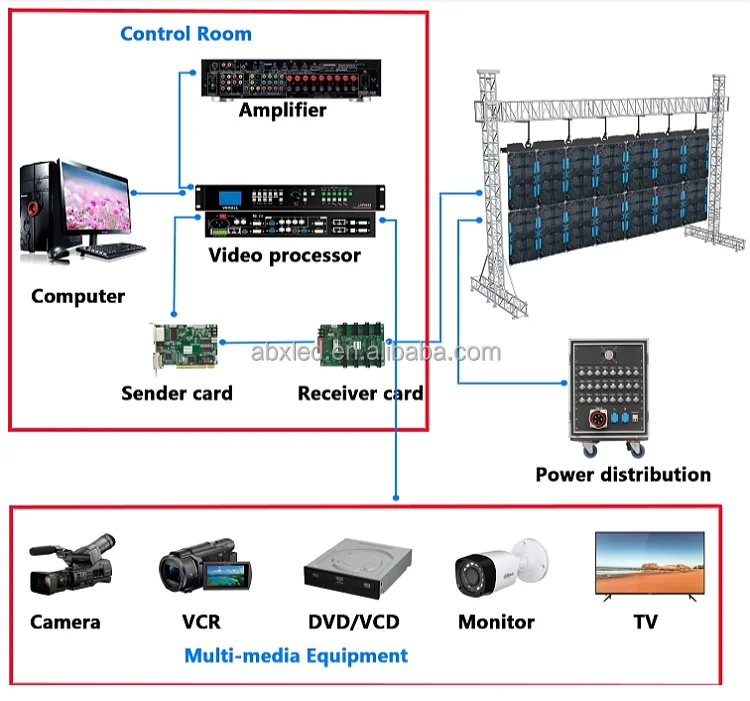

Led display system control diagram

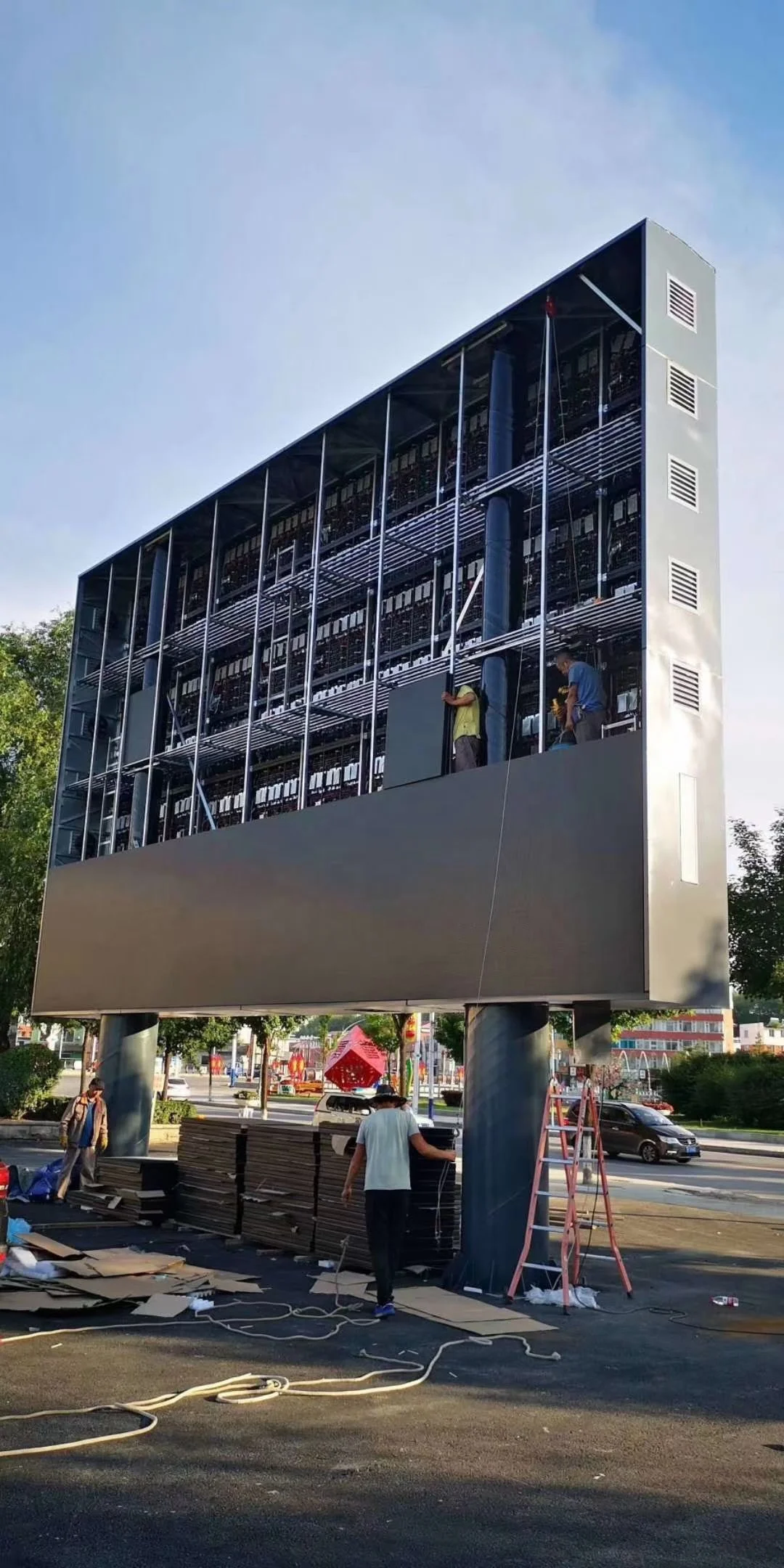

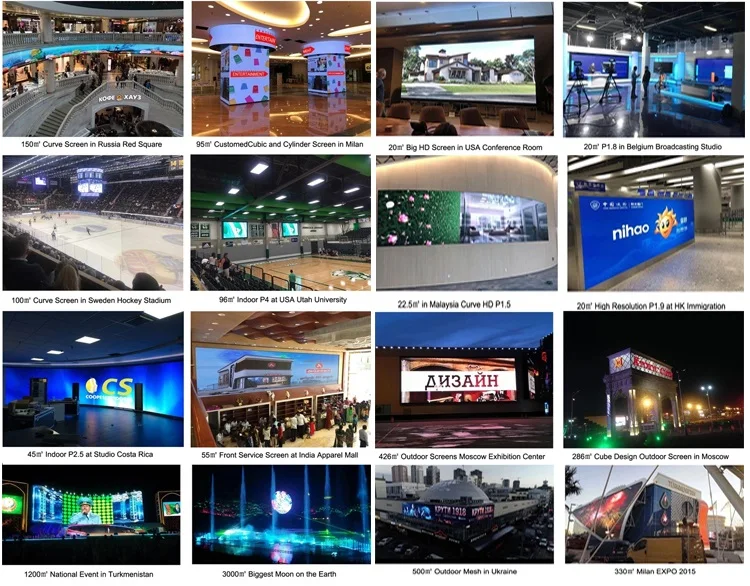

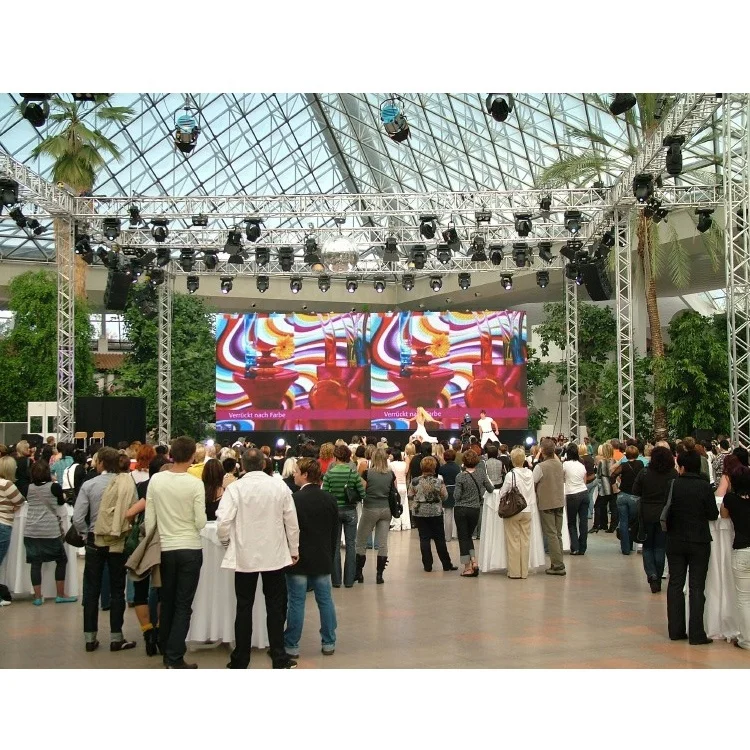

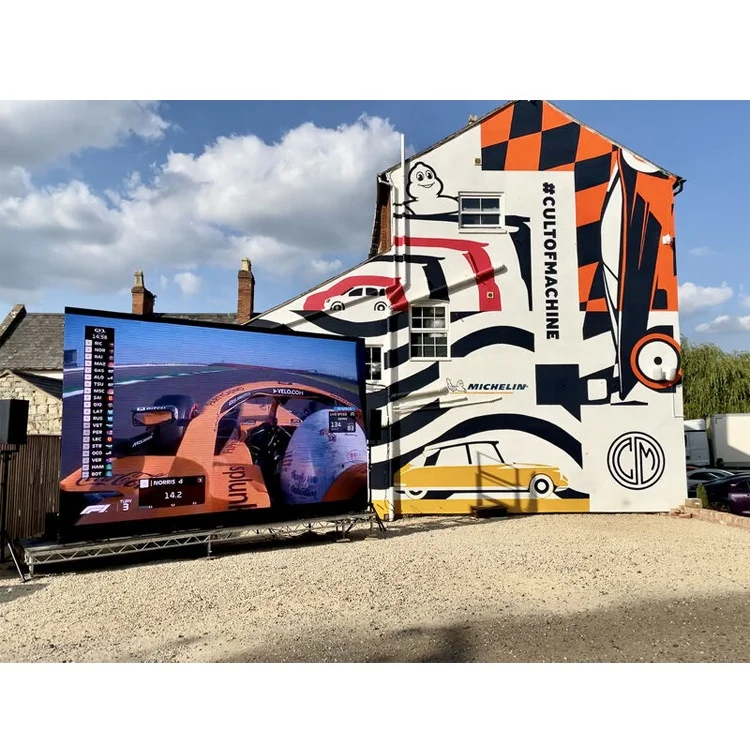

Outdoor Led Display Case
Certifications

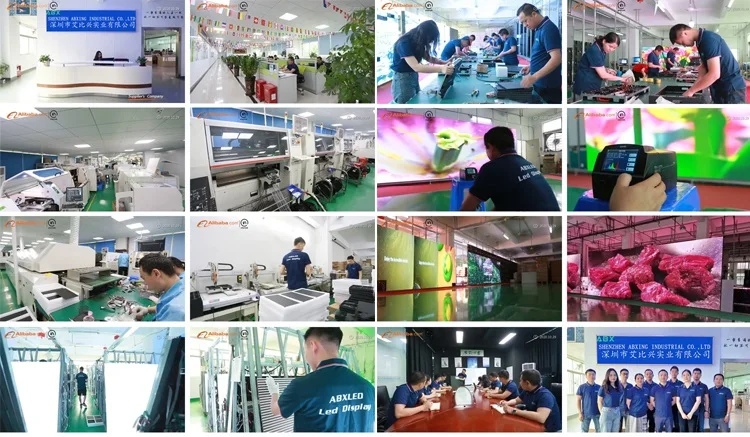

Factory
Shenzhen Abxled Industrial Co., LTD. (ABXLED) is the leading supplier of LED display who specialize in LED Display R&D,manufacture, sales and service. Also provide integrated LED display solutions. 3,000 square meters production capacity with 7 modernized dust-free and static-free production lines, by 6 new high speed SMT machines, 2 large leadless reflow oven, and more than 300 skilled workers. Various indoor and outdoor products such as UHD LED Display, Indoor & Outdoor Rental LED Display, Indoor & Outdoor Commercial LED Display, Smart Terminal LED Display, Stadium LED Display, Customized irregular LED Display, Transparent led display ,Indoor and outdoor poster screen etc, which achieved professional international authority of CE, ROHS, FCC, UL and CCC certifications and so on. We strictly carry out ISO9001 and 2008 quality management system. ABXLED keep long term friendly relationship with our customers and achieved high reputation from our customers around the world.ABXLED is always your reliable
partner.
partner.

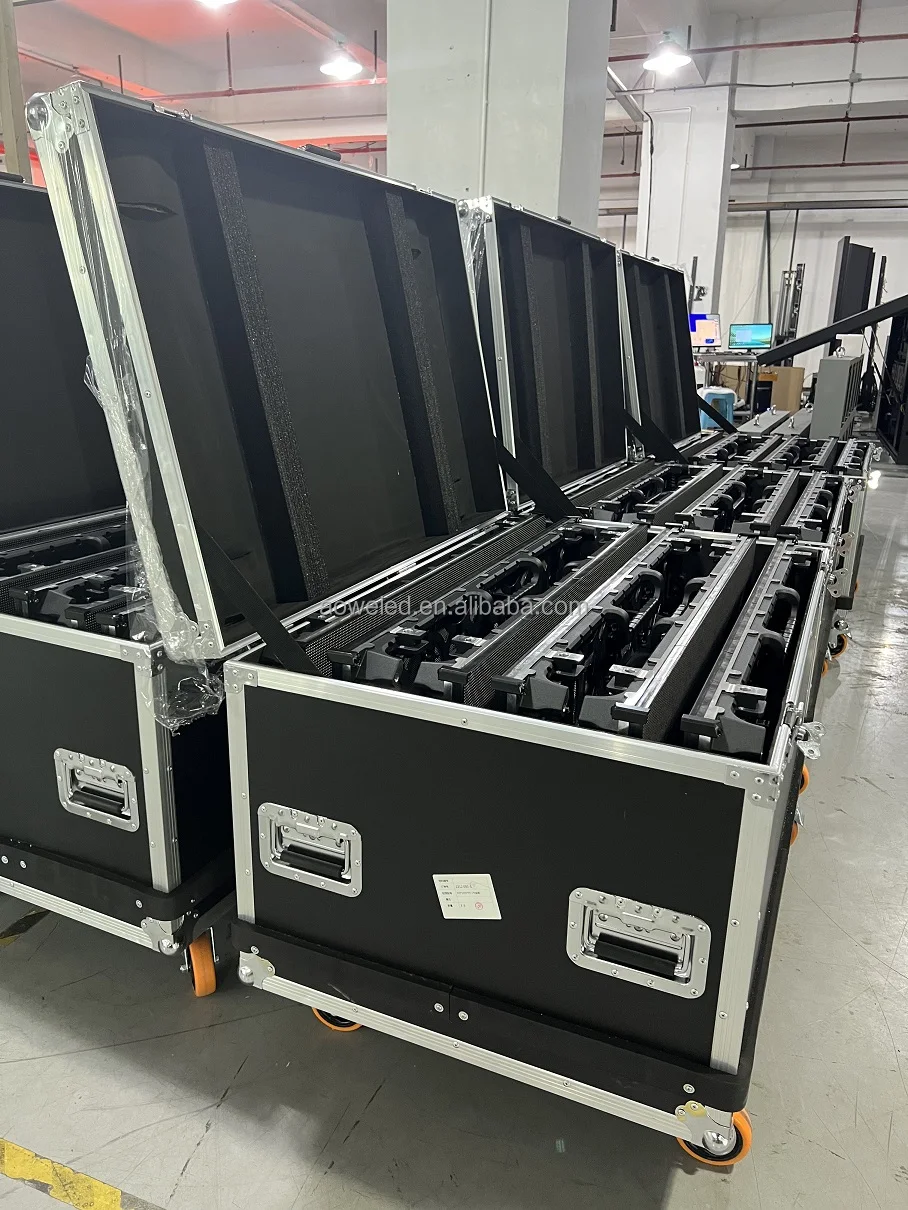

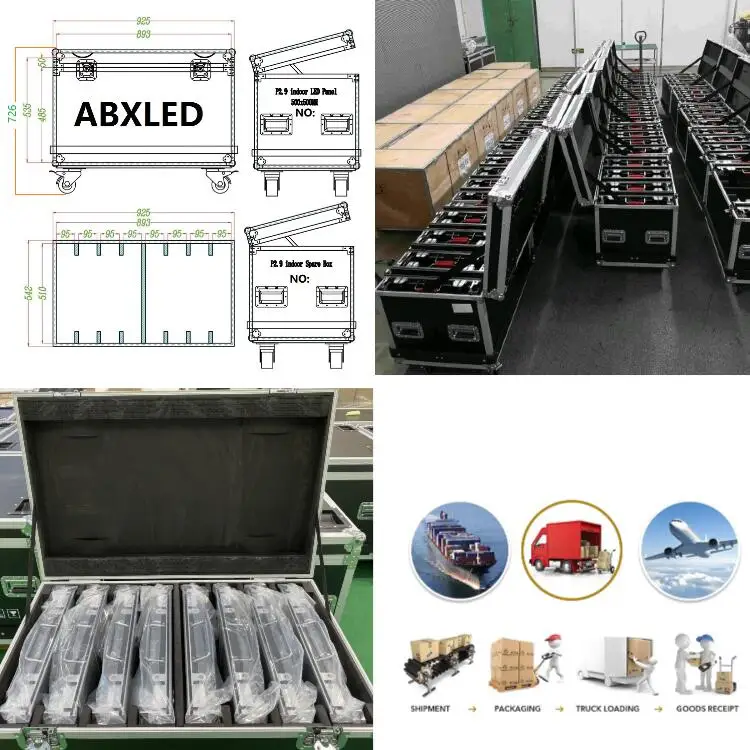

Packaging and shipping
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then
I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then
I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
