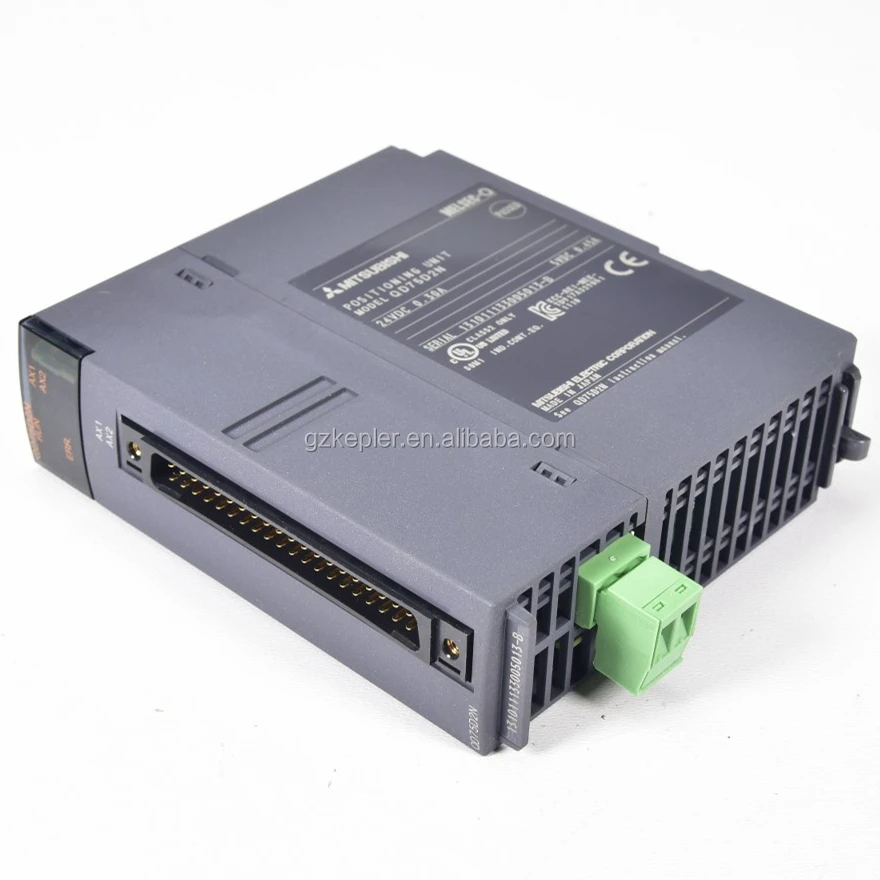

Mitsubishi Automation QD75D2N PLC Controller Module

This is the QD75D2N differential output positioning module of Mitsubishi PLC Controller.

Product manual:

2-axis, differential driver output type.
2-axis direct interpolation.
2-axis arc interpolation.
Control unit: mm, inch, degree, pulse.
Number of positioning data: 600 data / axis.
Maximum pulse output: 1Mpps.
40-pin connector.
Positioning module.
Open collector output type.
Differential driver output type.
