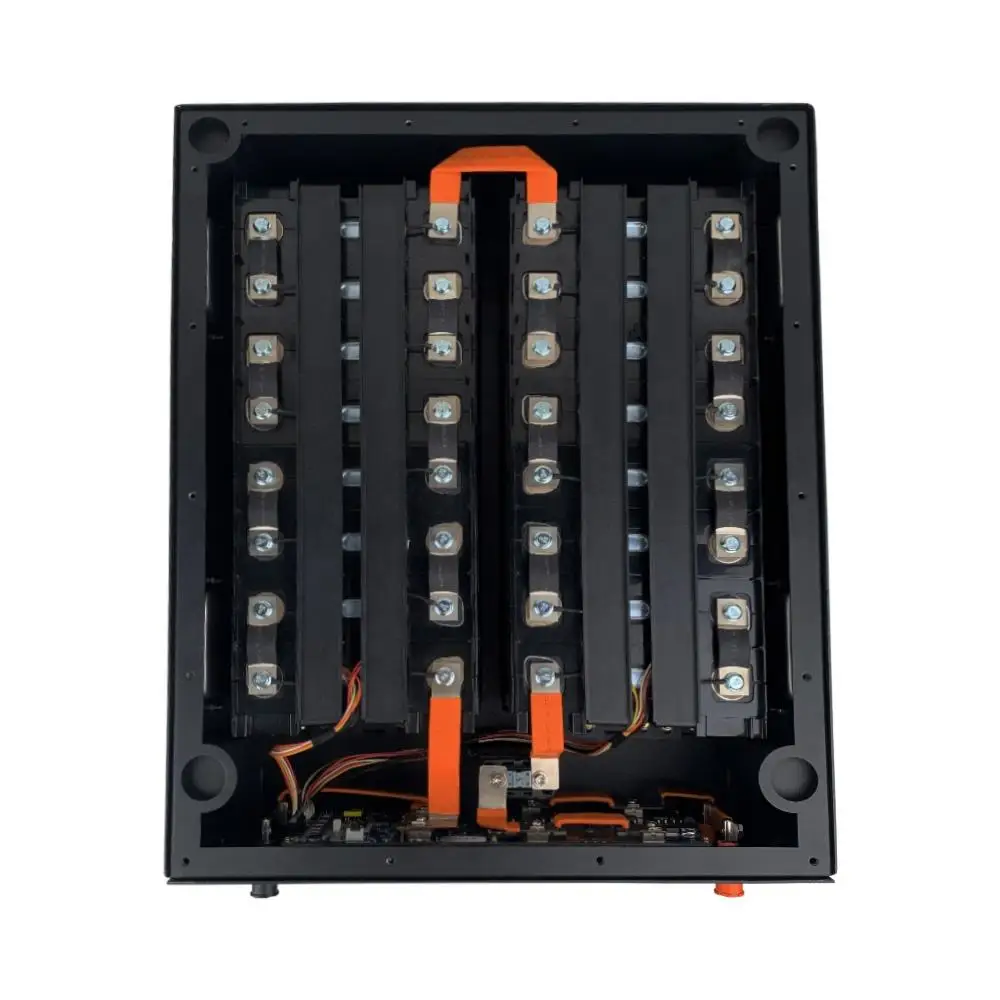

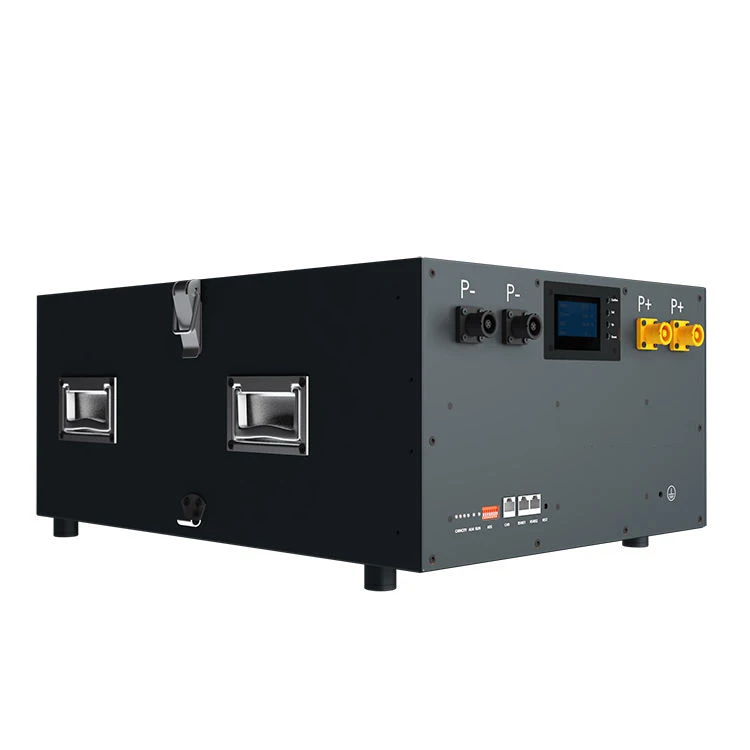

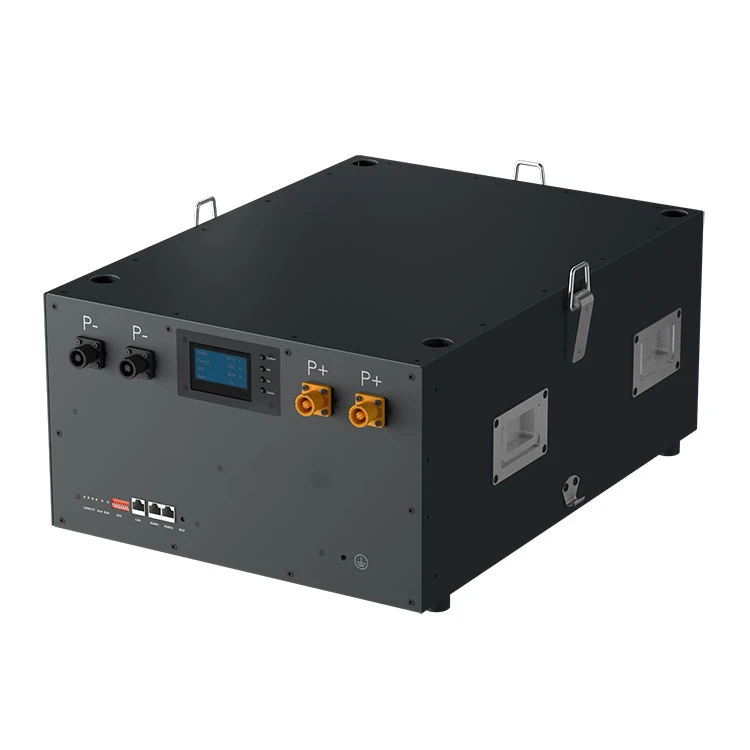

24V/48V 16S LiFePO4 DIY Battery Kit with TYPHON BMS 105Ah 230Ah 280Ah DIY Unit BOX Stack with TYPHON BMS With Bluetooth

Share on (1600870530686):


Price:

Quantity:


Product Overview

Description

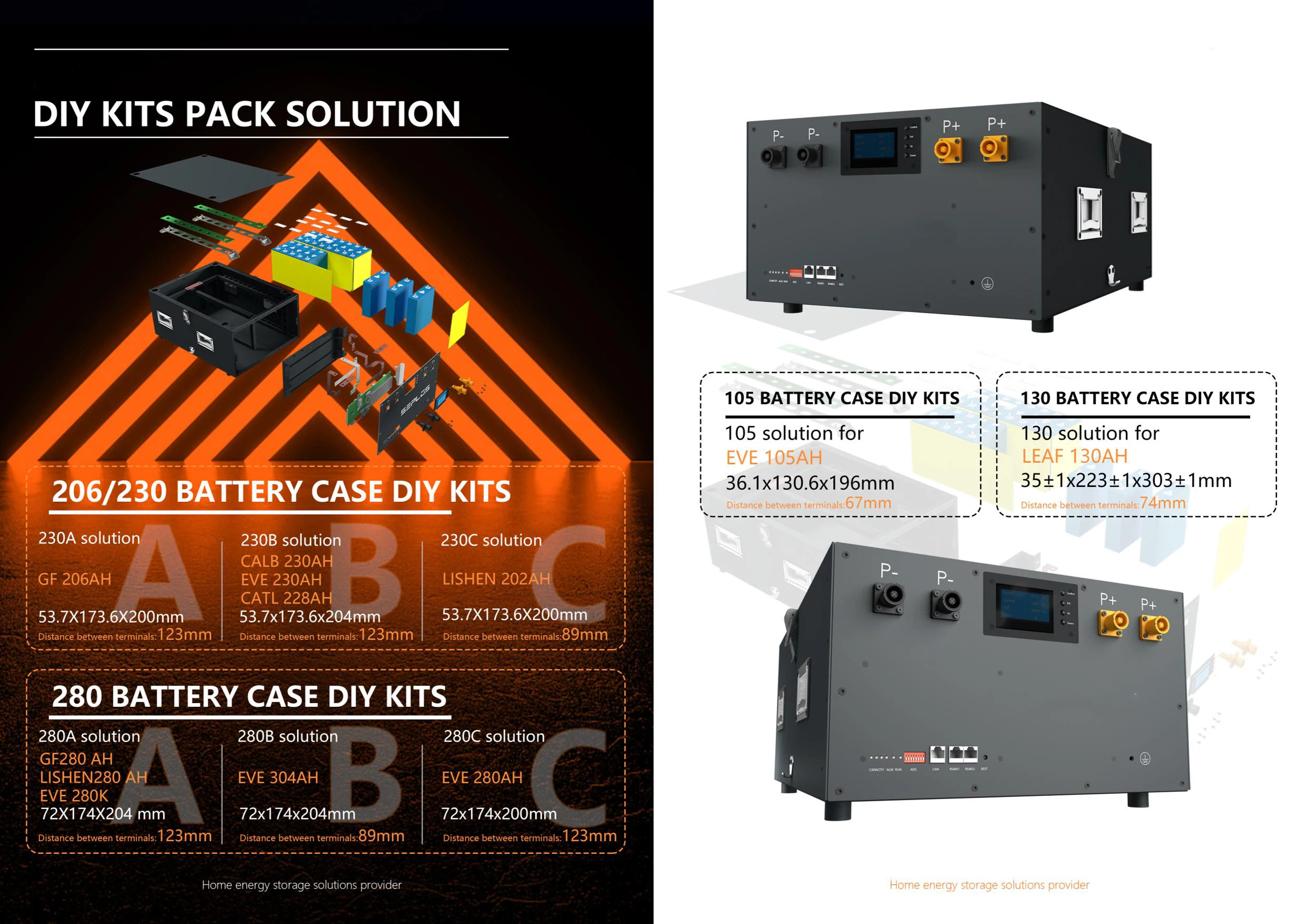

TYPHON Solar energy household Storage— DIY battery box compatible LFP cell list

TYPHON280 DIY kits( including 48V 200A BMS): EVE 280Ah/ EVE 304Ah/ EVE 280K/ GFB 280Ah/ LISHEN 280Ah
TYPHON230 DIY kits (including 48V 200A BMS): LISHEN202Ah/CALB 230Ah/ EVE 230Ah/ CALT 228Ah
TYPHON105 DIY kits (including 48V 100A BMS): EVE 105Ah

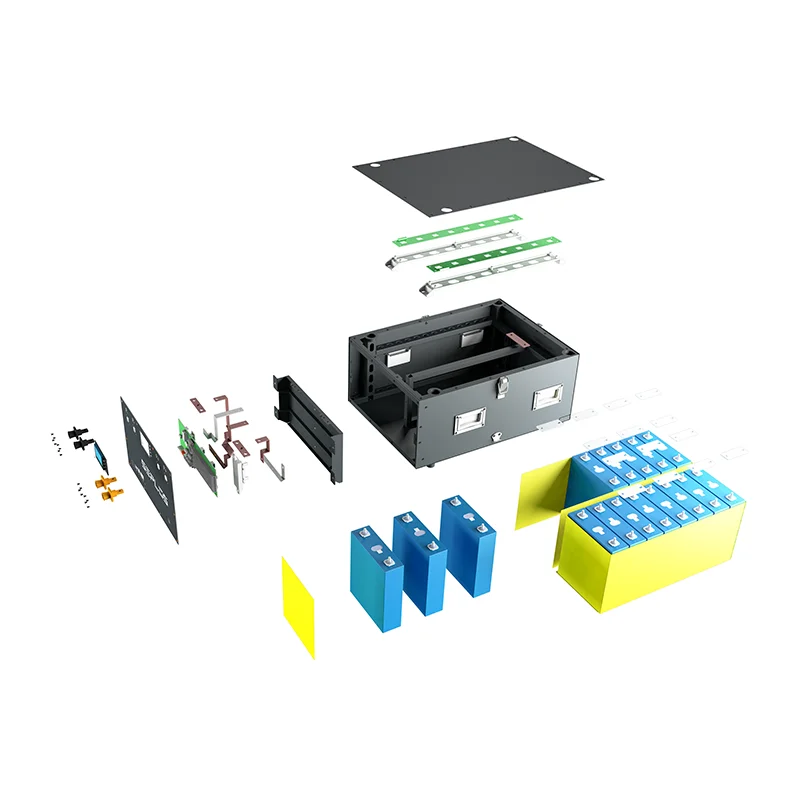

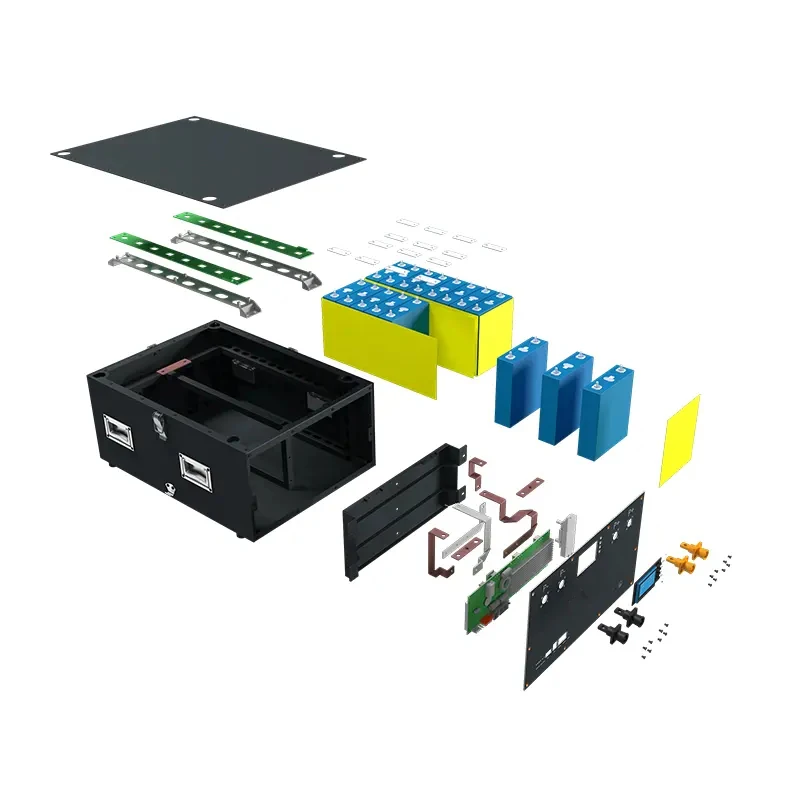

Packing List

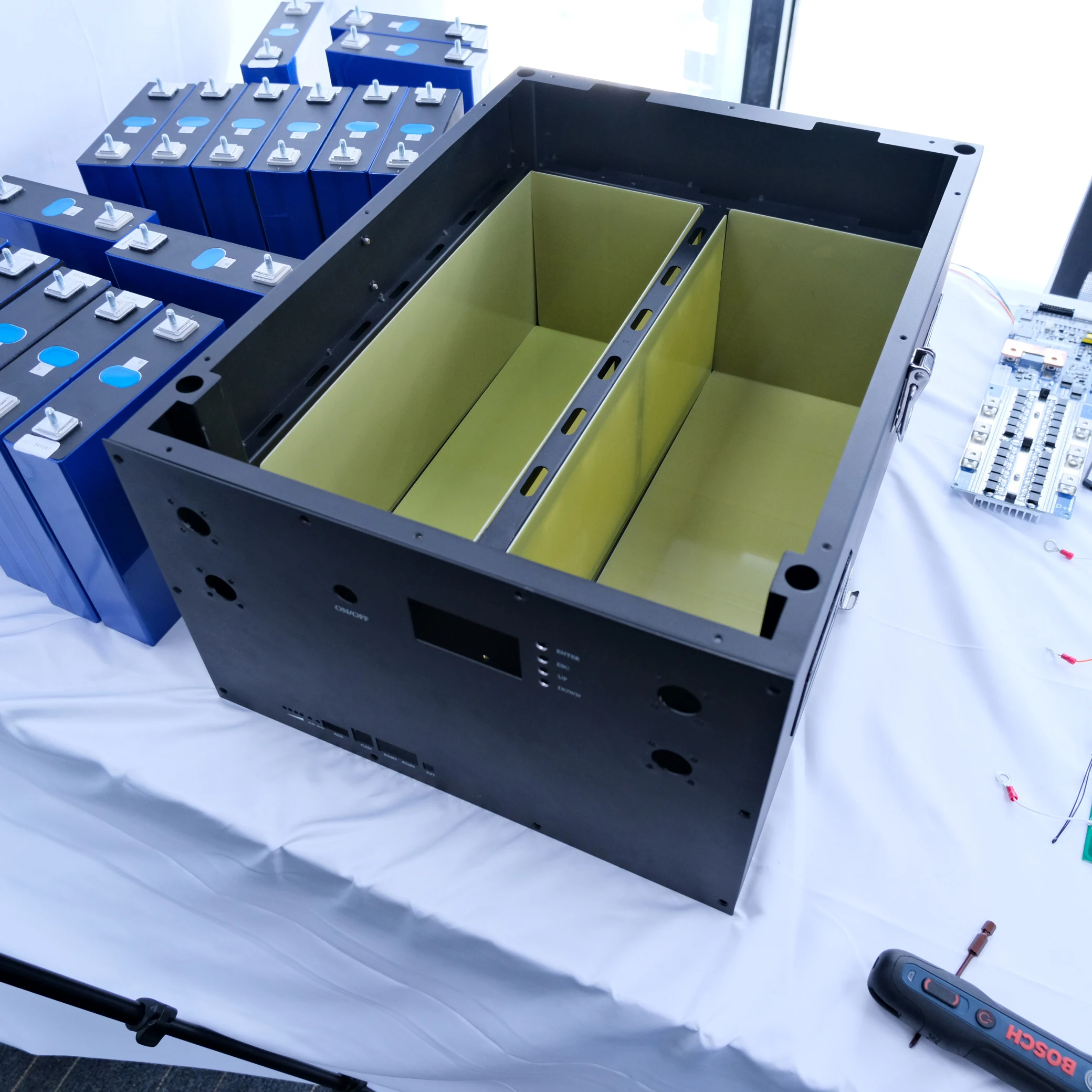

1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)

1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse

4 * Handle

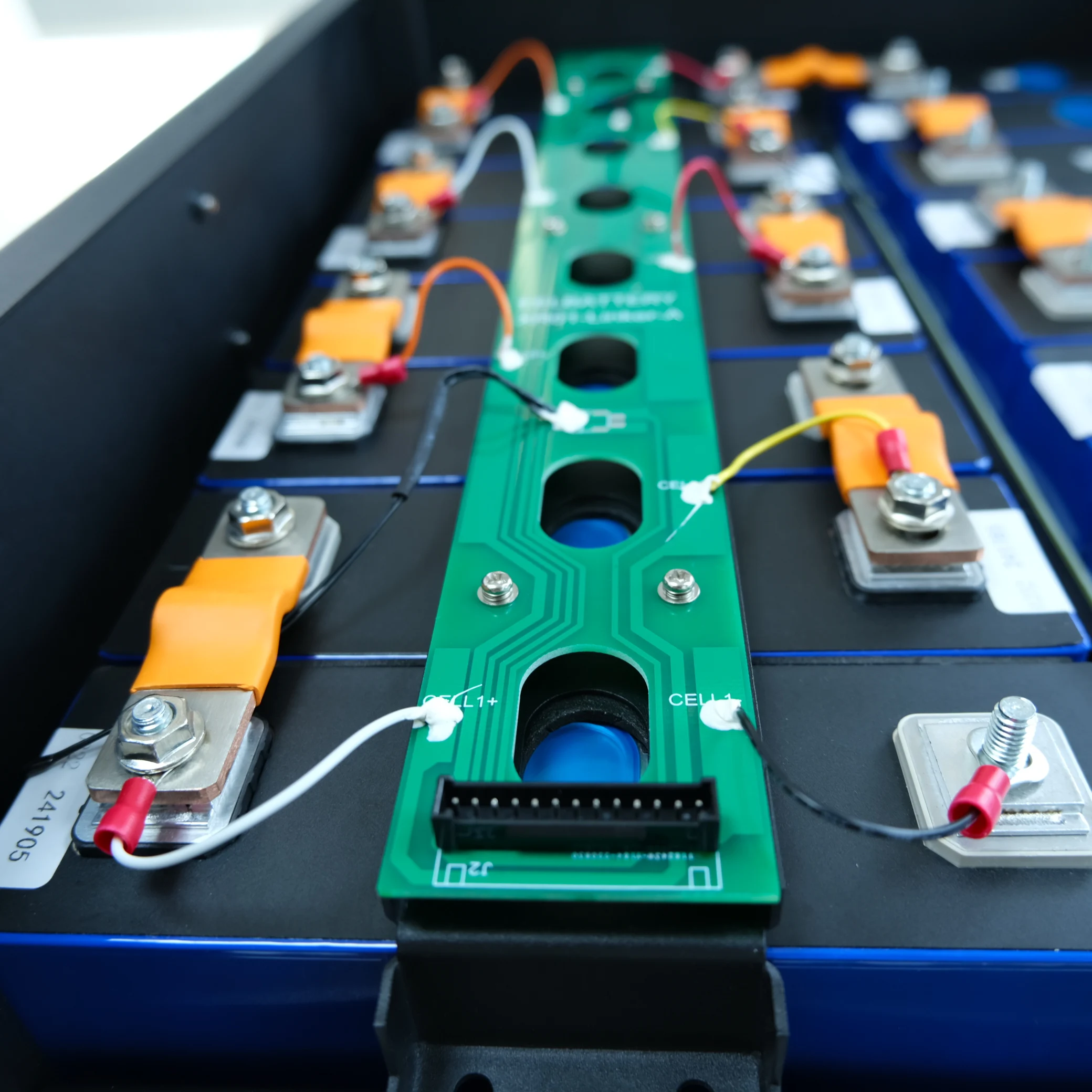

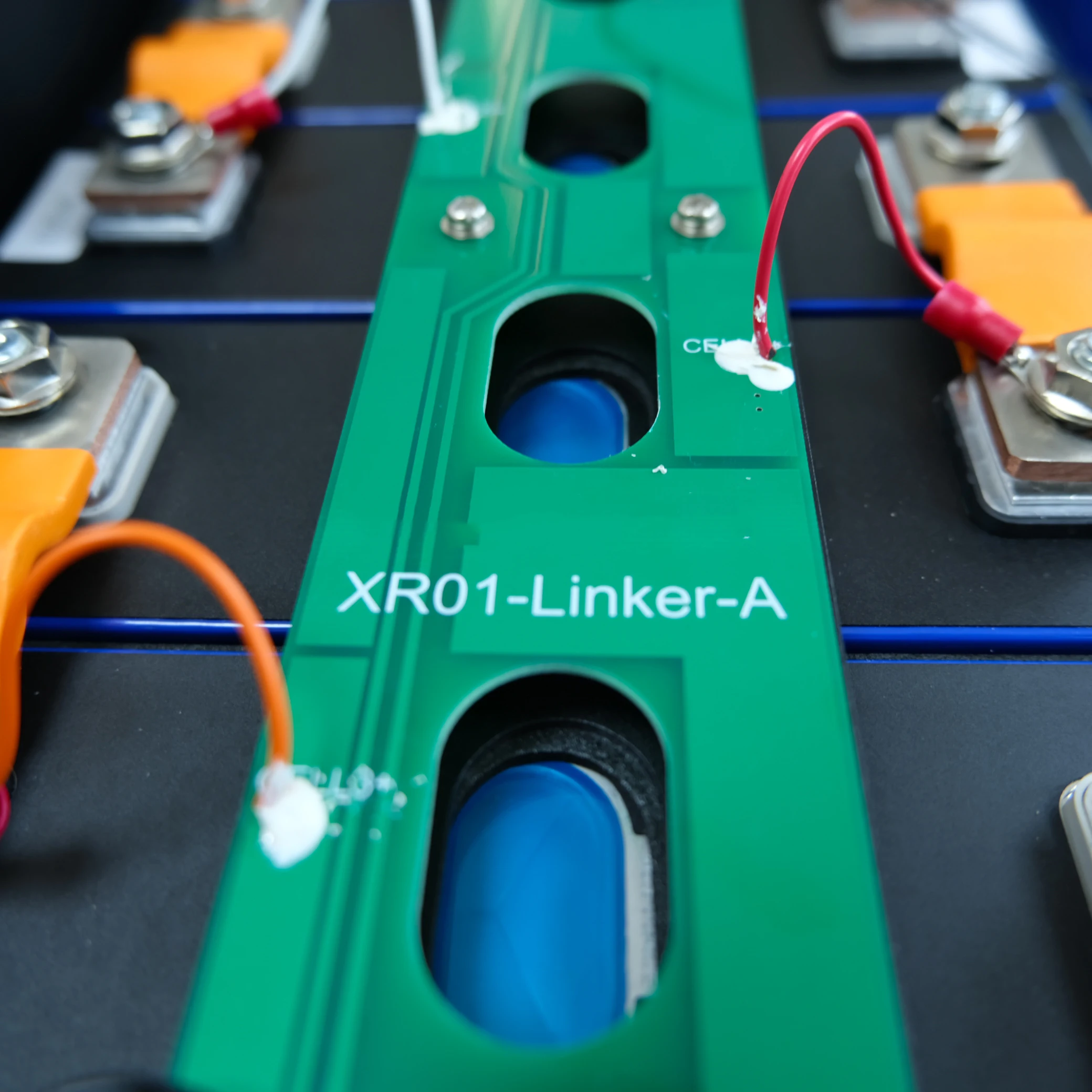

2 * PCB Board for BMS and Cell Connection

3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)

Other components includes:
6 * Copper bus bars (BMS connection)

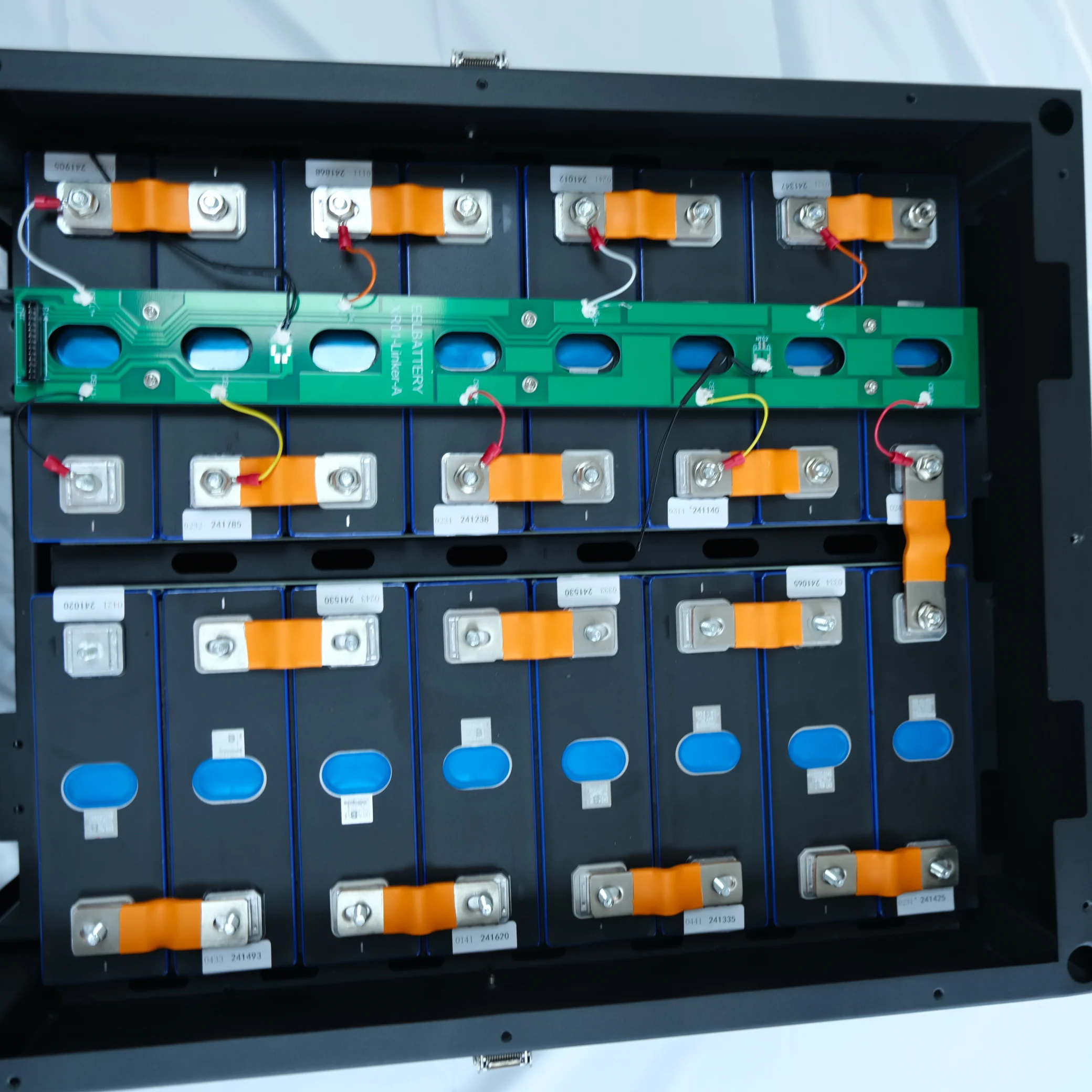

15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)

Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer










Company Profile

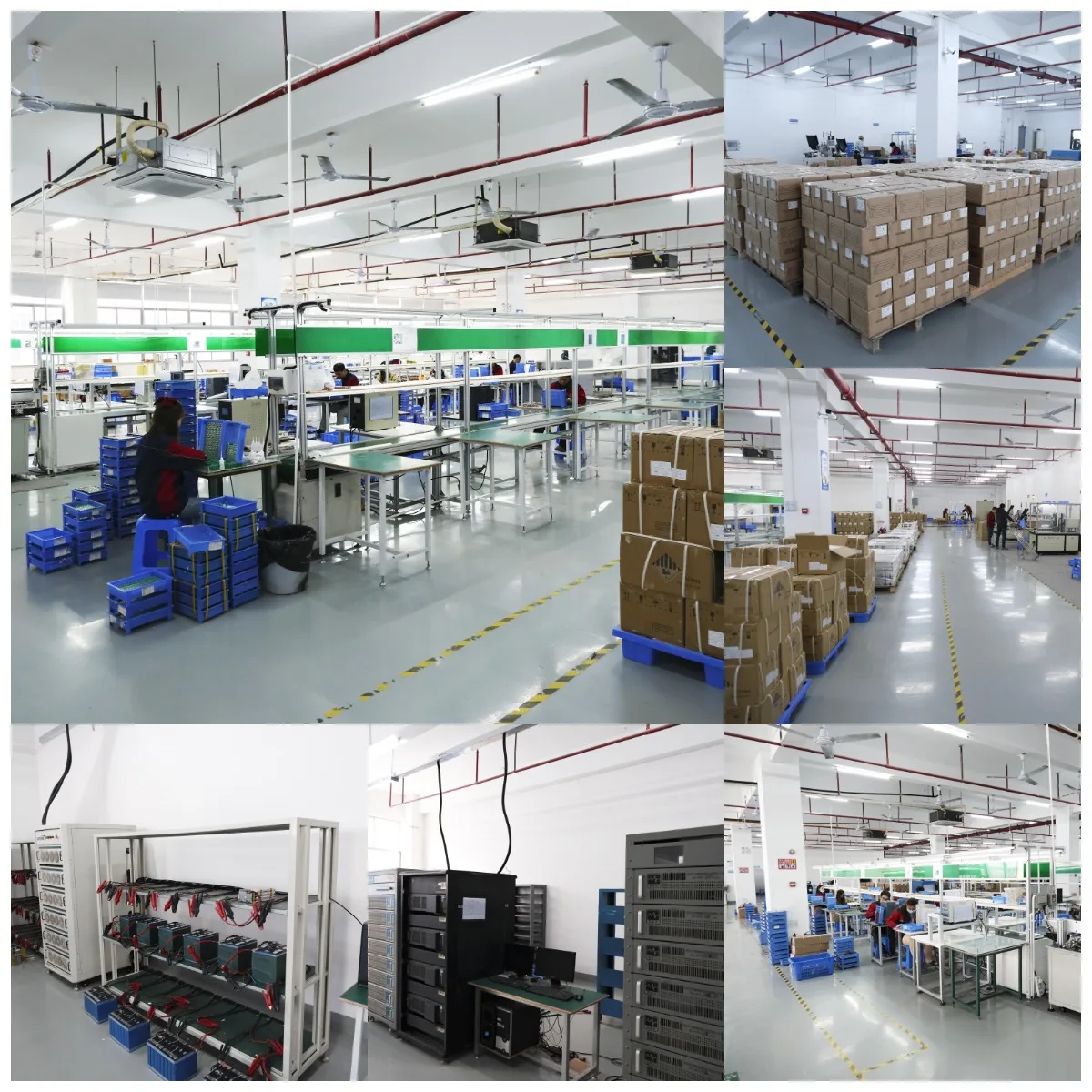

Typhon Co., Ltd is a professional manufacturer and exporter of lithium polymer batteries, LiFePO4 batteries, lithium battery packs, high-rate and high voltage lithium batteries, standard lithium batteries and other related items. Our products are widely used in aspect of airplane models, car models, toys, electric bicycles, gun models, high-end digital products, power banks, tablets, electric tools and military.

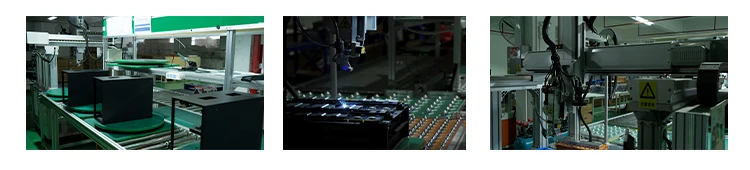

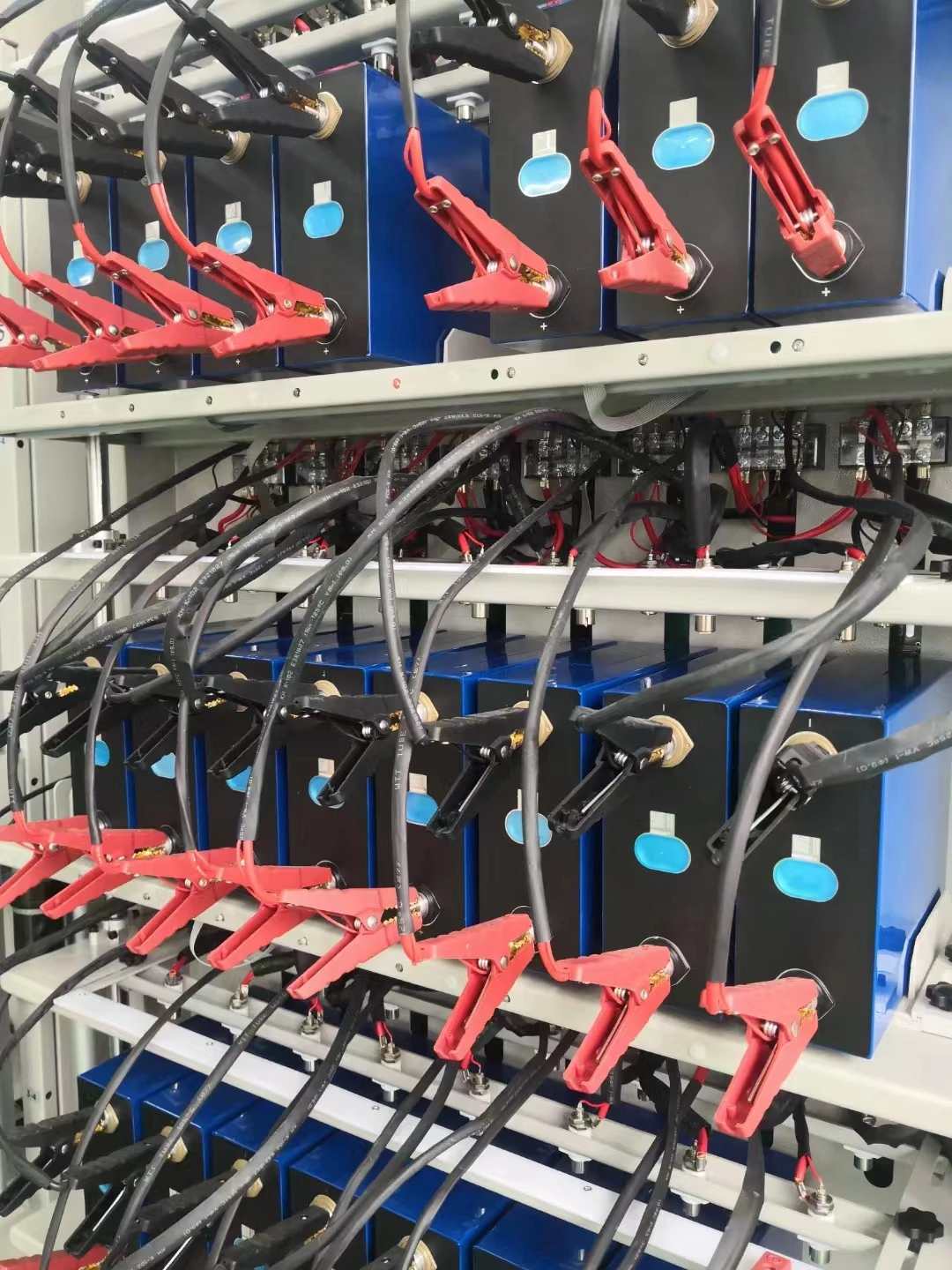

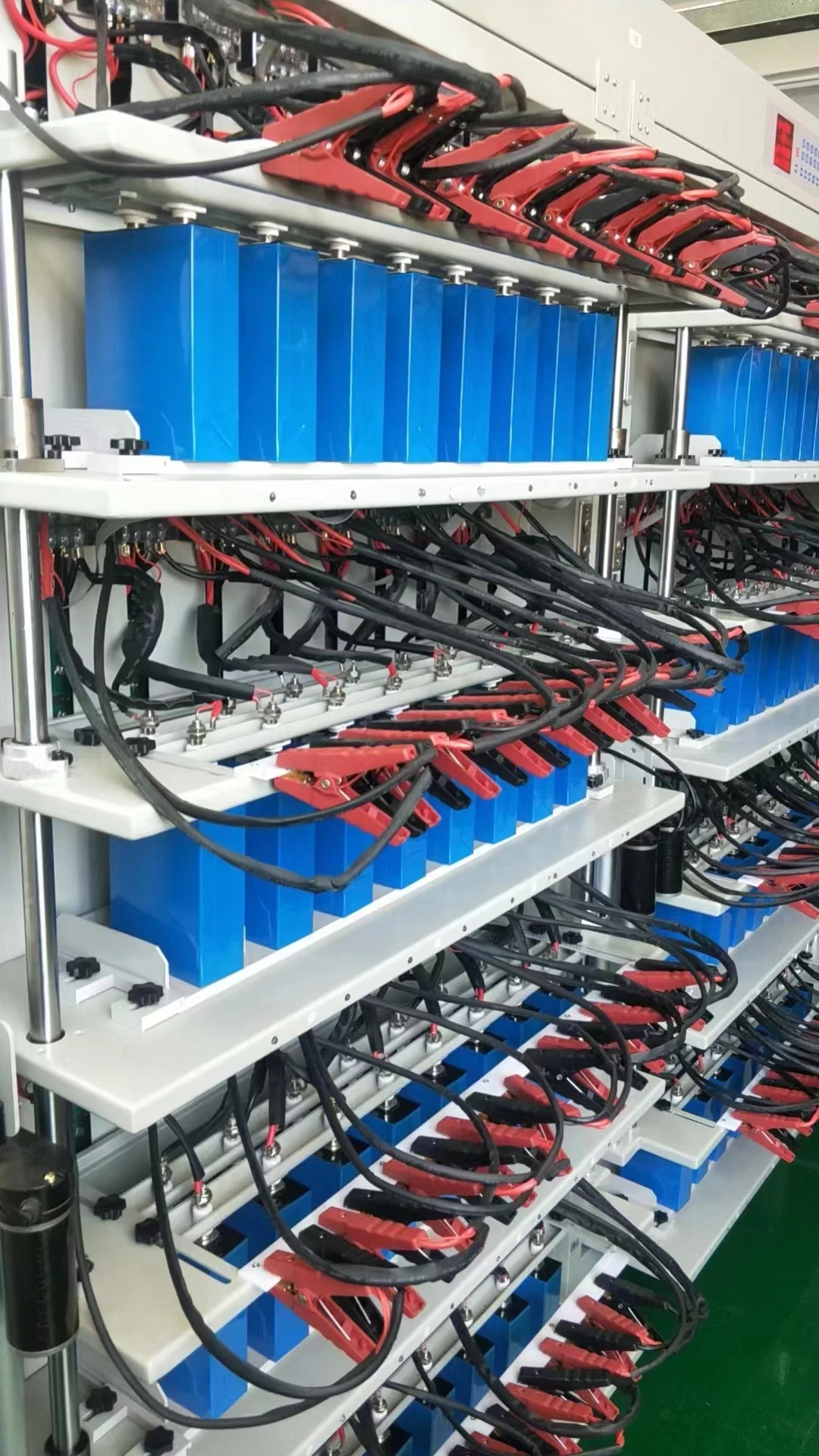

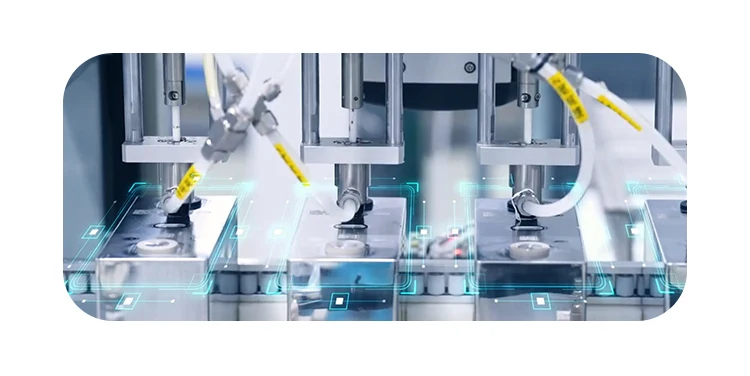

We have a professional team handling of R & D in our products. Meanwhile, with professional advanced battery test equipment that ensure our battery is maintaining a high level of quality and performance! The company has R&D and production of own-brand Typhon with light weight, large capacity, small volume, long life cycle, safe and reliable characteristics, and with its fashion style, stable performance, solid quality and quality service has won the customers favor and trust.

TYPHON Co., Ltd. In addition to sales of own brand products, but also provide OEM, ODM services to customers. We can provide customers one-stop services from the design, product development, circuit to mold development and manufacturing. Companies adhering to the innovation, cooperation and win-win business philosophy, adhere to the principle of "customer first" for the general customers to provide quality services. Our enterprise tenet: honesty, responsibility, enterprising, innovation! We will be in line with "customer first, quality first, credit first, sincere service flexible management, insisting on pursuing perfect!" tenet, for your expectation and demand make unremitting efforts!






FAQ


Q:How can I properly assemble the battery pack on my own?
A:Don't worry, we can provide DIY components and instructional videos, and you can also build your own battery pack

Q:How do I see the battery pack operation information?
A:This battery can communication with inverter,we can use adapter to connect battery pack and computer ,we can see the battery information through the monitoring software on the computer.

Q:Does the DIY kit come with warranty?
A:As it is assembled by the customer,we guarantee the battery pack for three years after the successful assembly,please see our DIY kit warranty for details
