HKW9700 M button style temperature control switch for electric motor
- Category: >>>
- Supplier: Huizhou Huakaiwei Electronic Sci&tech Co. Ltd.
Share on (1600870555752):
Product Overview
Description
Product Description

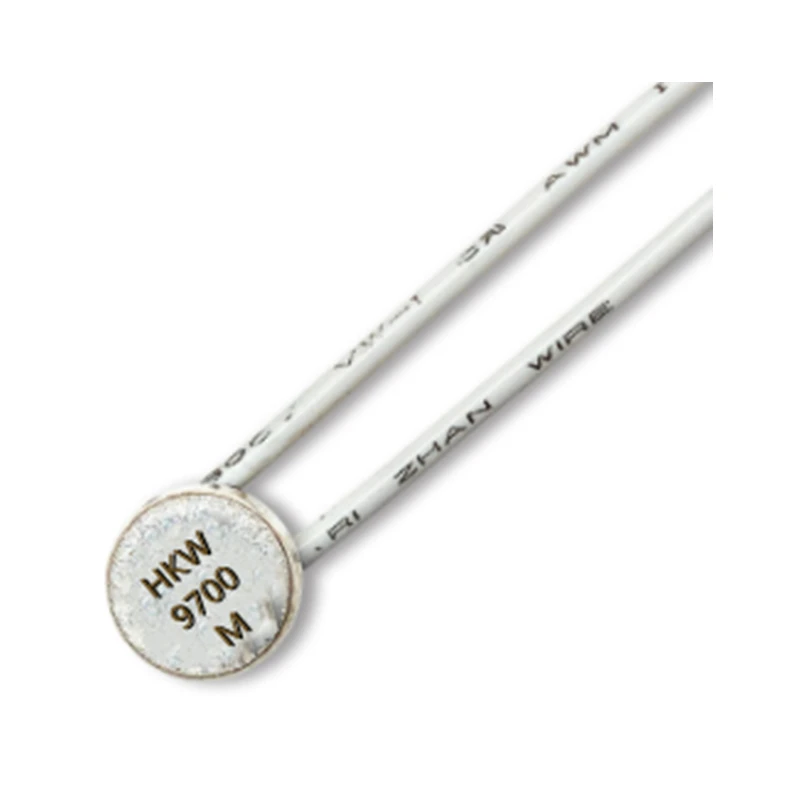

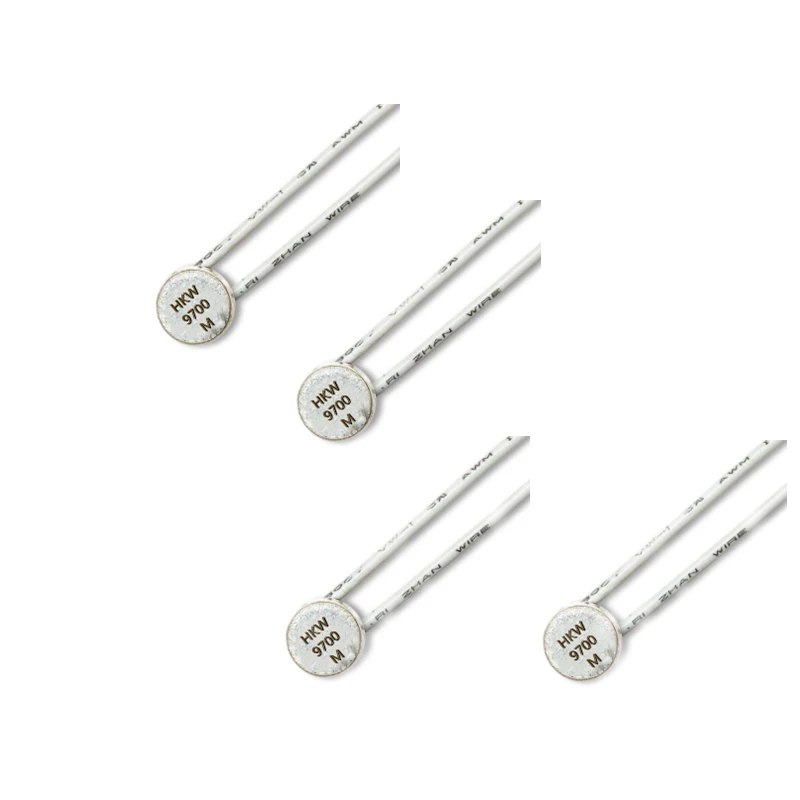

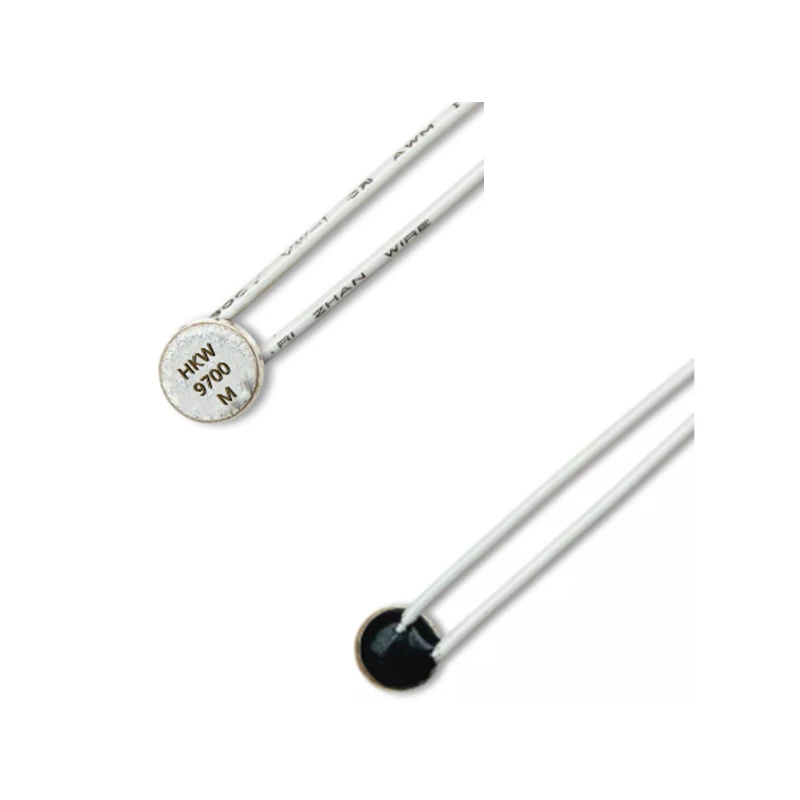

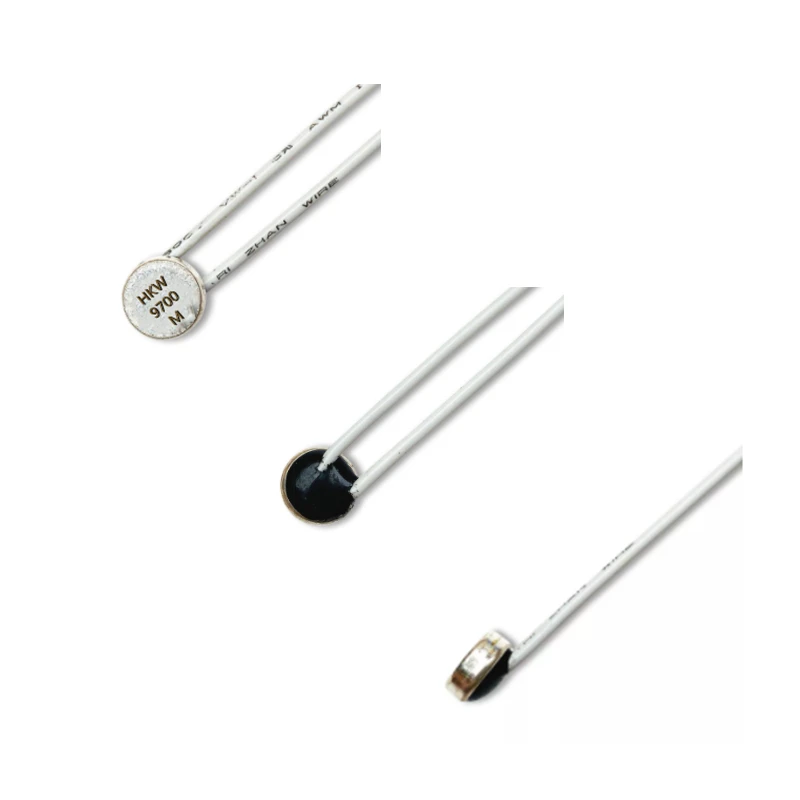

HKW9700M S01 type thermal protector
The HKW9700-M button temperature switch originated from German technology and equipment production, and after years of marketvalidation, it is currently the most frequently used temperature switch in high-end products.
HKW9700M S01 type thermal protector
The HKW9700-M button temperature switch originated from German technology and equipment production, and
after years of market validation, it is currently the most frequently used temperature switch in high-end products.
Feature
Production of imported equipment for German processes
Small size, stable structure
Verified through impact and vibration testing
Verified through applications such as audio and video
Small size, stable structure
Verified through impact and vibration testing
Verified through applications such as audio and video
Electrical specifications
AC250V / 3A
AC125V / 5A
DC12V / 10A
AC125V / 5A
DC12V / 10A
Technical parameter
Contact form: Normally closed
Action range: 65 ℃ -180 ℃ (one gear at 5 ℃ intervals)
Temperature tolerance: ± 5 ℃
Contact resistance: ≤ 50m Ω
Reset temperature: action temperature drops by 15 ℃ -45 ℃
Electrical strength: AC2000V/min without breakdown and flashover
Action life: ≥ 10000 times
Action range: 65 ℃ -180 ℃ (one gear at 5 ℃ intervals)
Temperature tolerance: ± 5 ℃
Contact resistance: ≤ 50m Ω
Reset temperature: action temperature drops by 15 ℃ -45 ℃
Electrical strength: AC2000V/min without breakdown and flashover
Action life: ≥ 10000 times
Application
It is widely used for Electrical machinery,transformer,Audio and video coils,Electronic circuit sensor
Recommend Products
Company Profile
Huizhou Huakaiwei electronic Sci&Tech co., LTD., specializing in the production of over-current protector, thermal protectors, temperature control switch, thermostat, our company has a number of patents, independent products passed UL, TUV, CQC,KC,ROHS,REACH multinational international safety certification and environmental testing, the products are widely used in protecting home appliances motor or any motors and other industries. HKW with professional technology is committed to providing reliable overheating over-current protection integrated solutions.
FAQ
Q 1. Are you a trading company or a manufacturer?
A. We are manufacturer
Q 2. How long is your delivery time?
A. Under normal circumstances, if the goods are in stock, it is 5 days. Or 5-12 days if the goods are not in stock, depending on the order quantity.
Q 3. Can you provide samples?
A. Yes, we can provide samples, the maximum number is 10 pieces, samples are not free.
Q 4. What is your terms of payment?
A. TT 30% deposit, 70% balance before shipment.
Q 5. What is your minimum order quantity?
A. Our minimum order quantity is 1 batch, which is 1000 products.
A. We are manufacturer
Q 2. How long is your delivery time?
A. Under normal circumstances, if the goods are in stock, it is 5 days. Or 5-12 days if the goods are not in stock, depending on the order quantity.
Q 3. Can you provide samples?
A. Yes, we can provide samples, the maximum number is 10 pieces, samples are not free.
Q 4. What is your terms of payment?
A. TT 30% deposit, 70% balance before shipment.
Q 5. What is your minimum order quantity?
A. Our minimum order quantity is 1 batch, which is 1000 products.
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
