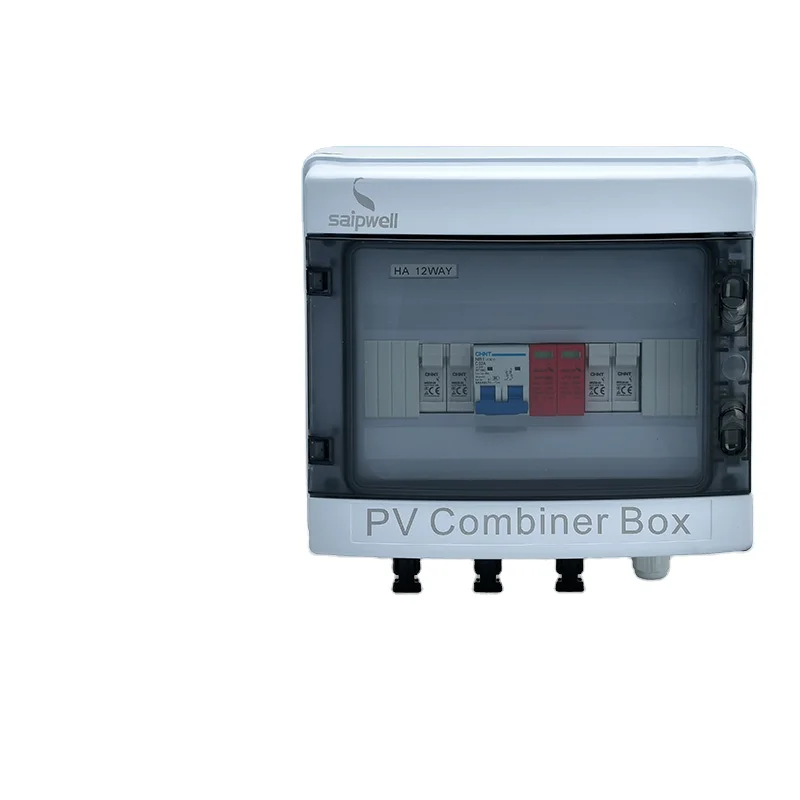

Dc outdoor plastic waterproof combiner solar array panel junction box with 4 string
- Category: >>>
- Supplier: Hennepps Electric (shanghai) Co. Ltd.
Share on (1600870565226):
Product Overview
Description
Product Overview

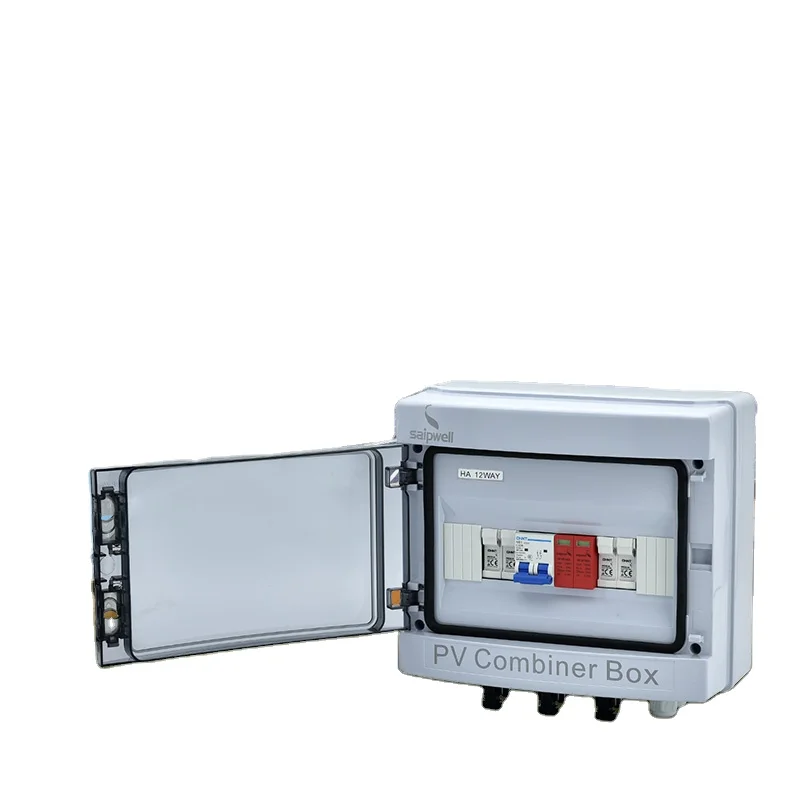

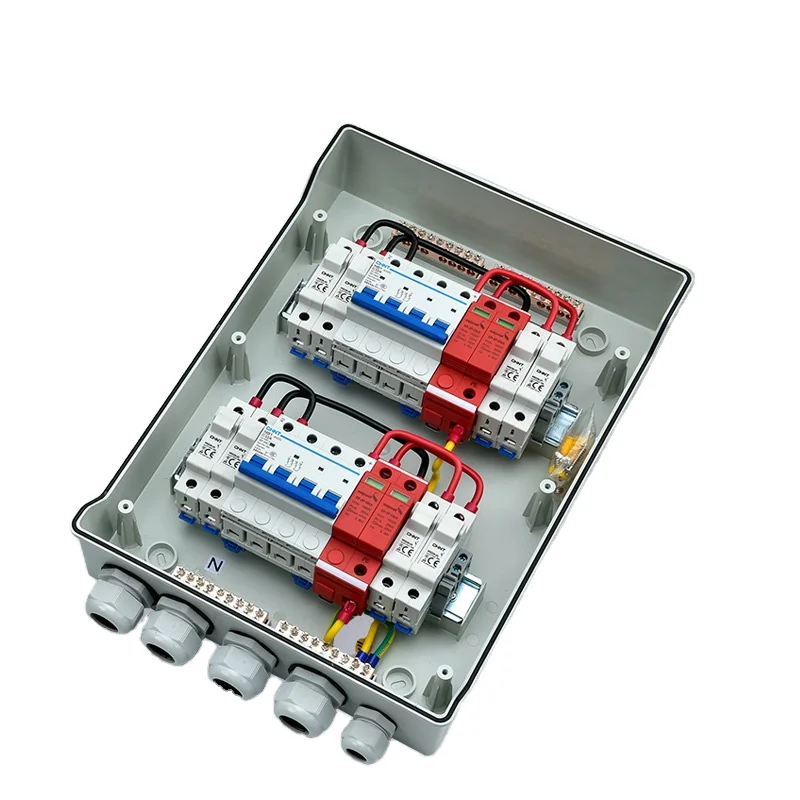

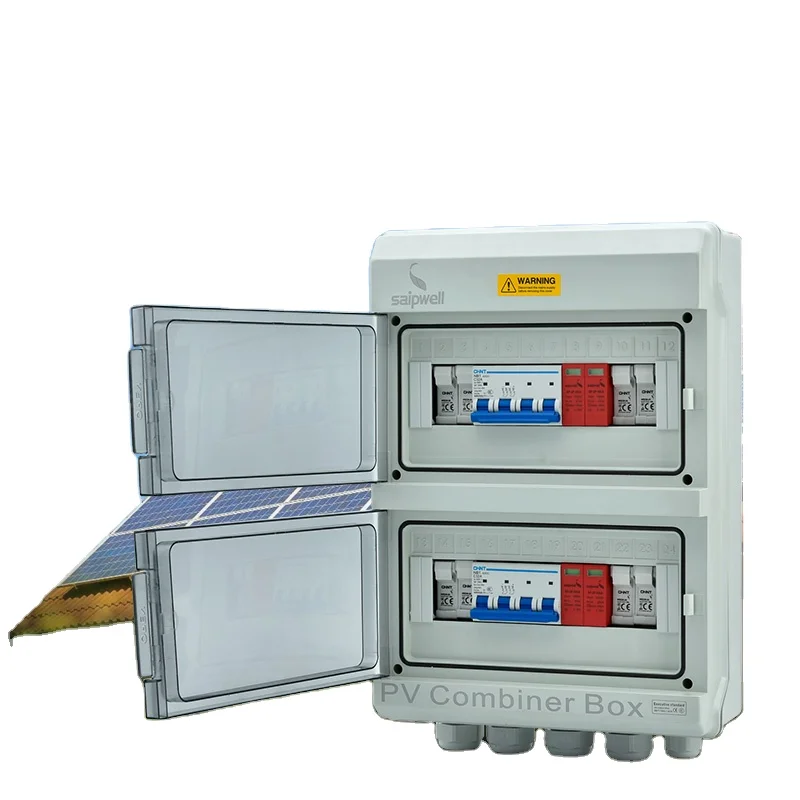

SP-PV Plastic PV Combiner Box
For the power generation system of the large PV power station, in order to reduce connection line between PV module and inverter, facilitate maintenance and improve reliability, DC collector-shoe gear between PV module and inverter is generally required to be added. AC combiner box produced by our Company is specially designed to meet this requirement, and can be matched with PV inverters to form a complete PV power generation system solution. According to the input voltage range of the DC side of the inverter, the user can connect a certain number of PV modules of the same specification in series to form a PV module string,and then connect several strings to the DC combiner box for confluence, and output through the lightning arrester and the circuit breaker. which facilitates the access of the later inverter.
DC combiner box is equipped with intelligent monitoring module unit, which can carry out rea-time monitoring, such as current detection,voltage detection switch state detection and current abnormal alarm, etc. of each branch, so as to facilitate users to collect the power consumption data remotely, control the power consumption quality centrally, and provide accurate basic data for operation and maintenance of the power station.
To learn more , you could add my whatsapp /wechat +86 13889454782 or email to saip320@saip.cn
FEATURES AT A GLANCE
IP65 grade ingress protection
Mounting plate available
IK10 grade high strength performance
UV and fire resistance available
Custom design available
PRODUCT SPECIFICATIONS
Item name | Combiner box |
Material | PC plastic |
Type | Non-transparent or transparent cover |
Ingress Protection | IP65 |
Strength | IK10 |
Certificate | IP65 ,IK10, ROHS , UL94V0,CE, TUV |
OEM | Accepted |
Custom service | hole drilling , logo printing , component assembly (like fuse , terminal , etc.) |
Sizes Available
1 input , 1 output , 1000V |
1 input , 1 output , 500V |
2 input , 1 output , 1000V |
2 input , 1 output , 500V |
2 input , 2 output , 1000V |
2 input , 2 output , 500V |
4 input , 1 output , 1000V |
4 input , 1 output , 500V |
4 input , 2 output , 1000V |
4 input , 2 output , 500V |
SALES AND SERVICE NETWORK
Successful Project
The Coca-Cola Company
Galooli , Israel
AGCO，Malaysia
American Tower , USA
Fumo Communications，Saudi Arabia
Sydney Tools ,Australia
SIMILAR PRODUCTS

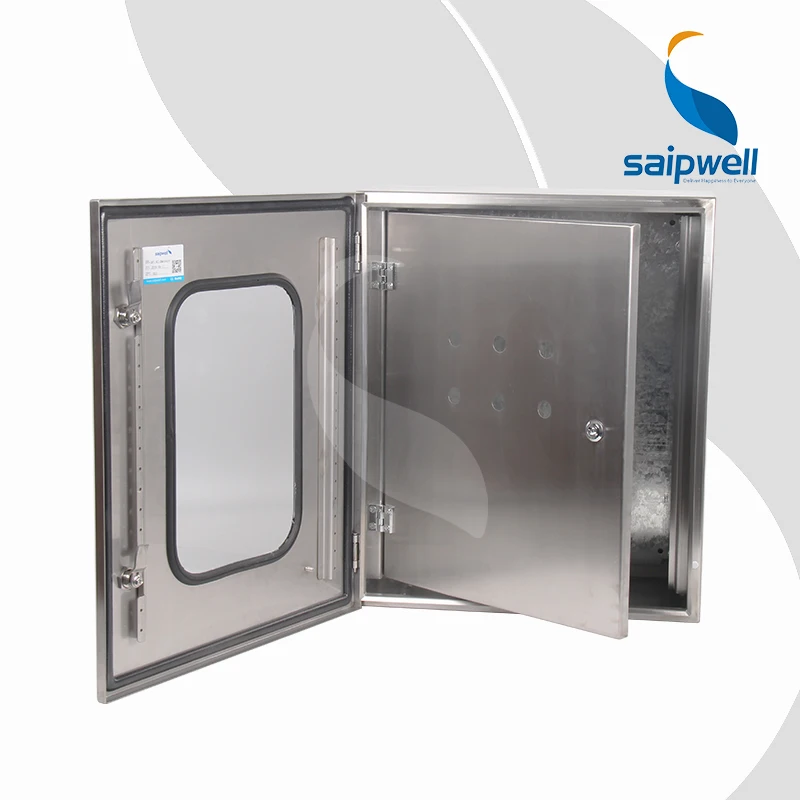

Stainless steel enclosure

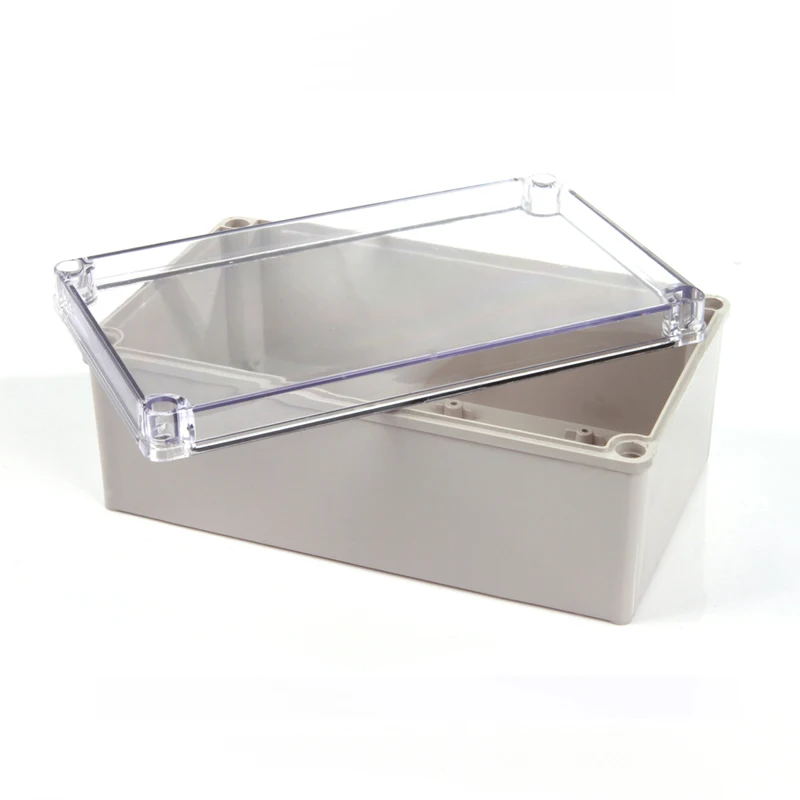

ABS/PC plastic enclosure

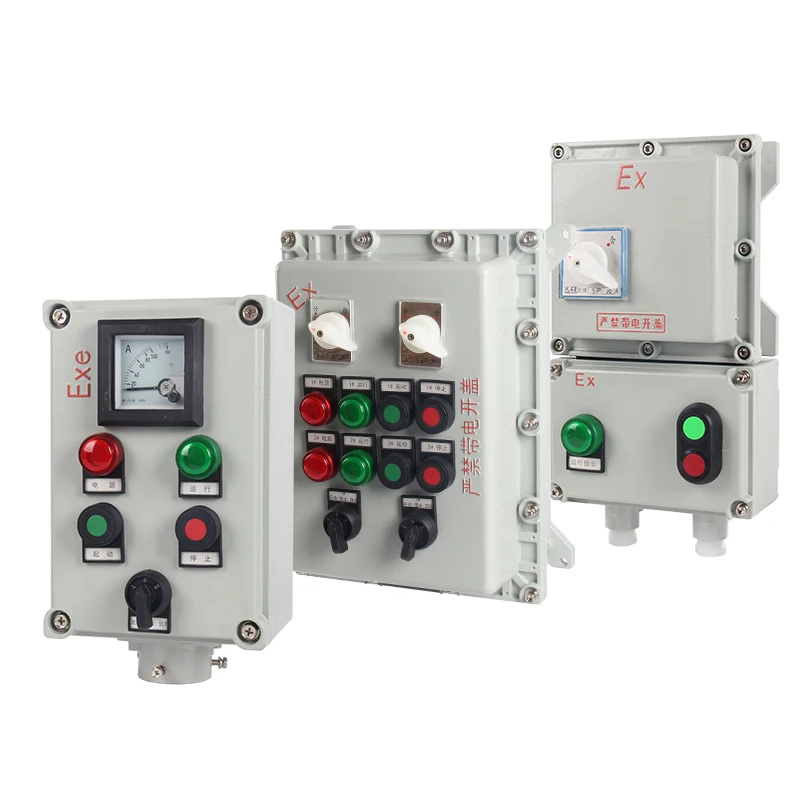

Explosion proof enclosure
