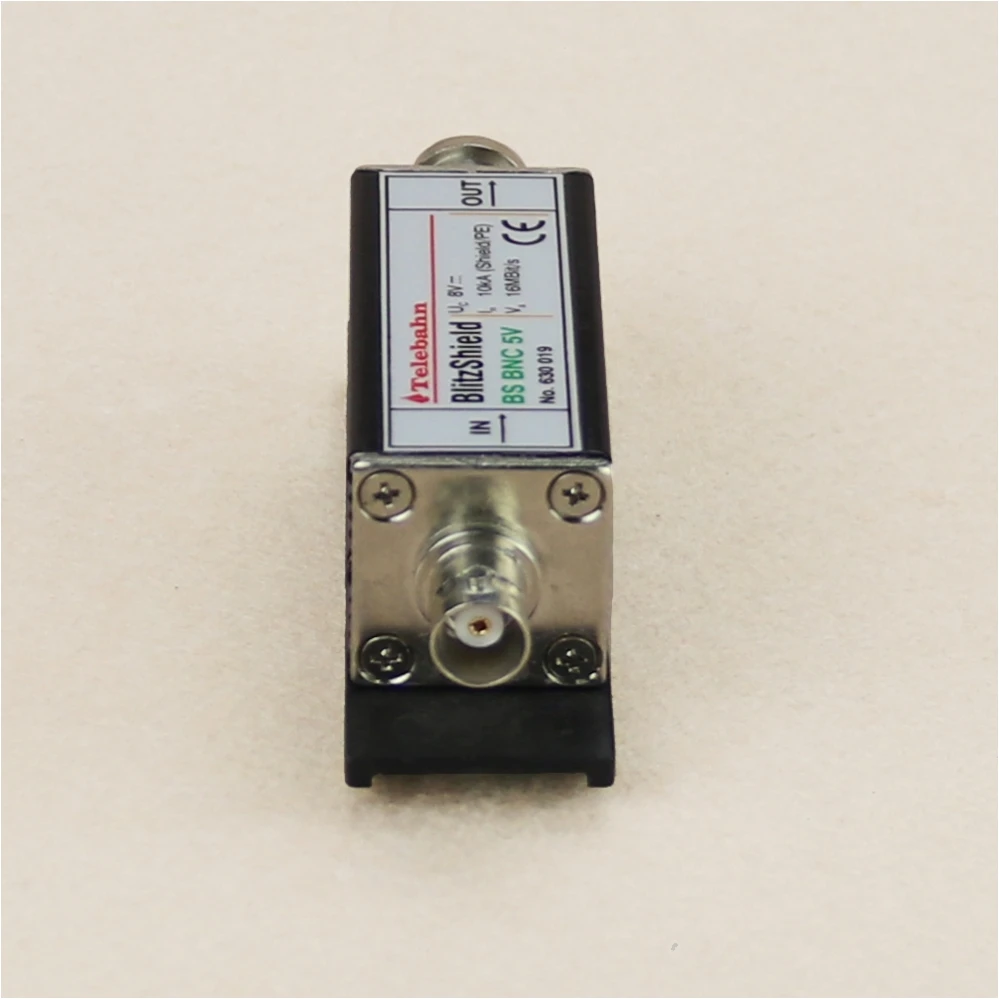

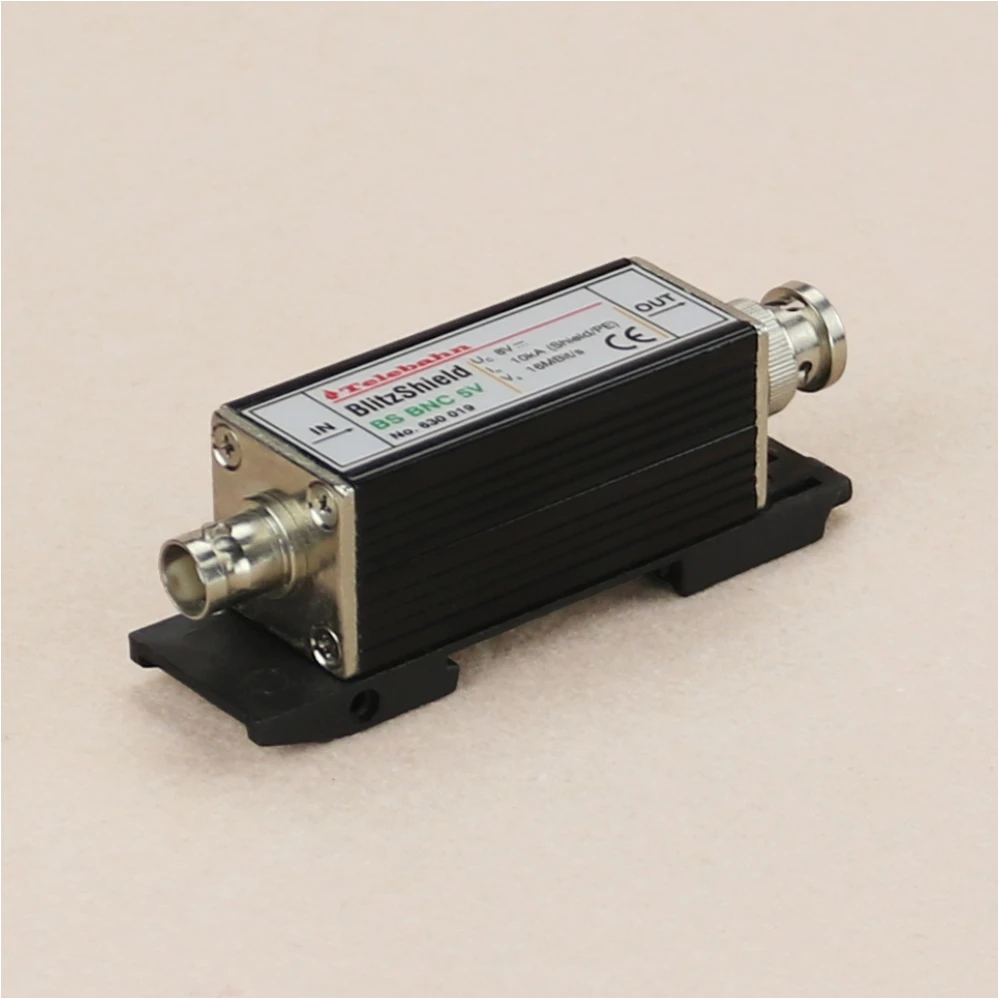

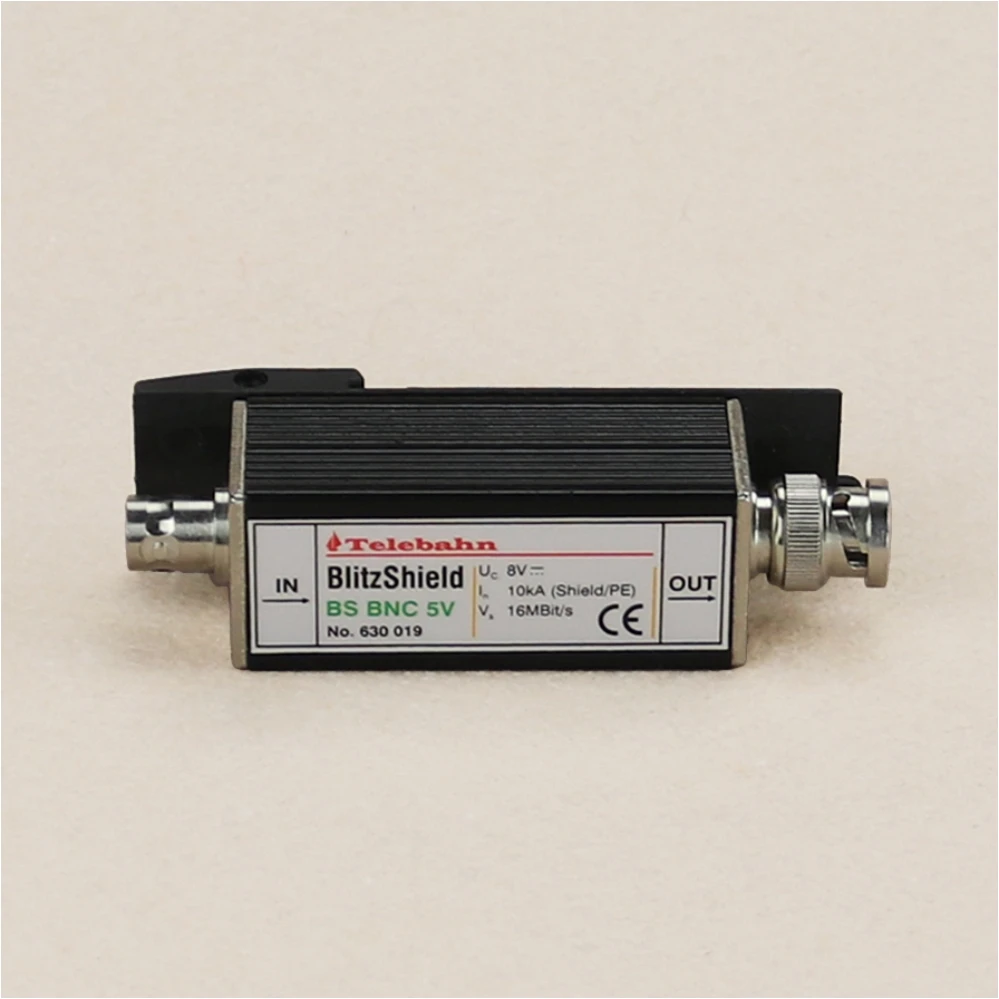

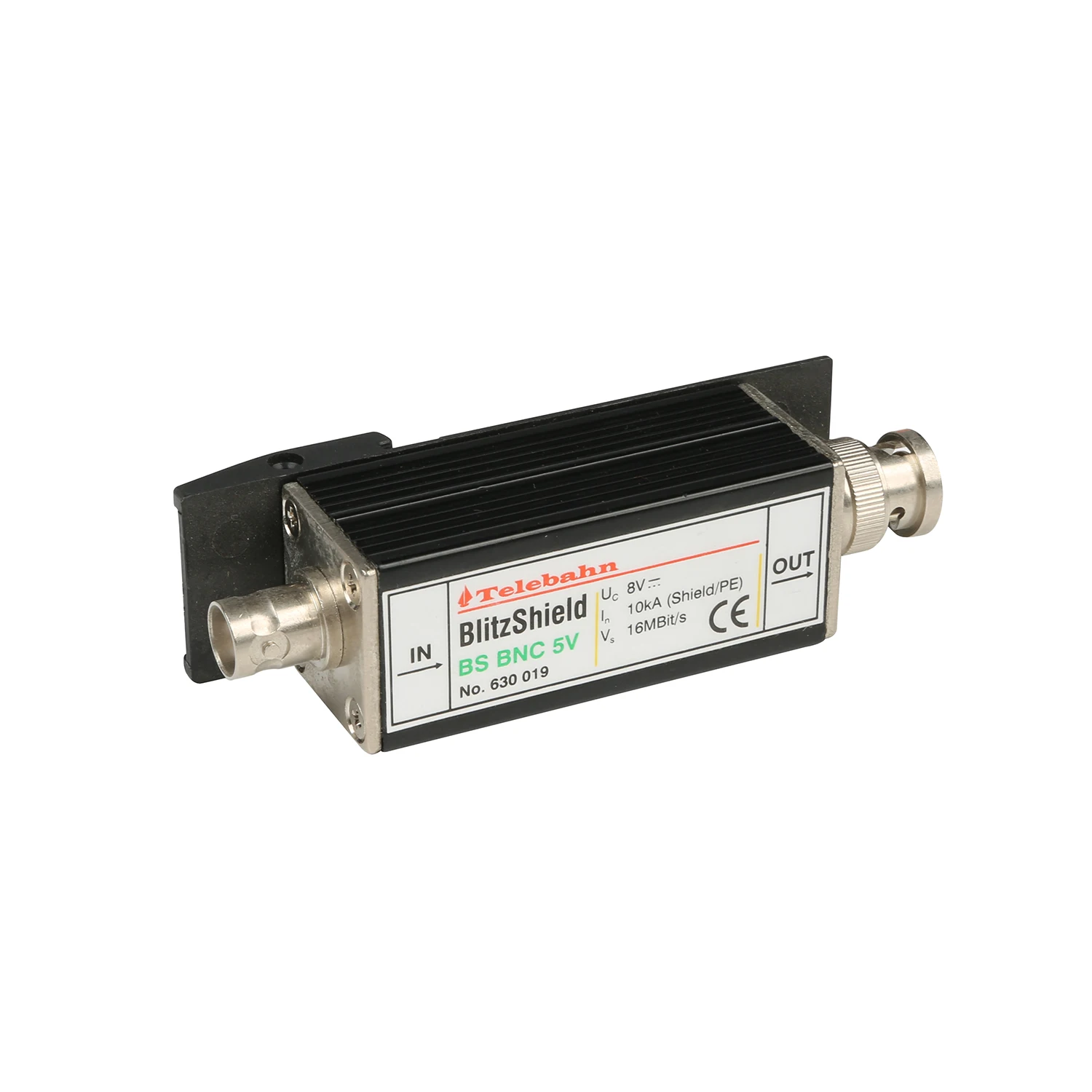

CCTV Monitoring Security Camera Monitor Thunder Lightning Arrester BNC connector Surge Protector
- Category: >>>
- Supplier: Zhuhai Telehof Electrics Company Limited
Share on (1600870599120):
Product Overview
Description
conventional 5V Imax 10KA 300MHZ BNC CCTV camera video home appliance surge protector universal lightning protective arrester
Product description
Product Description:
For protecting coaxial cable transmission devices from interruption caused by surge voltage, surge protective device uses BNC connection, provide reliable protection for coaxial cable transmission devices or video signal transmission devices from surge, operating over voltage and electrostatic discharging. Designed according to GB 18802.21 / IEC 61643-21.
Main character:
1. Good discharge capacity, low voltage protection level
2. Multiple protection, quick response, no interruption

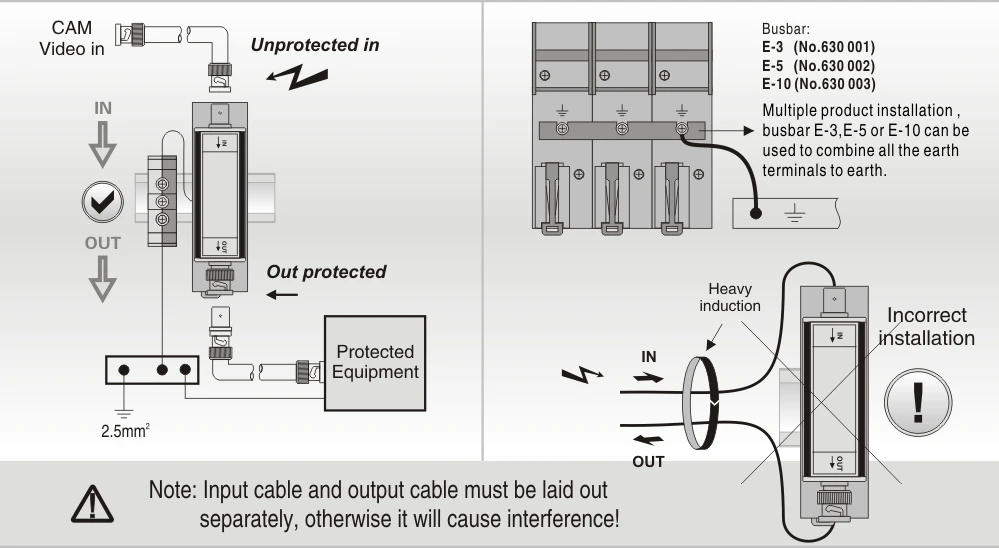

3. BNC connection, easy for installation
4. Optional with DIN rail installation
Parameters:

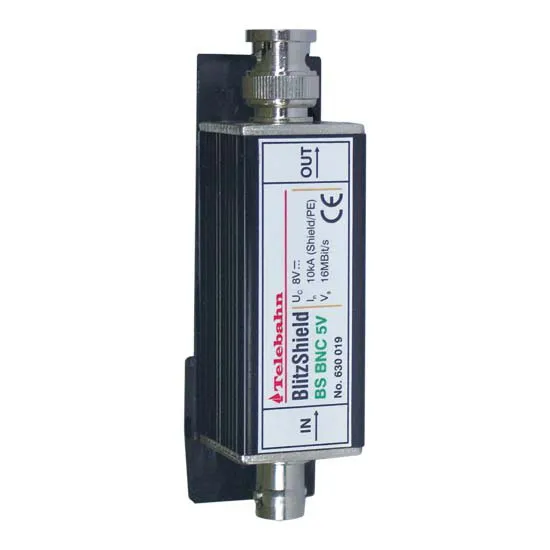

Type: BS BNC 5V (A)
Order No. 630 019
Nominal voltage UN: 5V
Rated voltage (max. Continuous d.c voltage) Uc: 8V
Lightning impulse current (10/350) Iimp: 0.5kA
Nominal discharge current (8/20) In: 2.5kA (Line-Shield), 5kA (Shield-PG)
Max. discharge current (8/20) Imax: 5kA (Line-Shield), 10kA (Shield-PG)
Voltage protection Level at In Up: ≤25V (Line-Shield)
Voltage protection level at 1kV/µs: ≤15V (Line-Shield), ≤600V (Shield-PG)
Bandwidth fG: 300MHz
Series impedance per line R: 10Ω
Response time tA: ≤1ns (Line-Line), ≤100ns (Line-PG)
Max. data transmission rates Vs: 16MBit/s
Operating temperature range Tu: -40°C...+80°C
Connection input/output: BNC socket

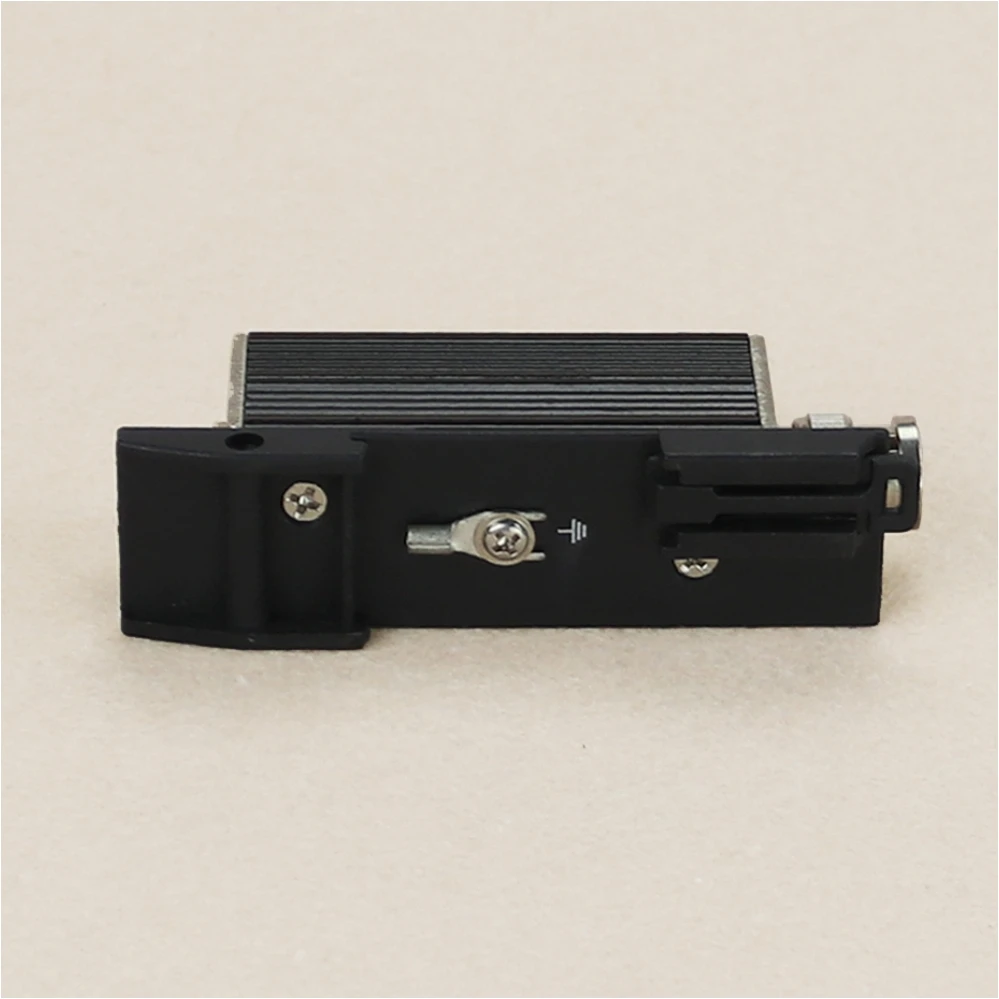

Mounting on Type A: 35mm DIN rail
Earthing via: Type A: earthing screw
Shield earthing: Indirectly via integrated spark gap
Test standard: YD/T 1542;GB 18802.21;IEC 61643-21
Certification CE (LVD,EMC)
Product size: 9×2×3cm
