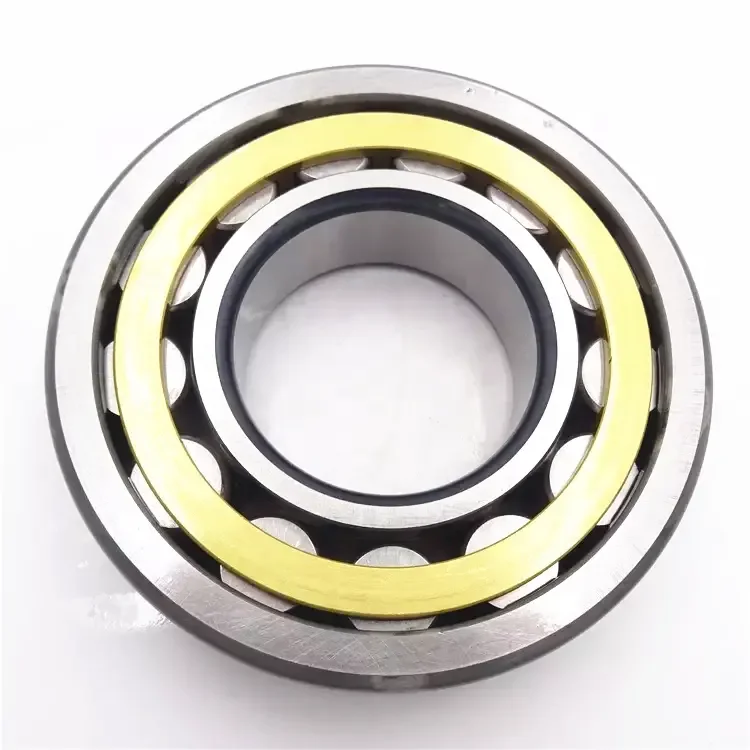

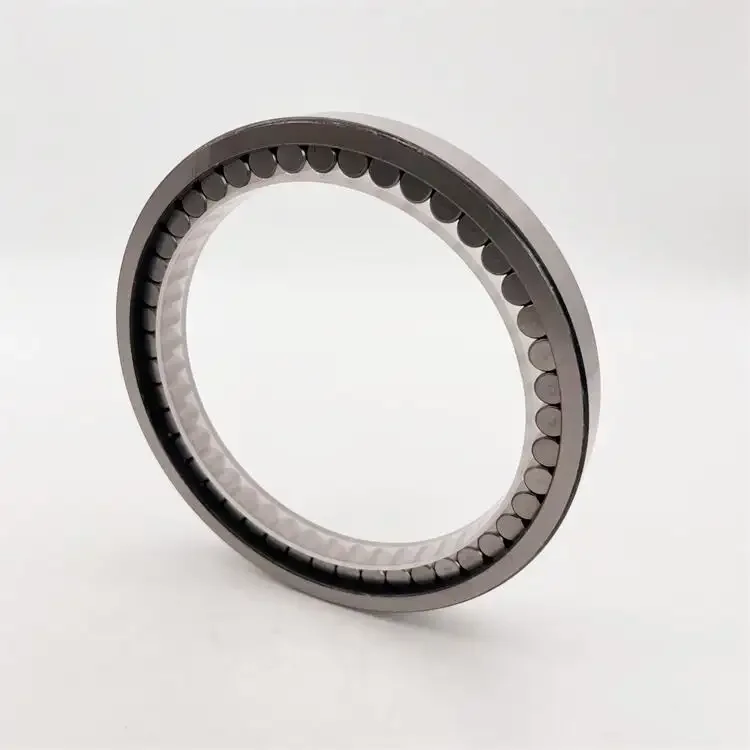

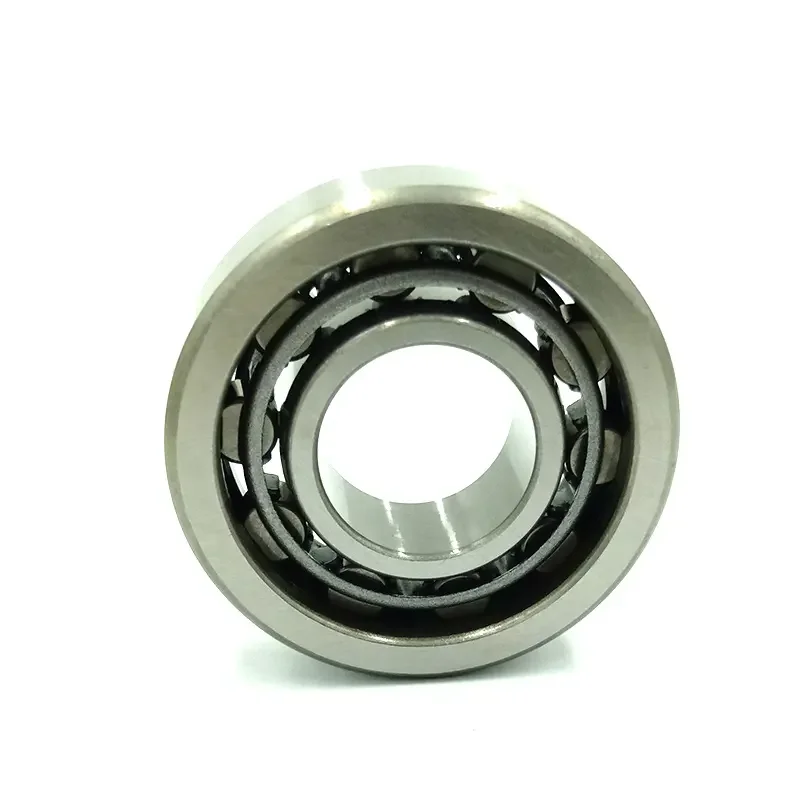

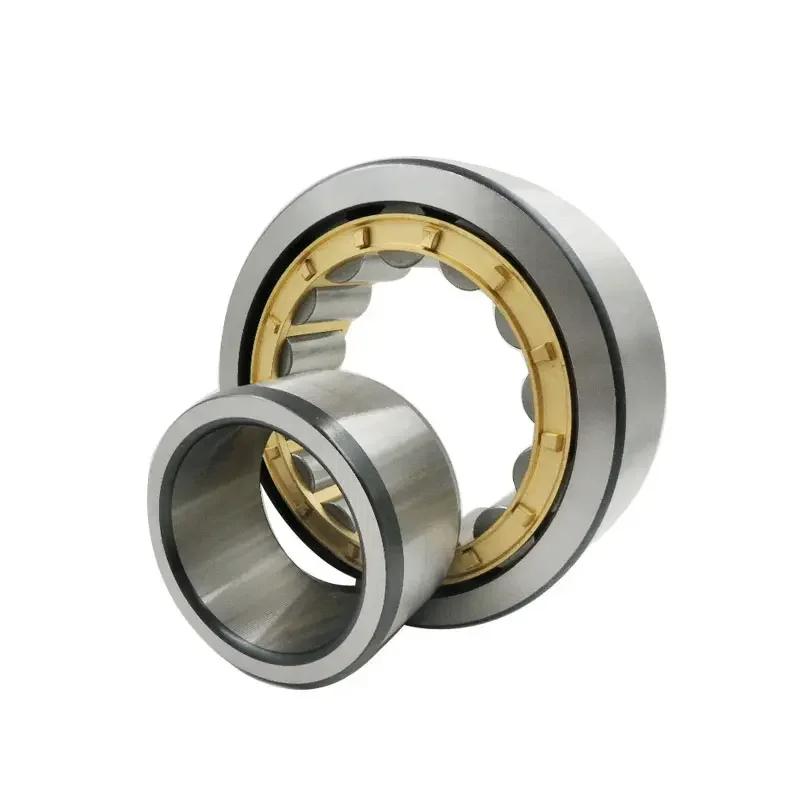

Factory spot Cylindrical Roller Bearing Bc1 0738a Bc10738a Cylindrical Roller Bearing For Air Compressor
- Category: >>>
- Supplier: Shandong Weihang Bearing Co. Ltd.
Share on (1600870635930):
Product Overview
Description
Factory spot Cylindrical Roller Bearing Bc1 0738a Bc10738a Cylindrical Roller Bearing For Air Compressor
Product Description
About Cylindrical roller bearings:

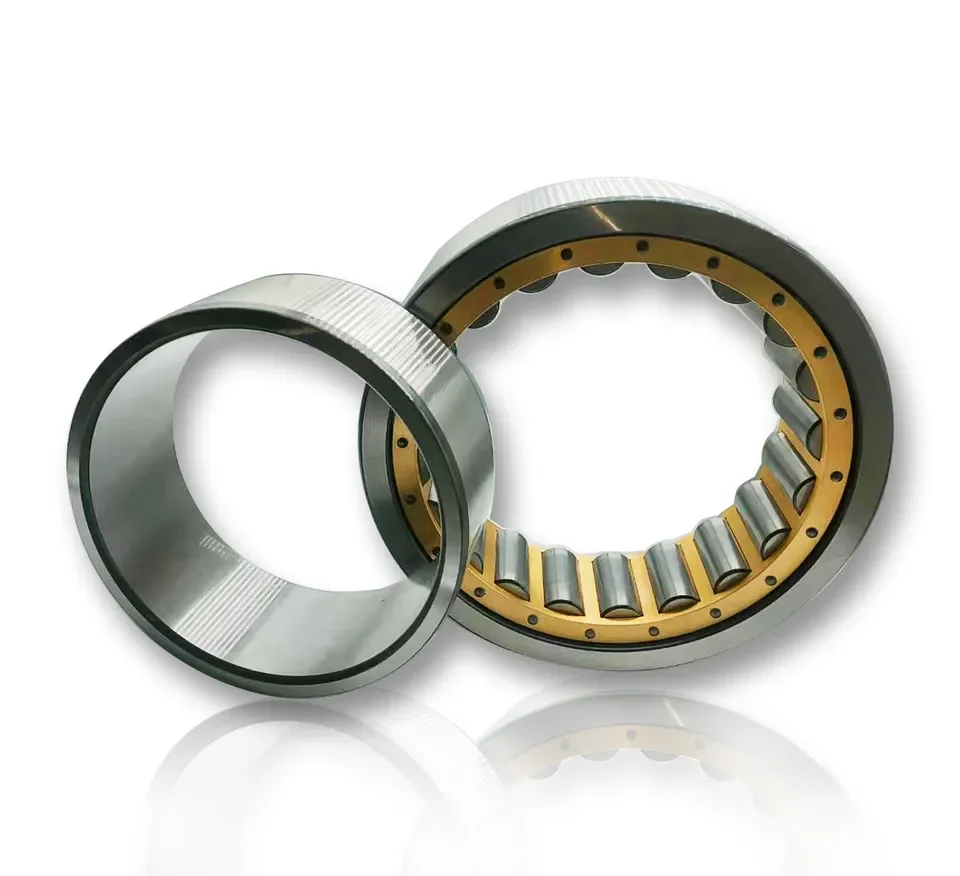

1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.

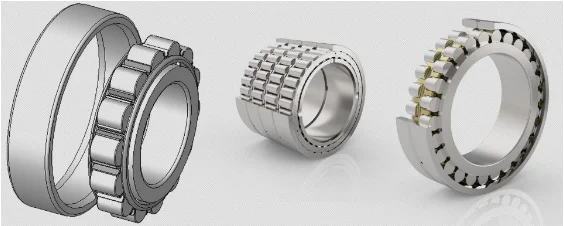

3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.

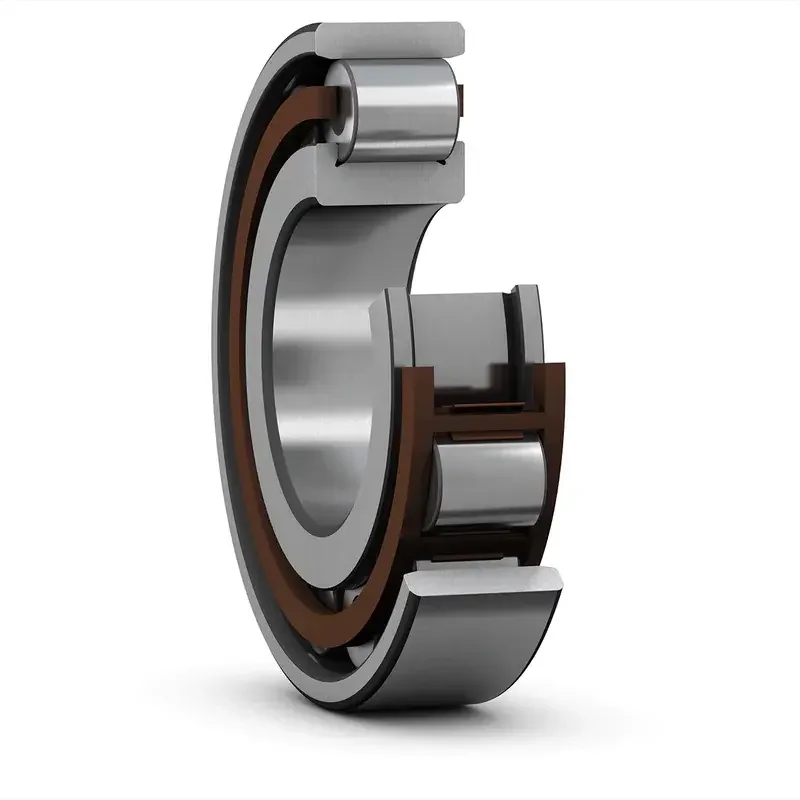

Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.

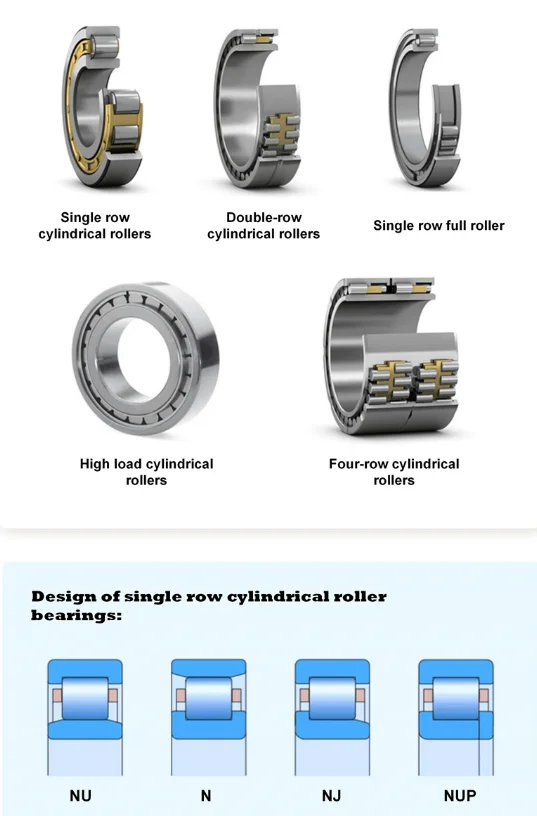

There are different types designated NU, NJ, NUP, N, NF for single-row bearings,and NNU, NN for double-row bearings depending on the design or absence of side ribs.
1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.
Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
There are different types designated NU, NJ, NUP, N, NF for single-row bearings,and NNU, NN for double-row bearings depending on the design or absence of side ribs.
Product name | Cylindrical roller bearing |
material | Chrome steel rings and rollers,plastic or steel or copper cage. |
Quality Certificate | ISO9001:2008 |
Feature | Low noise, less vibration, high precision and long life |
ID*OD*W | (20-700mm)*(42-930mm)*(12-163mm) |
Limiting Speed: | 4800rpm (Grease lubricated);6000rpm (Oil lubricated); |
Brand name | RFJT |
Tolerance level | ABEC-7 |
Seals type | open |
Precision rating | P0, P6 |
Antirust period | Bearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years. |
Application | Mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, various kinds of professional machinery and heavy industry of all types. |
Specification
Dimensiones principales | Capacidad de carga básica | Carga límite de fatiga | Velocidades nominales | Designación | ||||||||
dynamic | static | Reference speed | Limiting speed | |||||||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | Pu[kN] | [r/min] | [r/min] | |||||
40 | 80 | 23 | 81.5 | 75 | 9.65 | 9500 | 11000 | NU 2208 ECJ | ||||
40 | 80 | 23 | 81.5 | 75 | 9.65 | 9500 | 11000 | NU 2208 ECP | ||||
40 | 80 | 23 | 81.5 | 75 | 9.65 | 9500 | 11000 | NU 2208 ECPH | ||||
40 | 80 | 23 | 81.5 | 75 | 9.65 | 9500 | 11000 | NUP 2208 ECJ | ||||
40 | 80 | 23 | 81.5 | 75 | 9.65 | 9500 | 11000 | NUP 2208 ECP | ||||
40 | 80 | 23 | 81.5 | 75 | 9.65 | 9500 | 16000 | NJ 2208 ECML | ||||
40 | 80 | 23 | 81.5 | 75 | 9.65 | 9500 | 16000 | NU 2208 ECML | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | N 308 ECM | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | N 308 ECP | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NJ 308 ECJ | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NJ 308 ECM | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NJ 308 ECP | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NJ 308 ECPH | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NU 308 ECJ | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NU 308 ECM | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NU 308 ECP | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NU 308 ECPH | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NUP 308 ECM | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 9500 | NUP 308 ECP | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 15000 | NJ 308 ECML | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 15000 | NU 308 ECML | ||||
40 | 90 | 23 | 93 | 78 | 10.2 | 8000 | 15000 | NUP 308 ECML | ||||
40 | 90 | 33 | 129 | 120 | 15.3 | 8000 | 9500 | NJ 2308 ECJ | ||||
40 | 90 | 33 | 129 | 120 | 15.3 | 8000 | 9500 | NJ 2308 ECP | ||||
40 | 90 | 33 | 129 | 120 | 15.3 | 8000 | 9500 | NJ 2308 ECPH | ||||
40 | 90 | 33 | 129 | 120 | 15.3 | 8000 | 9500 | NU 2308 ECJ | ||||
40 | 90 | 33 | 129 | 120 | 15.3 | 8000 | 9500 | NU 2308 ECP | ||||
40 | 90 | 33 | 129 | 120 | 15.3 | 8000 | 9500 | NU 2308 ECPH | ||||
40 | 90 | 33 | 129 | 120 | 15.3 | 8000 | 9500 | NUP 2308 ECM | ||||
40 | 90 | 33 | 129 | 120 | 15.3 | 8000 | 9500 | NUP 2308 ECP | ||||
Company Information
Test Devices
Application
Mainly used in smelting plants, mine packaging machinery, textiles, ceramic machinery,
food machinery.
food machinery.
Product packaging
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
Why Choose Us
Why our bearings so cheap,the reasons are as below:
1.FREE SAMPLES: contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings:Any requirement for Non standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with excellent quality and better performance. Resulting in increased cost saving.
8. Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
3. OEM or Non Stand Bearings:Any requirement for Non standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with excellent quality and better performance. Resulting in increased cost saving.
8. Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
FAQ
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Qingdao port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Qingdao port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
