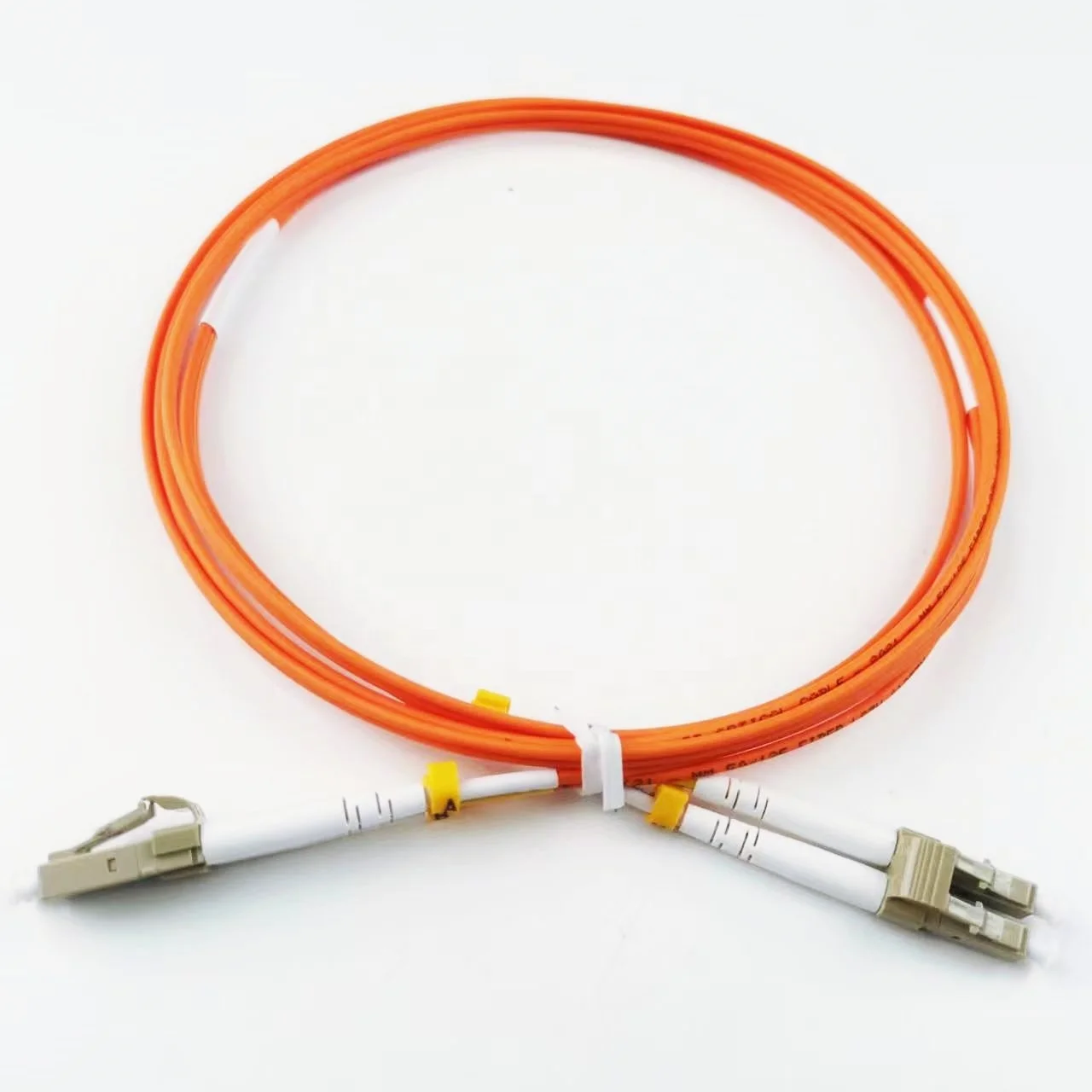

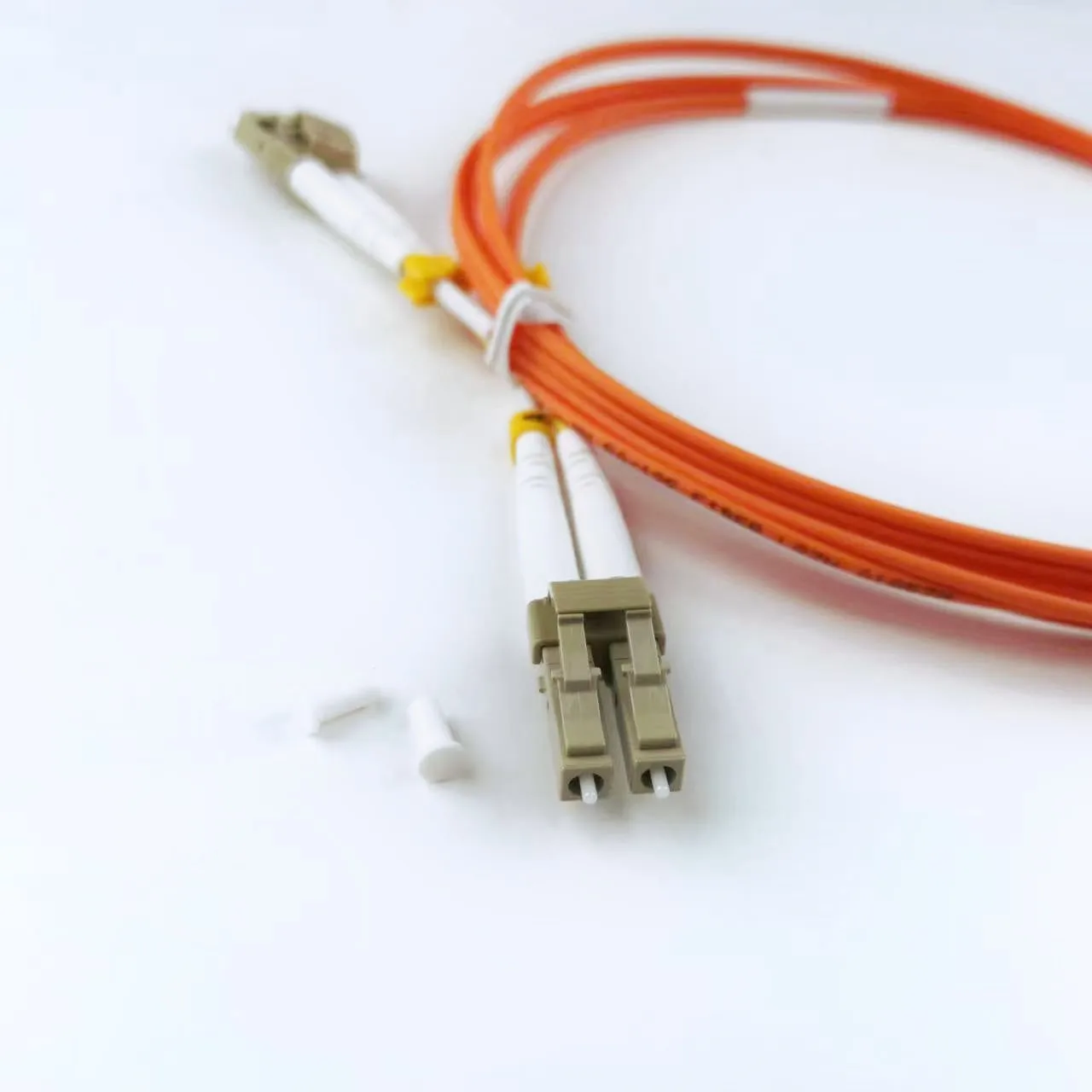

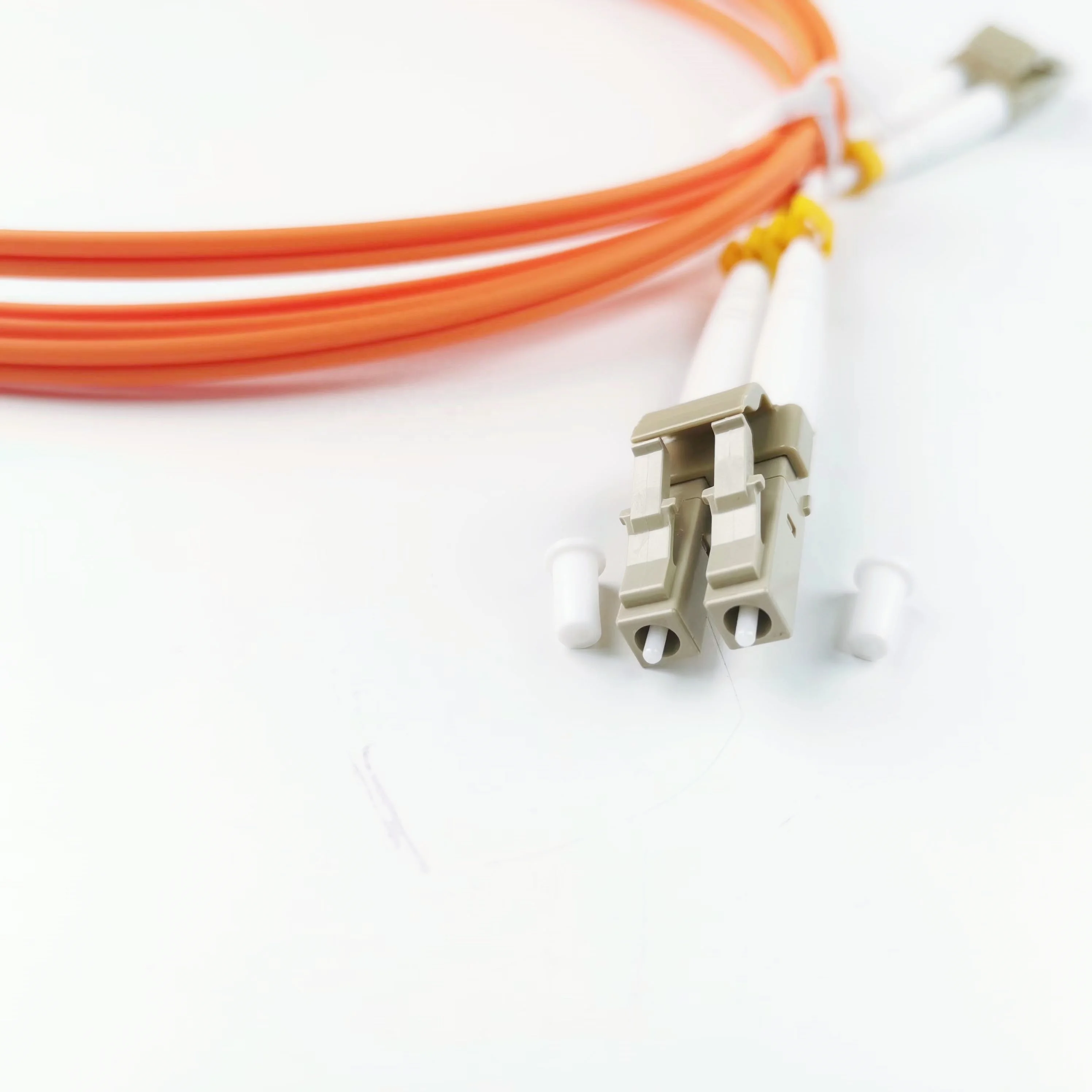

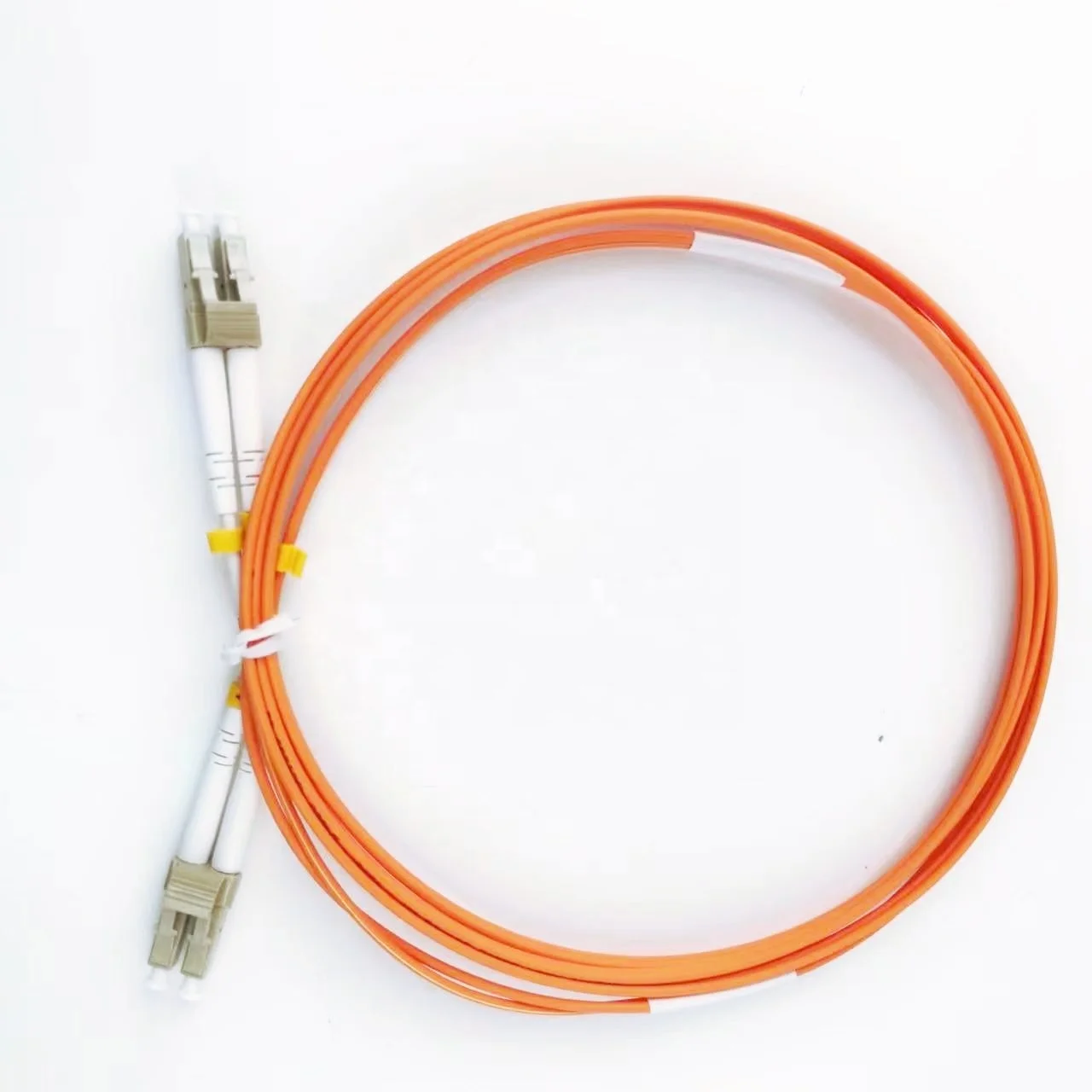

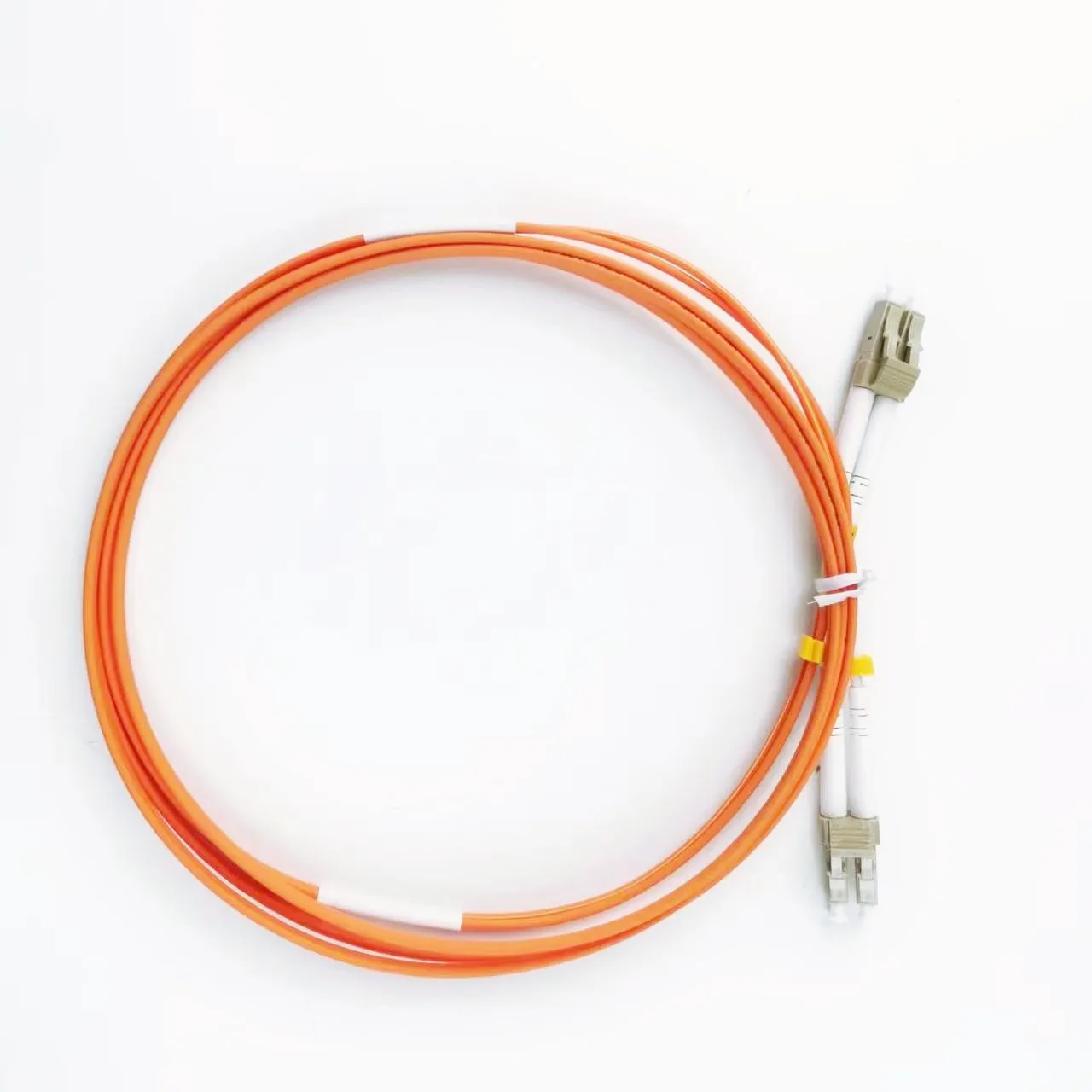

Manufacturer OEM LC/UPC LC/UPC Fiber Optical Patch Cords OM2 DX LZSH 2.0mm 2m Fiber Optic Cable

Product Overview

Description



Description

1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length

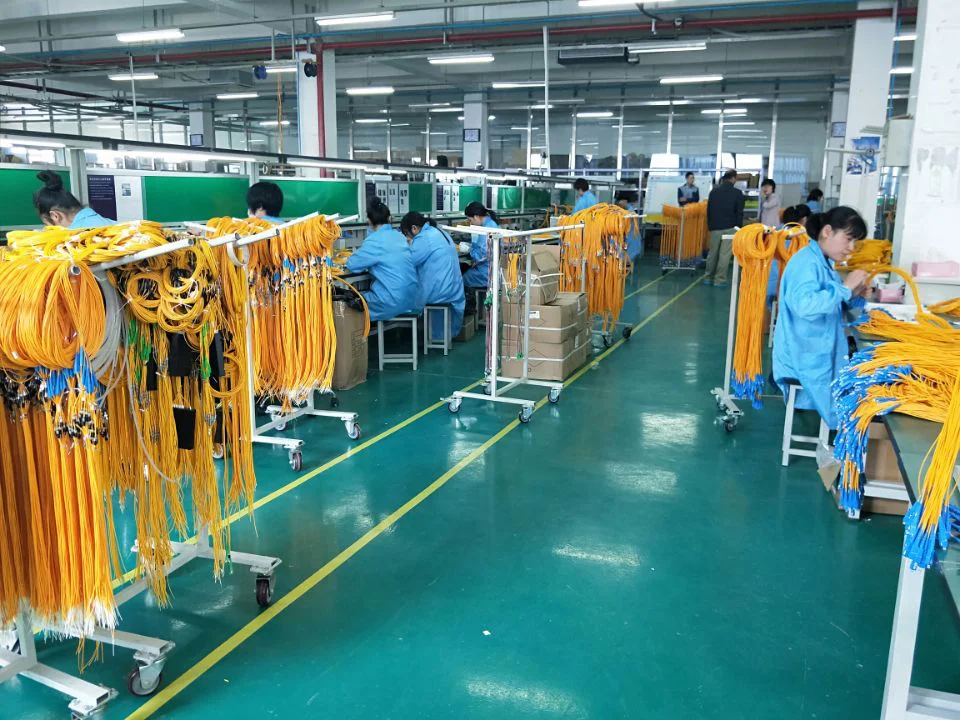

 2.The patch cord are factory terminated, assembled, tested and inspected prior to shipment.
 3.All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.

Feature:

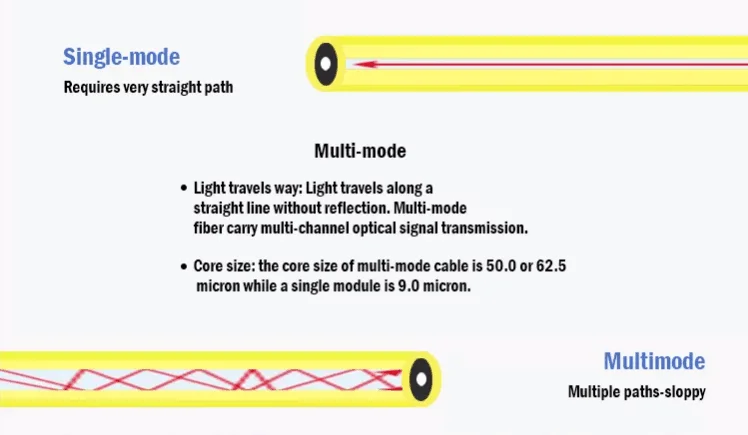

1. Fiber mode:MM /SM
2.Low insertion loss and hight return loss.
3.Excellent repeatability and changeability
4.Simplex and duplex available.
5.With ceramic fettules.

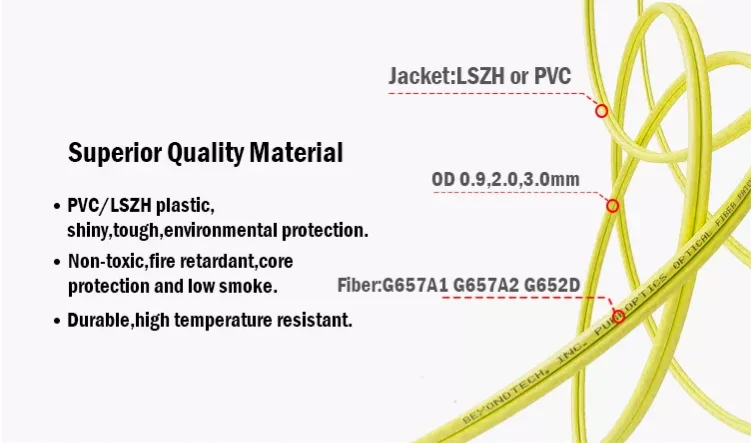

6.PVC&LSZH cable option.
7.Optical performance 100% factory test.

Applications

1.Access Network
2.Telecom/CATV Systems

3.FTTx

Specifications



Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657)	MM(OM1/OM2/OM3/OM4/OM5)

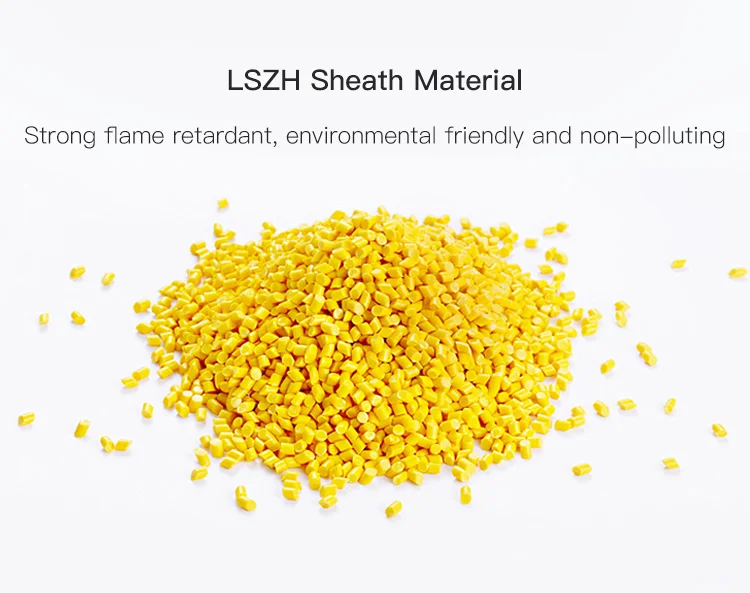

Jacket Materials	LSZH/PVC

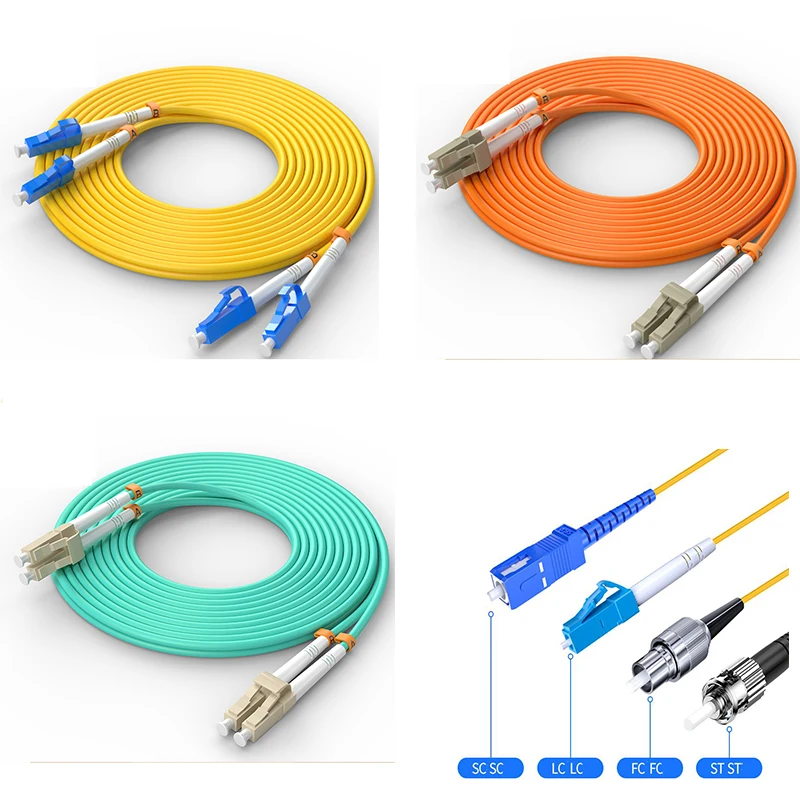

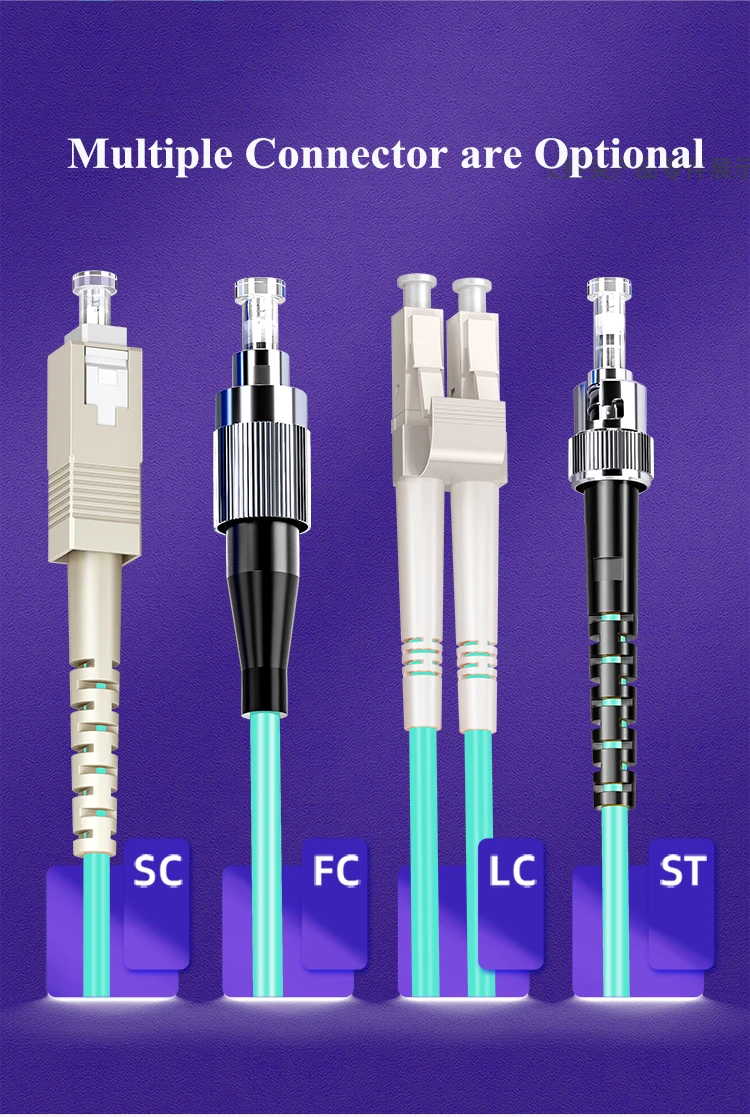

Connector Type	FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB)	≤0.25dB	≤0.3dB
TIA/EIA-455-107	(PC/UPC/APC)	(PC/UPC)
Return Loss(dB)	≥50dB (PC/UPC)	≥40dB (PC/UPC)
TIA/EIA-455-107	≥60dB(APC)
Exchange-ability	≤0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature(°C)	-10~+70
Storage Temperature(°C)	-40~+85

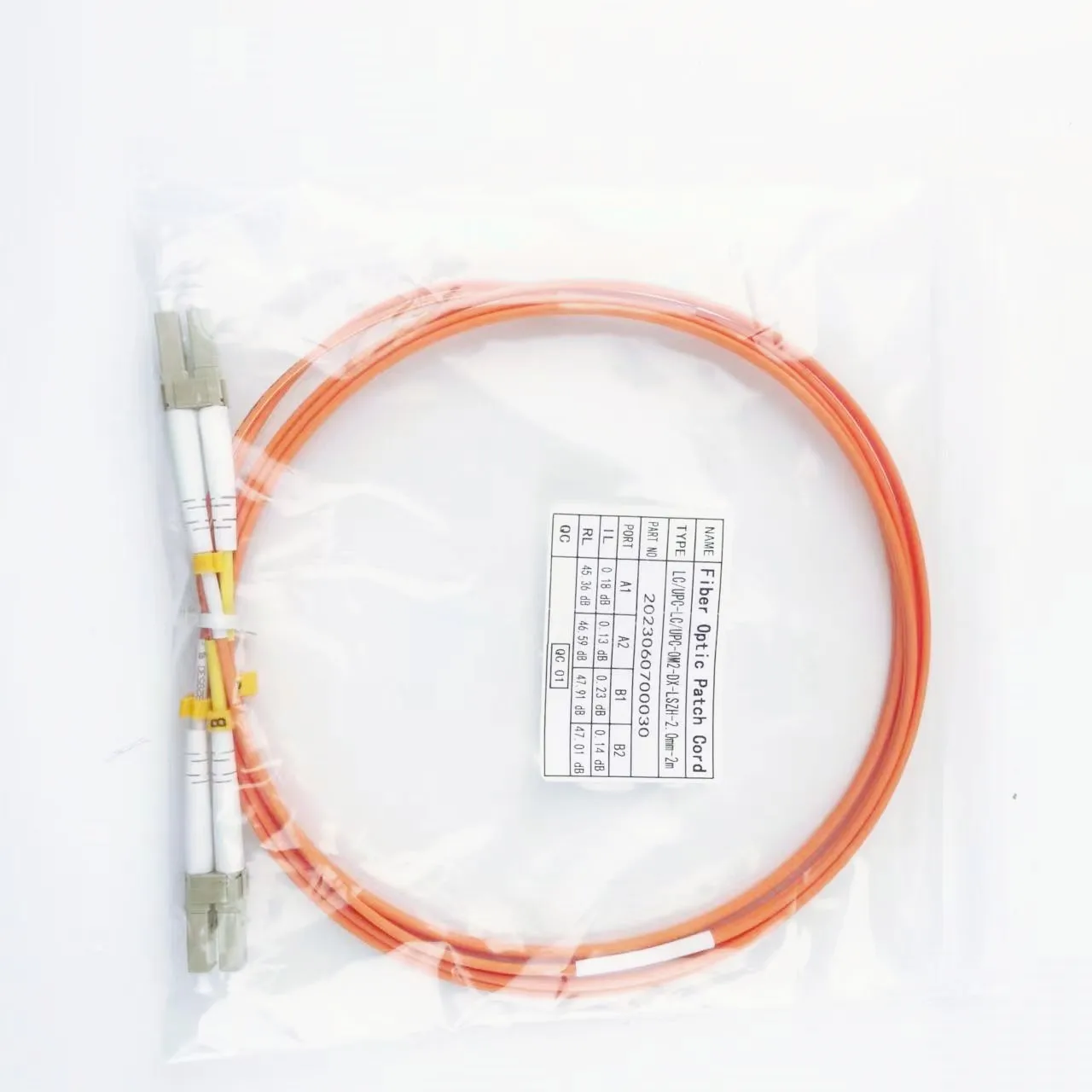

Package	1pieces/bag
