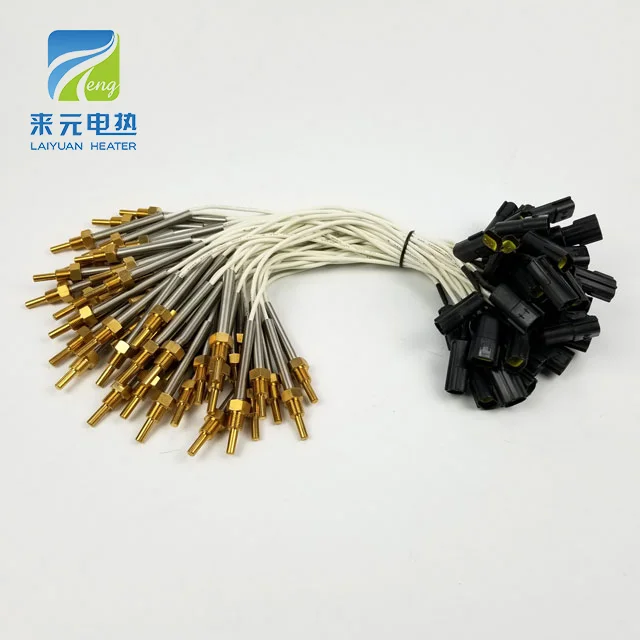

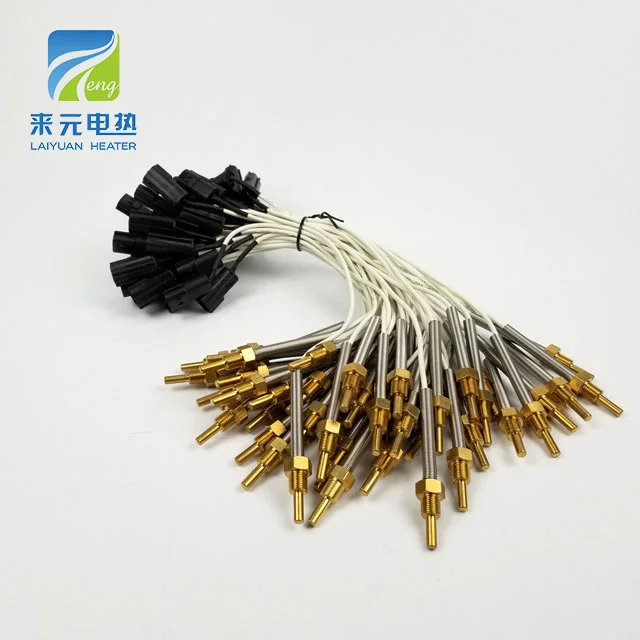

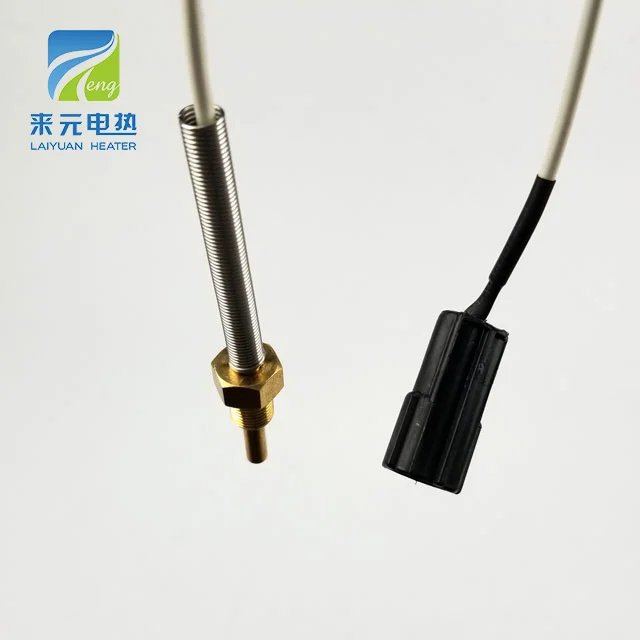

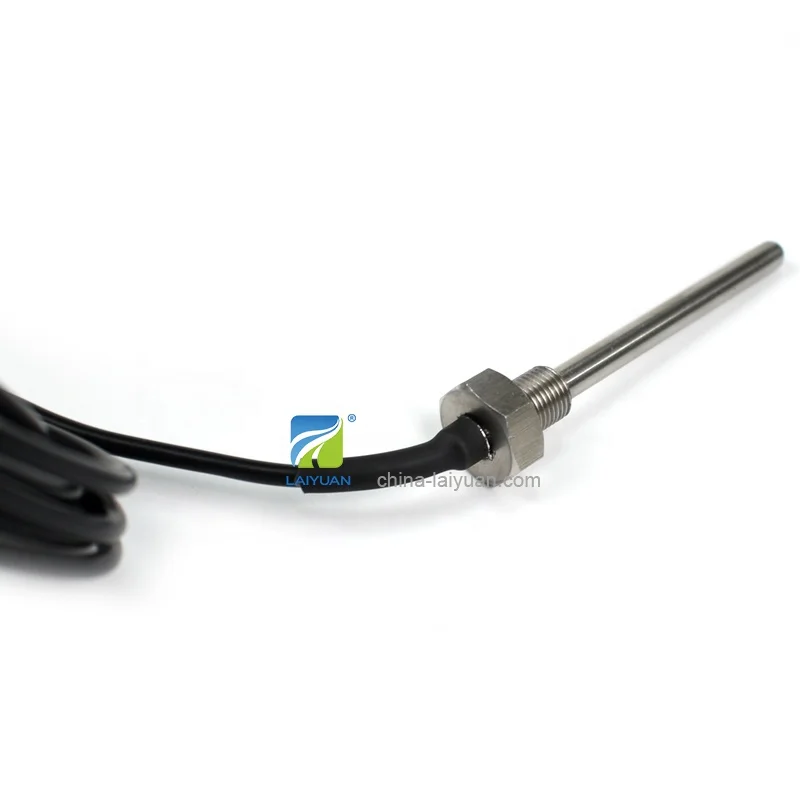

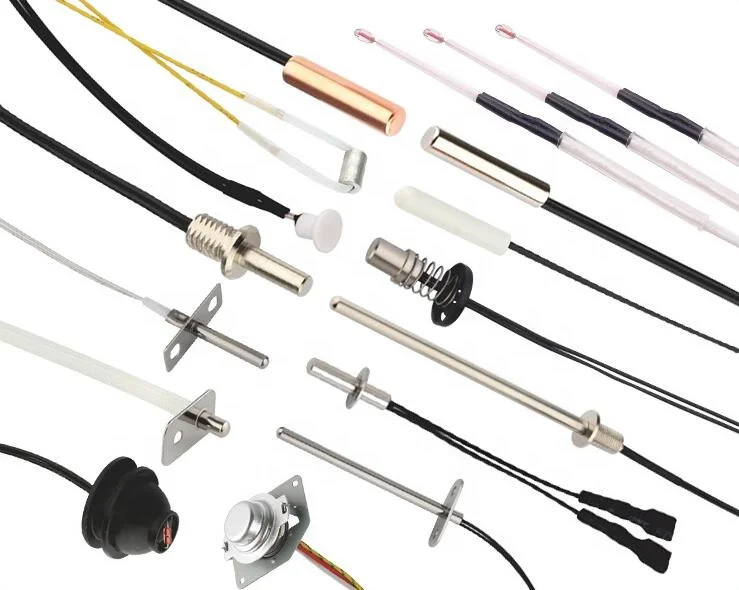

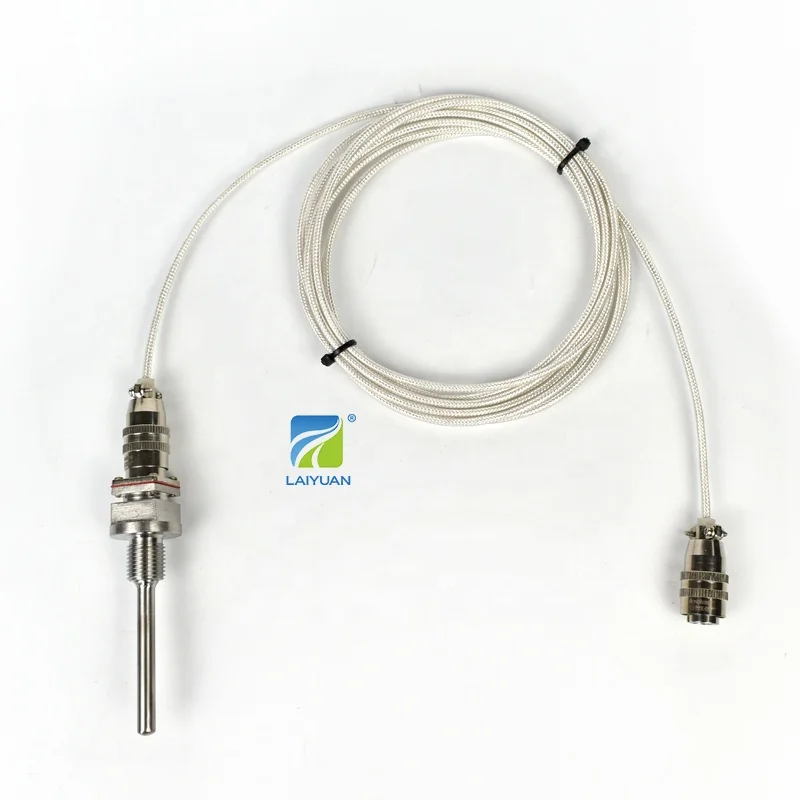

Laiyuan Customizable Threaded Type Dishwasher/Washing Machine Temperature Sensor Ntc Thermistor For Liquid Level Sensor
- Category: >>>
- Supplier: Yancheng Laiyuan Electric Equipment Co. Ltd.
Share on (1600870764372):
Product Overview
Description
Related Products
All Thermocouples
Basic Parameters
Products Description
Product Name | NTC Temperature Sensor | ||||||||
Material | Stainless Steel SUS304 | ||||||||
Temperature Range | -55 ℃ ~ + 125 ℃ | ||||||||
Operating voltage: | 3.0 ~ 5.5V | ||||||||
Test accuracy: | + 0.5 ℃ (within the range of -10 ℃ ~ + 85 ℃ in) | ||||||||
B Value | B25/50=3950 ±1% | ||||||||
Accuracy | +/- 1% | ||||||||
Waterproof | IP65/IP68 | ||||||||
Output leads: | Red (VCC), yellow (DATA), black (GND) | ||||||||
Application | Air Conditioner, Heater, HAVC, Water Heater | ||||||||

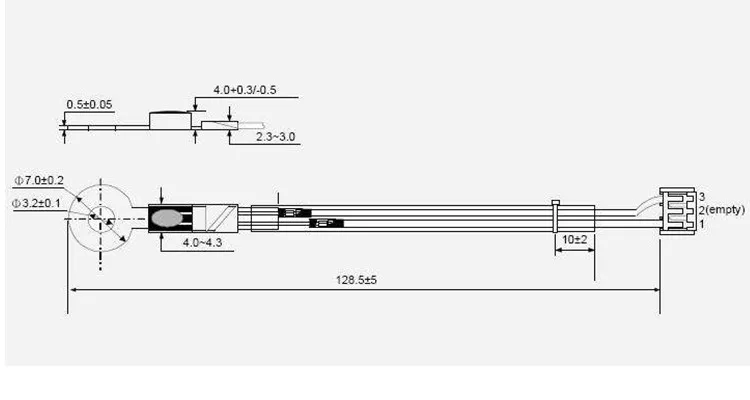

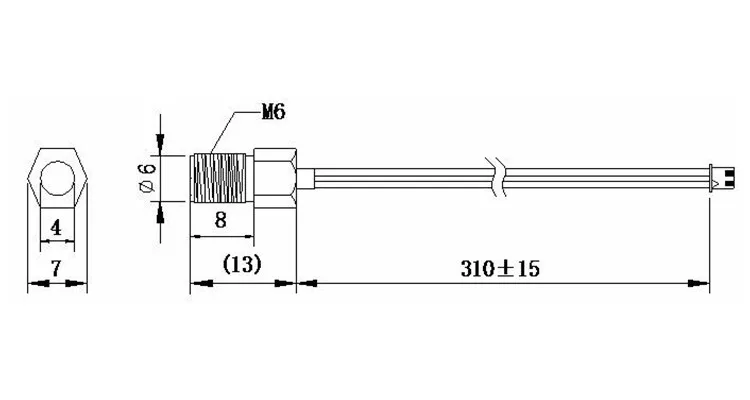

Structure
Features
1. Operating ranges from -30-- 150 degrees centigrade
2. High accuracy tolerances to +/-0.1C
3. Excellent thermal cycle endurance
4. Fast response, high sensitivity
5. Good coherence and Interchange capability thanks for the high precision of resistance and B value
6. Double packaging technics,Good quality of insulation and package,High capability of colliding and bending. high stablity
7. Pb free, ROHS Compliance
NTC Thermistor is used in general purpose temperature measurement solutions for residential, industrial, and commercial applications. The thermistor element is epoxied into the Stainless Steel probe that is quite sensitive and responds quickly to changes in the temperature. The sensor element used is a 10K Thermistor and can be used with many popular brands of RT manufacturers.
Product Application
1. Car, Vehicle, air conditioners,refrigerators,freezers
2. Water heaters, potable water heaters, air warmers, washers, disinfection cases
3. Washing machines, driers, thermotanks,intelligent closestool
