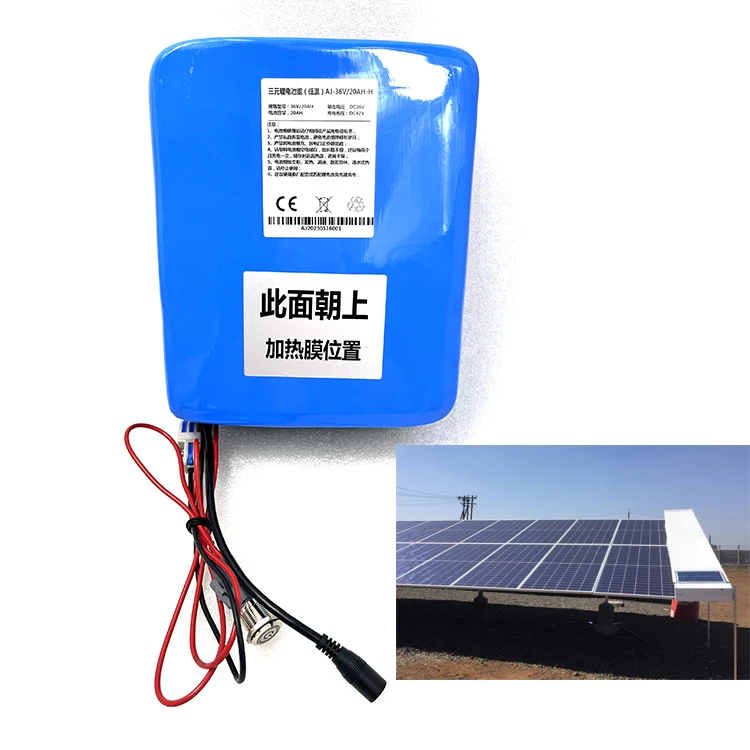

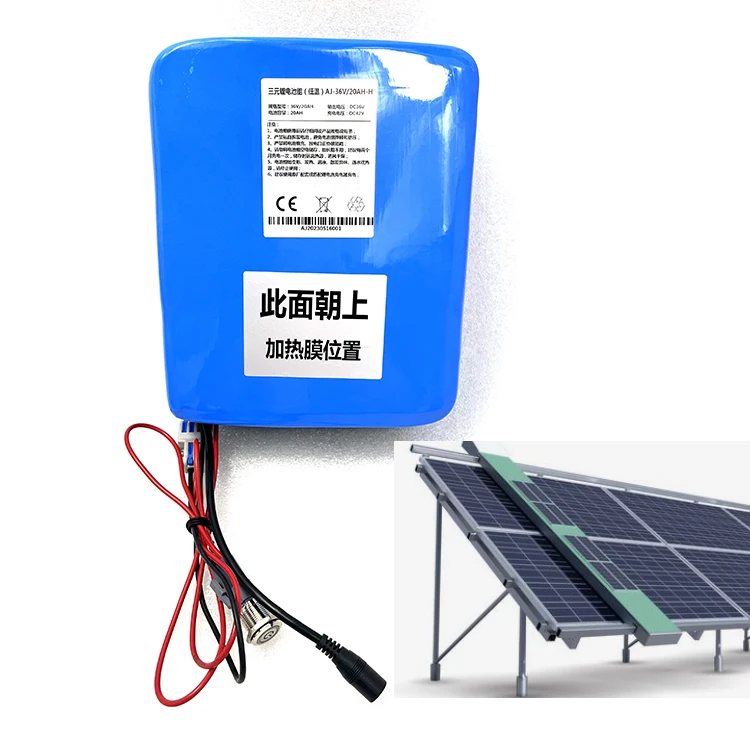

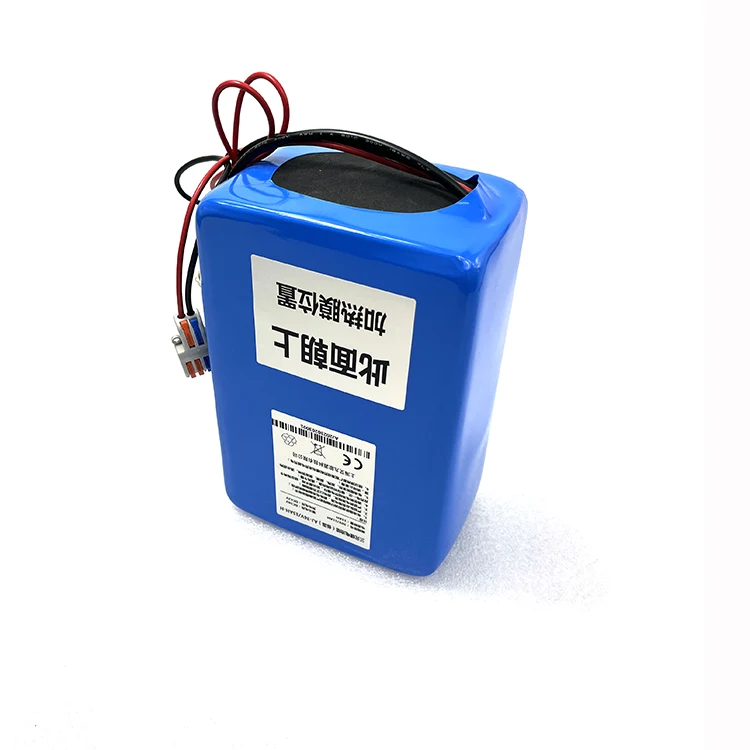

Battery Model | AJ-36V/20AH-H |
Cells Type | 18650 3.7V 2500mAh |
Cells Combinaton | 10S8P |
Battery Capacity | 20AH |
Battery Nominal Voltage | 36V |
Max Charing Voltage | 42V |
Output Voltage Range | 30V→42V |
Discharge Cut-off Voltage | 30V |
Max Continuous Discharge Current | 15A |
Standard Charing Current | 5A |
Max Charing Current | 8A |
Battery Dimension | About 200*180*90-mm |
Battery Weight | About 4.0KGS |

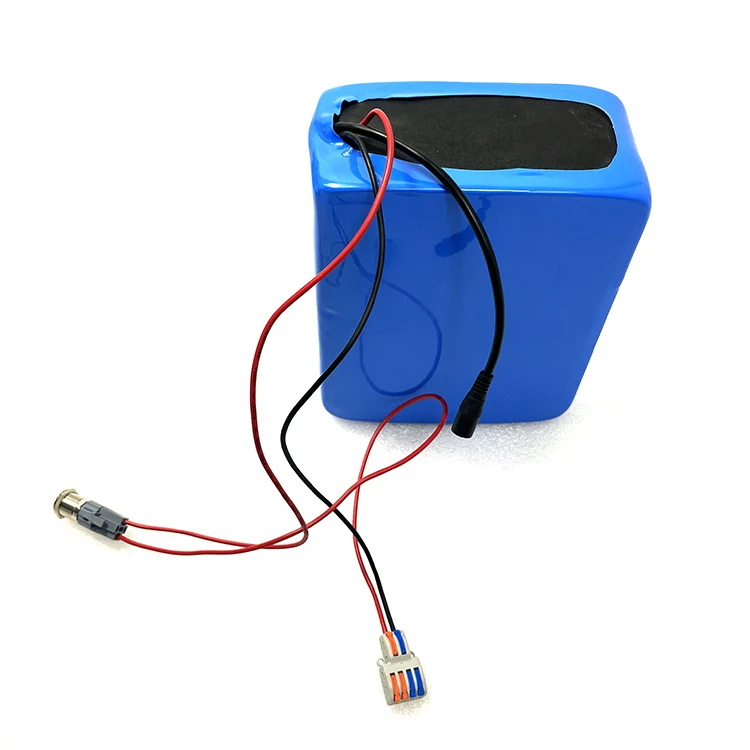

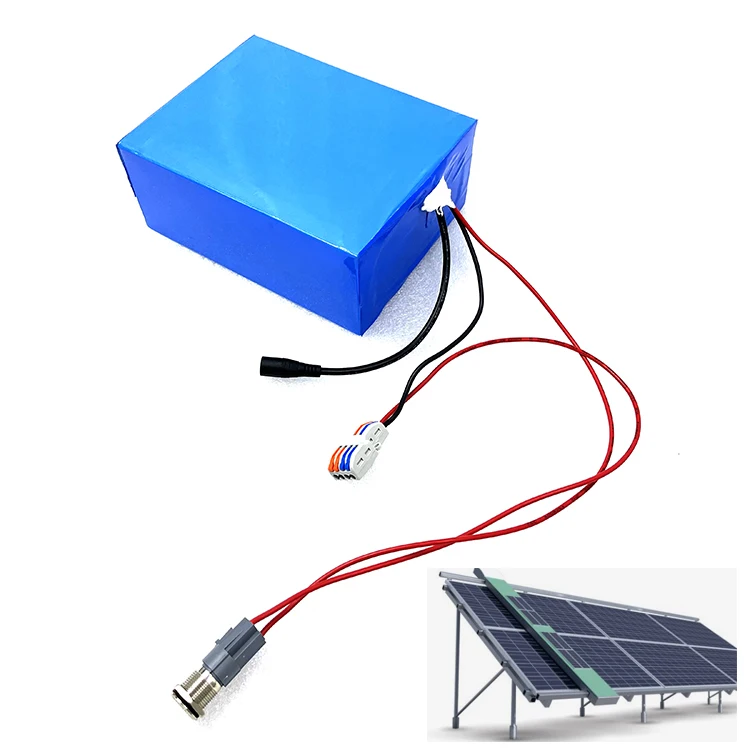

Input Plug | DC5.5*2.5 male or customized |
Output Plug (1) | XT60 female or customized |
Output Plug (2) | XT60 female or customized |

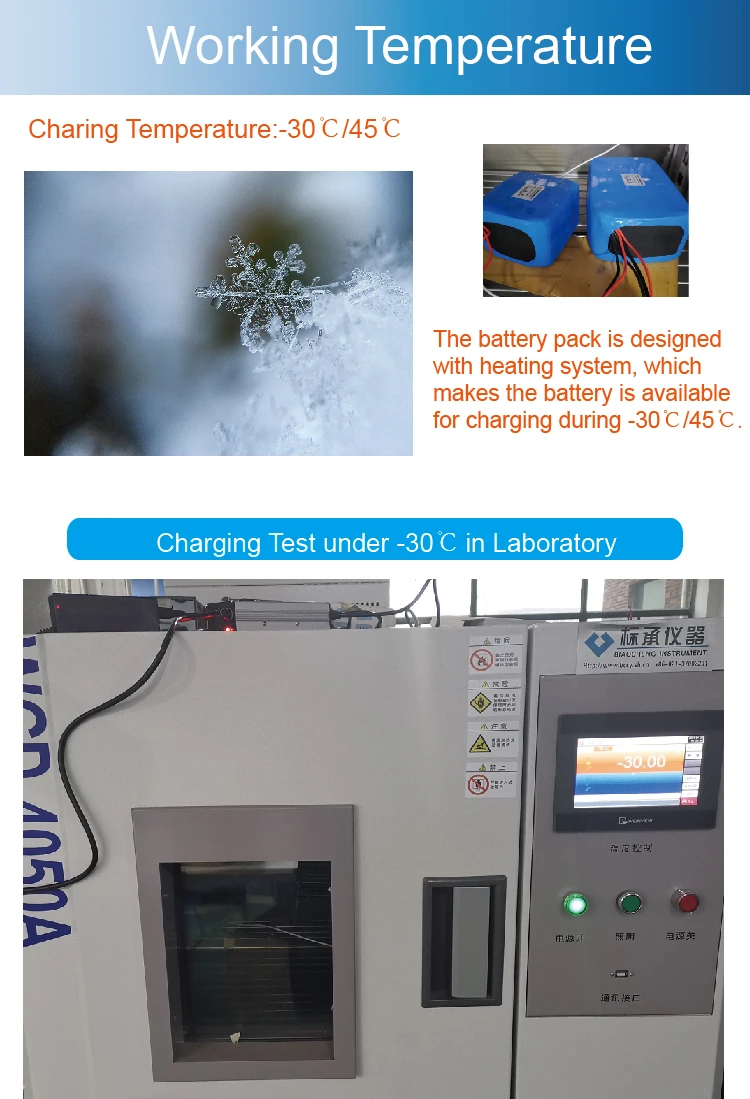

Charing Temperature | -30℃~45℃ |
Discharging Temperature | -20℃~60℃ |
Storage Temperature | 0~40℃ |
Charger | / |

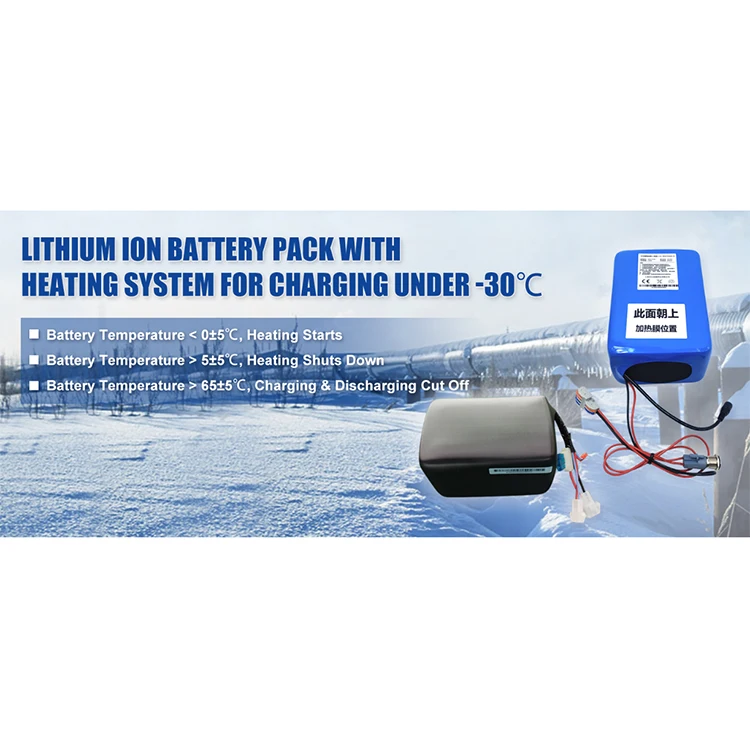

BMS Functions | Protect the battery from over charging ,over discharging, short curcuit and equip with heating system. |
