Kolida K1 Pro/K7 Base Station Rover Price Nfc Functions Gps Surveying RTK

Product Overview

Description

Kolida K1 Pro/K7 672 Channels L-band IMU Survey Gps Antenna System Gnss Receiver Price RTK

Original Hi target Software Can Be Updated At Any Time



Specifications

Portuguese, Spanish, Turkish and user define

30 cm pole extension (with base only)

7-pin to OTG cable

Engineering Star (Windows)

1 year warranty

Field software

- Field Genius (Windows)

- SurvX (Android)

Standard system components

K1 PRO Receiver & built-in battery

Charger and adapter

All-direction antenna

NFC chip in controller)

- S50 (Android)

4G

Compatible with 3G GPRS/ EDGE

NFC

Close range (shorter than 10cm) automatic

pair between receiver and controller (need

typically working range 7-8km

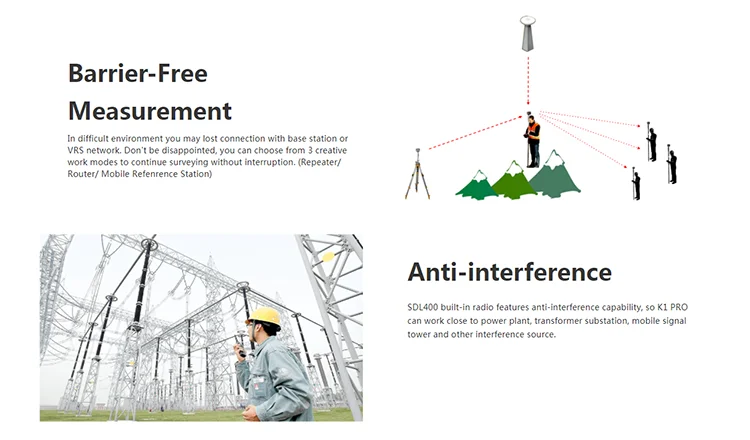

“Barrier-Free” Measurement Technology:

Repeater/ Router

Wifi

802.11 b/g standard

Hotspot: allow device to access in

data link: broadcast differential data

server via Wi-Fi or USB cable

Voice Guide

intelligent voice technology provides status

WebUI

Configure and monitor receiver by web

indication and operation guide

Chinese, English, Korean, Russian,

Cellular module characteristics

WCDMA/ CDMA2000/ TDD-LTE/ FDD-LTE

Tape measure

Optional system components

External Radio (410-470 MHz, 5-35W)

Battery Case SA-6003

Data collectors

- H3 plus (Android), H5 (Android)

- T17N (Windows mobile)

- Engineering Star 5.0 (Android)

1-2 year warranty extension

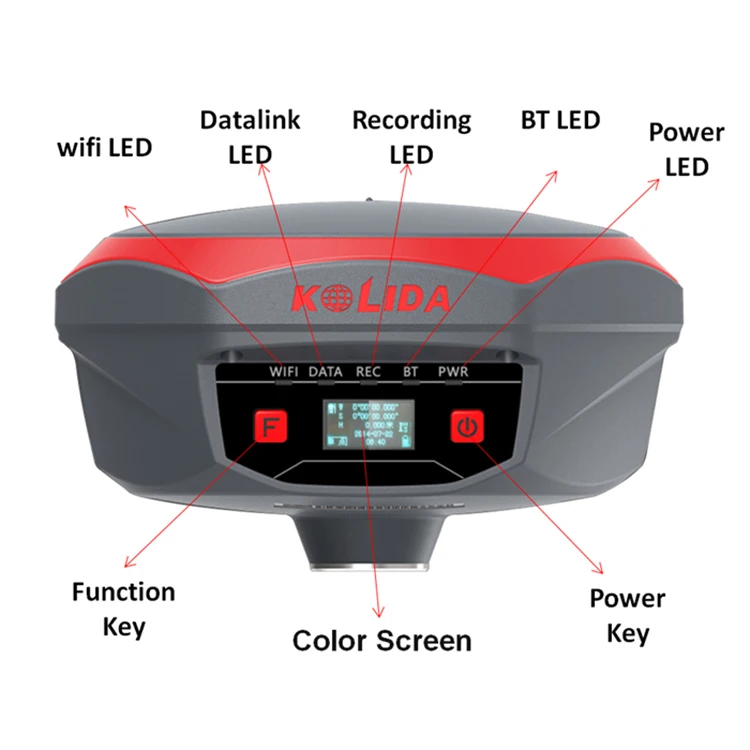

User interface

Five Indicator lights, Two buttons

OLED color screen, 1 inch, 128x64 res.

Linux System

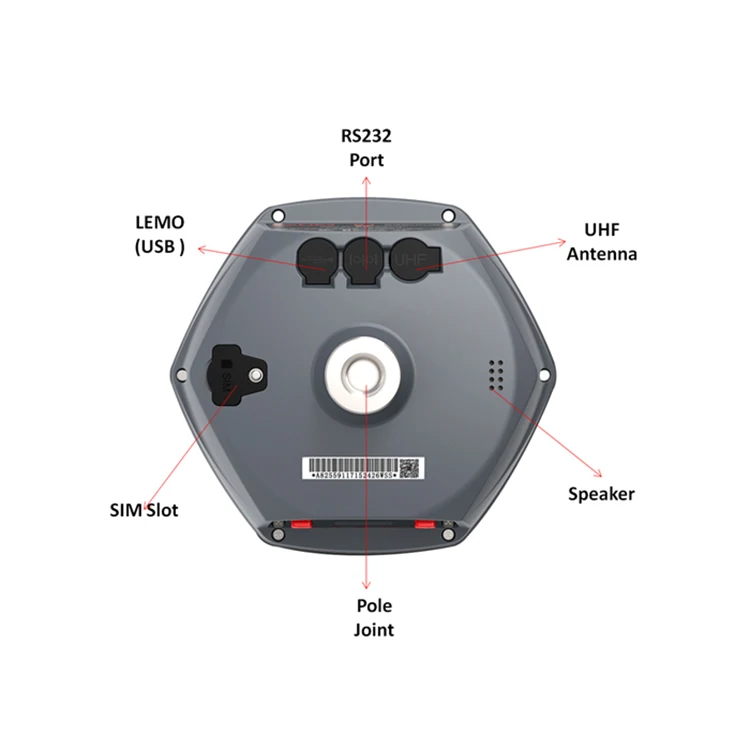

I/O interface

5PIN LEMO external power port+RS232

7PIN external USB(OTG)+Ethernet

Bluetooth 2.1+EDR standard

Bluetooth 4.0 standard, support android,

ios connection

Operation

RTK rover & base

RTK network rover: VRS, FKP, MAC

NTRIP, Direct IP

Post-processing

dust

Drop: 2m pole drop on concrete

Memory

8GB SSD internal storage

Support external USB storage (up to 32 GB)

Automatic cycle storage

Changeable record interval

Up to 50Hz raw data collection

Weight

1.33 kg (with built-in battery)

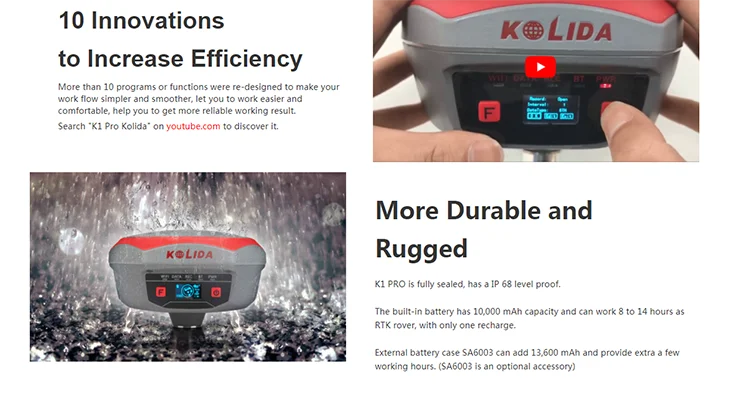

Environmental characteristics

Operating temperature: -45° to +75°C

Storage temperature: -55° to +85°C

Humidity: 100% condensing

IP68 waterproof, sealed against sand and

Power characteristics

Two Li-Ion batteries, 7.4 V, 10,000 mAh

Battery life: >14h (static mode)

>7h (internal UHF base mode)

>8 to 14h (rover mode)

External DC power: 9-28 V

(KOLIDA), Hi-target, CHC, Satel

1W/2W/3W switchable

UHF Radio characteristics

Built-in radio, 120 channels

Frequency Range 410-470MHz

Protocol: TrimTalk450s, TrimMark3, SOUTH

RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1,

- IRNSS: L5 - SBAS: L1C/A, L5

Accuracy: down to 2cm

Output data formats:

NMEA 0183, PJK plane coordinates, Binary

GNSS characteristics

336 GNSS channels (672 channels optional)

- GPS: L1C/A, L1C, L2C, L2E, L5

- BeiDou: B1, B2, B3

Initialization:

- GLONASS: L1C/A, L1P, L2C/A, L2P, L3

(QZSS, WASS, MSAS, GAGAN, EGNOS)

- Global Correction Service (MSS L-Band)

Supported data formats:

time <10s, reliability >99.99%

RTCM 3.2, CMR CMR+

code, Trimble GSOF

L-band Correction Service

Star-fill: 5 minutes, down to 2 cm accuracy

Star-Link: down to 2 cm accuracy (need

subscription)

- Galileo: E1, E5A, E5B, E5AltBOC, E6

Inertial Measurement

Tilt Angle: up to 60 degrees

Positioning Accuracy

Code differential GNSS positioning

Horizontal: ±0.25m+1ppm

Vertical: ±0.50m+1ppm

SBAS: 0.5m (H) 0.85m (V)

Static and Fast Static

Horizontal: ±2.5mm+0.5ppm

Vertical: ±5mm+0.5ppm

Network RTK (VRS, FKP, MAC)

Horizontal: ±8mm+0.5ppm

Vertical: ±15mm+0.5ppm

RTK initialization time

2~8s

Physical characteristics

Size

16.3 x 16.3 x 9.6 cm
