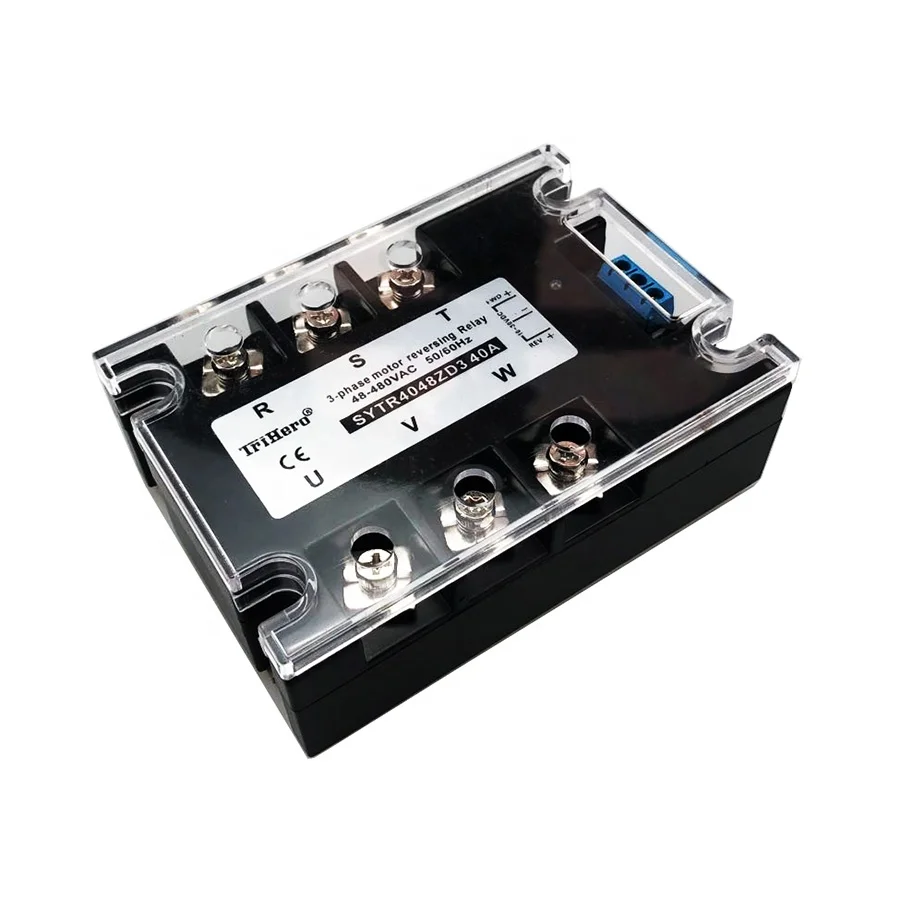

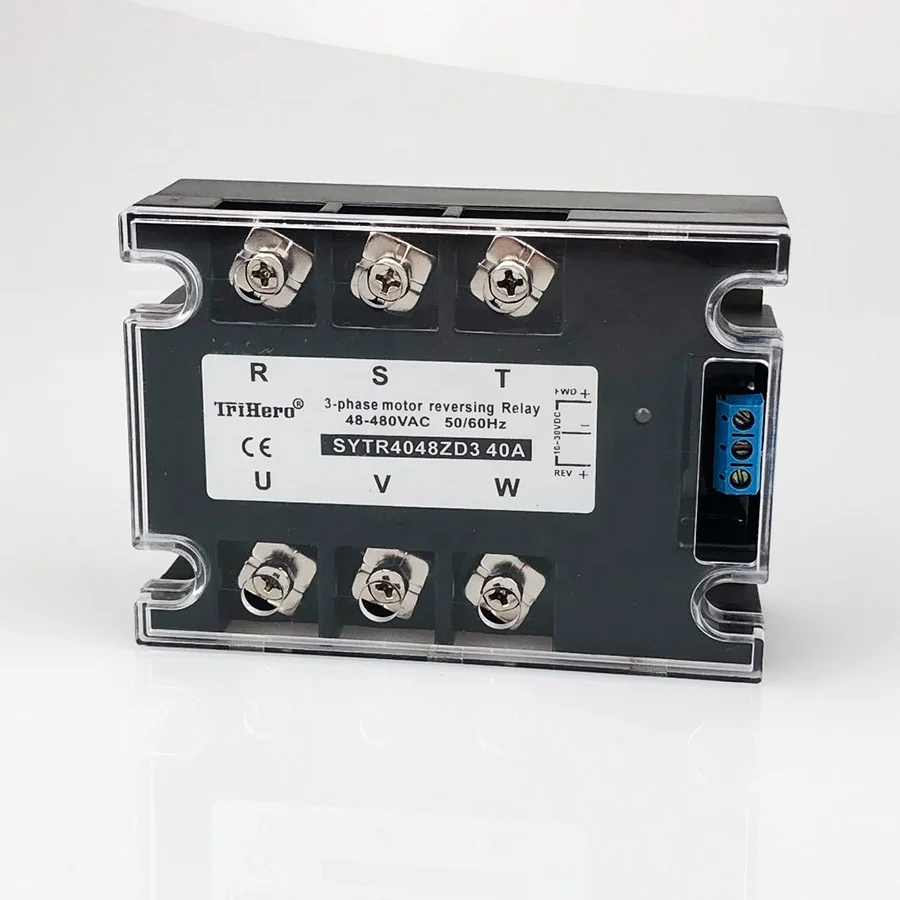

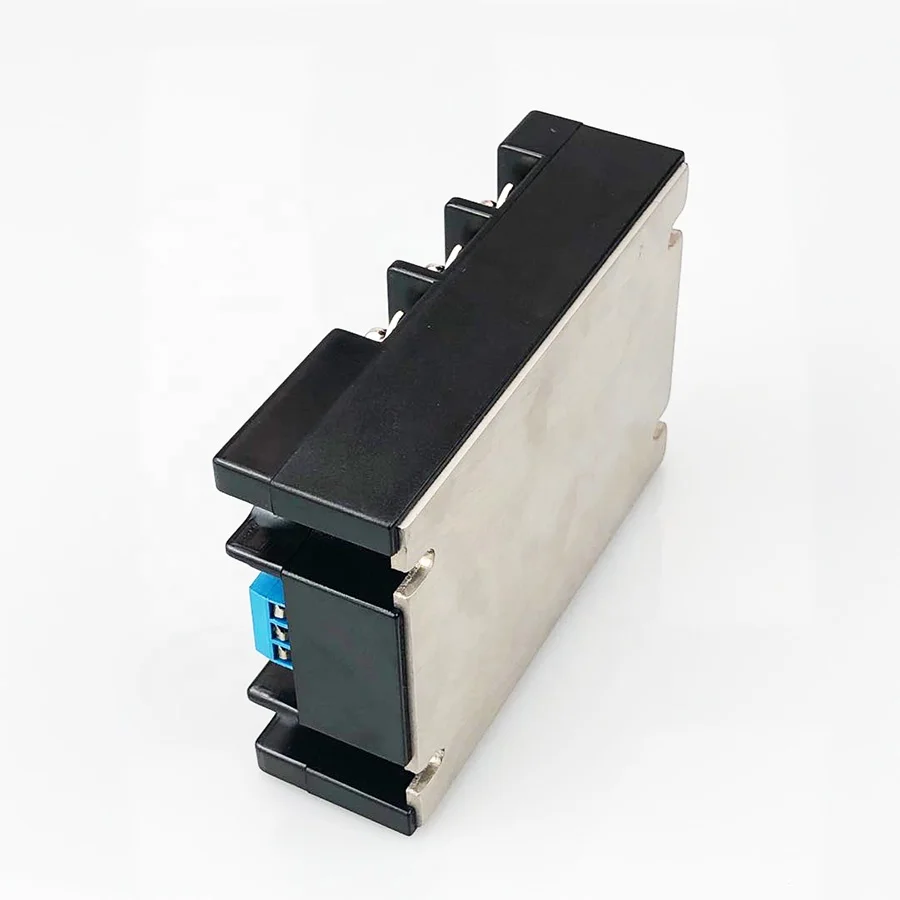

40A Three phase motor control module SSR solid state relay 3 phase solid state motor reverser


Three Phase Motor Reverser is designed to control the direction of rotation of a 3-phase asynchronous motor (Forward or Reverse). This motor reversal relay is designed with a built-in snubbed to protect against voltage spikes (or excessive voltage fluctuation) and to prevent unintentional switching of SSR.


Important Features


- 3 Phase Motor Forward/Reverse Operation Control


- No moving contacts


- Immediate switching/reversal response

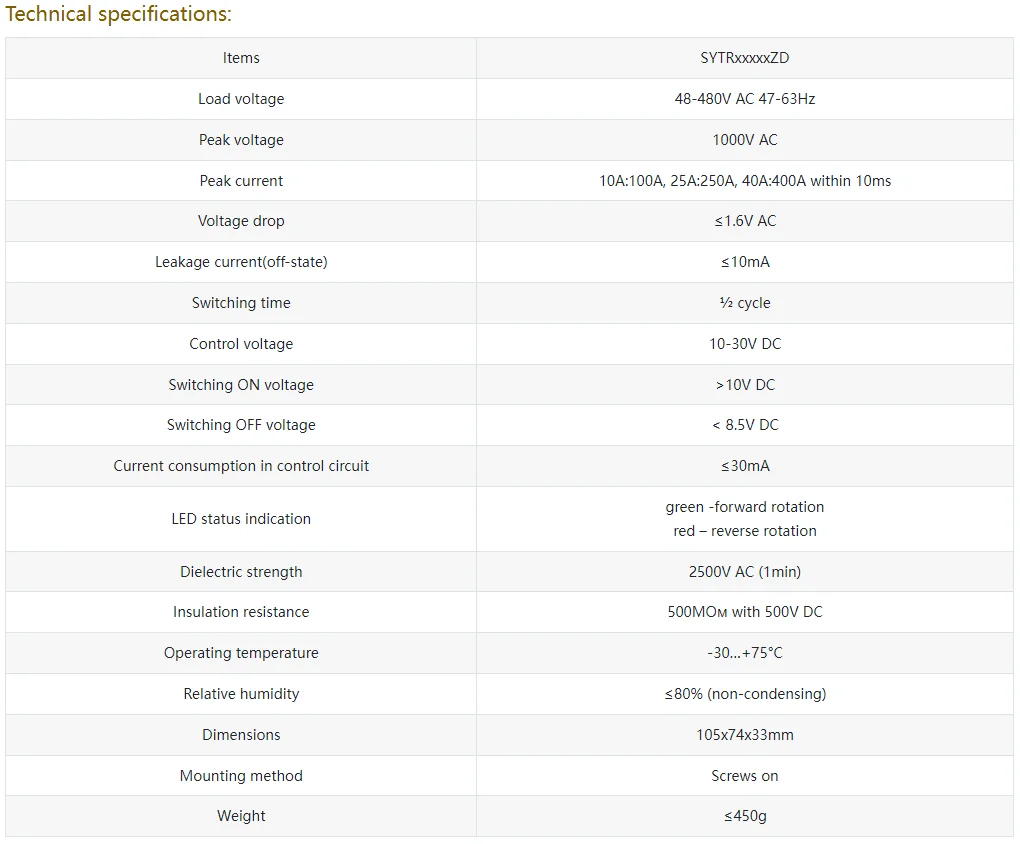

Specifications


- Control Input – 3-32VDC


- Load: 48 – 440 VAC rms, 10-80Amps.


Applications


- Conveyor Belts


- Escalators


- Solar Panels


- Large Antenna


- Assembly Lines
