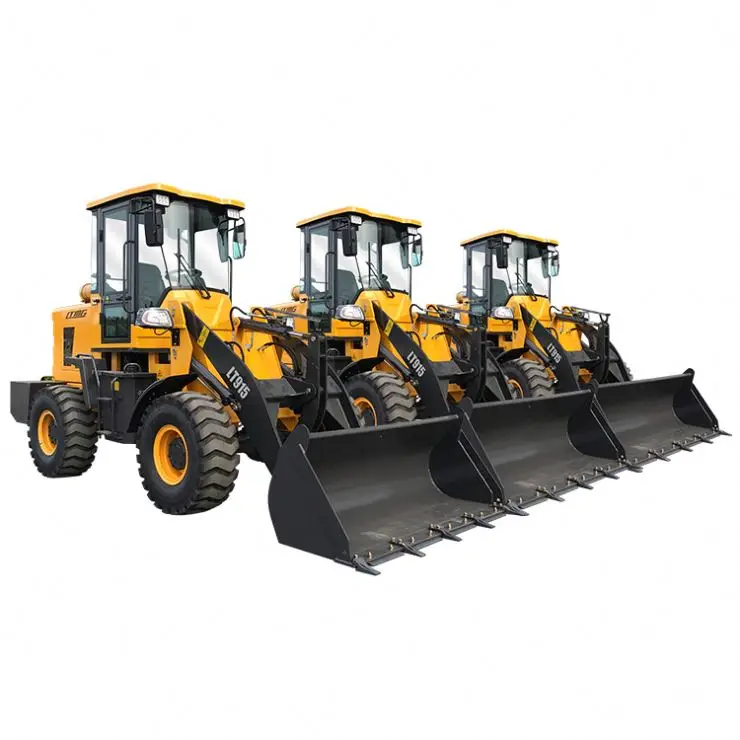

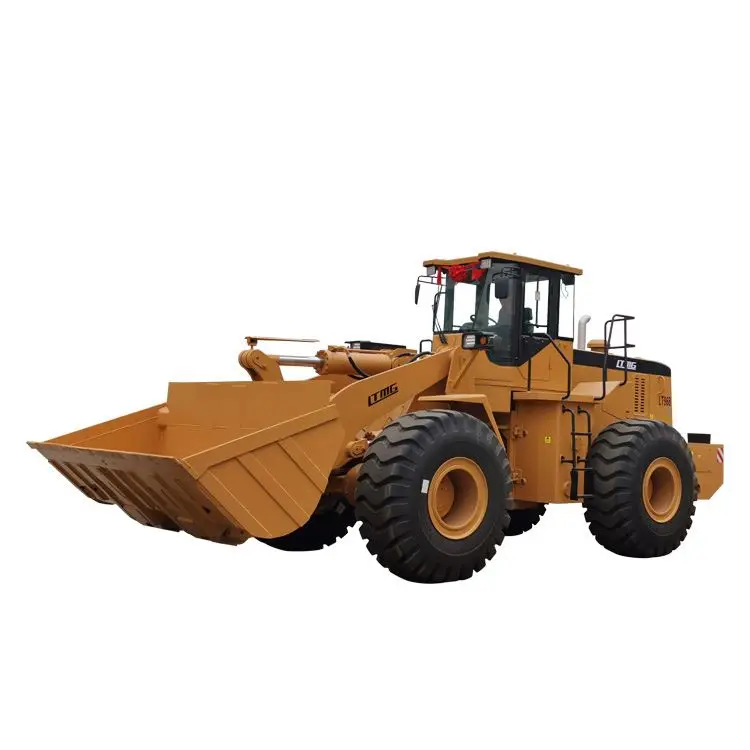

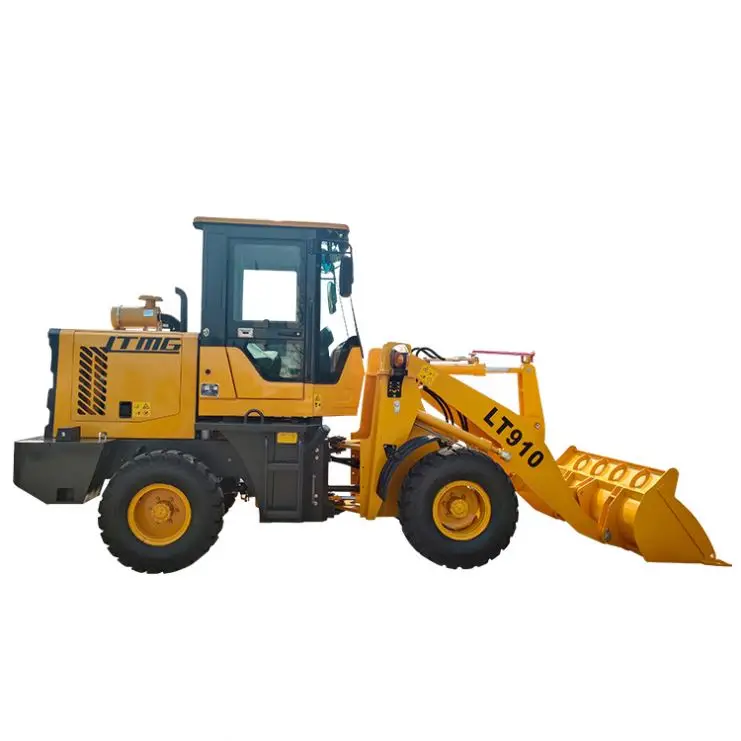

Construction Earth moving machinery small front end payloader compact 1 ton 1.5 ton 2 ton 3 ton 5 ton 6ton wheel loader for sale
- Category: >>>
- Supplier: Shandong Ltmg Heavy Machinery Co. Ltd.
Share on (1600871624570):
Product Overview
Description
Specification

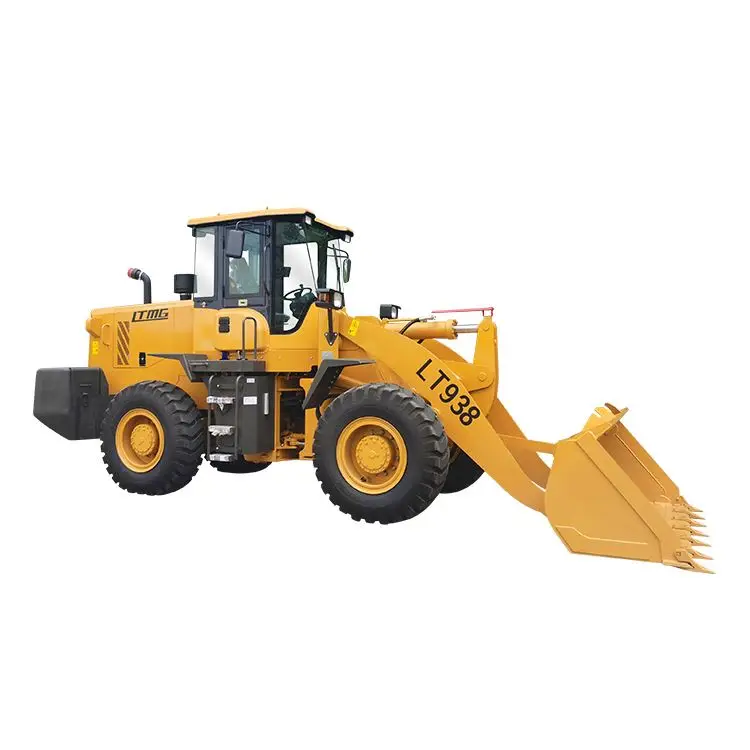

Model | LT938 | LT946 | LT955 | LT956 |
Rated load | 3,500 kg | 4000kg | 5000kg | 5000kg |
Operating weight | 11,200 kg | 12000kg | 16500kg | 16200kg |
Bucket capacity | 2m³ | 2.35m³ | 3m³ | 3m³ |
Dimensions(L*W*H) | 7630*2320*3300mm | 7300x2510x3300mm | 7600*3000*3350mm | 7600*3000*3380mm |
Engine | Deutz WP6G140E22 | Deutz WP6G175E32 | WEICHAI WD10G220E23 | WEICHAI WD10G220E23 |
Rated power | 105kw | 129kw/2200r/min | 162KW/2200r/min | 162KW/2200r/min |
Model | LT958 | LT968 | LT978 | LT988 |
Rated load | 5000kg | 6000kg | 7000 kg | 8000kg |
Operating weight | 17400kg | 19500kg | 22000 kg | 28500kg |
Bucket capacity | 3m³ | 3.5-4.5m³ | 4-5.5 m³ | 7m³ |
Dimensions(L*W*H) | 7970*3000*3540mm | 8250*3210*3640mm | 8810*3030*3780mm | 9100*3000*3640mm |
Engine | WEICHAI WD10G220E23 | WEICHAI WD10G240E21 | WEICHAI WD10G270E201 | |
Rated power | 162KW/2200r/min | 175KW /2200r/min | 199kw | 199KW/2200r/min |

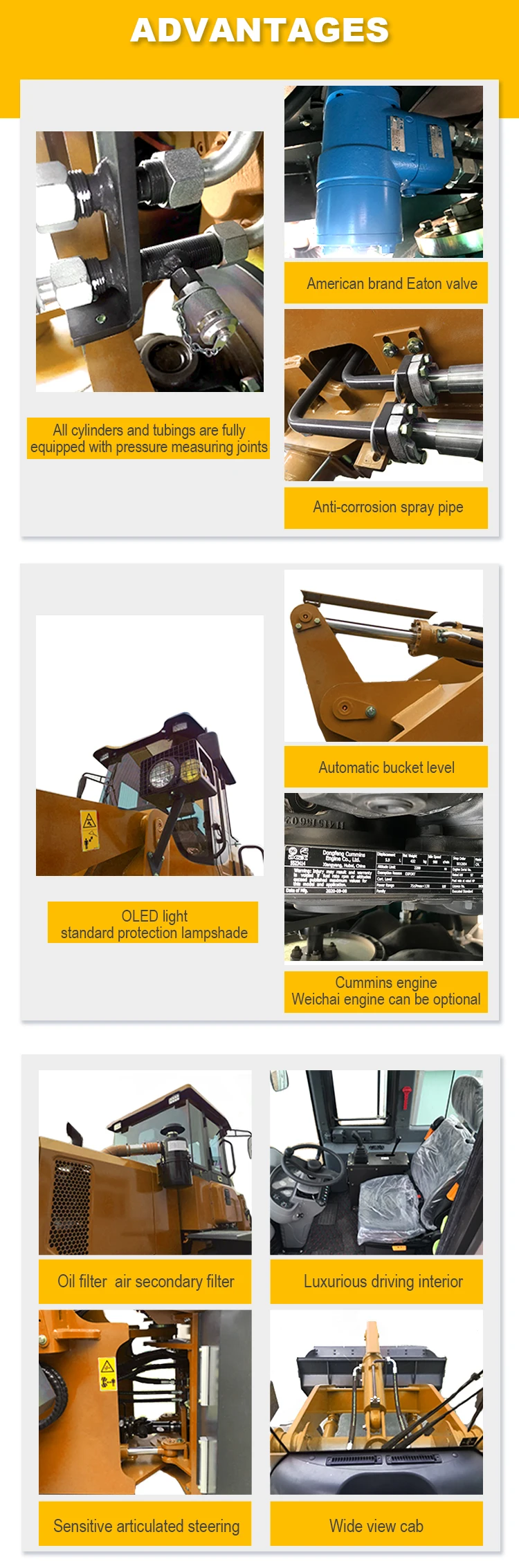

Feature & Advantage
1) Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.
2) Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.
3) Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
4) Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.
5) Load sensing fully hydraulic steering system makes operation easy.
6) Air over hydraulic brake system; Caliper disc brakes.
7) Working device with automatically leveling ability at high position.
8) Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only wheel loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift trucks, excavator and related attachments. We can also customize non-standard products according to customer's
requirements. 3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
